Models AX4 and AX5

Aisin-Warner 4 and 5-Speed Transmission

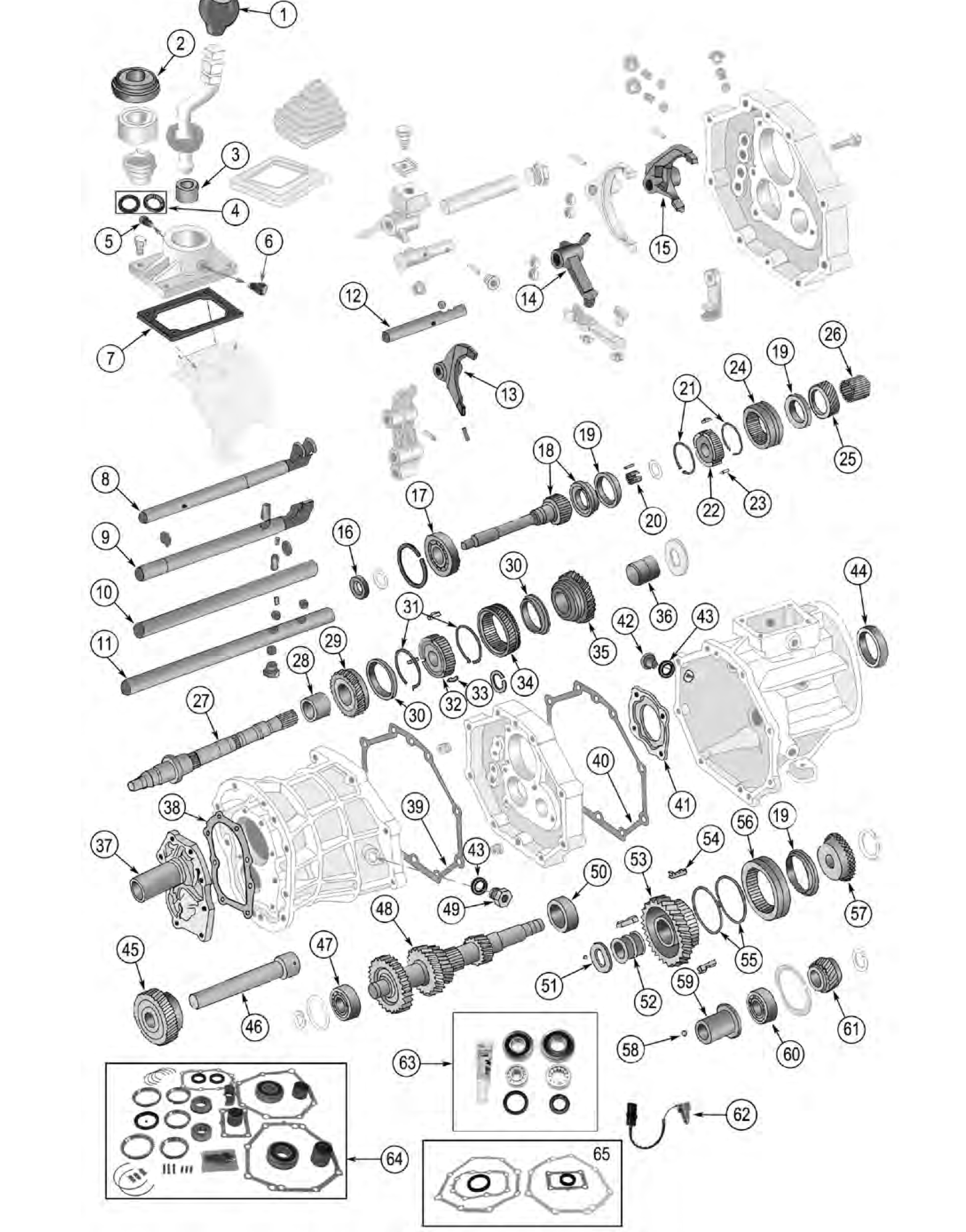

Aisin-Warner AX4 and AX5 transmission. Numbered callouts match the table below.

Item numbers match the diagram. Each part number searches Amazon for that Crown part.

Item #DescriptionCommentsModelPart No.
1 Knob, Shift   AX4 53000504
2 Boot, Gear Shift   AX4, AX5 83500520
3 Bushing, Shift Lever   AX4, AX5 83500519
4 Seal, Shift Retainer   AX4, AX5 4864220X
5 Pin, Reverse Left AX4, AX5 83500516
6 Pin, Reverse Right AX4, AX5 83500515
7 Gasket, Shift Retainer   AX4 83500521
8 Shaft, 3rd and 4th Gear Shift

 		 AX4
AX5		 83506048*
83506047
9 Shaft, 1st and 2nd Gear Shift   AX4, AX5 83506055
10 Shaft, Front Reverse Gear Shift

 		 AX4
AX5		 83506053
83506052
11 Shaft, 5th Gear Shift   AX5 83500538
12 Shaft, Rear Reverse Gear Shift   AX4, AX5 83500536
13 Fork, 5th Gear Shift   AX5 83500637*
14 Fork, Reverse Gear Shift   AX4, AX5 83500526
15 Fork, 1st and 2nd Gear Shift   AX4, AX5 83502662
16 Seal, Input   AX4, AX5 83500501
17 Bearing, Input Shaft
 		 Front; 84/85
Front; 1986		 AX4, AX5
AX4, AX5		 83500643
83502681
18 Shaft, Input
 		 84/85
1986		 AX4, AX5
AX4, AX5		 83500554*
83502682
19 Blocking Ring, Synchronizer
 		 2 Required; 3rd and 4th Gear
3 Required; 3rd, 4th and 5th Gears		 AX4
AX5		 83500566
83500566
20 Needle Bearing, Input Shaft 13 Required AX4, AX5 83502680
21 Spring, 3rd and 4th Gear Synchronizer 2 Required AX4, AX5 83500568
22 Hub, 3rd and 4th Gear Synchronizer   AX4, AX5 83500562
23 Key, 3rd and 4th Gear Synchronizer 3 Required AX4, AX5 83500565
24 Sleeve, 3rd and 4th Gear Synchronizer   AX4, AX5 83500563
25 Gear, 3rd   AX4, AX5 83500552*
26 Bearing, 3rd Gear Caged Roller Bearing AX4, AX5 83500576
27 Main Shaft LHD; 4WD AX4, AX5 83503105
28 Bearing, 2nd Gear Caged Roller Bearing AX4, AX5 83500577
29 Gear, 2nd   AX4, AX5 83500551
30 Blocking Ring, 1st and 2nd Gear Synchronizer 2 Required AX4, AX5 83500567
31 Spring, 1st and 2nd Gear Synchronizer 2 Required AX4, AX5 83500569
32 Hub, 1st and 2nd Gear Synchronizer   AX4, AX5 83500561
33 Key, 1st and 2nd Gear Synchronizer 3 Required AX4, AX5 83500564
34 Gear, 1st and 2nd Reverse Sliding   AX4, AX5 83500555
35 Gear, 1st   AX4, AX5 83500550
36 Bearing, 1st Gear Caged Roller Bearing AX4, AX5 83500578
37 Retainer, Front Bearing   AX4, AX5 83503112
38 Gasket, Input Bearing Retainer   AX4, AX5 83500505
39 Gasket, Case Intermediate Rear AX4, AX5 83500507
40 Gasket, Case Intermediate Front AX4, AX5 83500506
41 Retainer, Rear Bearing     83506034*
42 Plug Oil Filler   AX4, AX5 83500623
43 Gasket, Fill or Drain Plug   AX4, AX5 83500513
44 Seal, Output 4WD AX4, AX5 83503108
45 Gear, Reverse Idler   AX4, AX5 83503555
46 Shaft, Reverse Idler   AX4, AX5 83500570
47 Bearing, Cluster Gear Front AX4, AX5 83506032
48 Cluster Gear   AX4, AX5 83500557
49 Plug, Drain   AX4, AX5 83500512
50 Bearing, Cluster Gear Rear AX4, AX5 83500580
51 Thrust Washer, Cluster Gear   AX4, AX5 83506025
52 Bearing, 5th Gear Caged Roller Bearing AX5 83500644
53 Gear, Counter 5th   AX5 83506022
54 Key, 5th Gear Synchronizer 3 Required AX5 83500641
55 Spring, 5th Gear Synchronizer 2 Required AX5 83500568
56 Synchronizer Sleeve, 5th Gear   AX5 83500642
57 Spacer, 5th Gear   AX5 83500639
58 Ball, Reverse   AX4, AX5 83500573
59 Race, 1st Gear   AX4, AX5 83500560
60 Bearing, Main Shaft Rear AX4, AX5 83500575
61 Gear, Main Shaft 5th   AX5 83500971
62 Switch, Back Up Lamp   AX4, AX5 83500629
63 Bearing and Seal Kit Includes #s 16, 17, 44, 47, 50, 60 and RTV AX5 BKAX5E
64 Master Overhaul Kit Includes #s 19, 21, 23, 26, 28, 30, 31, 33, 36, 47, 52, 54, 58, 63 AX4, AX5 AX4EAX5EMASKIT
65 Gasket and Seal Kit Includes #s 7, 16, 38, 39, 40, 44 AX4, AX5 AXGS

* Not Currently Available
