Frame and Related

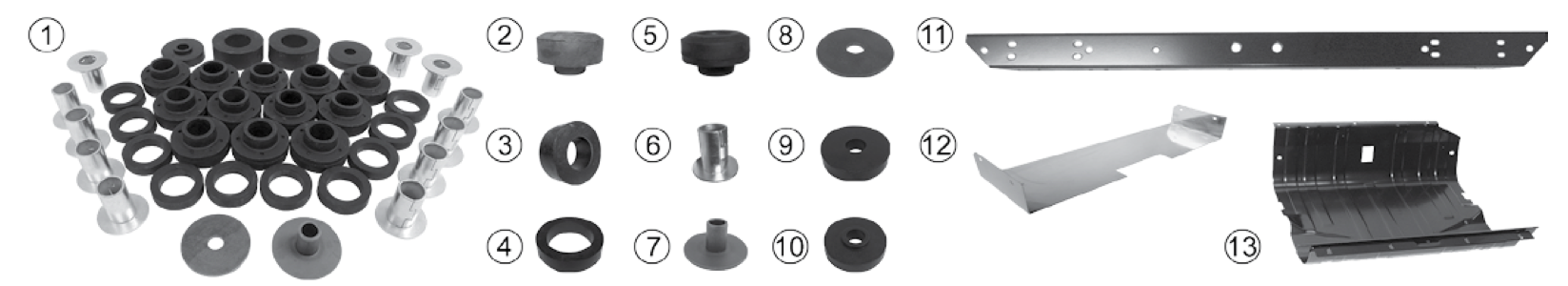

Item numbers match the diagram. Each part number searches Amazon for that Crown part.
| Item # | Description | Years | Models | Comments | Part No. |
|---|---|---|---|---|---|
| 1 | Body Mount Kit | 1979-86 | CJ-5, 7, 8 | w/ Steel Body; Includes Upper and Lower Grille Mount Bushings, Grille Mount Retainer, Grille Mount Washer, Upper and Lower Body Mount Bushings, and Body Mount Retainers | 5462446K |
| 2 | Body Mount Bushing | 1976-76 | CJ-5, 7 | Upper | J5455290 |
| 3 | Body Mount Bushing | 1977-86 | CJ-5, 7, 8 | Upper; 12 Required for CJ-8; 10 Required for CJ-5, 7 | J5462447 |
| 4 | Body Mount Bushing | 1977-86 | CJ-5, 7, 8 | Lower; All Except Front; 10 Required for CJ-8; 8 Required for CJ-5, 7 | J5462446 |
| 5 | Body Mount Bushing | 1979-86 | CJ-5, 7, 8 | Lower; Front; 2 Required | J5459515 |
| 6 | Body Mount Sleeve | 1979-86 | CJ-5, 7, 8 | J5456734 | |
| 7 | Grille Mounting Sleeve | 1979-86 | CJ-5, 7, 8 | J0971673 | |
| 8 | Grille Mounting Washer | 1979-86 | CJ-5, 7, 8 | J0971672 | |
| 9 | Grille Mount Bushing | 1972-86 | CJ-5, 6, 7, 8 | Lower | J0971669 |
| 10 | Grille Mount Bushing | 1972-86 | CJ-5, 6, 7, 8 | Upper | J0972278 |
| 11 | Crossmember | 1976-86 | CJ-5, 7, 8 | Rear | J8127711 |
| 12 | Frame Cover | 1976-86 | CJ-5, 7, 8 | Front, Stainless Steel | RT34030 |
| 13 | Fuel Tank Skid Plate | 1976-86 | CJ-5, 7, 8 | w/ 15 Gallon Fuel Tank | J5357023 |
