Mirrors
CJ-5, CJ-6, CJ-7, CJ-8

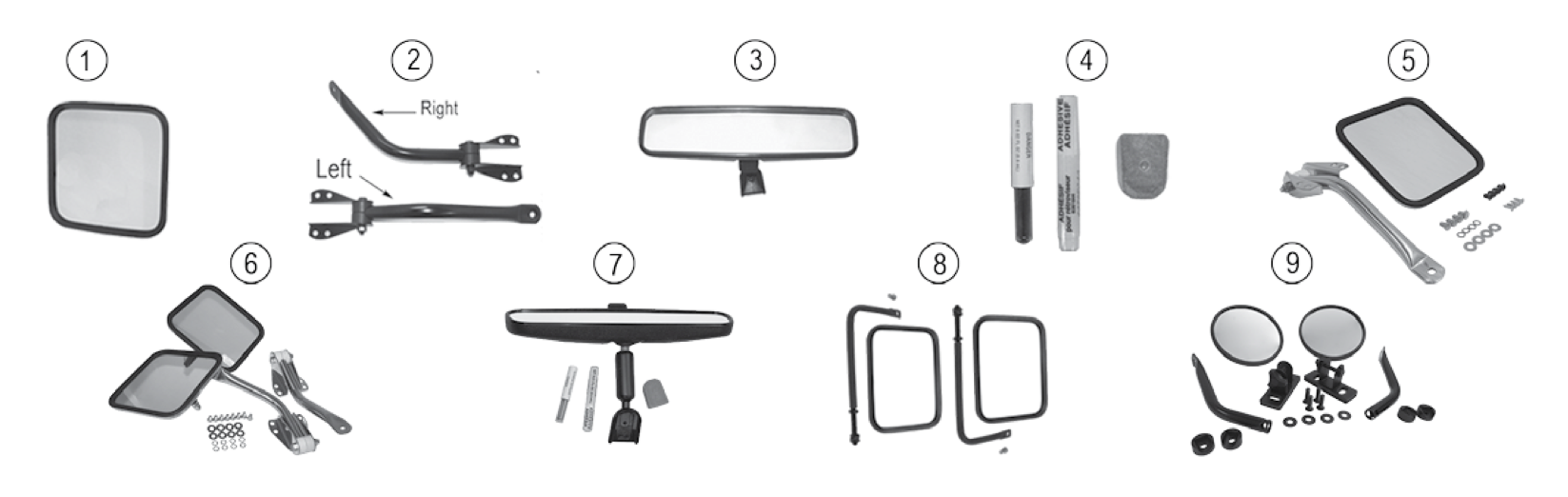

Item numbers match the diagram. Each part number searches Amazon for that Crown part.
| Item # | Description | Years | Position | Comments | Part No. |
|---|---|---|---|---|---|
| 1 | Side Mirror Only |
1955-86 All 1955-86 All |
L or R L or R |
Black Stainless |
J5462736 RT30017 |
| 2 | Arm, Mirror Support |
1955-86 All 1955-86 All 1955-86 All 1955-86 All 1955-86 All 1955-86 All |
Left Right Left Right Left Right |
Black Black Chrome Chrome Stainless Stainless |
J5455301 J5455302 J5751194 J5751195 RT30018 RT30019 |
| 3 | Rearview Mirror |
1955-86 All 1955-86 All |
|
9.75" Wide 8.5" Wide |
J8993023 J5965338 |
| 4 | Support Kit, Rearview Mirror | 1955-86 All | Includes Adhesive and Mount | J3657374 | |
| 5 | Side Mirror and Arm Kit |
1955-86 All 1955-86 All 1955-86 All 1955-86 All 1955-86 All 1955-86 All |
Left Right Left Right Left Right |
Black Black Stainless Stainless Chrome Chrome |
5455301K 5455302K RT30007 RT30009 RT30006 RT30007 |
| 6 | Side Mirror, Complete Set |
1955-86 All 1955-86 All 1976-86 CJ-5, 7, 8 1976-86 CJ-5, 7, 8 |
L & R L & R L & R L & R |
Stainless, Mounts to Front Lower Windshield Hinge Black, Mounts to Front Lower Windshield Hinge Stainless, Mounts to Side Windshield Hinge Black, Mounts to Side Windshield Hinge |
RT30003 5462736K RT30001 RT30002 |
| 7 | Rearview Mirror and Mount Kit |
1955-86 All 1955-86 All |
Incl. Mirror, Mount and Adhesive, 9.75" Mirror Incl. Mirror, Mount and Adhesive, 8.5" Mirror |
|
8993023K 5965338K |
| 8 | Trail Mirror w/ Arm Trail Mirror Set |
1976-86 CJ-5, 7, 8 1976-76 CJ-5, 7, 8 |
L or R, Includes Hardware, Mounts Directly to Door Hinge for use with Doors Off L & R, Includes Hardware, Mounts Directly to Door Hinge for use with Doors Off |
|
RT30004 RT30005 |
| 9 | Quick Release Mirror Set |
1976-86 CJ-7, 8 1976-86 CJ-7, 8 |
Round; L & R; Mounts to the Side of the Upper Windshield Hinge Square; L & R; Mounts to the Side of the Upper Windshield Hinge |
|
RT30020 RT30021 |
