Windshield and Related

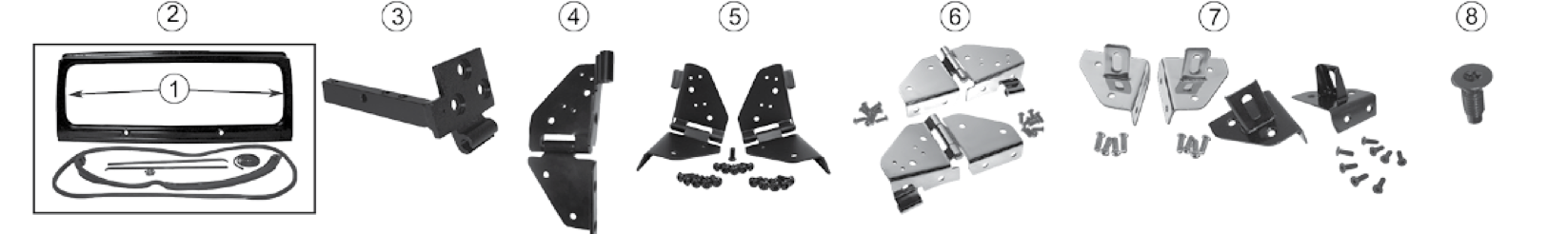

Item numbers match the diagram. Each part number searches Amazon for that Crown part.
| Item # | Description | Years | Models | Location | Comments | Part No. |
|---|---|---|---|---|---|---|
| 1 | Windshield Frame |
1952-69 1969-75 1976-86 |
M38-A1, CJ-5, 6 CJ-5, 6 CJ-5, 7, 8 |
|
w/ Top-Mounted Wipers |
973727 J0987996 J5758971 |
| 2 | Windshield Frame Kit | 1976-86 | CJ-5, 7, 8 | Includes Frame, Weatherstrips, Channel, Torx Screws | 5758971K | |
| 3 | Windshield Hinge |
1955-75 1955-75 |
CJ-5, 6 CJ-5, 6 |
Left Right |
Black Painted Finish, Upper (Windshield Side) Black Painted Finish, Upper (Windshield Side) |
J0688933 J0688934 |
| 4 | Windshield Hinge |
1976-86 1976-86 |
CJ-7, 8 CJ-7, 8 |
Right Left |
Includes Holes for Outside Mirrors Includes Holes for Outside Mirrors |
J5462424 J5462425 |
| 5 | Windshield Hinge Kit | 1976-86 | CJ-5, 7, 8 | L and R | Matte Black Powder Coated; Includes Hardware | RT34096 |
| 6 | Windshield Hinge Kit |
1976-86 1976-86 |
CJ-5, 7, 8 CJ-5, 7, 8 |
L and R L and R |
Black, Includes Hardware Stainless Steel; Includes Hardware |
546242425K RT34017 |
| 7 | Windshield Light Mount Bracket Set |
1976-86 1976-86 |
CJ-5, 7, 8 CJ-5, 7, 7 |
L and R L and R |
Stainless Steel; Includes Hardware Black; Includes Hardware |
RT34018 RT26021 |
| 8 | Windshield Frame Screw Windshield Frame Screw Kit |
1976-86 1976-86 1976-86 |
CJ-5, 7, 8 CJ-5, 7, 8 CJ-5, 7, 8 |
|
16 Required, Black 16 Required, Stainless Steel Includes 16 Screws, Black |
6035757 4004956SS 6035757K |
