1953-1968 CJ-3B
9" x 1-3/4" Brakes - Eccentric Adjusting Type

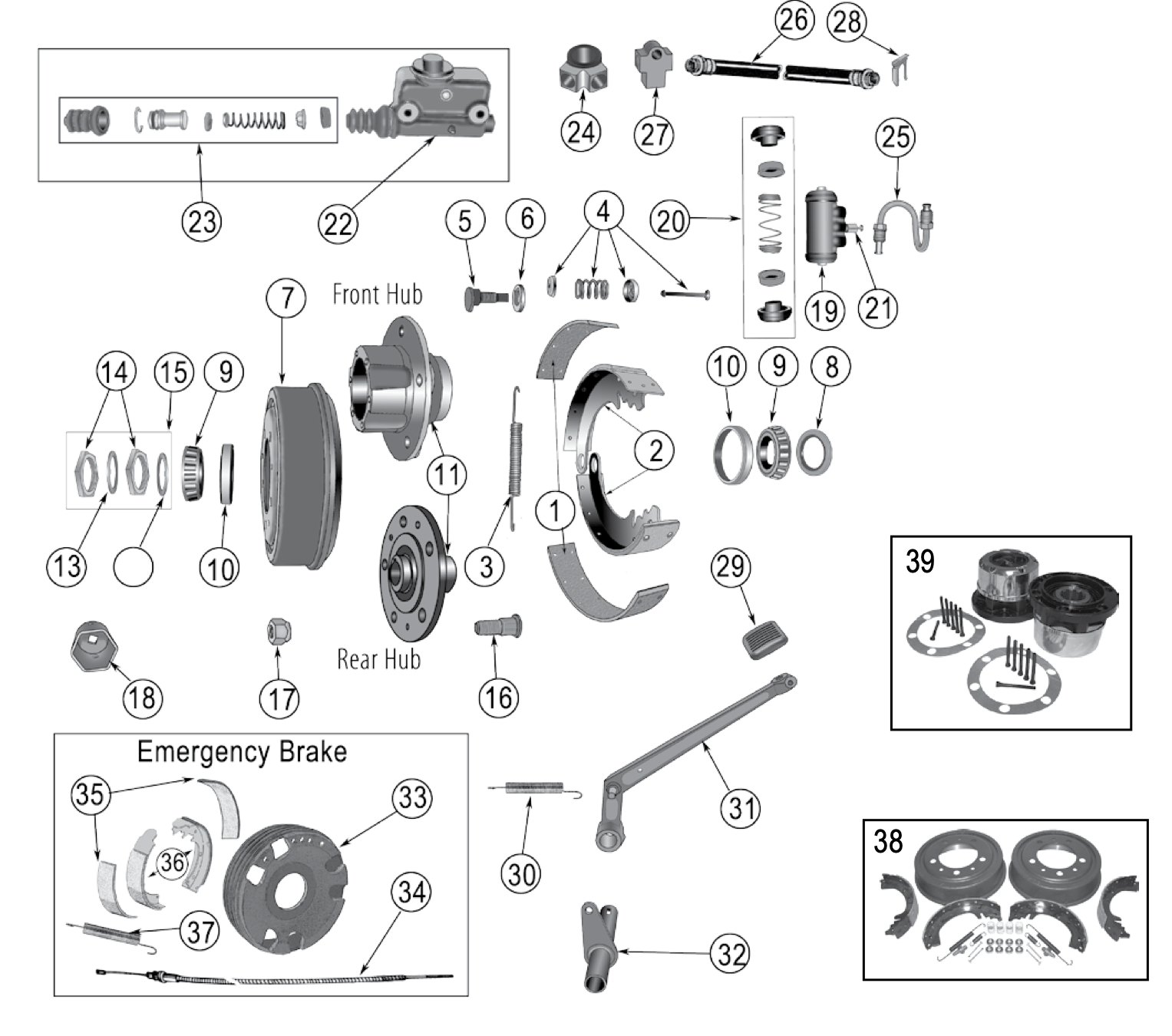

Item numbers match the diagram. Each part number searches Amazon for that Crown part.
| Item # | Description | Location | Comments | Part No. |
|---|---|---|---|---|
| FRONT AND REAR DRUM BRAKES | ||||
| 1 | Lining Set | Front or Rear | Includes 4 Shoe Linings and 40 Rivets | 116600 |
| 2 | Shoe and Lining Set | Front or Rear | J0807376 | |
| 3 | Spring, Shoe Return |
Front or Rear Front or Rear |
Upper Lower |
J0637905 J0805602 |
| 4 | Hold Down Kit, Brake Shoe | Front or Rear | For 1 Wheel | J0120239 |
| 5 | Eccentric, Brake Shoe | Front or Rear | 2 Required Per Wheel | J0805592 |
| 6 | Cam, Anchor | Front or Rear | 2 Required Per Wheel | 637900 |
| 7 | Drum | Front or Rear | Mounts Outside of Hub | J0808770 |
| HUBS, ETC. | ||||
| 8 | Seal, Hub |
Front Front Rear |
w/ Bearings Marked 18590 w/ Bearings Marked LM-501349 |
J0805150 J0938151 J0805150 |
| 9 | Bearing, Wheel |
Front Inner or Outer Front Inner or Outer |
w/ Bearings Marked 18590 w/ Bearings Marked LM-501349 |
J0052942 J3156052 |
| 10 | Cup, Wheel Bearing |
Front Inner or Outer Front Inner or Outer Rear |
w/ Bearings Marked 18590 w/ Bearings Marked LM-501349 |
J0052943 J0925447 J0052800 |
| 11 | Hub |
Front Front Rear |
w/ Bearings Marked 18590; Bare w/ Bearings Marked LM-501349; Includes Cups and Wheel Studs |
J0909548 J8136650 J0811351 |
| 12 | Lock Washer, Wheel Bearing | Front Inner | JA000865 | |
| 13 | Lock Washer, Wheel Bearing | Front Outer | JA000867 | |
| 14 | Nut, Axle Bearing | Front | 2 Required Per Wheel | JA000866 |
| 15 | Axle Nut Kit | Front | Includes #12, 13, and 14 | A867K |
| 16 | Stud, Hub |
Front Front Front Rear Rear |
w/ Bearings Marked 18590; Left Hand Threads w/ Bearings Marked 18590; Right Hand Threads w/ Bearings Marked LM-501349; Right Hand Threads Left Hand Threads Right Hand Threads |
JA000473 J5353025 83503053 JA000473 J5353025 |
| 17 | Wheel Nut |
Front or Rear Front or Rear |
Right Hand Threads Left Hand Threads; 1/2"-20; 13/16" Hex |
J0635516 J0636035 |
| 18 | Socket, Spindle Nut | A692N | ||
| HYDRAULICS | ||||
| 19 | Wheel Cylinder |
Front Left or Right Front Left Front Right Rear Left or Right |
1953-59; w/ Straight Hose Connections; 1" Bore 1960-68; w/ Angled Hose Connections; 1" Bore 1960-68; w/ Angled Hose Connections; 1" Bore 3/4" Bore |
J8126743 J0803639 J0803640 J8126798 |
| 20 | Repair Kit, Wheel Cylinder |
Front Rear |
1" Bore 3/4" Bore |
J0115962 J8136601 |
| 21 | Bleeder Screw, Wheel Cylinder | Front or Rear | J0643841 | |
| 22 | Master Cylinder | w/ Single Reservoir Master Cylinder | J8136618 | |
| 23 | Repair Kit, Master Cylinder | w/ Single Reservoir Master Cylinder | 805654 | |
| 24 | Y-Fitting, Master Cylinder | 1953-59 | JA000557 | |
| HOSES | ||||
| 25 | Tube, Brake | Front | 1953-59; "S" | JA001488 |
| 26 | Brake Hose |
Front Left or Right Front Center Rear Center |
Axle to Knuckle; 6" Long Frame to Axle; 11" Long Frame to Axle; 16" Long |
J0800953 J0800896 J0937884 |
| 27 | Brake Tee | Front or Rear | Mounts to Axle | J0637432 |
| 28 | Clip, Brake Hose | Front or Rear | J0637427 | |
| MISCELLANEOUS | ||||
| 29 | Pad, Brake Pedal | 1957-65; Rubber | J5363508 | |
| 30 | Spring, Brake Pedal Return | w/ Single Reservoir Master Cylinder | J0641723 | |
| 31 | Brake Pedal Assembly | w/ Single Reservoir Master Cylinder | J0800527* | |
| 32 | Shaft, Brake Pedal | 1953-66 | A495 | |
| EMERGENCY BRAKE | ||||
| 33 | Drum, Emergency Brake | A9332 | ||
| 34 | Cable, Emergency Brake |
|
w/ Cane Handle; 44-3/8" Long w/ T-Lever w/ T90 Transmission; 63-5/8" Long w/ T-Lever w/ T98 Transmission; 69" Long |
J0646142 J0906750 J0911693 |
| 35 | Lining Kit, Emergency Brake | 116712* | ||
| 36 | Shoe Set, Emergency Brake | J0643055 | ||
| 37 | Spring, Emergency Brake | J0641727 | ||
| CROWN KITS | ||||
| 38 | Drum Service Kit | Front or Rear | w/ 9" Brakes; Includes Drums, Shoes, Linings and Hardware for 2 Wheels | 808770KL |
| 39 | Manual Locking Hub Set | Front | 400501 | |
* Not Currently Available
