1955-1983 CJ-5, 1955-1975 CJ-6

1955-1965 - 9" x 1-3/4" Eccentric Adjusting Front or Rear
1966-1971 - 10" x 2" Screw Adjusting Front or Rear
1969-1978 - 11" x 2" Bendix Screw Adjusting Front or Rear
1976-1978 - 11-3/4" x 1-1/8" Disc Brake Front
1978-1983 - 11-3/4" x 7/8" Disc Brake Front
1978-1983 - 10" x 1-3/4" Screw Adjusting Rear

Item numbers match the diagrams. Each part number searches Amazon for that Crown part.

Item #	Description	Years	Size	Location	Comments	Part No.

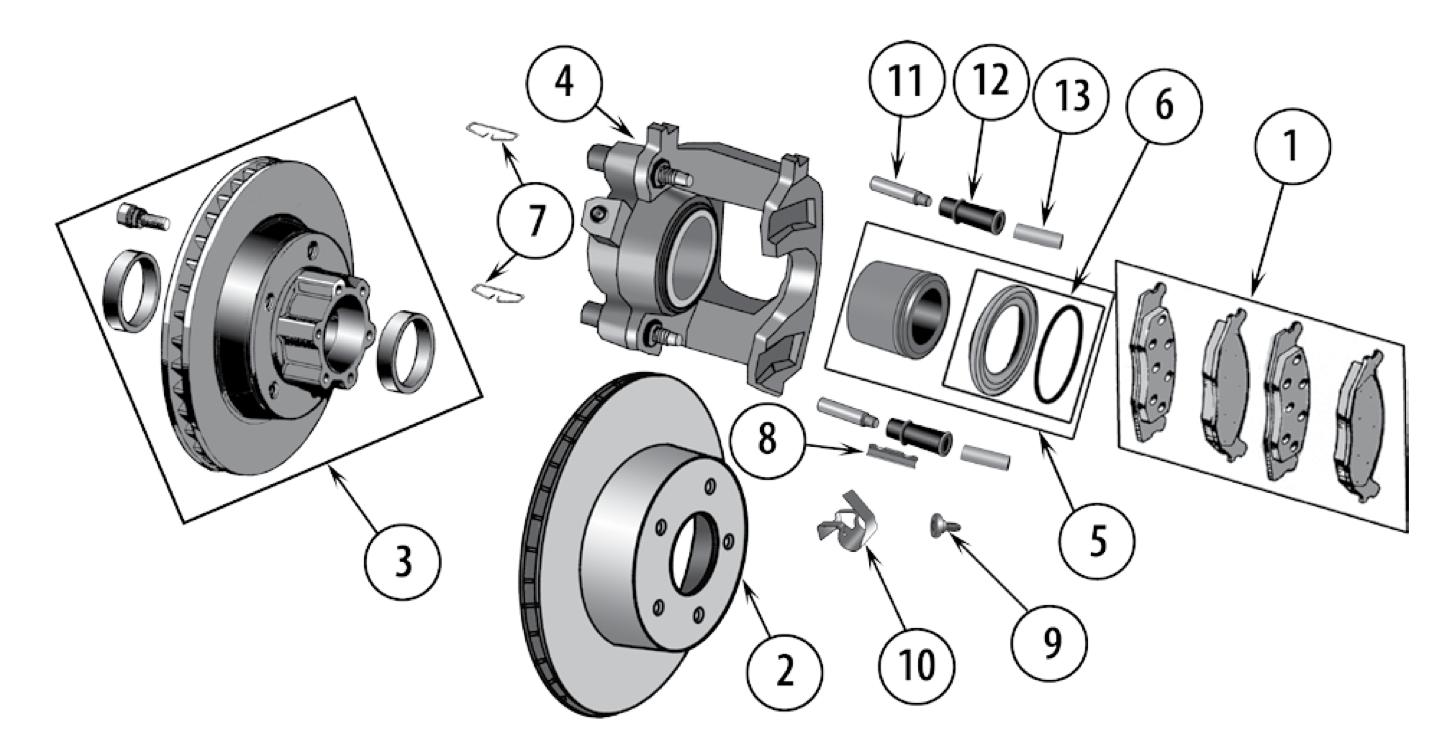

FRONT DISC BRAKES
1	Pad Set	1976-78 1978-81 1982-83			w/ 6-Bolt Caliper Brackets w/ 2-Bolt Caliper Brackets	J8126314 J8131785 83501167
2	Rotor Only	1976-78 1978-83	1-1/8" Thick 7/8" Thick		w/ 6-Bolt Caliper Brackets w/ 2-Bolt Caliper Brackets	5356183R 5363421R
3	Hub and Rotor Assembly	1976-78 1978-81 1981-83	1-1/8" Thick 7/8" Thick 7/8" Thick		w/ 6-Bolt Flange Mounting w/ 6-Bolt Flange Mounting, w/ 2-Bolt Caliper Brackets w/ 5-Bolt Flange Mounting	J5356183 J5358568 J5363421
4	Caliper Assembly	1976-78 1976-78 1978-81 1978-81 1982-83 1982-83		Right Left Right Left Right Left	w/ 6-Bolt Caliper Brackets, Less Pads w/ 6-Bolt Caliper Brackets, Less Pads w/ 2-Bolt Caliper Brackets, Less Pads w/ 2-Bolt Caliper Brackets, Less Pads Less Pads Less Pads	J3229983 J3229982 J8131649 J8131648 J8133846 J8133847
5	Rebuild Kit, Caliper	1976-78 1978-81 1982-83		Left or Right Left or Right Left or Right	w/ 6-Bolt Caliper Brackets, Incl. (1) Each Seal, Boot, Piston w/ 2-Bolt Caliper Brackets, Incl. (1) Each Seal, Boot, Piston Includes (1) Each Seal, Boot, Piston	J8125534 J8127582 J8133845
6	Seal Kit, Caliper	1976-78 1978-81 1982-83		Left or Right Left or Right Left or Right	w/ 6-Bolt Caliper Brackets, Incl. 1 Seal and 1 Boot w/ 2-Bolt Caliper Brackets, Incl. 1 Seal and 1 Boot Includes 1 Seal and 1 Boot	J8126756 J8127583 J8133852
7	Spring, Caliper Support	1976-78 1978-81 1982-83		Left or Right Left or Right Left or Right	w/ 6-Bolt Caliper Brackets; 4 Required w/ 2-Bolt Caliper Brackets; 4 Required Anti-Rattle Clip; 4 Required	J3223413 J3229031 J3239865
8	Key, Caliper Support	1976-78 1978-81		Left or Right Left or Right	w/ 6-Bolt Caliper Brackets w/ 2-Bolt Caliper Brackets	J3223414 J3229032
9	Screw, Caliper Support	1976-81		Left or Right		J3223416
10	Clip, Caliper Support	1978-81		Left or Right		J3229033
11	Pin, Caliper	1982-83		Left or Right		83504655
12	Bushing, Caliper Pin	1982-83		Left or Right	Outer	J3239867
13	Sleeve, Caliper Pin	1982-83		Left or Right	Inner	52001701*

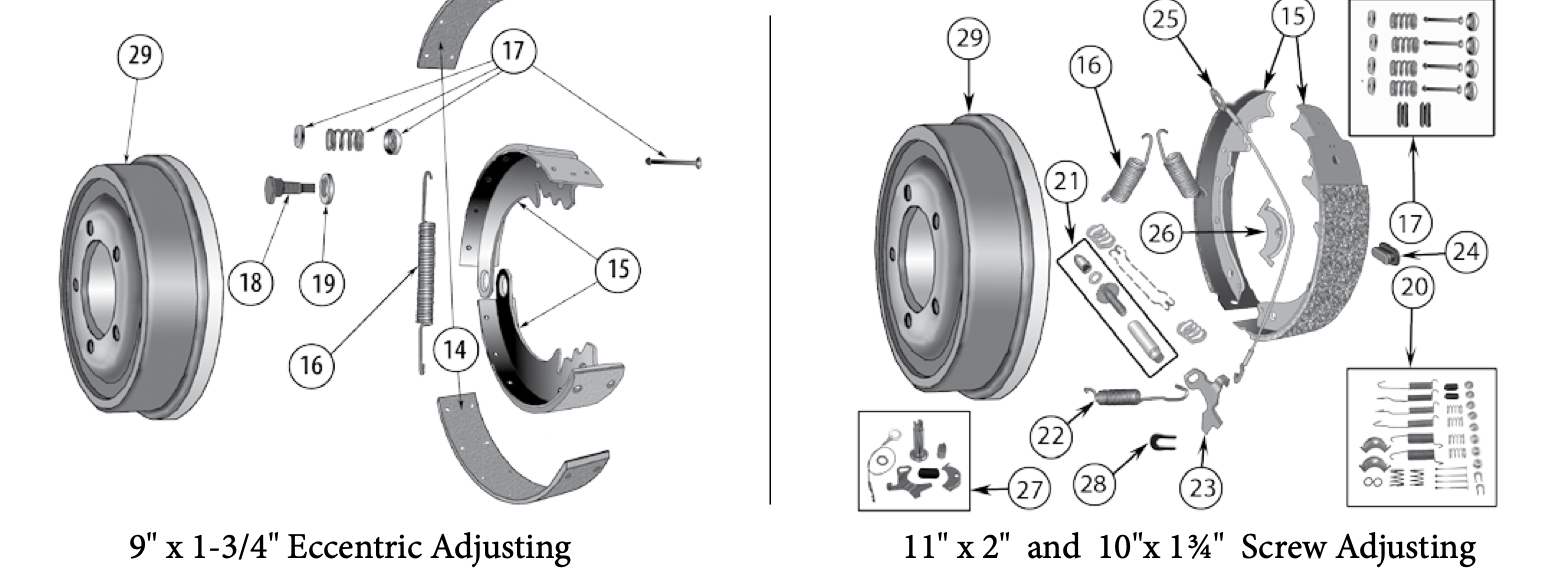

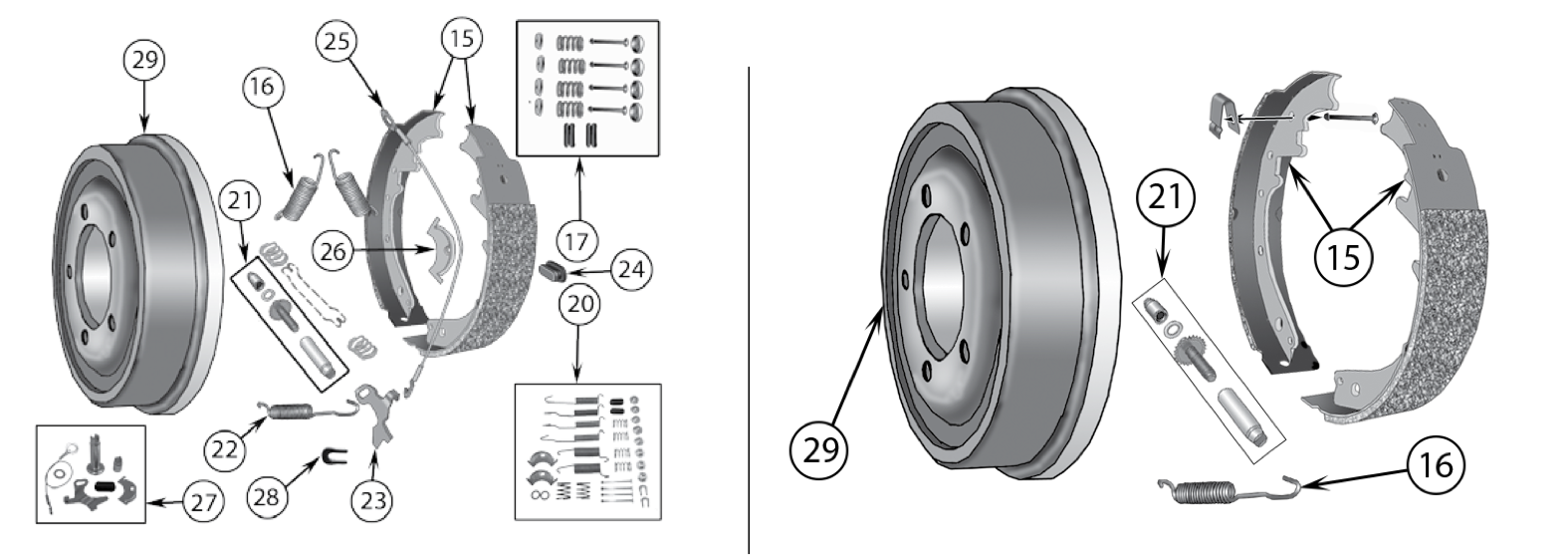

DRUM BRAKES
14	Lining Set	1955-65	9" x 1-3/4"	Front or Rear	Includes 4 Shoe Linings and 40 Rivets	116600
15	Shoe and Lining Set	1955-65 1966-71 1969-78 1978-83	9" x 1-3/4" 10" x 2" 11" x 2" 10" x 1-3/4"	Front or Rear Front or Rear Front or Rear Rear		J0807376 J8120393 J8130067 J8133818
16	Spring, Brake Shoe Return	1955-65 1955-65 1966-71 1969-78	9" x 1-3/4" 9" x 1-3/4" 10" x 2" 11" x 2"	Front or Rear Front or Rear Front or Rear Front or Rear	Lower Upper Upper; 2 Required Per Wheel Upper; 2 Required Per Wheel	J0805602 J0637905 J0938111 J0937953
17	Hold Down Kit, Brake Shoe	1955-65 1969-78	9" x 1-3/4" 11" x 2"	Front or Rear Front or Rear	For 1 Wheel For 2 Wheels	J0120239 J0937952
18	Eccentric, Brake Shoe	1955-65	9" x 1-3/4"	Front or Rear	2 Required Per Wheel	J0805592
19	Cam, Anchor	1955-65	9" x 1-3/4"	Front or Rear	2 Required Per Wheel	637900
20	Small Parts Master Kit	1969-78 1978-83	11" x 2" 10" x 1-3/4"	Front or Rear Rear		5352476HK 4636777
21	Adjuster Kit, Brake Shoe	1966-71 1966-71 1966-71 1966-71 1969-78 1969-78 1978-83 1978-83	10" x 2" 10" x 2" 10" x 2" 10" x 2" 11" x 2" 11" x 2" 10" x 1-3/4" 10" x 1-3/4"	Front Left Front Right Rear Left Rear Right F or R Left F or R Right Rear Left Rear Right		52001215 52001216 52001216 52001215 943131A 943132A 52001216 52001215
22	Spring, Adjusting Screw	1966-71 1969-78 1978-83	10" x 2" 11" x 2" 10" x 1-3/4"	Front or Rear Front or Rear Rear, L or R		J0945306 J0943136 J3201937
23	Lever, Automatic Adjust	1969-78 1969-78	11" x 2" 11" x 2"	F or R Left F or R Right		J0943140 J0943141
24	Cover, Drum Adjuster	1978-83	10" x 1¾"	Rear L or R		J3201957
25	Cable, Automatic Adjust	1969-78	11" x 2"	Front or Rear		J0943138
26	Guide, Automatic Adjust Cable	1969-78	11" x 2"	Front or Rear		J3201947
27	Brake Adjusting Kit	1969-78 1969 -78	11" x 2" 11’ x 2"	Rear Right Rear Left		H2541 H2540
28	Retainer, Lever	1981-86	10" x 1¾"	Rear L or R		J3108202
29	Drum	1955-65 1966-71 1972-74 1974-78 1971-75 1974-75 1976-78 1978-83	9" x 1¾" 10" x 2" 11" x 2" 11" x 2" 11" x 2" 11" x 2" 11" x 2" 10" x 1¾"	Front or Rear Front or Rear Front Front Rear Rear Rear Rear	Mounts Outside of Hub Smooth Finned w/ Flanged Dana 44; Smooth w/ Flanged Dana 44; Finned	J0808770 J0994306 J0999728 J5352476 J0999728 J5352476 J5352476 52002952

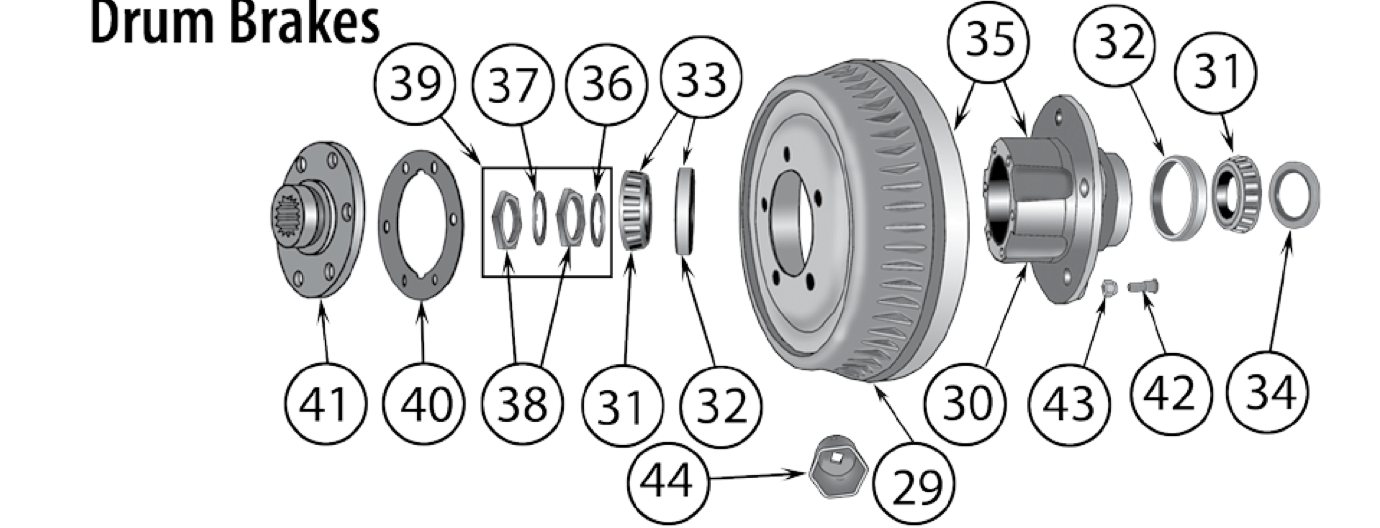

HUBS, ETC.
30	Hub	1955-65 1955-65 1966-75 1976 1976 1977-78 1978-81 1981-83 1955-69 1976-83	All All Drum Drum Drum Drum Disc Disc All All	Front Front Front Front Front Front Front Front Rear Rear	w/ Bearings Marked 18590; Bare w/ Bearings Marked LM-501349; Includes Cups and Wheel Studs Includes Cups and Wheel Studs w/ 1-5/8" Inner Wheel Bearing Cup; Includes Cups and Wheel Studs w/ 1-3/4" Inner Wheel Bearing Cup; Includes Cups and Wheel Studs Includes Cups and Wheel Studs w/ 6-Bolt Flange Mounting; Includes Cups w/ 5-Bolt Flange Mounting; Includes Cups and Wheel Studs w/ Dana 44 Tapered Axles; Bare w/ AMC 20; Includes Wheel Studs	J0909548 J8136650 J8136650 J8136650 J8136651 J8136651 5358568H 5363421H J0811351 J8133730
31	Bearing, Wheel	1955-65 1955-65 1966-76 1976-83 1966-83	All All All All All	Front Inner or Outer Front Inner or Outer Front Inner Front Inner Front Outer	w/ Bearing Marked 18590 w/ Bearing Marked LM-501349 w/ 1-5/8" O.D. Cup- LM-501349 w/ 1-3/4" O.D. Cup- LM-120949 w/ 1-5/8" O.D. Cup- LM-501349	J0052942 J3156052 J3156052 J5356661 J3156052
32	Cup, Wheel Bearing	1955-65 1955-65 1966-76 1976-83 1966-83	All All All All All	Front Inner or Outer Front Inner or Outer Front Inner Front Inner Front Outer	w/ Bearings Marked 18590 w/ Bearings Marked LM-501349 1-5/8" O.D. - LM-501349 1-3/4" O.D. - LM-120949 1-5/8" O.D. - LM-501349	J0052943 J0925447 J0925447 J8127630 J0925447
33	Bearing Set, Wheel	1976-83	All	Front Outer	Includes J0925447 and J3156052	SET45
34	Seal, Hub	1955-65 1955-65 1966-75 1976 1976-83	All All All All All	Front Front Front Front Front	w/ Bearings Marked 18590 w/ Bearings Marked LM-501349 Used w/ 1-5/8" O.D. Cup Used w/ 1-3/4" O.D. Cup	J0805150 J0938151 J0938151 J0938151 J5365082
35	Hub and Drum Assembly	1976-78 1978-83	11" x 2" 10" x 1-3/4"	Rear Rear	w/ AMC 20 Axle w/ AMC 20 Axle	J5355714 J5359029
36	Lock Washer, Wheel Bearing	1955-83	All	Front Inner		JA000865
37	Lock Washer, Wheel Bearing	1955-83	All	Front Outer		JA000867
38	Nut, Axle Bearing	1955-83	All	Front	2 Required Per Wheel	JA000866
39	Washer and Nut Kit, Spindle	1955-83		Front	Includes 2 Spindle Nuts and 2 Washers	A867K
40	Gasket, Hub Flange	1972-81 1981-83	All All	Front Front	w/ 6 Bolts w/ 5 Bolts	J0649784 J5362001
41	Flange, Front Hub	1972-81 1981-83	All All	Front Front	w/ 6 Bolts w/ 5 Bolts	J0999396 J5362000
42	Stud, Wheel	1955-65 1955-65 1955-65 1966-71 1972-78 1977-86 1955-71 1955-71 1969-75 1976-83	All All All All Drum Disc All All All All	Front Front Front Front Front Front Rear Rear Rear Rear	w/ Bearings Marked 18590; Left Hand Threads w/ Bearings Marked 18590; Right Hand Threads w/ Bearings Marked LM-501349; Right Hand Threads w/ Tapered Axle Shafts; Left Hand Threads w/ Tapered Axle Shafts; Right Hand Threads w/ Flanged Axle Shafts w/ AMC 20	JA000473 J5353025 83503053 J0945451 J5353025 J5357196 JA000473 J5353025 J5355719 J5355719
43	Wheel Nut	1955-83 1955-71 1977-83	All All All	Front or Rear Front or Rear Front or Rear	Right Hand Threads; Open-Ended; 1/2"-20 Left Hand Threads; Open-Ended; 1/2"-20 Right Hand Threads; Chrome Capped; 1/2"-20	J0635516 J0636035 J4005694
44	Socket, Spindle Nut	1955-83	All	Front		A692N
45	Locking Hub Set	1955-71 1972-81 1981-83	All All All	Front Front Front	w/ 6 Bolts w/ 5 Bolts	400501 400502 400526

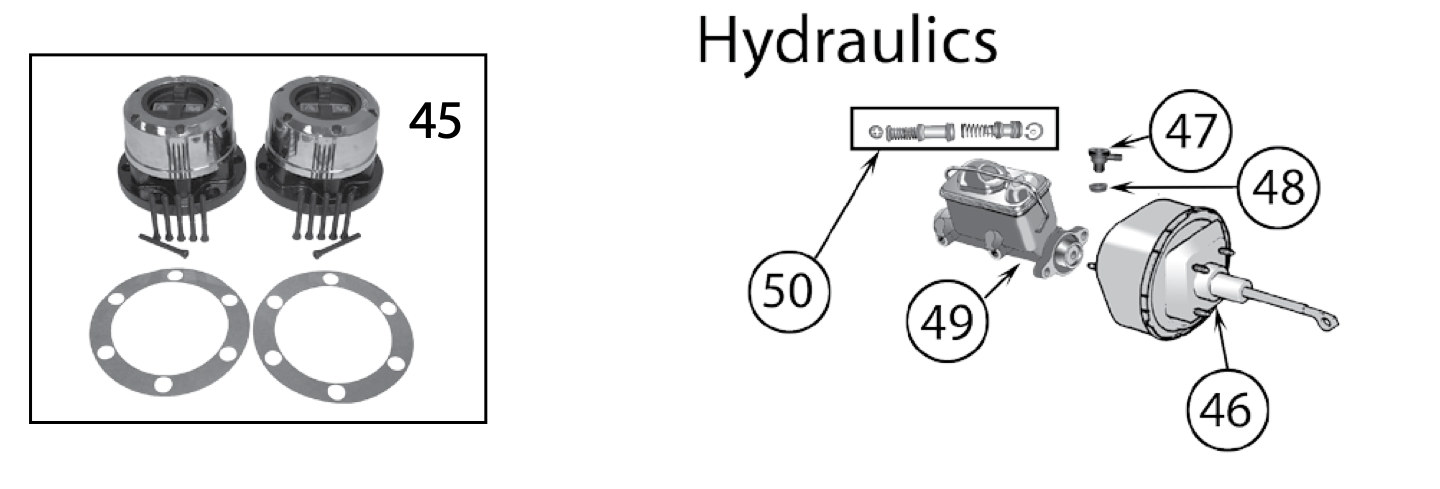

HYDRAULICS
46	Booster, Brake	1982-83			Includes Boot	J8133909
47	Valve, Brake Booster Check	1982-83			w/ Power Brakes	J4487455
48	Grommet, Brake Booster	1982-83			w/ Power Brakes	4723640
49	Master Cylinder	1955-65 1966-71 1968-75 1976 1977-78 1977-78 1978-83 1977-78 1978-83	9" x 1-3/4" 10" x 2" 11" x 2" Drum Disc Disc Disc Disc Disc		w/ Single Reservoir Master Cylinder w/ Dual Reservoir Master Cylinder w/o Power Brakes w/o Power Brakes w/o Power Brakes w/ 6-Bolt Caliper Brackets w/o Power Brakes w/ 2-Bolt Caliper Brackets w/ Power Brakes w/ 2-Bolt Caliper Brackets w/ Power Brakes w/ 2-Bolt Caliper Brackets	J8136618 J0945556 J8126737 J8127792 J8127792 83300115 J8134270 J8127821 83300111
50	Repair Kit, Master Cylinder	1955-65 1966-71 1968-75 1976 1977-78 1978-83 1978-83 1984-86	9" x 1-3/4" 10" x 2" 11" x 2" Drum Disc Disc Disc		w/ Single Reservoir Master Cylinder w/ Dual Reservoir Master Cylinder w/o Power Brakes w/ Power Brakes w/ 2-Bolt Caliper Brackets w/o Power Brakes w/ 2-Bolt Caliper Brackets	805654 J8126747 J8126747 J8127772 J8127772 J8134247 J8134266 83500896

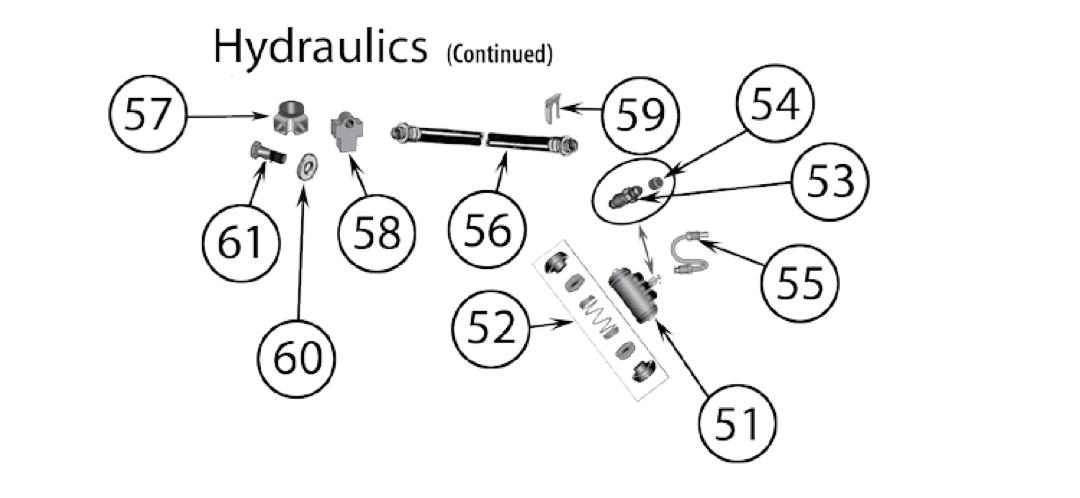

51	Wheel Cylinder	1955-59 1960-65 1960-65 1966-71 1966-71 1969-78 1969-78 1955-65 1966-71 1966-71 1969-75 1969-75 1976-78 1976-78 1978-83 1978-83	9" x 1-3/4" 9" x 1-3/4" 9" x 1-3/4" 10" x 2" 10" x 2" 11" x 2" 11" x 2" 9" x 1-3/4" 10" x 2" 10" x 2" 11" x 2" 11" x 2" 11" x 2" 11" x 2" 10" x 1-3/4" 10" x 1-3/4"	Front L or R Front Left Front Right Front L or R Front L or R Front Left Front Right Rear L or R Left Rear Right Rear Left Rear Right Rear Left Rear Right Rear Left Rear Right Rear	w/ Straight Hose Connections; 1" Bore w/ Angled Hose Connections; 1" Bore w/ Angled Hose Connections; 1" Bore 1" Bore 1-1/8" Bore 1-1/8" Bore 1-1/8" Bore 3/4" Bore 13/16" Bore 13/16" Bore 15/16" Bore 15/16" Bore 7/8" Bore 7/8" Bore 7/8" Bore 7/8" Bore	J8126743 J0803639 J0803640 J0938115 J0991526 J8126766 J8126692 J8126798 J8126744 J8136612 J8126775 J8124799 52000849 52000848 52000849 52000848
52	Repair Kit, Wheel Cylinder	1955-65 1966-71 1966-71 1969-78 1955-65 1966-71 1969-78 1969-78 1969-78 1978-83	9" x 1-3/4" 10" x 2" 10" x 2" 11" x 2" 9" x 1-3/4" 10" x 2" 11" x 2" 11" x 2" 11" x 2" 10" x 1-3/4"	Front Front Front Front Rear Rear Rear Rear Rear Rear	1" Bore 1" Bore 1-1/8" Bore 1-1/8" Bore 3/4" Bore 1" Bore 7/8" Bore 15/16" Bore 1" Bore 7/8" Bore	J0115962 J8126751 J8126753 J8126753 J8136601 J8126751 83500987 J8125880 8126964 83500987
53	Screw, Bleeder	1955-72 1978-83 1978-83	Drum Disc Drum	F or R Front Rear	1/4"-28 Threads 3/8"-24 Threads 3/8"-24 Threads	J0643841 J8129722 J8129722
54	Cap, Bleeder Screw	1978-86 1976-86	Disc All	Front Rear		5093278AB 5093278AB
55	Tube, Brake	1955-59 1966-71	9" x 1-3/4" 10" x 2"	Front L or R Front L or R	"S" "S"	JA001488 J0937325
56	Brake Hose	1955-65 1955-65 1966-71 1969-73 1974-75 1976-78 1976-78 1978-81 1982-83 1955-65 1966-71 1974-75 1976-78 1978-83	9" x 1-3/4" 9" x 1-3/4" 10" x 2" 11" x 2" 11" x 2" 11" x 2" Disc Disc Disc 9" x 1-3/4" 10" x 2" 11" x 2" 11" x 2" 10" x 1-3/4"	Front L or R Front Front Front Front Front Front L or R Front L or R Front L or R Rear Rear Rear Rear Rear	Axle to Knuckle; 6" Long Frame to Axle; 12" Long Frame to Axle; 12" Long Frame to Axle; 15" Long Frame to Axle; 17" Long Frame to Axle; 15" Long Frame to Caliper; Round End Frame to Caliper; Square End Frame to Caliper Frame to Axle; 16" Long Frame to Axle; 16" Long Frame to Axle Frame to Axle; 17-3/4" Long Frame to Axle; 17-3/4" Long	J0800953 J0800896 J0937347 J5350663 J5352825 J5356054 J5356598 J5359037 J5363917 J0937884 J0937884 J5352824 J5359570 J5362842
57	Y-Fitting, Master Cylinder	1955-65				JA000557
58	Brake Tee	1955-65 1966-71 1969-78	9" x 1-3/4" 10" x 2" 11" x 2"	Front or Rear Front or Rear Front or Rear	Mounts to Axle Mounts to Axle Mounts to Axle	J0637432 J0637432 J0637432
59	Clip, Brake Hose	All	All	All		J0637427
60	Washer, Brake Hose	1976-81 1982-83	Disc Disc	Front L or R Front L or R		J3227849 J3236434
61	Bolt, Brake Hose	1976-81 1982-83	Disc Disc	Front L or R Front L or R		J3225703 6035911AA
MISCELLANEOUS

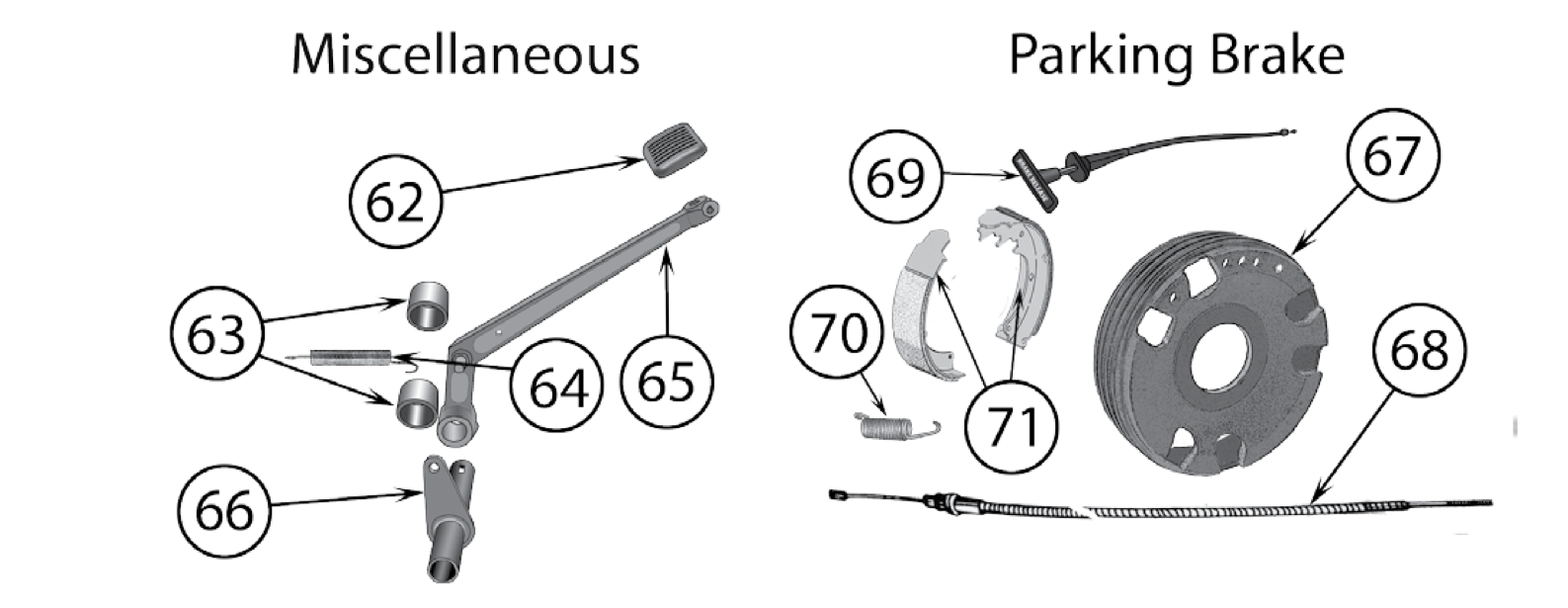

62	Pad, Brake Pedal	1957-83	All		w/ Manual Transmission; Rubber	J5363508
63	Bushing, Brake Pedal	1976-83	All		Bronze	J0946177
64	Spring, Brake Pedal Return	1955-65	9" x 1-3/4"		w/ Single Reservoir Master Cylinder	J0641723
65	Brake Pedal Assembly	1955-65	9" x 1-3/4"		w/ Single Reservoir Master Cylinder	J0800527*
66	Shaft, Brake Pedal	1955-65	9" x 1-3/4"			A495
PARKING BRAKE
67	Drum, Parking Brake	1955-65	9" x 1-3/4"			A9332
68	Cable, Parking Brake	1955-71 1955-71 1955-71 1972-75 CJ-5 1972-75 CJ-6 1976-83 1972-75 1976-78 1976-78 1978-83 1978-80 1981-83	All All All All All All All 11" x 2" 11" x 2" 10" x 1-3/4" 10" x 1-3/4" 10" x 1-3/4"	N/A N/A N/A Front Front Rear L or R Rear L or R Rear Left Rear Right Rear Right Rear Right Rear Right	Handle to Lever; w/ Cane Handle; 44-1/2" Long Handle to Lever; w/ T-Lever w/ T90 Transmission; 63- 5/8" Long Handle to Lever; w/ T-Lever w/ T98 Transmission; 69" Long Lever To Equalizer; 68" Long Lever To Equalizer; 87-1/4" Long Lever To Equalizer; 51-7/8" Long Equalizer to Wheels; 67-1/2" Long Equalizer to Wheels; Bolt-On; 30-1/2" Long Equalizer to Wheels; Bolt-On; 62" Long Equalizer to Wheels; 31-1/4" Long Equalizer to Wheels; 60-1/2" Long Equalizer to Wheels; 61-1/4" Long	J0646142 J0906750 J0911693 J0999978 J0999979 J5355287 J0999980 J5355325 J5355324 J3233903 J3233904 J3239949
69	Cable, Brake Release	1972-72				J5350541
70	Spring, Parking Brake Retracting	1955-71			w/ 4-134 Engine	J0641727
71	Shoe Set, Parking Brake	1955-65	9" x 1-3/4"			J0643055
RT OFF-ROAD UPGRADES

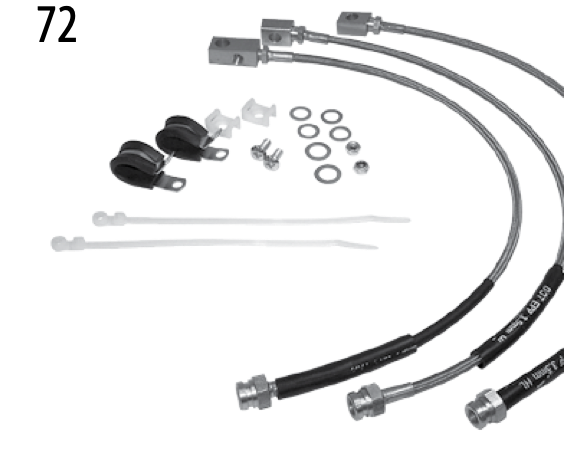

72	Stainless Steel Brake Hose Kit	1982-83		Front and Rear	w/ 0" to 4" of Lift	RT31016

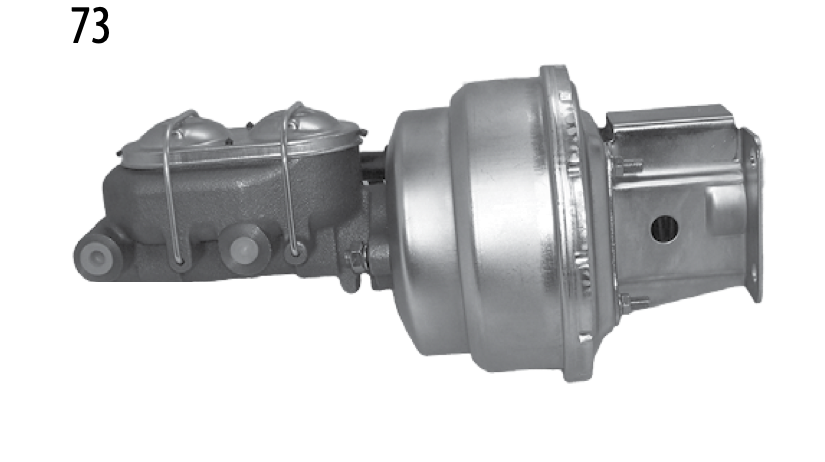

73	HD Brake Booster Kit	1976-83 1976-83			w/ 1-1/8" Bore Master Cylinder w/ 1" Bore Master Cylinder	RT31010 RT31011

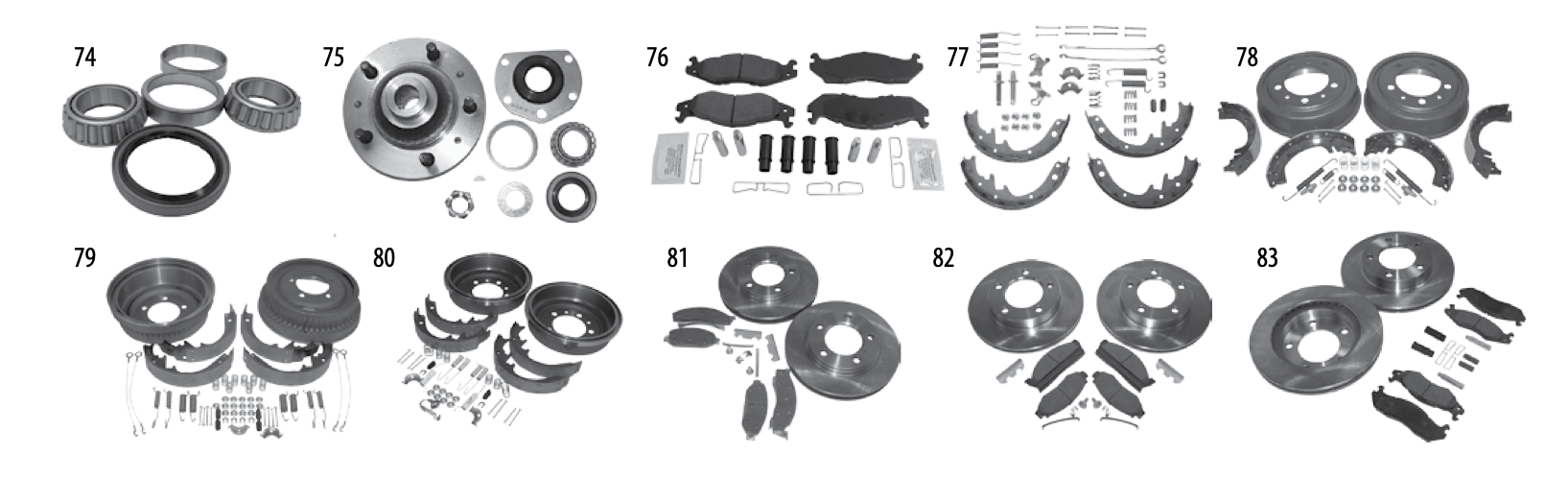

CROWN BRAKE KITS
74	Wheel Bearing Kit	1976-83	Disc	Front L or R	Includes Bearings and Seals	5356661K
75	Hub Kit	1976-83		Rear L or R	w/ AMC 20 Axle; Includes Bearings, Seals, and Hardware	8133730K
76	Pad Set Master Kit	1982-83		Front	Includes Pads, Bushings, Clips, and Bolts	83501167MK
77	Shoe Set Master Kit	1982-83	10" x 1-3/4"	Rear	Includes Shoe Set and Hardware	8133818MK
78	Brake Drum Service Kit	1955-71	9" x 1-3/4"	Front or Rear	Includes 2 Drums, Shoe Set, and Hardware	808770KL
79	Brake Drum Service Kit	1974-78	11" x 2"	Front or Rear	Includes 2 Drums, Shoe Set, and Hardware	5352476K
80	Brake Drum Service Kit	1978-83	10" x 1-3/4"	Rear	Includes 2 Drums, Shoe Set, and Hardware	52002952K
81	Disc Brake Service Kit	1976-78	Disc	Front	w/ 6-Bolt Caliper Brackets	5356183RK
82	Disc Brake Service Kit	1978-81	Disc	Front	w/ 6-Bolt Flange Mounting w/ 2-Bolt Caliper Brackets	5358568RK
83	Disc Brake Service Kit	1982-83	Disc	Front	w/ 5-Bolt Flange Mounting	5363421RK

* Not Currently Available
