1976-1986 CJ-7, 1981-1986 CJ-8
1976-1978 - 11" x 2" Bendix Screw Adjusting Front or Rear
1976-1978 - 11-3/4" x 1-1/8" Disc Brake Front
1978-1986 - 11-3/4" x 7/8" Disc Brake Front
1978-1986 - 10" x 1-3/4" Screw Adjusting Rear
Item numbers match the diagrams. Each part number searches Amazon for that Crown part.
| Item # | Description | Years | Size | Position | Comments | Part No. |
|---|---|---|---|---|---|---|

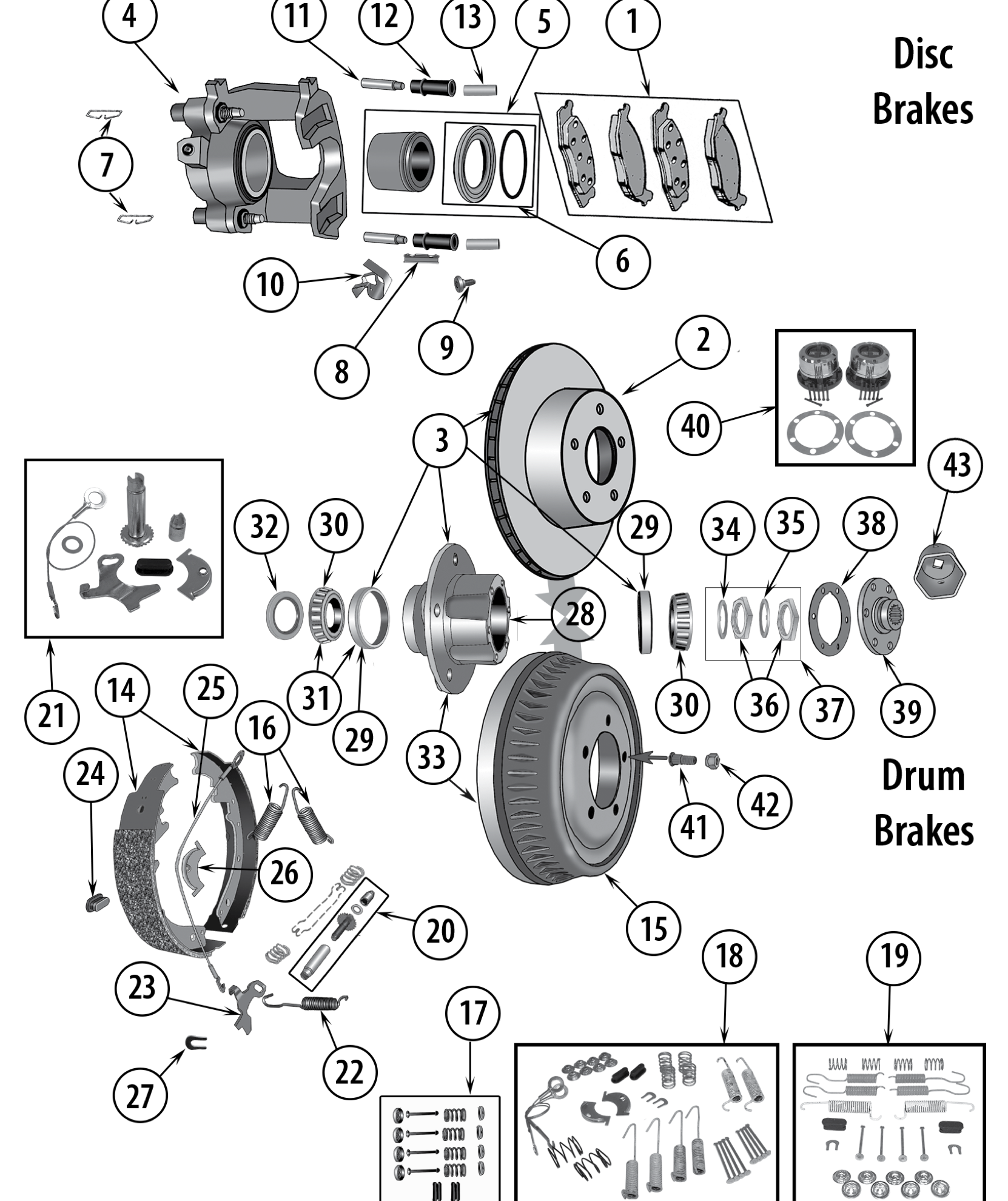

| FRONT DISC BRAKES | ||||||
| 1 | Pad Set |
1976-78 1978-81 1982-86 |
|
|
w/ 6-Bolt Caliper Brackets w/ 2-Bolt Caliper Brackets |
J8126314 J8131785 83501167 |
| 2 | Rotor Only |
1976-78 1978-86 |
1-1/8" Thick 7/8" Thick |
|
w/ 6-Bolt Caliper Brackets w/ 2-Bolt Caliper Brackets |
5356183R 5363421R |
| 3 | Hub and Rotor Assembly |
1976-78 1978-81 1981-86 |
1-1/8" Thick 7/8" Thick 7/8" Thick |
|
w/ 6-Bolt Caliper Brackets w/ 6-Bolt Flange Brackets w/ 5-Bolt Flange Brackets |
J5356183 J5358568 J5363421 |
| 4 | Caliper Assembly |
1977-78 1977-78 1978-81 1978-81 1982-86 1982-86 |
|
Right Left Right Left Right Left |
w/ 6-Bolt Caliper Brackets, Less Pads w/ 6-Bolt Caliper Brackets, Less Pads w/ 2-Bolt Caliper Brackets, Less Pads w/ 2-Bolt Caliper Brackets, Less Pads Less Pads Less Pads |
J3229983 J3229982 J8131649 J8131648 J8133846 J8133847 |
| 5 | Rebuild Kit, Caliper |
1976-78 1978-81 1982-86 |
|
Left or Right Left or Right Left or Right |
w/ 6-Bolt Caliper Brackets, Incl. (1) Each Seal, Boot, Piston w/ 2-Bolt Caliper Brackets, Incl. (1) Each Seal, Boot, Piston Includes (1) Each Seal, Boot, Piston |
J8125534 J8127582 J8133845 |
| 6 | Seal Kit, Caliper |
1976-78 1978-81 1982-86 |
|
Left or Right Left or Right Left or Right |
w/ 6-Bolt Caliper Brackets; Incl. 1 Seal and 1 Boot w/ 2-Bolt Caliper Brackets; Incl. 1 Seal and 1 Boot Includes 1 Seal and 1 Boot |
J8126756 J8127583 J8133852 |
| 7 | Spring, Caliper Support |
1976-78 1978-81 1982-86 |
|
Left or Right Left or Right Left or Right |
w/ 6-Bolt Caliper Brackets; 4 Required w/ 2-Bolt Caliper Brackets; 4 Required Anti-Rattle Clip; 4 Required |
J3223413 J3229031 J3239865 |
| 8 | Key, Caliper Support |
1976-78 1978-81 |
|
Left or Right Left or Right |
w/ 6-Bolt Caliper Brackets w/ 2-Bolt Caliper Brackets |
J3223414 J3229032 |
| 9 | Screw, Caliper Support | 1976-81 | Left or Right | J3223416 | ||
| 10 | Clip, Caliper Support | 1978-81 | Left or Right | J3229033 | ||
| 11 | Pin, Caliper | 1982-86 | Left or Right | 83504655 | ||
| 12 | Bushing, Caliper Pin | 1982-86 | Left or Right | Outer | J3239867 | |
| 13 | Sleeve, Caliper Pin | 1982-86 | Left or Right | Inner | 52001701* | |
| FRONT AND REAR DRUM BRAKES | ||||||
| 14 | Shoe and Lining Set |
1976-78 1978-86 |
11" x 2" 10" x 1¾" |
Front or Rear Rear |
|
J8130067 J8133818 |
| 15 | Drum |
1976-78 1978-86 |
11" x 2" 10" x 1¾" |
Front or Rear Rear |
Finned |
J5352476 52002952 |
| 16 | Spring, Brake Shoe Return | 1976-78 | 11" x 2" | Front or Rear | Upper; 2 Required Per Wheel | J0937953 |
| 17 | Hold Down Kit, Brake Shoe | 1976-78 | 11" x 2" | Front or Rear | J0937952 | |
| 18 | Small Parts Master Kit |
1978-86 1986 |
10" x 1¾" 10" x 1¾" |
Rear Rear |
w/ AMC 20 w/ Dana 44 |
4636777 4636778 |
| 19 | Small Parts Kit | 1986 | Drum | Rear | w/ Dana 44 | H7149 |
| 20 | Adjuster Kit, Brake Shoe |
1976-78 1976-78 1978-86 1978-86 |
11" x 2" 11" x 2" 10" x 1¾" 10" x 1¾" |
F or R Left F or R Right Rear Left Rear Right |
|
943131A 943132A 52001216 52001215 |
| 21 | Hardware Kit, Brake Adjuster |
1976-78 1976-78 |
11" x 2" 11" x 2" |
Right Left |
|
H2541 H2540 |
| 22 | Spring, Adjusting Screw |
1976-78 1981-86 |
11" x 2" 10" x 1¾" |
Front or Rear Rear |
|
J0943136 J3201937 |
| 23 | Lever, Automatic Adjust |
1976-78 1976-78 |
11" x 2" 11" x 2" |
Left F or R Right F or R |
|
J0943140 J0943141 |
| 24 | Cover, Brake Adjuster | 1976-86 | Drum | J3201957 | ||
| 25 | Cable, Automatic Adjust |
1976-78 1978-86 |
11" x 2" 10" x 1¾" |
Front or Rear Rear |
|
J0943138 J3201027 |
| 26 | Guide, Automatic Adjust Cable | 1976-78 | 11" x 2" | Front or Rear | J3201947 | |
| 27 | Retainer, Lever | 1981-86 | 10" x 1¾" | Rear, L or R | J3108202 | |
| HUBS, ETC. | ||||||
| 28 | Hub |
1976 1976 1977-78 1978-81 1981-86 1976-86 |
Drum Drum Drum Disc Disc All |
Front Front Front Front Front Rear |
w/ 1-5/8" Inner Wheel Cup; Includes Cups and Wheel Studs w/ 1¾" Inner Wheel Bearing Cup; Includes Cups and Wheel Studs Includes Cups and Wheel Studs 6-Bolt Flange Mounting; Includes Cups 5-Bolt Flange Mounting; Includes Cups and Wheel Studs w/ AMC 20 Axle; Bare |
J8136650 J8136651 J8136651 5358568H 5363421H J8133730 |
| 29 | Cup, Wheel Bearing |
1976 1976-86 1976-86 |
All All All |
Front Inner Front Inner Front Outer |
1-5/8" O.D. - LM-501310 1¾" O.D. - LM-102910 1-5/8" O.D. - LM-501310 |
J0925447 J8127630 J0925447 |
| 30 | Bearing, Wheel |
1976 1976-86 1976-86 |
All All All |
Front Inner Front Inner Front Outer |
w/ 1-5/8" O.D. Cup- LM-501349 w/ 1¾" O.D. Cup- LM-102949 w/ 1-5/8" O.D. Cup- LM-501349 |
J3156052 J5356661 J3156052 |
| 31 | Bearing Set, Wheel | 1976-86 | All | Front Inner & Outer | SET45 | |
| 32 | Seal, Hub |
1976 1976-86 |
All All |
Front Inner Front Inner |
Used w/ 1-5/8" O.D. Cup Used w/ 1¾" O.D. Cup |
J0938151 J5365082 |
| 33 | Hub and Drum Assembly |
1976-78 1978-86 |
11" x 2" 10" x 1¾" |
Rear Rear |
w/ AMC 20 Axle w/ AMC 20 Axle |
J5355714 J5359029 |
| 34 | Lock Washer, Wheel Bearing | 1976-78 | All | Front Inner | JA000865 | |
| 35 | Lock Washer, Wheel Bearing | 1976-78 | All | Front Outer | JA000867 | |
| 36 | Nut, Axle Bearing | 1976-78 | All | Front | 2 Required Per Wheel | JA000866 |
| 37 | Washer and Nut Kit, Spindle | 1976-86 | All | Front | Includes 2 Spindle Nuts and 2 Washers | A867K |
| 38 | Gasket, Hub Flange |
1976-81 1981-86 |
All All |
Front Front |
w/ 6 Bolts w/ 5 Bolts |
J0649784 J5362001 |
| 39 | Flange, Front Hub |
1976-81 1981-86 |
All All |
Front Front |
w/ 6 Bolts w/ 5 Bolts |
J0999396 J5362000 |
| 40 | Manual Locking Hub Set |
1976-81 1981-86 |
All All |
Front Front |
w/ 6 Bolts w/ 5 Bolts |
400502 400526 |
| 41 | Stud, Wheel |
1976-78 1977-86 1976-86 |
Drum Disc All |
Front Front Rear |
|
J5353025 J5357196 J5355719 |
| 42 | Wheel Nut |
1976-86 1977-86 |
All All |
Front or Rear Front or Rear |
Right Hand Threads; Open-Ended; 1/2"-20 Right Hand Threads; Chrome Capped; 1/2"-20 |
J0635516 J4005694 |
| 43 | Socket, Spindle Nut | All | All | Front | A692N | |

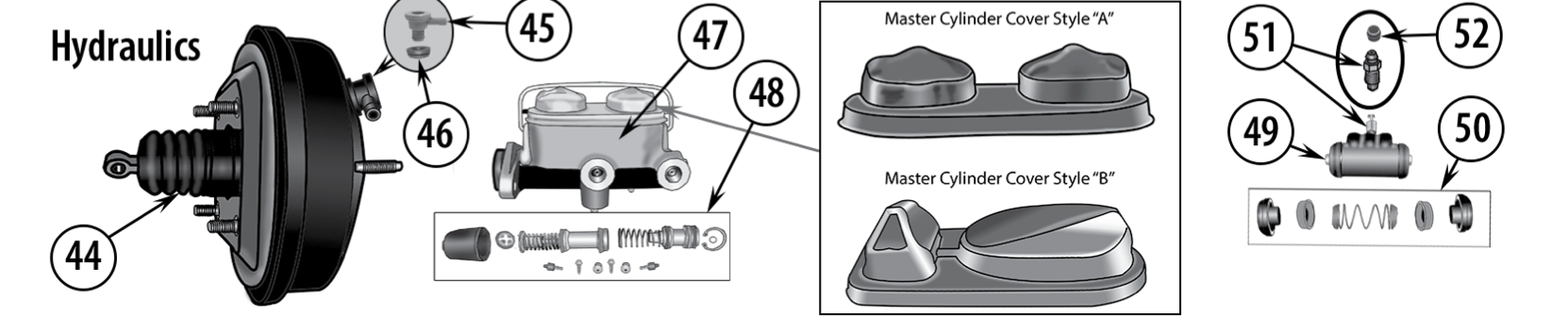

| HYDRAULICS | ||||||
| 44 | Booster, Brake | 1982-86 | Includes Boot | J8133909 | ||
| 45 | Valve, Brake Booster Check | 1982-86 | w/ Power Brakes | J4487455 | ||
| 46 | Grommet, Brake Booster | 1982-86 | w/ Power Brakes | 4723640 | ||
| 47 | Master Cylinder |
1976 1976-78 1977-78 1978-86 1977-78 1978-86 |
Drum Disc Disc Disc Disc |
|
"A" Cover "A" Cover, w/o Power Brakes "B" Cover, w/o Power Brakes w/ 6-Bolt Caliper Brackets "B" Cover, w/o Power Brakes w/ 2-Bolt Caliper Brackets "B" Cover, w/ Power Brakes w/ 6-Bolt Caliper Brackets "B" Cover, w/ Power Brakes w/ 2-Bolt Caliper Brackets |
J8127792 J8127792 83300115 J8134270 J8127821 83300111 |
| 48 | Repair Kit, Master Cylinder |
1976-78 1976-86 1978-86 1984-86 |
Drum Disc Disc Disc |
|
"A" Cover "B" Cover |
J8127772 J8134247 J8134266 83500896 |
| 49 | Wheel Cylinder |
1976-78 1976-78 1976-78 1976-78 1978-86 1978-86 |
11" x 2" 11" x 2" 11" x 2" 11" x 2" 10" x 1¾" 10" x 1¾" |
Front Left Front Right Left Rear Right Rear Left Rear Right Rear |
1-1/8" Bore 1-1/8" Bore 7/8" Bore 7/8" Bore 7/8" Bore 7/8" Bore |
J8126766 J8126692 52000849 52000848 52000849 52000848 |
| 50 | Repair Kit, Wheel Cylinder |
1976-78 1976-78 1976-78 1976-78 1978-86 |
11" x 2" 11" x 2" 11" x 2" 11" x 2" 10" x 1¾" |
Front Rear Rear Rear Rear |
1-1/8" Bore 7/8" Bore 15/16" Bore 1" Bore 7/8" Bore |
J8126753 83500987 J8125880 8126964 83500987 |
| 51 | Screw, Bleeder |
1978-86 1978-86 |
Disc |
Front Rear |
|
J8129722 J8129722 |
| 52 | Cap, Bleeder Screw | 1978-86 | All | Front or Rear | 5093278AB | |

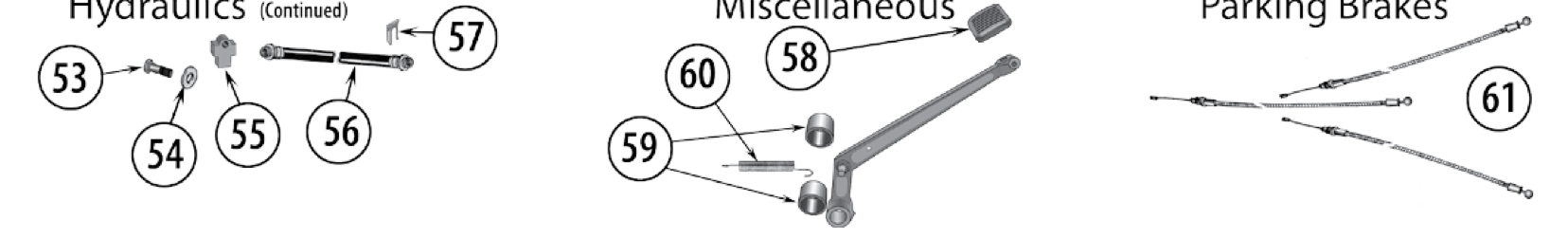

| 53 | Bolt, Brake Hose |
1976-81 1982-86 |
Disc Disc |
Front Front |
|
J3225703 6035911AA |
| 54 | Washer, Brake Hose |
1976-81 1982-86 |
Disc Disc |
Front, L or R Front, L or R |
|
J3227849 J3236434 |
| 55 | Brake Tee | 1976-78 | 11" x 2" | Front or Rear | Mounts to Axle | J0637432 |
| 56 | Brake Hose |
1976-78 1976-78 1978-81 1982-86 1982-86 1976-78 1978-86 |
11" x 2" Disc Disc Disc Disc 11" x 2" 10" x 1¾" |
Front Front Front L or R Front Left Front Right Rear Rear |
Frame to Axle; 15" Long Round End Hose; Frame to Caliper Square End Hose; Frame to Caliper Frame to Caliper Frame to Caliper Frame to Axle; 17¾" Long Frame to Axle; 18¾" Long |
J5356054 J5356598 J5359037 J5363908 J5363756 J5359570 J5362842 |
| 57 | Clip, Brake Hose | All | All | All | J0637427 | |
| MISCELLANEOUS | ||||||
| 58 | Pad, Brake Pedal | 1976-86 | All | w/ Manual Transmission; Rubber | J5363508 | |
| 59 | Bushing, Brake Pedal | 1976-86 | All | Bronze | J0946177 | |
| 60 | Spring, Pedal Return | 1976-86 | All | J5351118 | ||
| PARKING BRAKE | ||||||
| 61 | Cable, Parking Brake |
1976-86 CJ-7 1981-83 CJ-8 1976-78 CJ-7 1976-78 CJ-7 1978-80 CJ-7 1981-86 CJ-7, 8 1978-80 CJ-7 1981-86 CJ-7, 8 |
10" x 1¾" 10" x 1¾" 11" x 2" 11" x 2" 10" x 1¾" 10" x 1¾" 10" x 1¾" 10" x 1¾" |
Front Front Rear Left Rear Right Rear Left Rear Left Rear Right Rear Right |
Pedal to Equalizer; 61¾" Long Pedal to Equalizer; 71-5/8" Long Equalizer to Wheels; Bolt-On; 30.5" Long Equalizer to Wheels; Bolt-On; 62" Long Equalizer to Wheels; 31-1/4" Long Equalizer to Wheels; 33-5/8" Long Equalizer to Wheels; 60-1/2" Long Equalizer to Wheels; 61-1/4" Long |
J5353238 J5355286 J5355325 J5355324 J3233903 J3242203 J3233904 J3239949 |
| RT OFF-ROAD | ||||||

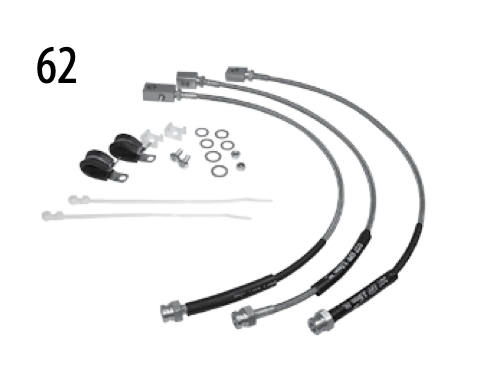

| 62 | Stainless Steel Brake Hose Kit | 1982-86 | Front and Rear | w/ 0" to 4" of Lift | RT31016 | |

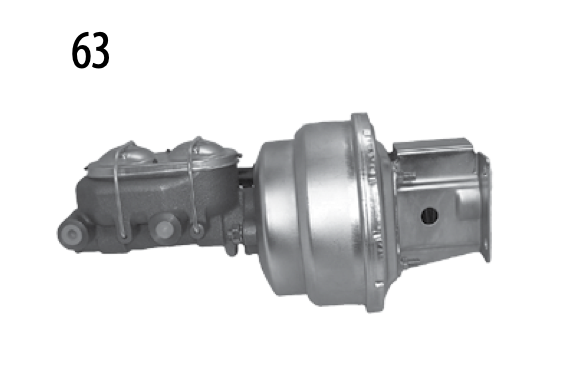

| 63 | HD Brake Booster Kit |
1976-86 1976-86 |
|
|
w/ 1-1/8" Bore Master Cylinder w/ 1" Bore Master Cylinder |
RT31010 RT31011 |
| CROWN KITS | ||||||

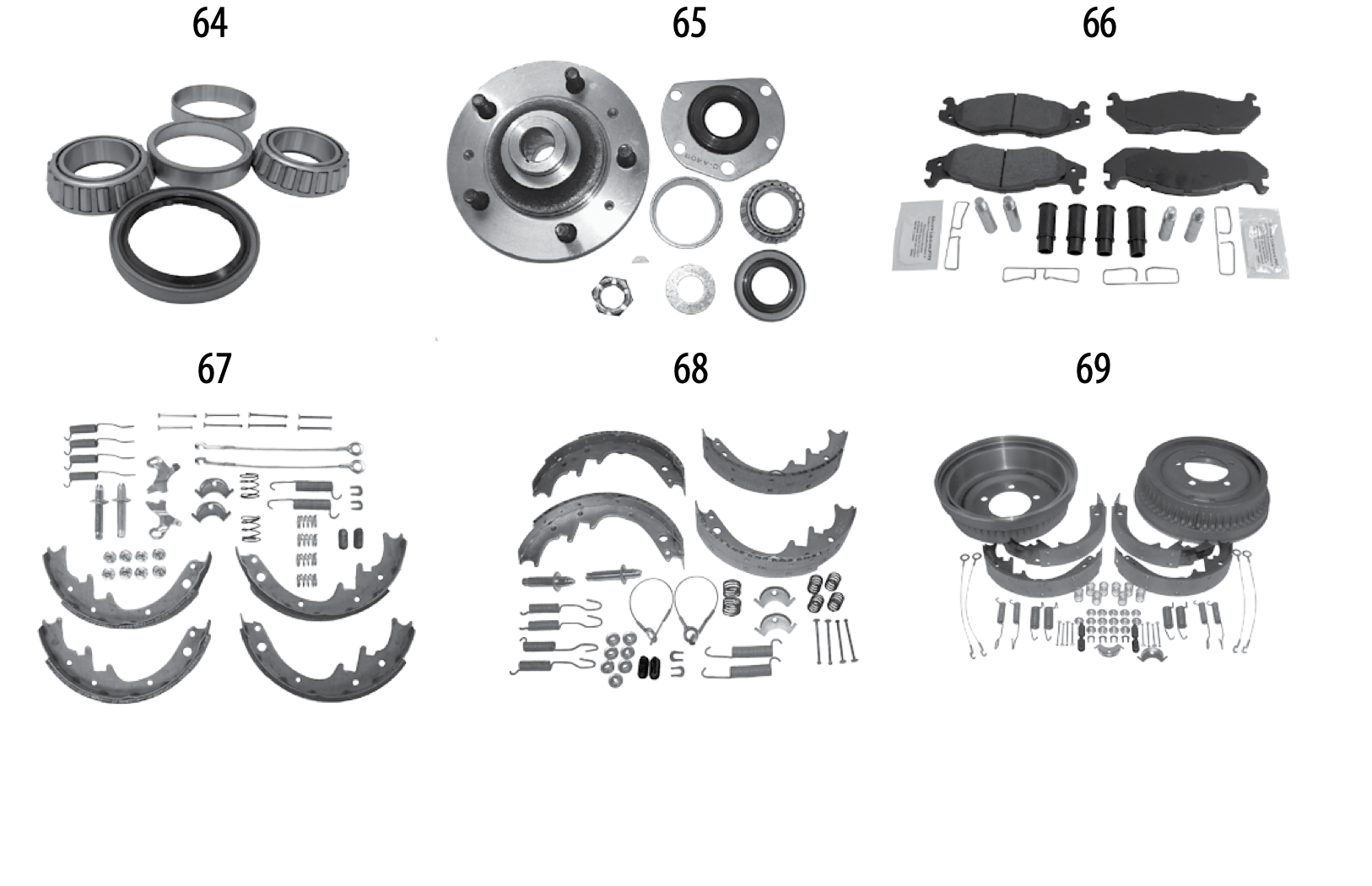

| 64 | Wheel Bearing Kit | 1976-86 | Disc | Front | Includes Bearings and Seals | 5356661K |
| 65 | Hub Kit | 1976-86 | Rear | w/ AMC 20 Axle; Includes Bearings, Seals, and Hardware | 8133730K | |
| 66 | Pad Set Master Kit | 1982-86 | Front | Includes Pads, Bushings, Clips, and Bolts | 83501167MK | |
| 67 | Shoe Set Master Kit | 1982-86 | 10" x 1-3/4" | Rear | Includes Shoe Set and Hardware | 8133818MK |
| 68 | Shoe Set Master Kit | 1986 | 10" x 1-3/4" | Rear | Includes Shoe Set and Hardware; w/ Dana 44 Axle | 8133818MK44 |

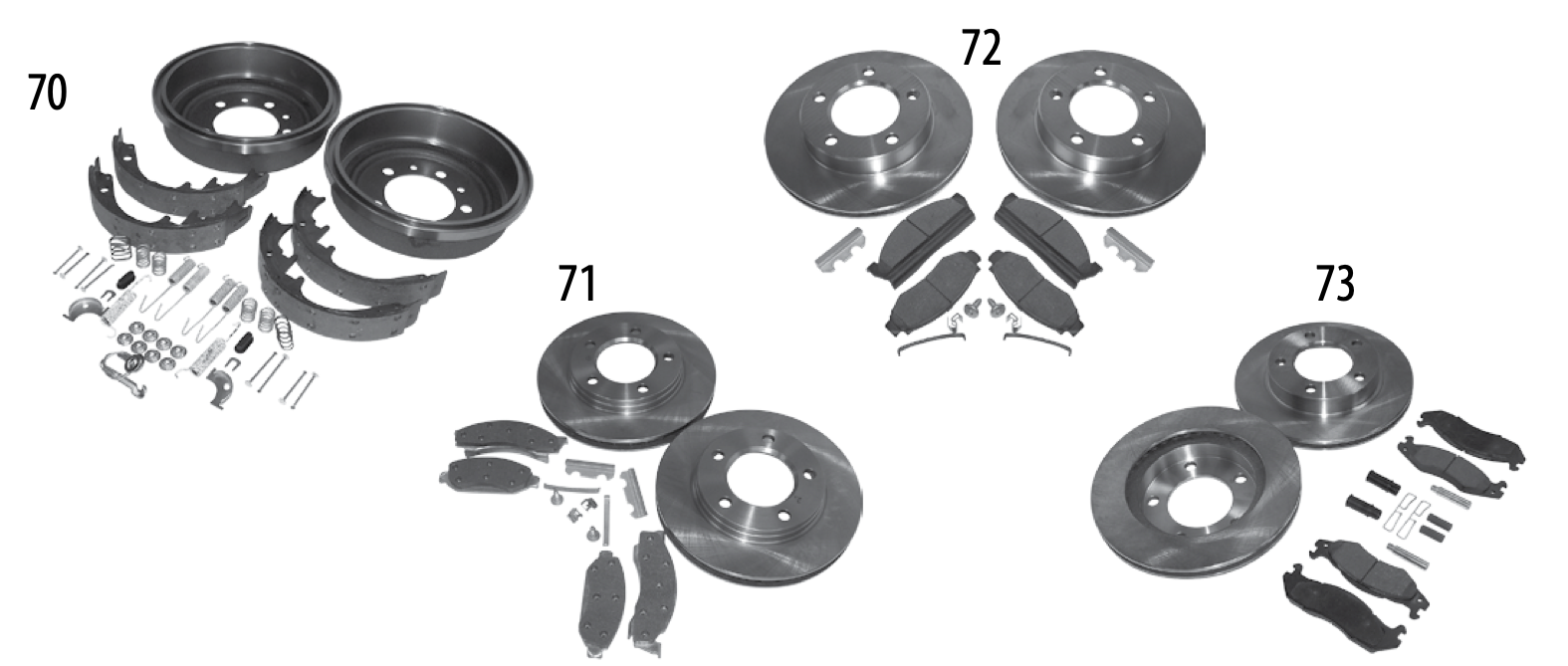

| 69 | Brake Drum Service Kit | 1976-78 | 11" x 2" | Front or Rear | Includes 2 Drums, Shoe Set, and Hardware | 5352476K |
| 70 | Brake Drum Service Kit | 1978-86 | 10" x 1-3/4" | Rear | Includes 2 Drums, Shoe Set, and Hardware | 52002952K |
| 71 | Disc Brake Service Kit | 1976-78 | Disc | Front | w/ 6-Bolt Caliper Brackets | 5356183RK |
| 72 | Disc Brake Service Kit | 1978-81 | Disc | Front | w/ 6-Bolt Flange Mounting w/ 2-Bolt Caliper Brackets | 5358568RK |
| 73 | Disc Brake Service Kit | 1982-86 | Disc | Front | w/ 5-Bolt Flange Mounting | 5363421RK |
* Not Currently Available
