1966-1971 C101 Commando, 1972-1973 C104 Commando

C101 - 10" x 2" Screw Adjusting Front or Rear
C104 - 11" x 2" Bendix Screw Adjusting Front or Rear

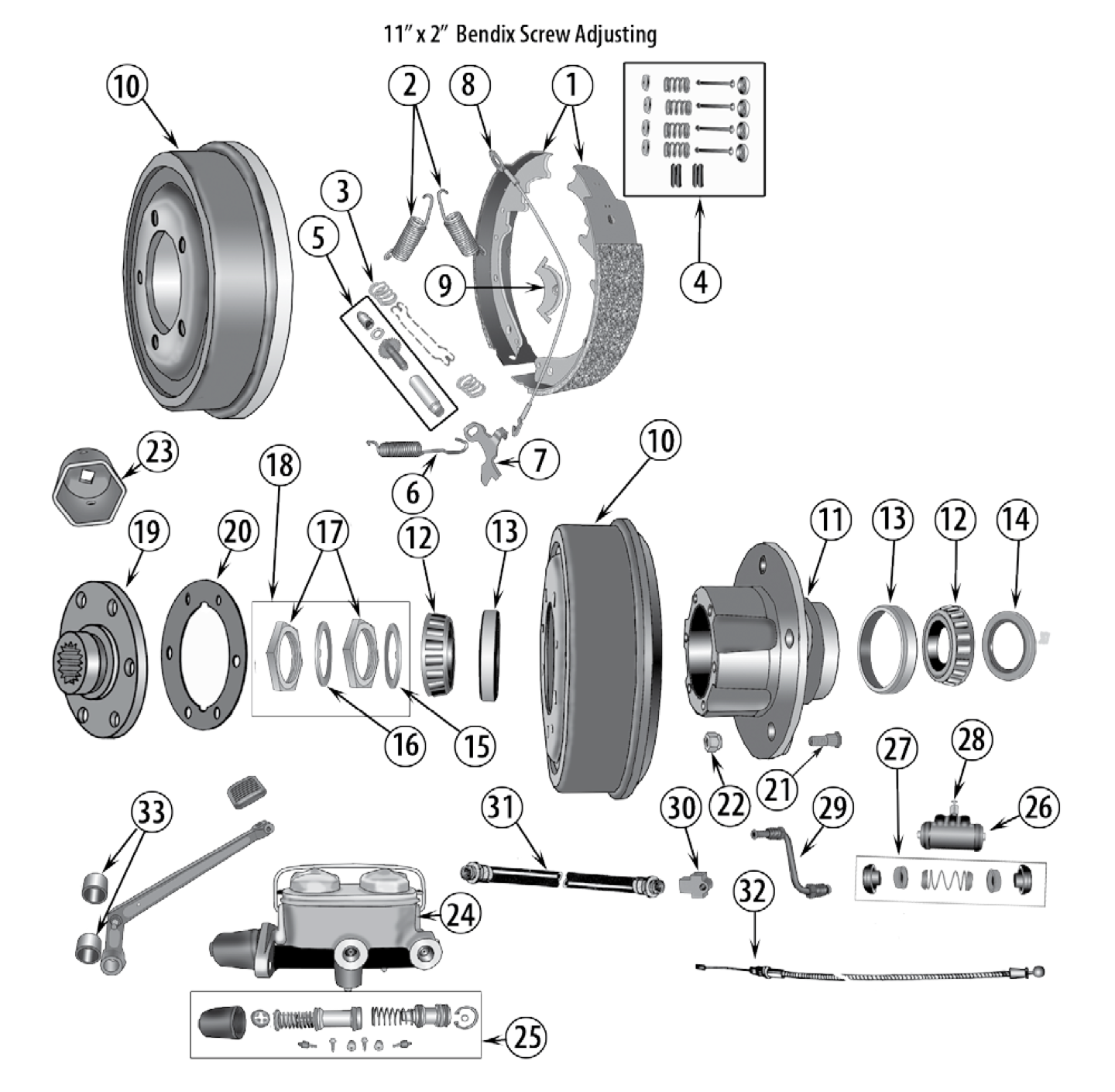

Item numbers match the diagram. Each part number searches Amazon for that Crown part.

Item #	Description	Application	Size	Location	Comments	Part No.
FRONT AND REAR DRUM BRAKES
1	Shoe and Lining Set	C101 C104	10" x 2" 11" x 2"	Front or Rear Front or Rear		J8120393 J8130067
2	Spring, Brake Shoe Return	C101 C104	10" x 2" 11" x 2"	Front or Rear Front or Rear	Upper; 2 Required Per Wheel	J0938111 J0937953
3	Spring, Parking Brake Lever Strut	C104	11" x 2"	Rear		83504310
4	Hold Down Kit, Brake Shoe	C104	11" x 2"	Front or Rear		J0937952
5	Adjuster Kit, Brake Shoe	C101 C101 C101 C101 C104 C104	10" x 2" 10" x 2" 10" x 2" 10" x 2" 11" x 2" 11" x 2"	Left Front Right Front Left Rear Right Rear Left Front or Rear Right Front or Rear		52001215 52001216 52001216 52001215 943131A 943132A
6	Spring, Adjusting Screw	C101 C104	10" x 2" 11" x 2"	Front or Rear Front or Rear		J0945306 J0943136
7	Lever, Automatic Adjust	C104 C104	11" x 2" 11" x 2"	Left Front or Rear Right Front or Rear		J0943140 J0943141
8	Cable, Automatic Adjust	C104	11" x 2"	Front or Rear		J0943138
9	Guide, Automatic Adjust Cable	C104	11" x 2"	Front or Rear		J3201947
10	Drum	C101	10" x 2"	Front or Rear		J0994306
HUBS, ETC.
11	Hub	C101, C104	All	Front		J8136650
12	Bearing, Wheel	C101, C104	All	Front Inner or Outer		J3156052
13	Cup, Wheel Bearing	C101, C104	All	Front Inner or Outer		J0925447
14	Seal, Hub	C101, C104	All	Front		J0938151
15	Lock Washer, Wheel Bearing	C101, C104	All	Front Inner		JA000865
16	Lock Washer, Wheel Bearing	C101, C104	All	Front Outer		JA000867
17	Nut, Axle Bearing	C101, C104	All	Front	2 Required Per Wheel	JA000866
18	Washer and Nut Kit, Spindle	C101, C104		Front	Includes 2 Spindle Nuts and 2 Washers	A867K
19	Flange, Front Hub	C104	All	Front	w/ 6 Bolts	J0999396
20	Gasket, Hub Flange	C101, C104	All	Front	w/ 6 Bolts	J0649784
21	Stud, Wheel	C101 C101 C101 C101, C104	All All All All	Front Rear Rear Rear	w/ Tapered Axle Shafts; Left Hand Threads w/ Tapered Axle Shafts; Right Hand Threads w/ Flanged Axle Shafts	J0945451 JA000473 J5353025 J5355719
22	Wheel Nut	C101, C104 C101	All All	Front or Rear Front or Rear	Right Hand Threads; Open-Ended; 1/2"-20 Left Hand Threads; Open-Ended; 1/2"-20	J0635516 J0636035
23	Socket, Spindle Nut	All	All	Front		A692N
HYDRAULICS
24	Master Cylinder	C104	11" x 2"			J8126737
25	Repair Kit, Master Cylinder	C104	11" x 2"			J8126747
26	Wheel Cylinder	C101 C101 C101 C101 C104 C104	10" x 2" 10" x 2" 10" x 2" 10" x 2" 11" x 2" 11" x 2"	Front Left or Right Front Left or Right Left Rear Right Rear Left Rear Right Rear	1" Bore 1-1/8" Bore 13/16" Bore 13/16" Bore 15/16" Bore 15/16" Bore	J0938115 J0991526 J8126744 J8136612 J8126775 J8124799
27	Repair Kit, Wheel Cylinder	C101 C101, C104 C101 C104 C104 C104	10" x 2" All 10" x 2" 11" x 2" 11" x 2" 11" x 2"	Front Front Rear Rear Rear Rear	1" Bore 1-1/8" Bore 1" Bore 7/8" Bore 15/16" Bore 1" Bore	J8126751 J8126753 J8126751 83500987 J8125880 8126964
28	Bleeder Screw	C101		F or R, L or R		J0643841
29	Brake Tube	C101	10" x 2"	Front Left or Right		J0937325
30	Brake Tee	C101, C104	All	Front or Rear	Mounts to Axle	J0637432
31	Brake Hose	C101 C104	10" x 2" 11" x 2"	Front Center Front Center	Frame to Axle; 10" Long Frame to Axle; 15" Long	J0937347 J5350663
PARKING BRAKE
32	Cable, Parking Brake	C104 C104 C101	11" x 2" 11" x 2" 10" x 2"	Front Rear Front	w/ Automatic Transmission; Pedal to Equalizer Equalizer to Wheels; 107" Long Handle to Equalizer; 60" Long	J0999898 J0999895 J0945270
33	Bushing, Brake Pedal	C101			Bronze	J0946177
