1956-1964 FC-150, 1957-1964 FC-170
11" x 2" Eccentric Adjusting Front or Rear

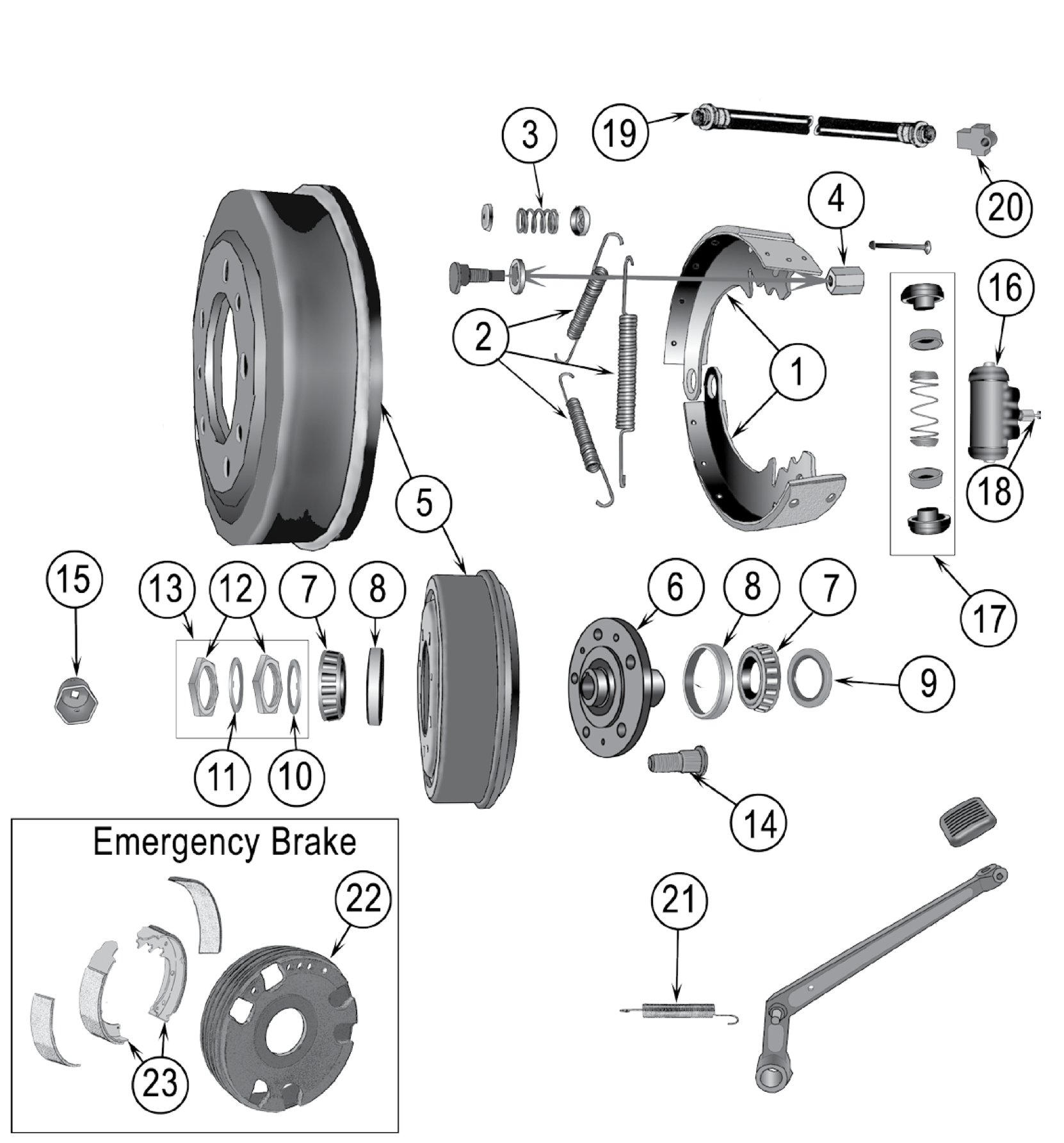

Item numbers match the diagram. Each part number searches Amazon for that Crown part.
| Item # | Description | Application | Size | Location | Comments | Part No. |
|---|---|---|---|---|---|---|
| FRONT AND REAR DRUM BRAKES | ||||||
| 1 | Shoe and Lining Set | All | 11" x 2" | Front or Rear | 8126685 | |
| 2 | Spring, Brake Shoe Return |
All All |
11" x 2" 11" x 2" |
Front or Rear Front or Rear |
Upper Lower |
J0924057 J0909889 |
| 3 | Spring, Brake Shoe Hold Down | All | 11" x 2" | Front or Rear | 2 Required Per Wheel | J0641997 |
| 4 | Nut, Brake Shoe Eccentric | All | 11" x 2" | Front or Rear | 2 Required Per Wheel | J0648348 |
| 5 | Drum | All | 11" x 2" | Front or Rear | J0941877 | |
| HUBS, ETC. | ||||||
| 6 | Hub | All | 11" x 2" | Rear | w/ Dana 44 Rear Axle w/ Tapered Axle Shafts | J0811351 |
| 7 | Bearing, Wheel |
All All All |
11" x 2" 11" x 2" 11" x 2" |
Front Inner or Outer Front Inner Front Outer |
w/ Bearing Marked 18590 w/ Bearing Marked 24870 w/ Bearing Marked LM-501349 |
J0052942 J3105346 J3156052 |
| 8 | Cup, Wheel Bearing |
All All All |
11" x 2" 11" x 2" 11" x 2" |
Front Inner or Outer Front Inner Front Outer |
w/ Cup Marked 18520 w/ Cup Marked LM-501310 |
J0052943 917773* J0925447 |
| 9 | Seal, Hub |
All All |
11" x 2" 11" x 2" |
Front Front |
w/ Bearing Marked 18590 w/ Bearing Marked LM-501349 |
J0805150 J0938151 |
| 10 | Lock Washer, Wheel Bearing | All | 11" x 2" | Front Inner | JA000865 | |
| 11 | Lock Washer, Wheel Bearing | All | 11" x 2" | Front Outer | JA000867 | |
| 12 | Nut, Axle Bearing | All | 11" x 2" | Front | 2 Required Per Wheel | JA000866 |
| 13 | Washer and Nut Kit, Spindle | All | 11" x 2" | Front | Includes 2 Spindle Nuts and 2 Washers | A867K |
| 14 | Stud, Wheel |
All All All All All |
11" x 2" 11" x 2" 11" x 2" 11" x 2" 11" x 2" |
Front Front Front Rear Rear |
w/ Bearing Marked 18590; Left Hand Threads w/ Bearing Marked 18590; Right Hand Threads w/ Bearing Marked LM-501349; Right Hand Threads w/ Dana 44 Rear Axle w/ Tapered Axle Shafts; Left Hand Threads w/ Dana 44 Rear Axle w/ Tapered Axle Shafts; Right Hand Threads |
JA000473 A474 J0945451 JA000473 A474 |
| 15 | Socket, Spindle Nut | All | 11" x 2" | Front | A692N | |
| HYDRAULICS | ||||||
| 16 | Wheel Cylinder |
All All All All |
11" x 2" 11" x 2" 11" x 2" 11" x 2" |
Front Left Front Right Rear Left Rear Right |
1-1/8" Bore 1-1/8" Bore 1" Bore 1" Bore |
J8126741 J0649948 J0802951 649941 |
| 17 | Repair Kit, Wheel Cylinder | All | 11" x 2" | Rear | 1" Bore | J0115962 |
| 18 | Bleeder Screw | All | 11" x 2" | F or R, L or R | J0643841 | |
| 19 | Brake Hose |
FC-150 FC-150 FC-170 |
11" x 2" 11" x 2" 11" x 2" |
Front Center Rear Center Front or Rear Center |
Frame to Axle; 12" Long Frame to Axle; 16" Long Frame to Axle; 19-1/8" Long |
J0800896 J0937884 J0991360 |
| 20 | Brake Tee | All | 11" x 2" | Front or Rear | Mounts to Axle | J0637432 |
| MISCELLANEOUS | ||||||
| 21 | Spring, Brake Pedal Return | All | 11" x 2" | J0641723 | ||
| EMERGENCY BRAKE | ||||||
| 22 | Drum, Emergency Brake | All | A9332 | |||
| 23 | Shoe Set, Emergency Brake | All | J0643055 | |||
* Not Currently Available
