1950-1952 M38, 1952-1963 M38-A1
9" x 13/4" Brakes - Eccentric Adjusting Type

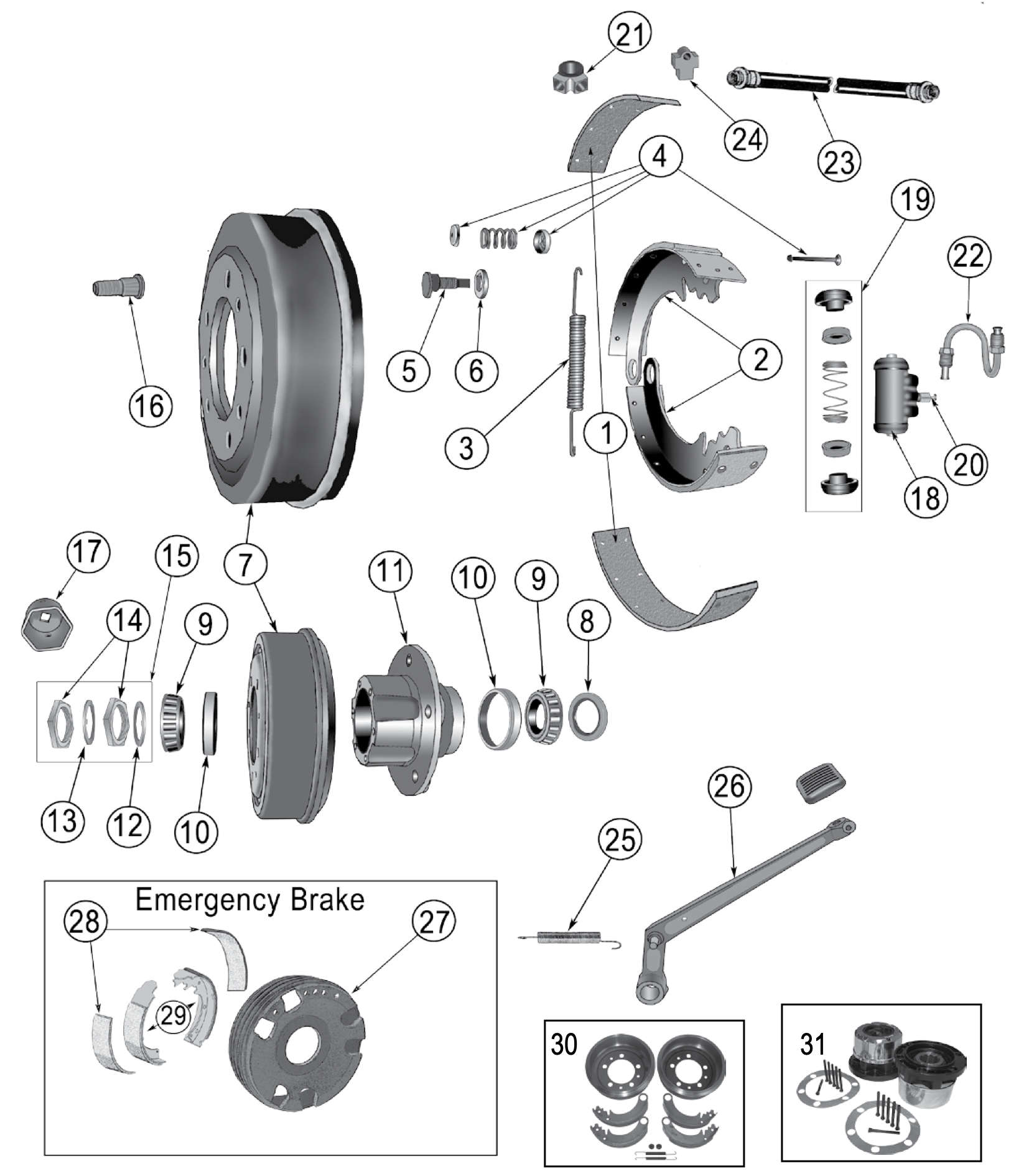

Item numbers match the diagram. Each part number searches Amazon for that Crown part.
| Item # | Description | Application | Location | Comments | Part No. |
|---|---|---|---|---|---|
| FRONT AND REAR DRUM BRAKES | |||||
| 1 | Lining Set | All | Front or Rear | Includes 4 Shoe Linings and 40 Rivets | 116600 |
| 2 | Shoe and Lining Set |
M38 M38-A1 |
Front or Rear Front or Rear |
|
J0642967 J0807376 |
| 3 | Spring, Shoe Return |
M38-A1 All |
Front or Rear Front or Rear |
Lower Upper |
J0805602 J0637905 |
| 4 | Hold Down Kit, Brake Shoe | M38-A1 | Front or Rear | For 1 Wheel | J0120239 |
| 5 | Eccentric, Brake Shoe |
M38 M38-A1 |
Front or Rear Front or Rear |
2 Required Per Wheel 2 Required Per Wheel |
A754 J0805592 |
| 6 | Cam, Anchor | All | Front or Rear | 2 Required Per Wheel | 637900 |
| 7 | Drum |
M38 M38-A1 |
Front or Rear Front or Rear |
Mounts Inside Hub Mounts Outside of Hub |
A-472* J0808770 |
| HUBS, ETC. | |||||
| 8 | Seal, Hub | All | Front | J0805150 | |
| 9 | Bearing, Wheel | All | Front Inner or Outer | J0052942 | |
| 10 | Cup, Wheel Bearing | All | Front Inner or Outer | J0052943 | |
| 11 | Hub | All | Front | J0909548 | |
| 12 | Lock Washer, Wheel Bearing | All | Front Inner | JA000865 | |
| 13 | Lock Washer, Wheel Bearing | All | Front Outer | JA000867 | |
| 14 | Nut, Axle Bearing | All | Front | 2 Required Per Wheel | JA000866 |
| 15 | Axle Nut Kit | All | Front | Includes #12, 13, and 14 | A867K |
| 16 | Stud, Hub |
All All |
Front or Rear Front or Rear |
Left Hand Threads Right Hand Threads |
JA000473 J5353025 |
| 17 | Socket, Spindle Nut | All | A692N | ||
| HYDRAULICS | |||||
| 18 | Wheel Cylinder |
M38 M38-A1 M38 M38-A1 |
Front Left or Right Front Left or Right Rear Left or Right Rear Left or Right |
1" Bore w/ Straight Hose Connections; 1" Bore 3/4" Bore 3/4" Bore |
JA001484 J8126743 J8126797 J8126798 |
| 19 | Repair Kit, Wheel Cylinder |
All All |
Front Rear |
1" Bore 3/4" Bore |
J0115962 J8136601 |
| 20 | Bleeder Screw, Wheel Cylinder | All | Front or Rear | J0643841 | |
| 21 | Y-Fitting, Master Cylinder | All | JA000557 | ||
| HOSES | |||||
| 22 | Tube, Brake | All | Front | "S" | JA001488 |
| 23 | Brake Hose |
All All All |
Front Left or Right Front Center Rear Center |
Axle to Knuckle; 6" Long Frame to Axle; 11" Long Frame to Axle; 16" Long |
J0800953 J0800896 J0937884 |
| 24 | Brake Tee | All | Front or Rear | Mounts to Axle | J0637432 |
| MISCELLANEOUS | |||||
| 25 | Spring, Brake Pedal Return | All | w/ Single Reservoir Master Cylinder | J0641723 | |
| 26 | Brake Pedal Assembly | All | w/ Single Reservoir Master Cylinder | J0800527* | |
| EMERGENCY BRAKE | |||||
| 27 | Drum, Emergency Brake | M38 | w/ Bendix Style Shoes | A9332 | |
| 28 | Lining Kit, Emergency Brake | All | 116712* | ||
| 29 | Shoe Set, Emergency Brake | M38 | w/ Bendix Style Shoes | J0643055 | |
| CROWN KITS | |||||
| 30 | Drum Service Kit |
M38 M38-A1 |
Includes Drums, Shoe Set and Hardware for 2 Wheels Includes Drums, Shoe Set and Hardware for 2 Wheels |
|
808770KE 808770KL |
| 31 | Manual Locking Hub Set | All | 400501 | ||
* Not Currently Available
