1941-1945 MB
9" x 13/4" Brakes - Eccentric Adjusting Type

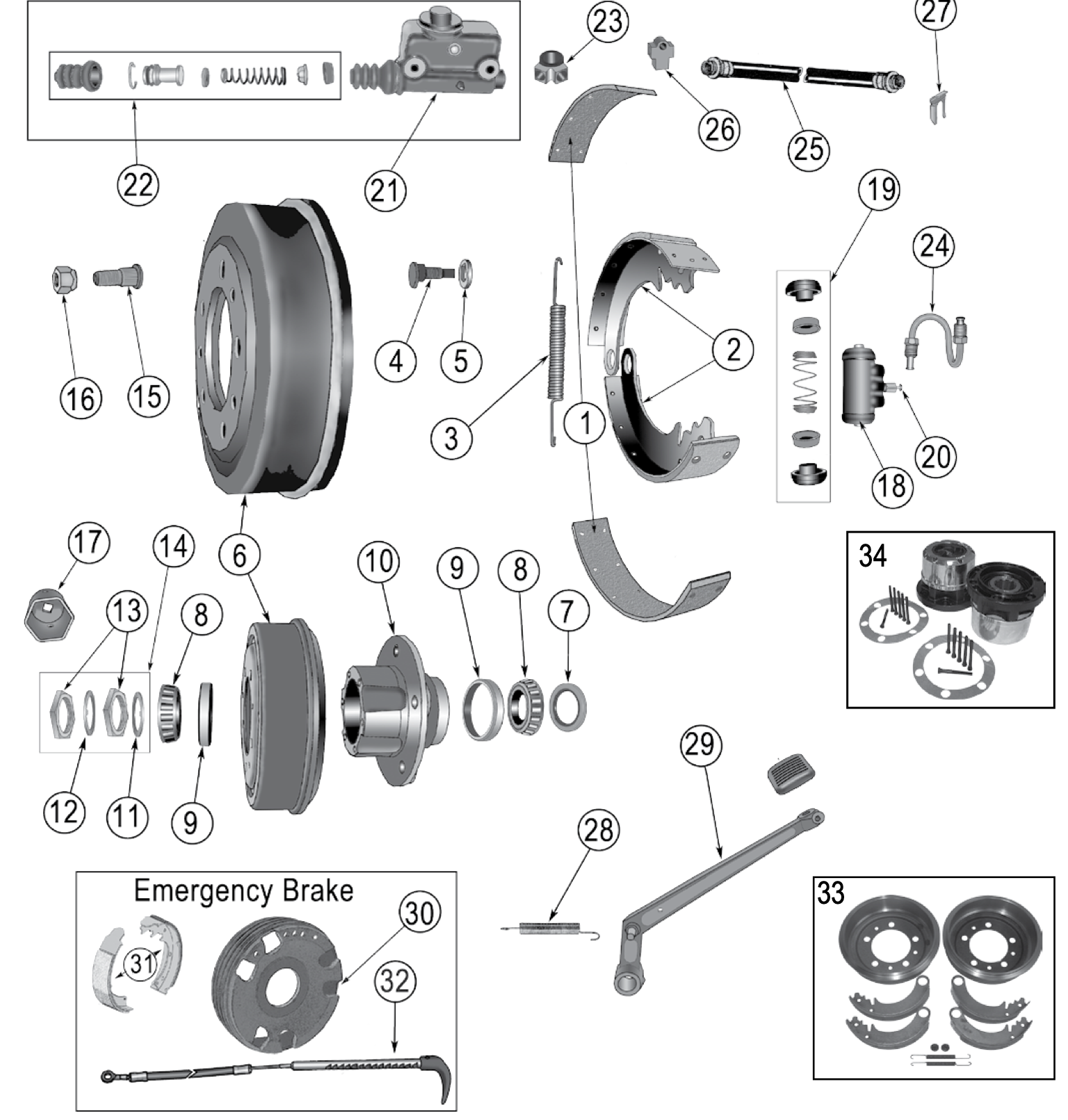

Item numbers match the diagram. Each part number searches Amazon for that Crown part.
| Item # | Description | Location | Comments | Part No. |
|---|---|---|---|---|
| FRONT AND REAR DRUM BRAKES | ||||
| 1 | Lining Set | Front or Rear | Includes 4 Shoe Linings and 40 Rivets | 116600 |
| 2 | Shoe and Lining Set | Front or Rear | J0642967 | |
| 3 | Spring, Shoe Return | Front or Rear | Upper | J0637905 |
| 4 | Eccentric, Brake Shoe | Front or Rear | 2 Required Per Wheel | A754 |
| 5 | Cam, Anchor | Front or Rear | 2 Required Per Wheel | 637900 |
| 6 | Drum | Front or Rear | Mounts Inside Hub | A-472* |
| HUBS, ETC. | ||||
| 7 | Seal, Hub |
Front Rear |
|
J0805150 J0805150 |
| 8 | Bearing, Wheel | Front Inner or Outer | J0052942 | |
| 9 | Cup, Wheel Bearing |
Front Inner or Outer Rear Inner or Outer |
|
J0052943 J0052943 |
| 10 | Hub |
Front Rear Inner or Outer |
|
J0909548 J0909548 |
| 11 | Lock Washer, Wheel Bearing | Front Inner | JA000865 | |
| 12 | Lock Washer, Wheel Bearing | Front Outer | JA000867 | |
| 13 | Nut, Axle Bearing | Front | 2 Required Per Wheel | JA000866 |
| 14 | Axle Nut Kit | Front | Includes #s 11, 12, 13 | A867K |
| 15 | Stud, Hub |
Front Front Rear Rear |
Left Hand Threads Right Hand Threads Left Hand Threads Right Hand Threads |
JA000473 A474 JA000473 A474 |
| 16 | Wheel Nut |
Front or Rear Front or Rear |
Right Hand Threads Left Hand Threads; 1/2"-20; 13/16" Hex |
JA000476 J0636035 |
| 17 | Socket, Spindle Nut | A692N | ||
| HYDRAULICS | ||||
| 18 | Wheel Cylinder |
Front Left or Right Rear Left or Right |
1" Bore 3/4" Bore |
JA001484 J8126797 |
| 19 | Repair Kit, Wheel Cylinder |
Front Left or Right Rear Left or Right |
For 1" Bore Wheel Cylinders For 3/4" Bore Wheel Cylinders |
J0115962 J8136601 |
| 20 | Bleeder Screw | Front or Rear | J0643841 | |
| 21 | Master Cylinder | 1 Hole Threaded, 1 Hole Unthreaded | A556 | |
| 22 | Repair Kit, Master Cylinder | 805654 | ||
| 23 | Y-Fitting, Master Cylinder | JA000557 | ||
| HOSES | ||||
| 24 | Tube, Brake | Front | "S" | JA001488 |
| 25 | Brake Hose |
Front Left or Right Front Center Rear Center |
6" Long; Axle to Knuckle 11" Long; Frame to Axle 16" Long; Frame to Axle |
J0800953 J0800896 J0937884 |
| 26 | Brake Tee | Front or Rear | Mounts to Axle | J0637432 |
| 27 | Clip, Brake Hose | Front or Rear | J0637427 | |
| MISCELLANEOUS | ||||
| 28 | Spring, Brake Pedal Return | w/ Single Reservoir Master Cylinder | J0641723 | |
| 29 | Brake Pedal Assembly | w/ Single Reservoir Master Cylinder | J0800527* | |
| EMERGENCY BRAKE | ||||
| 30 | Drum, Emergency Brake | w/ Bendix Style Shoes | A9332 | |
| 31 | Shoe Set, Emergency Brake | w/ Bendix Style Shoes | J0643055 | |
| 32 | Cable and Handle, Emergency Brake | Features a Green Handle | A1242 | |
| CROWN KITS | ||||
| 33 | Drum Service Kit | Front or Rear | Includes Drums, Shoe Set, Linings and Hardware for 2 Wheels | 808770KE |
| 34 | Manual Locking Hub Set | Front | 400501 | |
* Not Currently Available
