1963-1991 SJ, 1963-1988 J-Series

1963-1973 SJ, J-Series 11" x 2" Bendix Screw Adjusting Front or Rear
1963-1973 J-Series 12" x 2" Screw Adjusting Rear
1974-1991 SJ, J-Series 11" x 2" Delco Screw Adjusting Rear
1979-1988 J-Series 12" x 2-1/2" Screw Adjusting Rear
1974-1991 SJ, J-Series 11" x 7/8" Disc Brake Front
1979-1988 J-Series 12" x 1/2" Disc Brake Front

Item numbers match the diagrams. Each part number searches Amazon for that Crown part.

Item #	Description	Application	Size	Location	Comments	Part No.

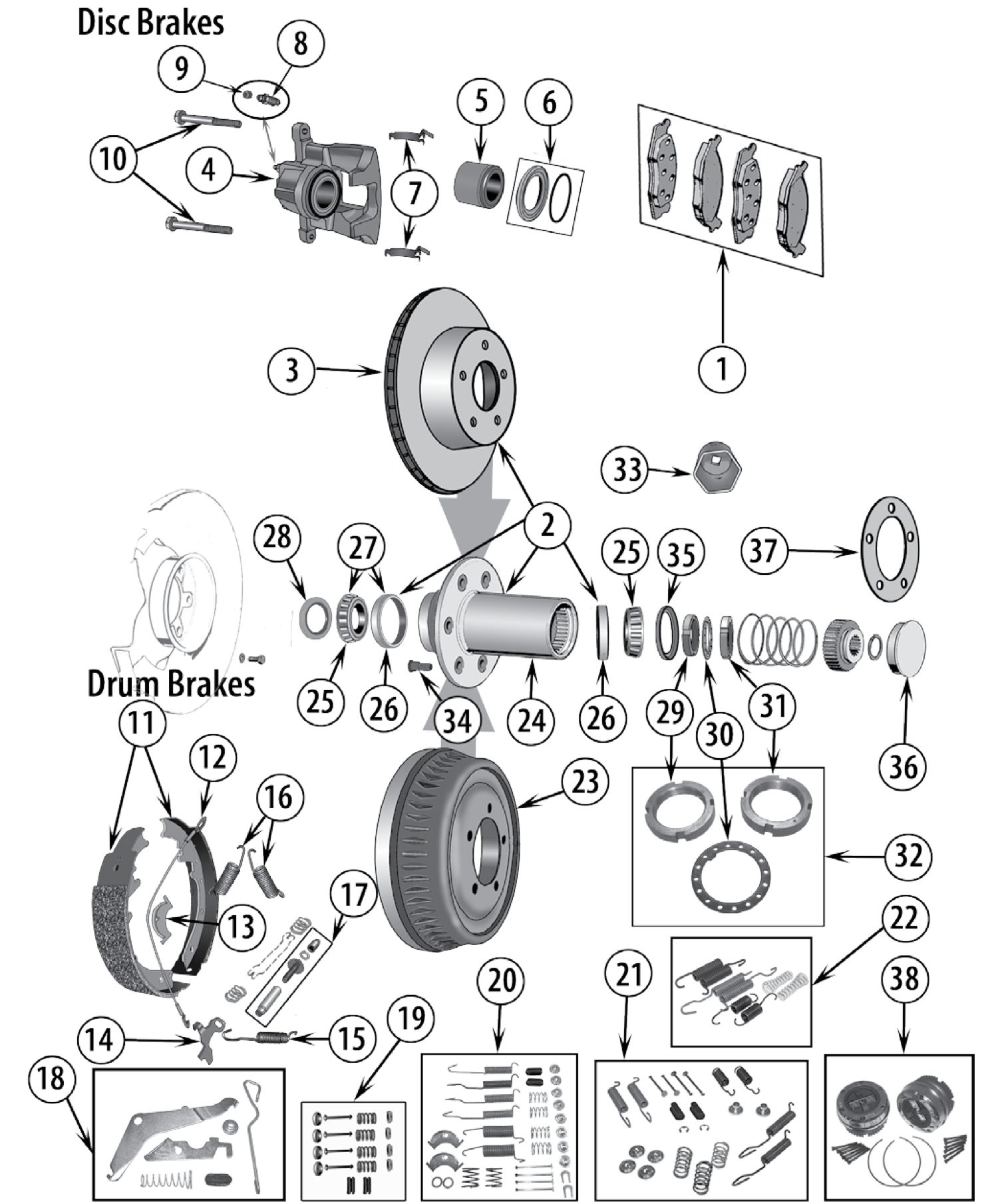

FRONT DISC BRAKES
1	Pad Set	1974-91 SJ, J-Series				83504371
2	Hub and Rotor Assembly	1974-91 SJ, J-10 1979-88 J-20			6 on 5.5" Bolt Pattern 8 on 6.5" Bolt Pattern	J5357391* J5359275
3	Rotor Only	1974-91 SJ, J-10 1979-88 J-20			6 on 5.5" Bolt Pattern 8 on 6.5" Bolt Pattern	5357391R 5359275R
4	Caliper Assembly	1974-78 SJ, J-Series 1974-78 SJ, J-Series 1979-91 SJ, J-Series 1979-91 SJ, J-Series		Right Left Right Left	Less Pads Less Pads Less Pads Less Pads	J8124379 J8124378 83501980* 83501981*
5	Piston, Caliper	1974-91 SJ, J-Series			Piston Only	J8124571
6	Seal Kit, Caliper	1974-91 SJ, J-Series			Includes 1 Seal and 1 Boot	J8126755
7	Spring, Caliper Support	1974-91 SJ, J-Series				J8124573
8	Bleeder Screw	1974-91 SJ, J-Series 1974-91 SJ, J-Series		Front Rear	3/8"-24 5/16"-24	J8129722 J8127925
9	Cap, Bleeder Screw	1981-91 SJ, J-Series		Front		5093278AB
10	Bolt, Caliper Housing	1974-91 SJ, J-Series				J8124572
FRONT AND REAR DRUM BRAKES
11	Shoe and Lining Set	1963-73 SJ, J-Series 1974-76 SJ, J-Series 1974-91 SJ, J-10 1979-88 J-20	11" x 2" Bendix 11" x 2½" 11" x 2" Delco 12" x 2½"	Front or Rear Front Rear Rear		J8130067 J8124580 J8127782 J8130362
12	Cable, Automatic Adjust	1963-73 SJ, J-Series 1963-73 J-Series	11" x 2" Bendix 12" x 2"	Front or Rear Rear		J0943138 J0943147
13	Guide, Automatic Adjust Cable	1963-73 SJ, J-Series	11" x 2" Bendix	Front or Rear		J3201947
14	Lever, Automatic Adjust	1963-73 SJ, J-Series 1963-73 SJ, J-Series 1963-73 J-Series 1963-73 J-Series	11" x 2" Bendix 11" x 2" Bendix 12" x 2" 12" x 2"	F or R Left F or R Right Rear Left Rear Right		J0943140 J0943141 J0943148* J0943149
15	Spring, Adjusting Screw	1963-73 SJ, J-Series	11" x 2" Bendix	Front or Rear		J0943136
16	Spring, Brake Shoe Return	1963-73 SJ, J-Series	11" x 2" Bendix	Front or Rear	Upper; 2 Required Per Wheel	J0937953
17	Adjuster Kit, Brake Shoe	1963-73 SJ, J-Series 1963-73 SJ, J-Series 1974-76 SJ, J-10 1974-76 SJ, J-10 1977-91 SJ, J-10 1977-91 SJ, J-10	11" x 2" Bendix 11" x 2" Bendix 11" x 2" Delco 11" x 2" Delco All All	Left F or R Right F or R Left Rear Right Rear Left Rear Right Rear		943131A 943132A J8124517 J8124518 J8127785 J8127786*
18	Automatic Adjuster Kit, Brake Shoe	1979-88 J-20 1979-88 J-20	12" x 2½" 12" x 2½"	Rear Left Rear Right		J8124524 J8124525
19	Hold Down Kit, Brake Shoe	1963-73 SJ, J-Series 1974-91 SJ, J-10 1963-73 J-Series	11" x 2" Bendix 11" x 2" Delco 12" x 2"	Front or Rear Rear Rear	1 Required Per Axle 1 Required Per Axle 1 Required Per Axle	J0937952 J8127784 J0943150
20	Small Parts Master Kit	1965-73 SJ, J-Series 1974-91 SJ, J-10 1979-88 J-20	11" X 2" Bendix 11" x 2" Delco 12" x 2½"	Front or Rear Rear		5352476HK 4636775 4636776
21	Drum Brake Hardware Kit	1978-88 J-20		Rear		H7128
22	Drum Brake Spring Kit	1974-91 SJ, J-10 1980-86 J-20	12" x 2½"	Rear Rear		J8127783 J8124527
23	Drum	1963-73 SJ, J-Series 1974-76 SJ, J-Series 1971-73 SJ, J-Series 1974-91 SJ, J-10 1979-88 J-20	11" x 2" Bendix 11" x 2½" 11" x 2" Bendix 11" x 2" Delco 12" x 2½"	Front Front Rear Rear Rear	Smooth w/ Dana 44 w/ Flanged Axles	J0999728 J8124900 J0999728 J5359281 J8124957
HUBS, ETC
24	Hub	1963-73 SJ, J-Series 1974-91 SJ, J-10 1979-88 J-20	11" x 2" Bendix All All	Front L or R Front L or R Front L or R	5 on 5.5" Bolt Pattern 6 on 5.5" Bolt Pattern 8 on 6.5" Bolt Pattern	J8136650 5357391H* 5359275H
25	Bearing, Wheel	1963-73 SJ, J-Series 1974-91 SJ, J-Series 1963-91 SJ, J-Series	All All All	Front Inner Front Inner Front Outer		J3156052 J8128841 J3156052
26	Cup, Wheel Bearing	1963-73 SJ, J-Series 1974-91 SJ, J-Series	All All	Front Inner or Outer Inner		J0925447 J5357394
27	Bearing Set, Wheel	1974-91 SJ, J-Series	11"	Front, Outer		SET45
28	Seal, Hub	1963-73 SJ, J-Series 1974-91 SJ, J-10 1974-76 SJ, J-10 1974-77 J-20 1978-86 J-20	All All All All All	Front Front Front Front Front	w/ Front Disc w/ Front Drum w/ Front Disc	J0938151 J5359703 J5352171 J5359703 J5352637
29	Nut, Wheel Bearing	1974-91 SJ, J-Series	All	Front Inner		J4004816
30	Lock Washer, Wheel Bearing	1974-91 SJ, J-Series	All	Front		J4004815
31	Nut, Wheel Bearing	1974-91 SJ, J-Series	All	Front Outer		J5352169
32	Washer and Nut Kit, Spindle	1974-91 SJ, J-Series	All	Front Inner & Outer		4004816K
33	Socket, Spindle Nut	1974-91 SJ, J-Series	All	Front		5352169W
34	Stud, Wheel	1964-76 SJ, J-Series 1974-80 SJ, J-Series 1974-91 SJ, J-10 1979-88 J-20 1971-73 SJ, J-Series 1980-86 SJ, J-Series	All All All All All	Front Front Front Front Rear Rear	Right Hand Threads Less Disc Brakes; 1-11/32"	J5353025 J8127492 J8124803 J8124804 J5355719 J3230413
35	Retainer, Wheel Bearing	1974-91 SJ, J-Series	All	Front		J5352650
36	Cap, Wheel Bearing	1974-91 SJ, J-Series	All	Front		J5352268
37	Gasket, Hub Flange	1963-73 SJ, J-Series	All	Front	w/ 2WD	J0649784
38	Manual Locking Hub Set	1974-91 SJ, J-Series	All	Front	w/ Dana 44 Front Axle	400518

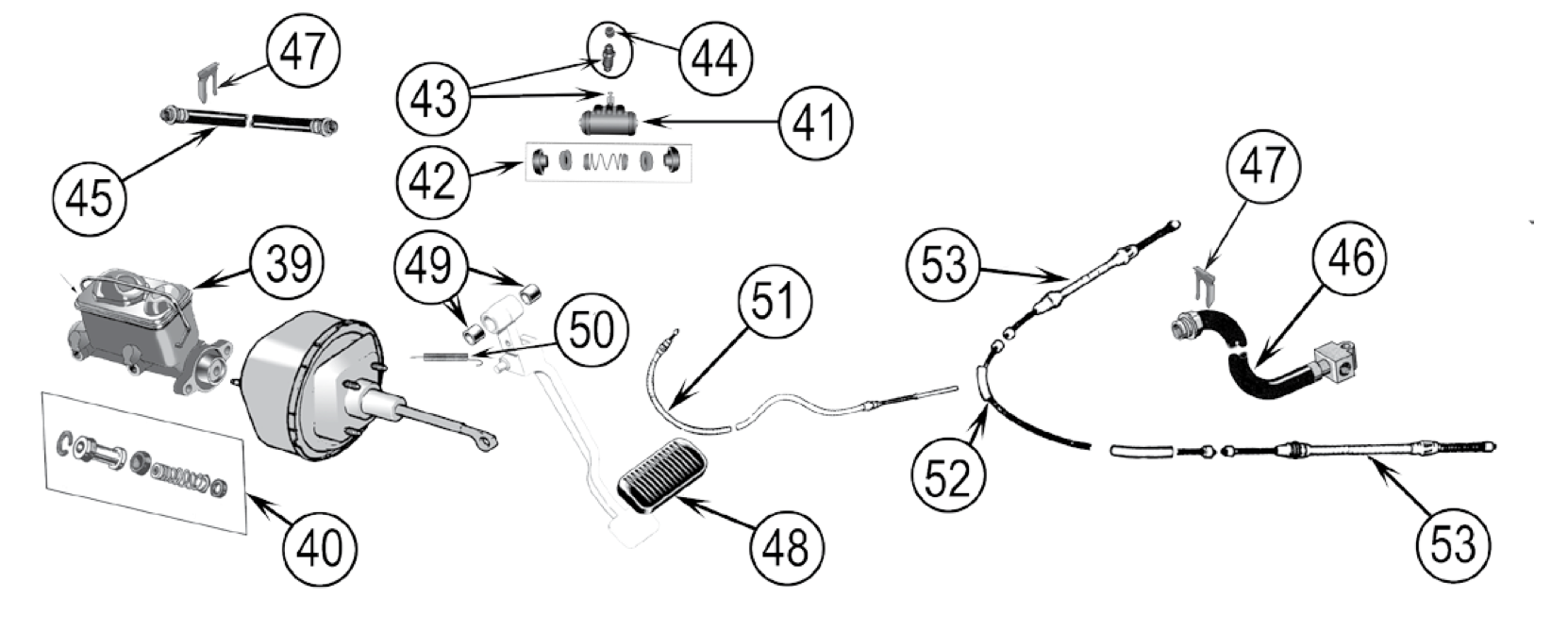

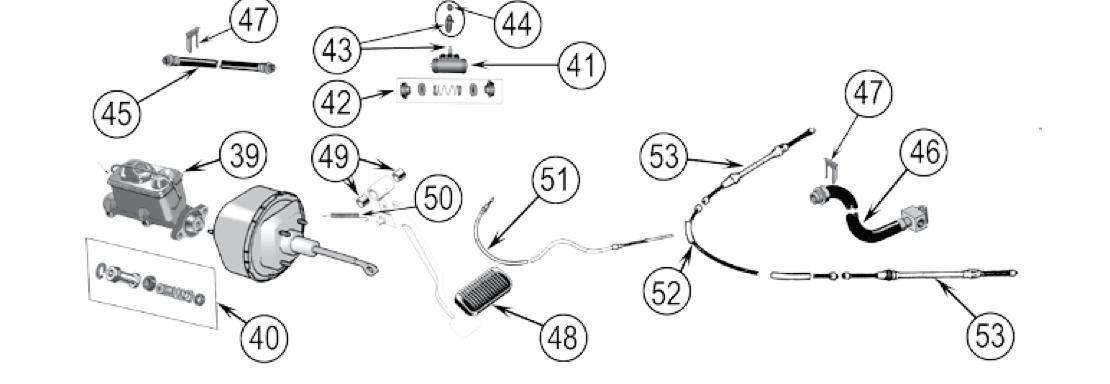

HYDRAULICS
39	Master Cylinder	1965-73 SJ 1967-73 J-Series 1974-80 SJ, J-Series 1981-91 SJ, J-Series	All All All All		w/ Dual Reservoir Master Cylinder w/o 13" Rear Brakes w/ Power Brakes	J8126737 J8126737 J8126739 J8133316
40	Repair Kit, Master Cylinder	1965-73 SJ 1967-73 J-Series 1974-80 SJ, J-Series 1981-91 SJ, J-Series	All All All All		w/ Dual Reservoir Master Cylinder w/o 13" Rear Brakes w/ Power Brakes	J8126747 J8126747 J8127771 J8133317
41	Wheel Cylinder	1963-73 SJ, J-Series 1963-73 SJ, J-Series 1974-75 J-Series 1963-70 SJ, J-Series 1963-70 SJ, J-Series 1971-73 SJ, J-Series 1971-73 SJ, J-Series 1974-91 SJ, J-10 1974-91 SJ, J-10 1979-88 J-20	11" x 2" Bendix 11" x 2" Bendix 12" x 2½" Bendix 11" x 2" Bendix 11" x 2" Bendix 11" x 2" Bendix 11" x 2" Bendix 11" x 2" Delco 11" x 2" Delco 12" x 2½"	Front Left Front Right Right F or R Rear Left Rear Right Rear Left Rear Right Rear L or R Rear L or R Rear L or R	1-1/8" Bore 1-1/8" Bore 1-1/8" Bore w/ Drum Brakes 1" Bore 1" Bore 15/16" Bore 15/16" Bore USA and Canada Export	J8126766 J8126692 8124564 J0937959 J0937960 J8124799 J8126775 J8129723 J8130747 J8129724
42	Repair Kit, Wheel Cylinder	1963-73 SJ, J-Series 1963-70 SJ, J-Series 1964-73 SJ, J-Series 1971-73 SJ, J-Series 1974-91 SJ, J-10	11" x 2" Bendix 11" x 2" Bendix 11" x 2" Bendix 11" x 2" Bendix 11" x 2" Delco	Front Rear Rear Rear Rear	1-1/8" Bore 1" Bore 7/8" Bore 15/16" Bore	J8126753 8126964 83500987 J8125880 J8124566
43	Screw, Bleeder	1974-91 SJ, J-Series 1974-91 SJ, J-Series		Front Rear	3/8"-24 5/16"-24	J8129722 J8127925
44	Cap, Bleeder Screw	1981-91 SJ, J-Series		Front		5093278AB
45	Brake Hose, Front	1963-64 SJ w/ 4WD 1965-73 SJ w/ 4WD 1965-70 SJ w/ 2WD 1963-73 J-Series 1974-78 SJ, J-Series 1974-78 SJ, J-Sereis 1979-91 SJ, J-10 1979-88 J-Series	All All All All All All All All	Frame to Axle Frame to Axle Frame to Axle Frame to Axle Right Left Left or Right Left or Right	w/ Dual Reservoir Master Cyl.; 19-1/8" Long w/ Dual Reservoir Master Cylinder; 18" Long 15½" Long 19-1/8" Long; SJ Cherokee Chief Only 14" Long; SJ Cherokee Chief Only 20.5" Long w/ 119" Wheelbase w/ 131" Wheelbase	J0991360 J0946550 J0645544 J0991360 J5352688 J5352689 J5359322 J5359323
46	Brake Hose, Rear	1963-64 SJ 1963-64 SJ 1963-70 SJ 1963-64 J-Series 1963-67 J-Series 1965-70 J-Series 1965-70 J-Series 1974-75 J-Series 1974-76 SJ 1976-91 SJ, J-10 1979-88 J-10, J-20	All All All All All All All All All All All	Frame to Axle Frame to Axle Frame to Axle Frame to Axle Frame to Axle Frame to Axle Frame to Axle Frame to Axle Frame to Axle Frame to Axle Frame to Axle	16" Long 19-1/8" Long 12" Long w/ 126" Wheelbase; 24" Long w/ 120" Wheelbase; 19-1/8" Long w/ 132" Wheelbase; 16" Long w/o 132" Wheelbase; 24" Long 19" Long 16-¼" Long w/ 119" Wheelbase; 16-¼" Long w/ 131" Wheelbase; 20" Long	J0937884 J0991360 J0800896 J0930640 J0991360 J0937884 J0930640 J5352701 J5355076 J5355076 J5362871
47	Clip, Brake Hose	1981-91 SJ, J-Series				J0937427
MISCELLANEOUS
48	Pad, Brake Pedal	1963-91 SJ, J-Series			w/ Manual Transmission	J5363508
49	Bushing, Pedal	1963-91 SJ, J-Series			Bronze	J0946177
50	Spring, Pedal Return	1974-90 SJ, J-Series				J5351118
PARKING BRAKE
51	Cable, Lever to Equalizer	1976-79 SJ, J-Series 1976-79 SJ, J-Series 1976-79 SJ, J-Series 1976-79 SJ, J-Series 1980-91 SJ, J-10 1982-91 SJ, J-10 1980-88 SJ, J-Series 1980-91 SJ, J-Series 1980-88 J-20			w/ V8 w/ Auto Trans w/4-Speed Manual w/ TH400 or T18 Transmission w/ 6 Cyl w/ Auto Transmission w/ 4-Speed Manual; 45-¾" Long w/ 5-Speed Manual; 51-¾" Long w/ 4.2L w/ Auto Trans; 51-¾" Long w/ 5.9L w/ Auto Trans; 45-¾" Long w/ 4-Speed Manual; 51-¾" Long	J5355721 J5355721 J5355722 J5356189 J5361026 J5361029 J5361029 J5361026 J5361029
52	Cable, Equalizer to Rear Cable	1976-79 J-Series 1980-91 SJ, J-10 1980-88 SJ, J-10 1980-91 SJ, J-Series 1980-88 J-20			w/ Manual Trans.; 80-¾" Long w/ 4-Speed Manual; 47" Long w/ 4.2L w/ Auto Trans; 37" Long w/ 5.9L w/ Auto Trans; 47" Long w/ 4-Speed Manual; 47" Long	J5355333 J5361279 J5361280 J5361279 J5361280
53	Cable, Rear	1973 SJ 1974-75 SJ 1976 SJ 1977-78 SJ 1979 SJ 1980-91 SJ 1973 J-Series 1974-75 J-Series 1974-75 J-Series 1976-78 J-10 1979 J-10 1980-86 J-10		Left or Right Left or Right Left or Right Left or Right Left or Right Left or Right Left or Right Left or Right Left or Right Left or Right Left or Right Left or Right	Less Cherokee Chief w/ 45-¼" Long Cable w/ 119" Wheelbase w/ 119" Wheelbase w/ 131" Wheelbase w/ 119" Wheelbase w/ 119" Wheelbase; w/ 45-¼" Long Cable w/ 119" Wheelbase	J5351672 J5354722 J5357412 J5357412 J5357412 J5362132 J5351672 J5354722 J5352765 J5357412 J5357412 J5362131

* Not Currently Available
