1947-1965 Willys Pickup (PU), 1948-1963 Willys Sedan Delivery (SD), 1946-1964 Willys Station Wagon (SW), 1948-1950 VJ Jeepster
SD, SW, VJ - 10" x 1-3/4" Eccentric Adjusting Front or Rear
PU, SW, SD - 11" x 2" Eccentric Adjusting Front or Rear

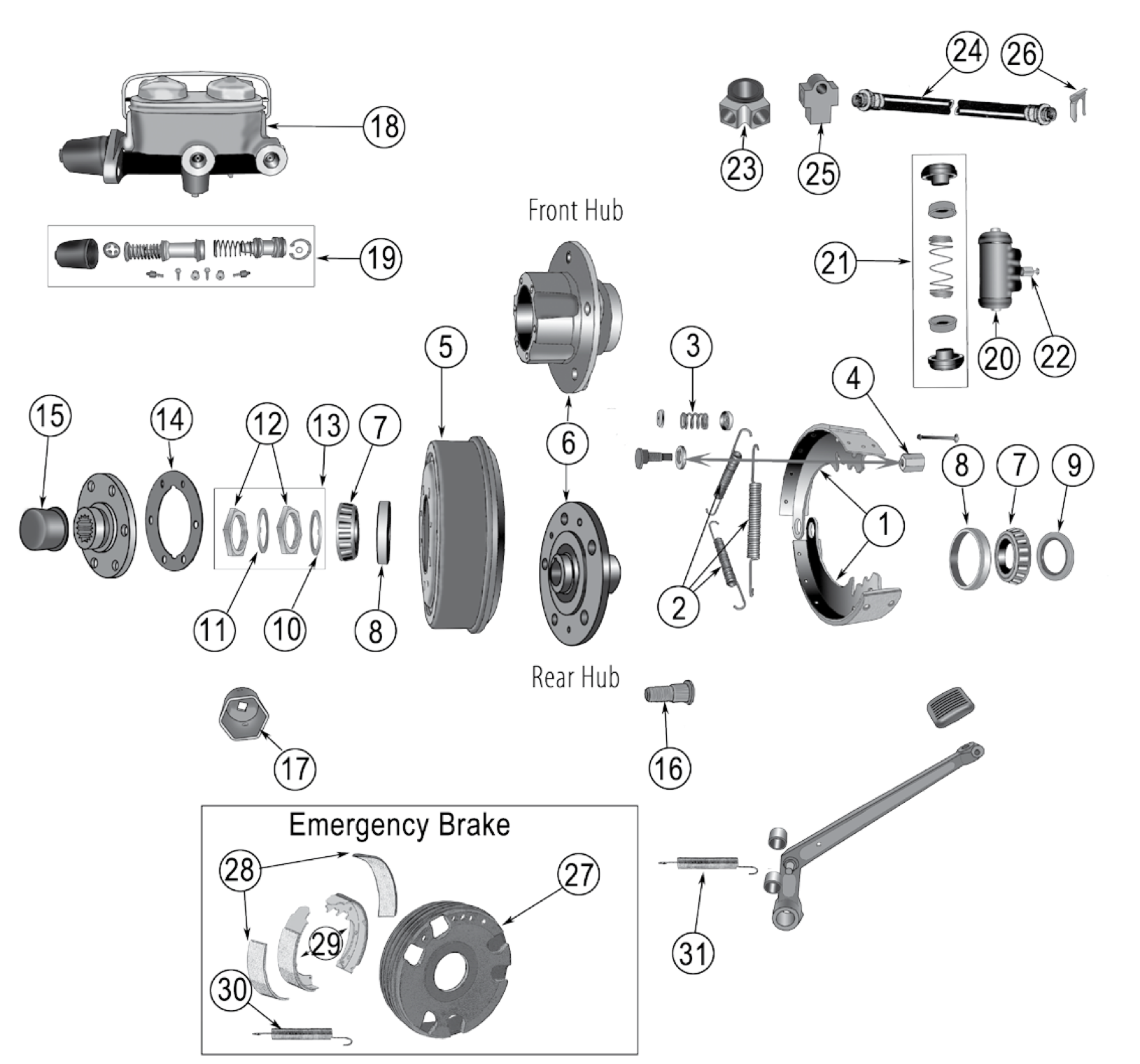

Item numbers match the diagram. Each part number searches Amazon for that Crown part.
| Item # | Description | Application | Size | Location | Comments | Part No. |
|---|---|---|---|---|---|---|
| FRONT AND REAR DRUM BRAKES | ||||||
| 1 | Shoe and Lining Set | PU, SW, SD | 11" x 2" | Front or Rear | 8126685 | |
| 2 | Spring, Brake Shoe Return |
PU, SW, SD PU, SW, SD |
11" x 2" 11" x 2" |
Front or Rear Front or Rear |
Upper Lower |
J0924057 J0909889 |
| 3 | Spring, Brake Shoe Hold Down | PU, SW, SD | 11" x 2" | Front or Rear | 2 Required Per Wheel | J0641997 |
| 4 | Nut, Brake Shoe Eccentric | PU, SW, SD | 11" x 2" | Front or Rear | 2 Required Per Wheel | J0648348 |
| 5 | Drum | PU, SW, SD | 11" x 2" | Front or Rear | J0941877 | |
| HUBS, ETC. | ||||||
| 6 | Hub |
PU, SD, SW PU, SD, SW SW, SD PU |
All All All All |
Front Front Rear Rear |
w/ Bearing Marked 18590 w/ Bearing Marked LM-501349 w/ Dana 44 Rear Axle w/ Dana 53 Rear Axle |
J0909548 J8136650 J0811351 J0912647 |
| 7 | Bearing, Wheel |
PU, SD, SW PU, SD, SW |
All All |
Front Inner or Outer Front Inner or Outer |
w/ BearingMarked 18590 w/ Bearing Marked LM-501349 |
J0052942 J3156052 |
| 8 | Cup, Wheel Bearing |
PU, SD, SW PU, SD, SW |
All All |
Front Inner or Outer Front Inner or Outer |
w/ Cup Marked 18520 w/ Cup Marked LM-501310 |
J0052943 J0925447 |
| 9 | Seal, Hub |
PU, SD, SW PU, SD, SW |
All All |
Front Front |
w/ Bearing Marked 18590 w/ Bearing Marked LM-501349 |
J0805150 J0938151 |
| 10 | Lock Washer, Wheel Bearing | PU, SD, SW | All | Front Inner | JA000865 | |
| 11 | Lock Washer, Wheel Bearing | PU, SD, SW | All | Front Outer | JA000867 | |
| 12 | Nut, Axle Bearing | PU, SD, SW | All | Front | 2 Required Per Wheel | JA000866 |
| 13 | Washer and Nut Kit, Spindle | PU, SD, SW | All | Front | Includes 2 Spindle Nuts and 2 Washers | A867K |
| 14 | Gasket, Hub Flange | PU, SD, SW | All | Front | J0649784 | |
| 15 | Dust Cap | PU, SD, SW | All | Front | w/ Dana 25 w/ Bearing Marked 18590 | J5362283 |
| 16 | Stud, Wheel |
PU, SD, SW PU, SD, SW PU, SD, SW PU, SD, SW |
All All All All |
Front Front Rear Rear |
w/ Bearing Marked 18590; Left Hand Threads w/ Bearing Marked 18590; Right Hand Threads w/ Dana 44 Rear Axle w/ Tapered Axle Shafts; Left Hand Threads w/ Dana 44 Rear Axle w/ Tapered Axle Shafts; Right Hand Threads |
JA000473 A474 JA000473 A474 |
| 17 | Socket, Spindle Nut | PU, SD, SW | All | Front | A692N | |
| HYDRAULICS | ||||||
| 18 | Master Cylinder |
SW, SD, VJ PU PU |
All All All |
|
Single Reservoir w/o 6-230 Engine; Single Reservoir w/ 6-230 Engine |
J8136618 J8136618 932829 |
| 19 | Repair Kit, Master Cylinder |
SW, SD, VJ PU PU |
All All All |
|
w/o 6-230 Engine w/ 6-230 Engine |
805654 805654 J0932833 |
| 20 | Wheel Cylinder |
PU, SW, SD PU, SW, SD PU, SW, SD PU, SW, SD |
11" x 2" 11" x 2" 11" x 2" 11" x 2" |
Front Left Front Right Rear Left Rear Right |
1-1/8" Bore 1-1/8" Bore 1" Bore 1" Bore |
J8126741 J0649948 J0802951 649941 |
| 21 | Repair Kit, Wheel Cylinder | PU, SW, SD | 11" x 2" | Rear | 1" Bore | J0115962 |
| 22 | Bleeder Screw | SD, SW, VJ | All | F or R, L or R | J0643841 | |
| 23 | Fitting, Master Cylinder | PU, SW, SD, VJ | All | "Y" Fitting | 637603* | |
| 24 | Brake Hose | PU, SW, SD, VJ | All | Front or Rear | 15-1/2" Long | J0645544 |
| 25 | Brake Tee | PU, SW, SD, VJ | All | Front or Rear | Mounts to Axle | J0637432 |
| 26 | Clip, Brake Hose | PU, SW, SD, VJ | All | Front or Rear | J0637427 | |
| EMERGENCY BRAKE | ||||||
| 27 | Drum, Emergency Brake | PU, SW, SD | w/ Transfer Case Brake | A9332 | ||
| 28 | Lining Kit, Emergency Brake | PU, SW, SD | w/ Transfer Case Brake | 116712* | ||
| 29 | Shoe Set, Emergency Brake | PU, SW, SD | w/ Transfer Case Brake | J0643055 | ||
| 30 | Spring, Emergency Brake Return | PU, SW, SD | w/ Transfer Case Brake | J0641727 | ||
| MISCELLANEOUS | ||||||
| 31 | Spring, Brake Pedal | PU, SW | J0641723 | |||
* Not Currently Available
