3.8L and 4.2L Six Clutch
3.8L (S6-232): 1966-1978 CJ-5, 6; 1965-1970 SJ, J-Series
4.2L (S6-258): 1972-1983 CJ-5, 6, 7, 8, SJ, J-Series
3.8L (S6-230): 1963-1965 SJ, J-Series

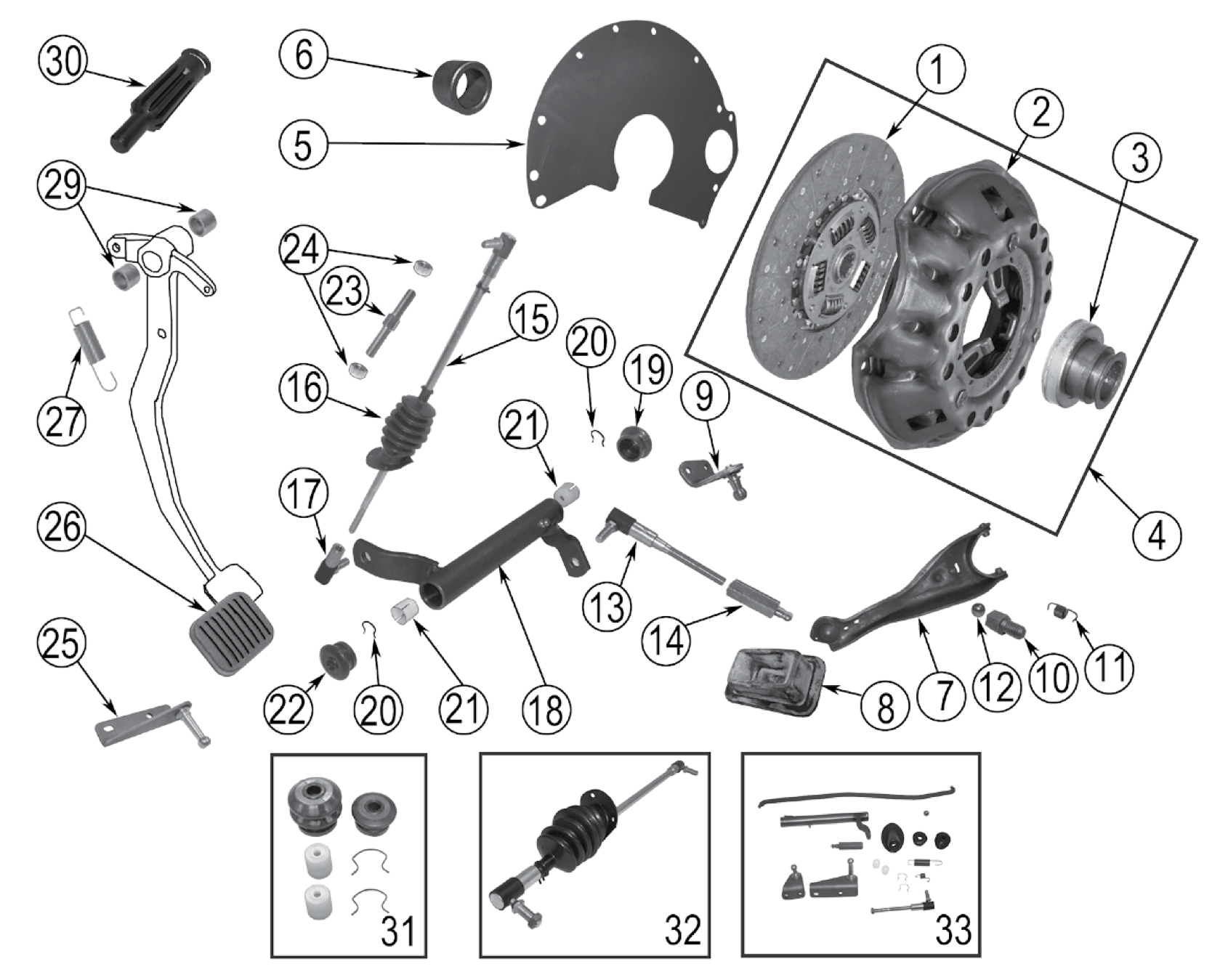

Item numbers match the diagrams. Each part number searches Amazon for that Crown part.
| Item # | Description | Engine | Year | Application / Comments | Part No. |
|---|---|---|---|---|---|
| 1 | Disc, Clutch |
3.8L (S6-232), 4.2L (S6-258) 3.8L (S6-232), 4.2L (S6-258) 4.2L (S6-258) 3.8L (S6-232), 4.2L (S6-258) 3.8L (S6-232), 4.2L (S6-258) |
1965-75 1976-79 1980-86 1965-86 1978-81 |
CJ-5, 6 CJ-5, 7 CJ-5, 7 SJ, J-Series w/ 11" Clutch |
53008259 J5354689 53008259 53008259 J3184867 |
| 2 | Plate, Pressure |
3.8L (S6-230) 3.8L (S6-230) 3.8L (S6-232), 4.2L (S6-258) 3.8L (S6-232), 4.2L (S6-258) 4.2L (S6-258) |
All All 1965-81 1978-81 1982-86 |
w/ 9.25" Clutch w/ 10" or 10.5" Clutch w/ 10" or 10.5" Clutch w/ 11" Clutch w/ 10.5" Clutch |
J3216159 J3184908 J3184908 J5357436 53004678 |
| 3 | Bearing, Clutch Throwout |
3.8L (S6-230) 3.8L (S6-230) 3.8L (S6-232), 4.2L (S6-258) 3.8L (S6-232), 4.2L (S6-258) 4.2L (S6-258) 3.8L (S6-232), 4.2L (S6-258) 4.2L (S6-258) 4.2L (S6-258) |
1963-65 1963-65 1972-75 1976-80 1981-86 1965-77 1978-79 1980-86 |
SJ, J-Series, w/o Sleeve SJ, J-Series, w/ Sleeve CJ-5, 6 CJ-5, 7 CJ-5, 7, 8 SJ, J-Series SJ, J-Series SJ, J-Series |
J0700003 J0732698 J5356918 J3241263 J5361614 J5356918 J3190517 J5361614 |
| 4 | Clutch Kit Clutch Master Kit |
3.8L (S6-232), 4.2L (S6-258) 4.2L (S6-258) 4.2L (S6-258) 4.2L (S6-258) 4.2L (S6-258) 3.8L (S6-232), 4.2L (S6-258) 4.2L (S6-258) 4.2L (S6-258) 4.2L (S6-258) 4.2L (S6-258) |
1972-75 1975-75 1976-80 1981-81 1982-86 1965-77 1976-80 1981-86 1982-86 1982-86 |
CJ-5, 6; 11" Disc, 10 Spline CJ-5, 6; 10.5" Disc, 10 Spline CJ-5, 7; 10.5" Disc, 10 Spline CJ-5, 7, 8; 10.5" Disc, 10 Spline CJ-5, 7, 8; 10.5" Disc, 10 Spline SJ, J-Series; 10.5" Disc, 10 Spline SJ, J-Series; 10.5" Disc, 10 Spline SJ, J-Series; 10.5" Disc, 10 Spline CJ-5, 7, 8; 10.5" Disc, 10 Spline, Diaphragm Style CJ-5, 6, 8; 10.5" Disc, 10 Spline, Finger Style |
3184867K 3184909K 3184908E 5360174K 3240278K 3184909K 3184908E 5360174K 3240278MK 5360174MK |
| 5 | Spacer, Bellhousing to Engine | 3.8L (S6-232), 4.2L (S6-258) | 1972-86 | J3213743 | |
| 6 | Bushing, Pilot |
3.8L (S6-232), 4.2L (S6-258) 3.8L (S6-232), 4.2L (S6-258) 4.2L (S6-258) 3.8L (S6-232), 4.2L (S6-258) |
1965-71 1972-75 1980-86 1965-79 |
CJ-5, 6 CJ-5, 6, 7 CJ-5, 7, 8 SJ, J-Series |
J3174730 J3213751 J3236726 J3222723 |
| 7 | Fork, Clutch Throwout |
3.8L (S6-232), 4.2L (S6-258) 3.8L (S6-232), 4.2L (S6-258) 4.2L (S6-258) 4.2L (S6-258) |
1973-75 1976-79 1973-79 1980-86 |
CJ-5, 6 CJ-5, 7 SJ, J-Series All |
J3217480 J3224192 J3217480 J5361620 |
| 8 | Boot, Clutch Fork |
3.8L (S6-232), 4.2L (S6-258) 3.8L (S6-232), 4.2L (S6-258) 4.2L (S6-258) |
1972-75 1976-79 1980-86 |
CJ-5, 6 CJ-5, 7 CJ-5, 7, 8 |
J3173646 J3180370 3236453 |
| 9 | Pivot, Bellcrank, Inner |
4.2L (S6-258) 4.2L (S6-258) |
1976-86 1980-86 |
CJ-5, 7, 8; Includes Bracket SJ, J-Series; Stud Only |
J5360112 J0944666 |
| 10 | Pivot, Clutch Throwout |
3.8L (S6-232), 4.2L (S6-258) 3.8L (S6-232), 4.2L (S6-258) 4.2L (S6-258) |
1972-75 1965-71 1974-80 |
CJ-5, 6 SJ, J Series SJ, J Series |
J3173474 J3173474 J3173474 |
| 11 | Spring, Throwout Lever Release |
3.8L (S6-232), 4.2L (S6-258) 3.8L (S6-232), 4.2L (S6-258) |
1972-75 1976-86 |
CJ-5, 6 CJ-5, 7, 8 |
J3199503 J3222799 |
| 12 | Ball, Throwout Lever |
3.8L (S6-232), 4.2L (S6-258) 4.2L (S6-258) |
1972-86 1971-86 |
CJ-5, 6, 7, 8 SJ, J-Series |
J0169162 J0169162 |
| 13 | Rod, Bellcrank to Throwout Fork |
3.8L (S6-232), 4.2L (S6-258) 3.8L (S6-232), 4.2L (S6-258) 3.8L (S6-232), 4.2L (S6-258) 4.2L (S6-258) 4.2L (S6-258) |
1972-75 1974-75 1976-79 1979-86 1974-79 |
CJ-5, 6; 5-3/8" Long CJ-5, 6; 6" Long CJ-5, 7 w/ Nut-Type Attachment CJ-5, 7, 8 w/ Pin-Type Attachment SJ, J-Series w/ Nut-Type Attachment |
J5351275 J5354703 J8126668 J5359943 J5351274 |
| 14 | Adjuster, Clutch Wear |
All All |
1972-79 1980-86 |
|
J5351209 J5359735 |
| 15 | Rod, Clutch Pedal to Bellcrank |
3.8L (S6-232), 4.2L (S6-258) 3.8L (S6-232), 4.2L (S6-258) 4.2L (S6-258) 4.2L (S6-258) 4.2L (S6-258) |
1972-75 1976-86 1973-75 1975-79 1980-86 |
CJ-5, 6 CJ-5, 7, 8 SJ; 18-5/8" Long; Upper J-Series; Lower SJ, J-Series; Upper |
J5351302 J5364620 J5351302 J5355062 J5359903 |
| 16 | Boot, Clutch Release Rod | 3.8L (S6-232), 4.2L (S6-258) | 1972-75 | CJ-5, 6 | 5351375 |
| 17 | Ball Joint, Adjusting Link |
3.8L (S6-232), 4.2L (S6-258) 3.8L (S6-232), 4.2L (S6-258) |
1965-75 1972-75 |
J-Series CJ-5, 6 |
J8126777 J8126777 |
| 18 | Bellcrank |
3.8L (S6-232), 4.2L (S6-258) 3.8L (S6-232), 4.2L (S6-258) 4.2L (S6-258) |
1972-75 1976-86 1975-79 |
CJ-5, 6 CJ-5, 7, 8 J-Series w/ 8" Transmission Gear Shift Rod |
J5354659 J5364621 J5354027 |
| 19 | Boot, Clutch Pivot, Inner |
3.8L (S6-232), 4.2L (S6-258) 3.8L (S6-232), 4.2L (S6-258) |
1972-86 1965-86 |
CJ-5, 6, 7, 8 SJ, J-Series |
J3167049 J3167049 |
| 20 | Retainer, Bellcrank Boot | All | 1972-86 | Inner or Outer | J3169769 |
| 21 | Bushing, Bellcrank | All | 1972-86 | Inner or Outer | J3167067 |
| 22 | Boot, Clutch Pivot, Outer |
3.8L (S6-232), 4.2L (S6-258) 3.8L (S6-232), 4.2L (S6-258) |
1972-86 1965-86 |
CJ-5, 6, 7, 8 SJ, J-Series |
J3170937 J3167049 |
| 23 | Adjuster, Clutch Pedal to Bellcrank Rod | All | 1975-86 | SJ, J-Series | J5355063 |
| 24 | Nut, Linkage | All | 1966-86 | SJ, J-Series | J0124824 |
| 25 | Bracket and Pivot, Bellcrank, Outer | 4.2L (S6-258) | 1976-86 | CJ-5, 7, 8 | J5355339 |
| 26 | Pad, Clutch Pedal |
3.8L (S6-232), 4.2L (S6-258) 3.8L (S6-230), 3.8L (S6-232), 4.2L (S6-258) |
1968-86 1965-86 |
CJ-5, 6, 7, 8 SJ, J-Series |
J5363508 J5363508 |
| 27 | Spring, Clutch Pedal Return |
3.8L (S6-232), 4.2L (S6-258) 4.2L (S6-258) |
1972-86 1973-86 |
CJ-5, 6, 7, 8 SJ, J-Series |
J5351118 J5351118 |
| 28 | Flywheel (Not Shown In Diagram) |
4.2L (S6-258) 4.2L (S6-258) |
1982-86 1982-86 |
CJ-5, 7, 8 SJ, J-Series |
J3240094 J3240094 |
| 29 | Bushing, Clutch Pedal |
3.8L (S6-230) 3.8L (S6-232), 4.2L (S6-258) 4.2L (S6-258) 3.8L (S6-232), 4.2L (S6-258) |
1963-65 1966-81 1982-86 1965-86 |
SJ, J-Series CJ-5, 7, 8 CJ-5, 7, 8 SJ, J-Series |
J0946177 J0949169 J0946177 J0949169 |
| 30 | Clutch Alignment Tool |
All All All |
1972-86 1976-79 1972-86 |
CJ-5, 7, 8; 1-1/8", 10 Spline CJ-5, 6; 1-1/16", 10 Spline SJ, J-Series; 1-1/16", 10 Spline |
53010 52010 53010 |
| 31 | Clutch Pivot Repair Kit | 4.2L (S6-258) | 1976-86 | CJ-5, 7, 8 | 3167067K |
| 31 | Clutch Pivot Repair Kit | 4.2L (S6-258) | 1972-90 | SJ, J-Series | 3167067K |
| 32 | Clutch Rod Kit | 3.8L (S6-232), 4.2L (S6-258) | 1972-75 | CJ-5 | 5351302K |
| 33 | Clutch Linkage Kit | 4.2L (S6-258) | 1976-86 | CJ-5, 7; LHD | 5360104K |
