2.5L GM Clutch
1980-1983 CJ-5, 7, 8

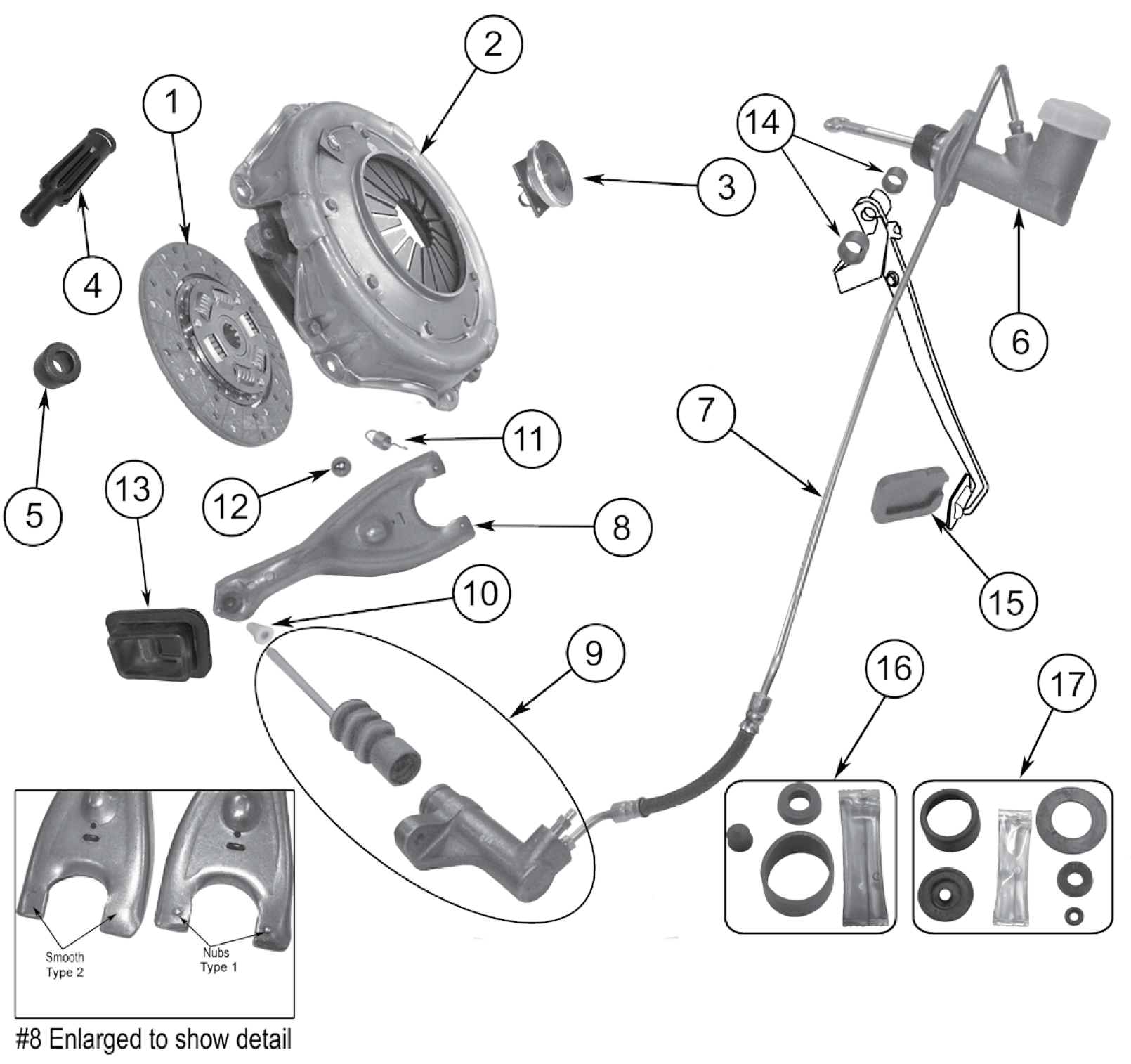

Item numbers match the diagram. Each part number searches Amazon for that Crown part.
| Item # | Description | Application / Comments | Part No. |
|---|---|---|---|
| 1 | Disc, Clutch | All | J8132577 |
| 2 | Plate, Pressure | All | J8132576 |
| 3 | Bearing, Throwout |
1980 Before VIN 40992, Use w/ Type 1 Fork 1980 After VIN 40992, Use w/ Type 2 Fork 1981-83 |
J3241263 J5361614 J5361614 |
| 4 | Alignment Tool, Clutch | All; 1-1/8", 10 Spline | 53010 |
| 5 | Bushing, Pilot | 1981-83 | J3752487 |
| 6 | Master Cylinder, Clutch | All | J5359822 |
| 7 | Hose, Clutch | All | 53004164 |
| 8 | Fork, Throwout |
1980 Before VIN 40992, w/ Nubs, Type 1 1980 After VIN 40992 w/out Nubs, Type 2 1981-83 |
J3224192 J5361620 J5361620 |
| 9 | Slave Cylinder, Clutch | All | J3241867 |
| 10 | Pivot, Throwout Fork | All | J3217479 |
| 11 | Spring, Clutch Throwout Lever | All | J3222799 |
| 12 | Ball, Throwout Lever | All | J0169162 |
| 13 | Boot, Throwout Fork | 1981-83 | J3180370 |
| 14 | Bushing, Clutch Pedal | All | J0946177 |
| 15 | Pad, Clutch Pedal | All | J5363508 |
| 16 | Repair Kit, Clutch Slave Cylinder | All | J8132782 |
| 17 | Repair Kit, Clutch Master Cylinder | All | J8132781 |
