L and F-Head 2.2L Clutch
MB, M38, M38-A1, CJ-2A, 3A, 3B, 5, 6
C101 Commando, Willys Station Wagon, Sedan Delivery and Pickup, FC-150

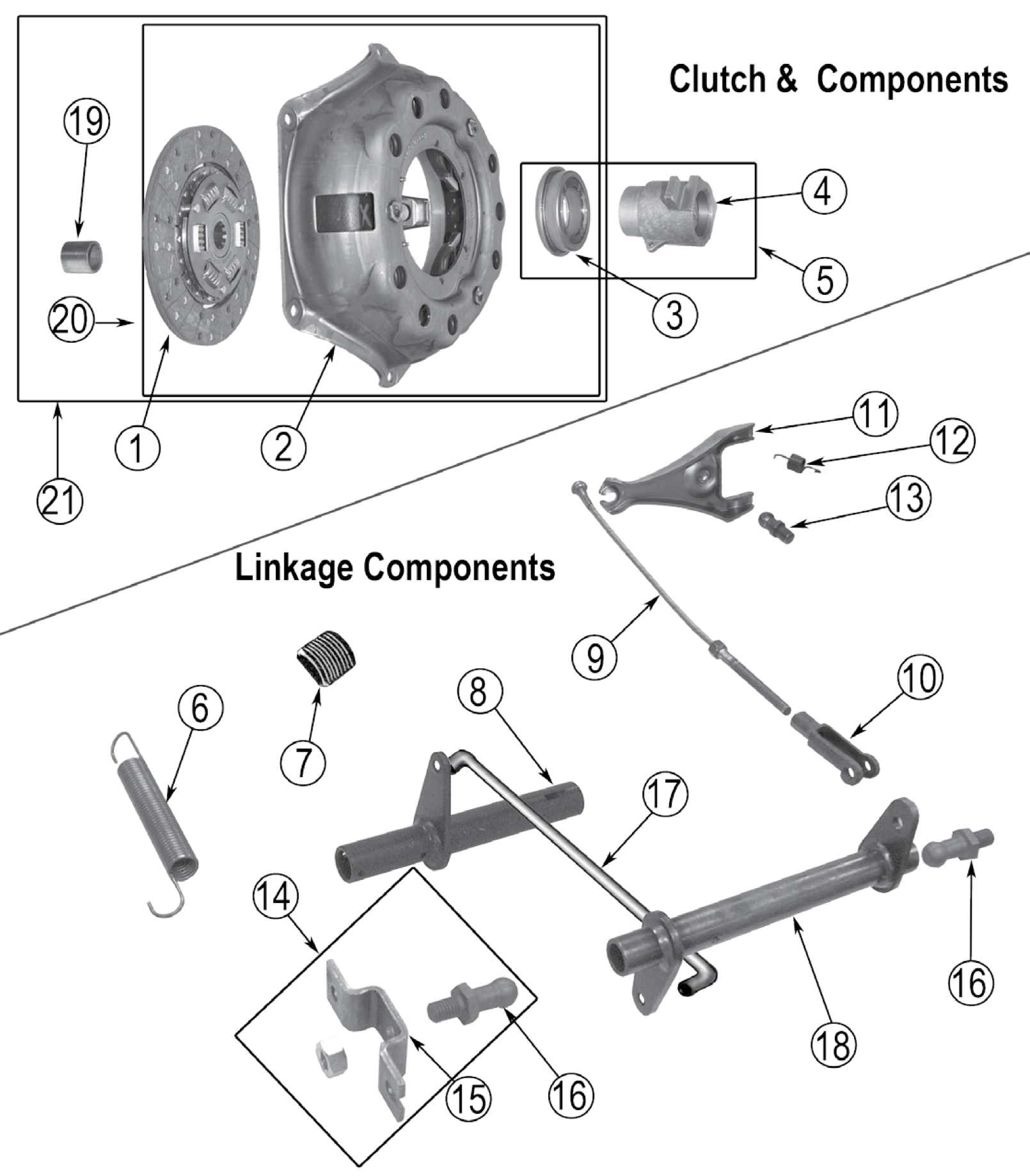

Item numbers match the diagram. Each part number searches Amazon for that Crown part.
| Item # | Description | Engine | Application / Comments | Part No. |
|---|---|---|---|---|
| 1 | Disc, Clutch |
Both 2.2L (F4-134) |
All w/ 8.5" All w/ 9.25" (Originally B&B) |
J0930731 921977 |
| 2 | Plate, Pressure |
Both 2.2L (F4-134) |
All w/ 8.5" All w/ 9.25" (Originally Auburn or Dana) |
J0804746 J3216159 |
| 3 | Bearing, Clutch Release | Both | All | J0991720 |
| 4 | Sleeve, Clutch Throwout Bearing | Both | All | J0644366 |
| 5 | Sleeve and Bearing, Clutch Throwout Lever | Both | All | J0945255 |
| 6 | Spring, Clutch Pedal Return |
2.2L (L4-134) 2.2L (F4-134) 2.2L (F4-134) 2.2L (F4-134) |
All CJ-3B, 5, 6, M38-A1 Pickup, Station Wagon FC-150 |
J0641723 J0641723 J0641723 J0641727 |
| 7 | Pad, Clutch Pedal | 2.2L (F4-134) | CJ-3B, 5, 6 | J5363508 |
| 8 | Shaft, Clutch Pedal | Both | MB, CJ-2A, 3A, 3B, 5,6, M38, M38-A1 | A495 |
| 9 | Cable, Clutch Release |
2.2L (F4-134) 2.2L (F4-134) Both Both |
C101 Commando w/ T86 Transmission (49-3/16" long) FC-150 w/ T90 Transmission (Cross Shaft to Throwout Lever) CJ-2A, 3A, 3B, 5, 6, (Bellcrank to Throwout Lever; 11" long) M38 to serial #74419 (Bellcrank Throwout Lever) |
J0942612 J0948726 J0948726 J0948726 |
| 10 | Yoke (Clevis) | Both | MB, CJ-2A, 3A, 3B, 5,6, M38, M38-A1 | J0632177 |
| 11 | Fork, Clutch Throwout |
Both Both |
All Except Station Wagon, Pickup, Sedan Delivery, VJ Jeepster Station Wagon, Pickup, Sedan Delivery, VJ Jeepster |
J0630112 641275 |
| 12 | Spring, Clutch Throwout Release Fork | Both | J0630117 | |
| 13 | Fulcrum, Clutch Throwout Fork | Both | J0630068 | |
| 14 | Stud and Bracket, Clutch Release, Frame End | Both | CJ-2A, 3A, 3B, 5, 6, FC-150, MB, M38, M38-A1 w/ T90 Transmission | JA000179 |
| 15 | Bracket, Pivot | Both | CJ-2A, 3A, 3B, 5, 6, FC-150, MB, M38, M38-A1 | A180 |
| 16 | Pivot, Clutch Release | Both | CJ-2A, 3A, 3B, 5, 6, FC-150, MB, M38, M38-A1 w/ T90 Transmission | JA000181 |
| 17 | Rod, Bellcrank to Clutch Pedal Shaft | Both | M38-A1, CJ-2A, 3A, 3B, 5, 6 (10.5" Long) | J0991143 |
| 18 | Bellcrank, Clutch Release |
Both 2.2 (L4-134) |
CJ-2A, 3A, 3B, 5, 6, FC-150, MB, M38, M38-A1 w/ 8-1/2" Clutch CJ-3B, 5, 6, FC-150 w/ 9-1/4" Clutch |
642624 922076 |
| 19 | Bushing, Pilot | Both | All | J0639578 |
| 20 | Clutch Kit (For 8.5" Clutches) | Both | Includes Pressure Plate, Disc, and Throwout Bearing | 930731K |
| 21 | Clutch Kit (For 9.25" Clutches) | Both | Includes Pressure Plate, Disc, Throwout Bearing, and Pilot Bearing | 921977K |
