3.7L V6-225 Clutch
1966-1971 CJ-5, 6
1966-1971 C101 Commando

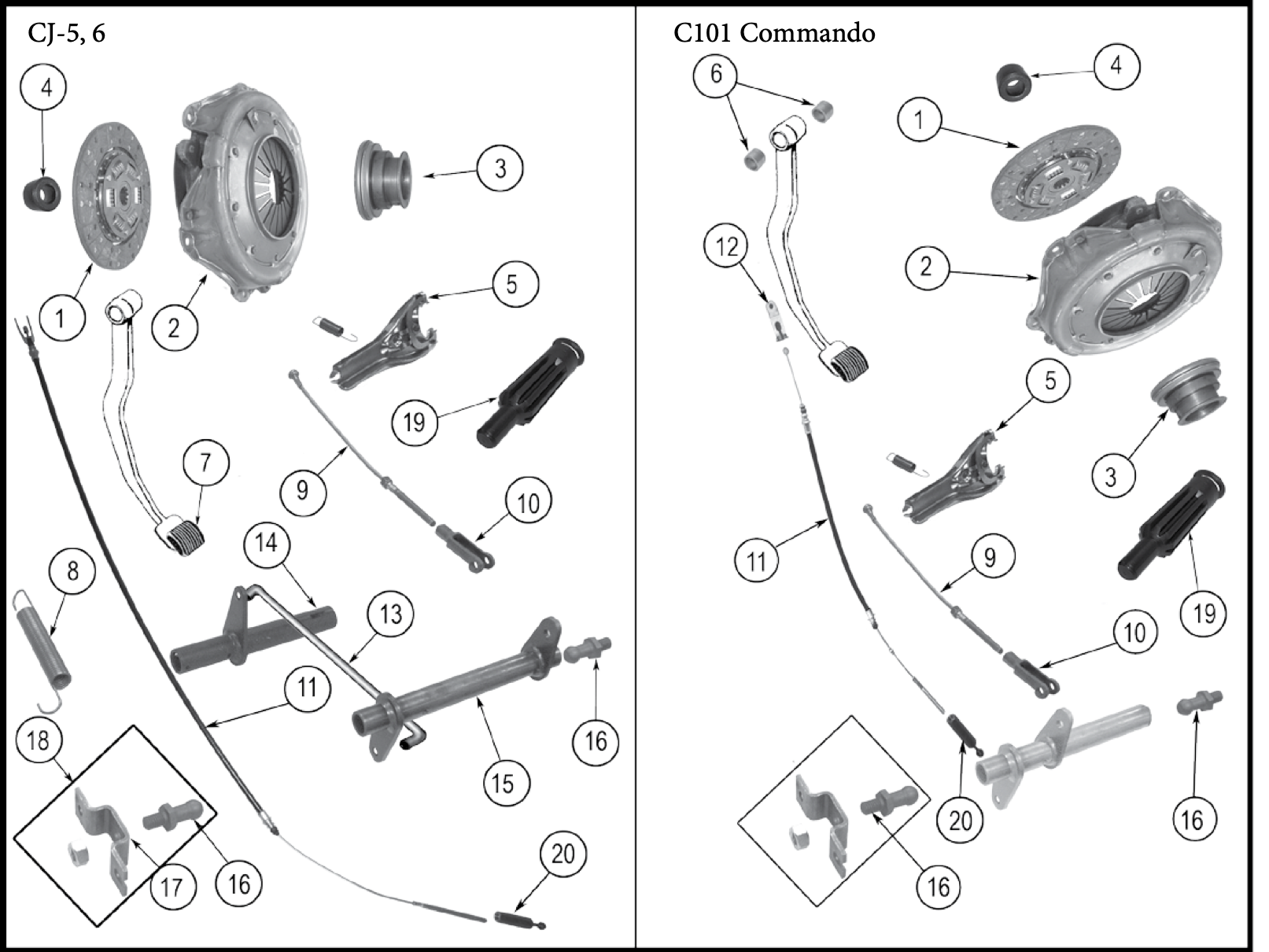

Item numbers match the diagram. Each part number searches Amazon for that Crown part.
| Item # | Description | Application / Comments | Part No. |
|---|---|---|---|
| 1 | Disc, Clutch | All | 53008259 |
| 2 | Plate, Pressure |
All (Dana 10-1/2"); Finger Type All (B&B 10-1/2"); Diaphragm Type |
J4485780 J0948692 |
| 3 | Bearing and Carrier, Clutch Throwout | All | J0991186 |
| 4 | Bushing, Pilot | All | J3752487 |
| 5 | Fork, Clutch Throwout | All | J1378486 |
| 6 | Bushing, Clutch Pedal | C101 (2 Required) | J0946177 |
| 7 | Pad, Clutch Pedal | CJ-5, 6 | J5363508 |
| 8 | Spring, Clutch Pedal Return | CJ-5, 6 | J0641723 |
| 9 | Cable, Bellcrank to Throwout Lever |
All (13-5/8" Long) All (14-1/4" Long) |
J0942622 J0947224 |
| 10 | Yoke (Clevis) | All | J0632177 |
| 11 | Cable, Clutch Release |
CJ-5, 6 w/ T86, T14 Transmission w/ Diaphragm Style Pressure Plate; (58-1/4" Long) C101 w/ T86 Transmission w/ Diaphragm Style Pressure Plate (49-3/16" long); Cable Adjustment at Pedal end C101 w/ T86 Transmission (84-1/4" long); Cable adjustment at Throwout Lever |
J0992533 J0942612 J0994759 |
| 12 | Clevis | C101 | J0948416 |
| 13 | Rod, Clutch Pedal Shaft to Bellcrank |
CJ-5, 6 (8-7/8" Long) CJ-5, 6 (9-3/4" Long) CJ-5, 6 (10.5" Long) |
J0911814 J0947223 J0991143 |
| 14 | Shaft, Clutch Pedal | CJ-5, 6 | A495 |
| 15 | Bellcrank | CJ-5, 6 | J0941232 |
| 16 | Stud, Clutch Release | All | JA000181 |
| 17 | Bracket, Pivot | CJ-5, 6 w/ T86, T14 Transmission | A180 |
| 18 | Stud and Bracket, Clutch Release, Frame End | CJ-5, 6 w/ T86, T14 Transmission | JA000179 |
| 19 | Alignment Tool, Clutch | All; 1-1/8", 10 Spline | 53010 |
| 20 | Adjuster, Clutch Wear | All; w/ 58-1/4" Long Cable | J0998666 |
