Dana 18 Transfer Case

1941-1971 MB, CJ-2A, 3A, 3B, 5, 6, M38, M38-A1
1956-1964 FC-150, FC-170
1947-1965 Willys Pickup, Sedan Delivery, Station Wagon

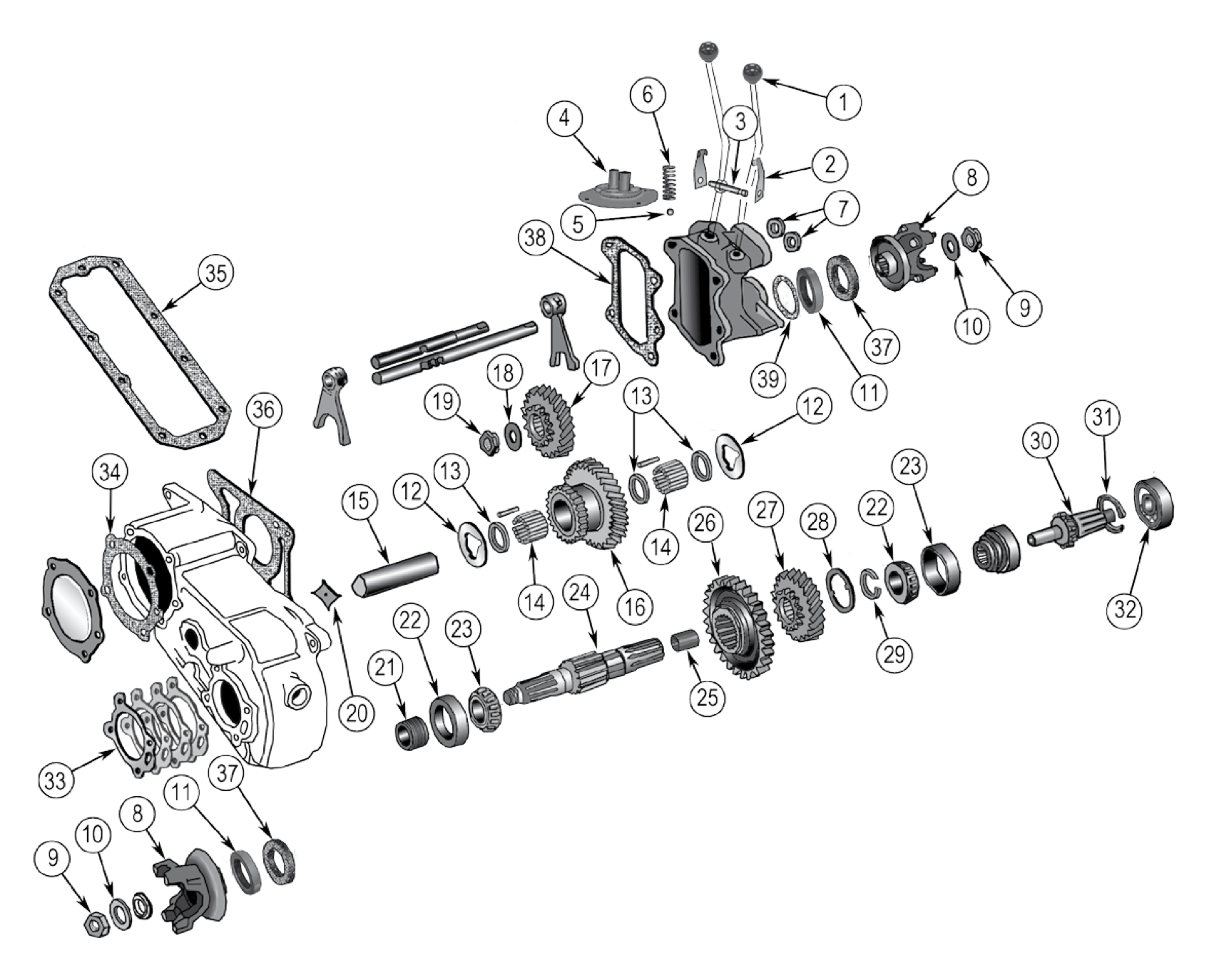

Item numbers match the diagrams. Each part number searches Amazon for that Crown part.

Item #	Description	Application	Comments	Part No.
1	Knob, Gearshift	MB, CJ-2A, 3A, 3B, 5, 6, Pickup, Sedan Delivery, Station Wagon		J0914946
2	Spring, Shift Lever	MB, CJ-2A, 3A, 3B, 5, 6	Has a Hole for Shift Pin Has a Slot for Shift Pin	JA000970 J0801332
3	Pin, Shift Lever	All		JA000972
4	Boot, Shift Lever	CJ-2A, 3A, 3B, 5, 6, M38, M38-A1 CJ-5, 6 w/ 4-134 F-Head, V6-225 Engine	w/ Dual Shift Levers w/ Single Shift Lever	J0801058 986495
5	Poppet Ball, Shift Rod	All		453593
6	Poppet Spring, Shift Rod	All		J0939001
7	Seal, Shift Rod	All	2 Required	JA000974
8	Yoke, Output	CJ-2A, 3A, 3B, 5, 6 MB, CJ-2A, 3A, 3B, 5, 6, M38, M38-A1, FC-150, FC-170, Pickup, Station Wagon, Sedan Delivery FC-150, Pickup, Station Wagon, Sedan Delivery MB, CJ-2A, 3A, 3B, M38, M38-A1	Front; 10 Splines w/o Slinger Front; 10 Splines w/ Slinger Front or Rear; 10 Splines w/o Slinger Rear	J5354060 A1106 J5354060 116714
9	Nut, Output	All	Front or Rear, Deformed Thread Style Front or Rear, Castellated Style	J0801367 J8130364
10	Washer, Output	All	Front or Rear	J4004913
11	Seal, Output	All All	Front or Rear; Open Style Front or Rear; Closed Style	J8123077 J0923896
12	Thrust Washer, Intermediate Shaft	MB CJ-2A, 3A, 3B, M38, M38-A1, Pickup, Sedan Delivery, Station Wagon CJ-3B, 5, 6, FC-150, Pickup, Sedan Delivery, Station Wagon	w/ 3/4" Intermediate Shaft; 2 Required w/ 1-1/8" Intermediate Shaft, 2 Required w/ 1-1/4" Intermediate Shaft; 2 Required	A1000 J0642191 J8121813
13	Spacer, Intermediate Shaft	CJ-3B, 5, 6, FC-150, Pickup, Sedan Delivery, Station Wagon	w/ 1-1/4" Intermediate Shaft; 2 Required	J0809295
14	Bearing, Intermediate Shaft	MB CJ-2A, 3A, 3B, M38, M38-A1, Pickup, Sedan Delivery, Station Wagon CJ-3B, 5, 6, FC-150, Pickup, Sedan Delivery, Station Wagon	2 Required (Caged) w/ 1-1/8" Intermediate Shaft, 2 Required (Caged) w/ 1-1/4" Intermediate Shaft; 48 Required (Roller)	A924 J0642190 J0809294
15	Shaft, Intermediate	MB CJ-2A, 3A, 3B, M38, M38-A1, Pickup, Sedan Delivery, Station Wagon CJ-3B, 5, 6, FC-150, Pickup, Sedan Delivery, Station Wagon	3/4" Diameter 1-1/8" Diameter 1-1/4" Diameter	A998 J0642188 J0942115
16	Gear, Intermediate	CJ-2A, 3A, 3B, M38, M38-A1, Pickup, Sedan Delivery, Station Wagon CJ-3B, 5, 6, FC-150, FC-170, Pickup, Sedan Delivery, Station Wagon	w/ 1-1/8" Intermediate Shaft; 34-21 Teeth 1-1/4" Intermediate Shaft; 39-18 Teeth	J0642189 J0809293
17	Gear, Mainshaft	CJ-2A, 3A, M38, M38-A1 CJ-3B, 5, 6, FC-150, FC-170, Pickup, Sedan Delivery, Station Wagon CJ-5, 6 w/ V6-225 Engine w/ T14 Transmission	26 Teeth; 6 Splines; Stamped 18-3-31 29/15 Teeth; 6 Splines 29 Teeth, 10 Splines; Stamped 18-8-50	A10469 J0809297 J0947382
18	Washer, Mainshaft	All		JA001410
19	Nut, Mainshaft	All	Slotted	JA000520*
20	Plate, Intermediate Shaft Lock	All		JA001001
21	Gear, Speedometer Drive	All Station Wagon, Sedan Delivery	4 teeth 6 teeth	A1511 J0910086
22	Cup, Bearing, Output Shaft	All	Front or Rear Output Shaft; 2 Required	J0051577
23	Bearing, Output Shaft	All	Front or Rear Output Shaft; 2 Required	J0051575
24	Shaft, Rear Output	All		J0807767
25	Pilot Bushing, Front Output Shaft	All		JA000987
26	Gear, Sliding, Front Output Shaft	CJ-2A, 3A, 3B, M38, M38-A1, Pickup, Sedan Delivery, Station Wagon CJ-3B, 5, 6, FC-150, FC-170, Pickup, Sedan Delivery, Station Wagon	39 Teeth, 11 Splines; Stamped 18-8-17 33 Teeth, 12 Splines; Stamped 18-8-11	A15045 809290
27	Gear, Front Output Shaft	CJ-2A, 3A, 3B, M38, M38-A1, Pickup, Sedan Delivery, Station Wagon CJ-3B, 5, 6, FC-150, Pickup, Sedan Delivery, Station Wagon	26/12 Teeth 29/12 Teeth, Stamped 18-8-24	A15044 J0809291
28	Thrust Washer, Front Output Gear	All		JA000990
29	Snap Ring, Front Output Gear	All		JA000991
30	Shaft, Front Output	All		807892*
31	Snap Ring, Front Output Shaft Bearing	All		A976
32	Bearing, Front Output Shaft	All		JA001007
33	Front Output Shaft Shim Set	All		JA006753
34	Gasket, PTO Cover	All		JA001509
35	Gasket, Inspection Cover	All		JA000954
36	Gasket, Transmission to Transfer Case	All w/ 4-134 L or F-Head Engine 66/71 CJ-5, 6 w/ V6-225 Engine w/ 3-Speed Transmission 54/64 Pickup, Sedan Delivery, Station Wagon w/ 6-226, 6-230 Engines 66/71 CJ-5, 6 w/ V6-225 Engine w/ 4-Speed Transmission		J0936612 J0937974 J0937974 J0936615
37	Felt Seal, Output	All	Front or Rear Output; 2 Required	J0932295
38	Gasket, Front Output Housing	All		JA000957
39	Gasket, Output	All	Front or Rear Output; 2 Required	JA001134

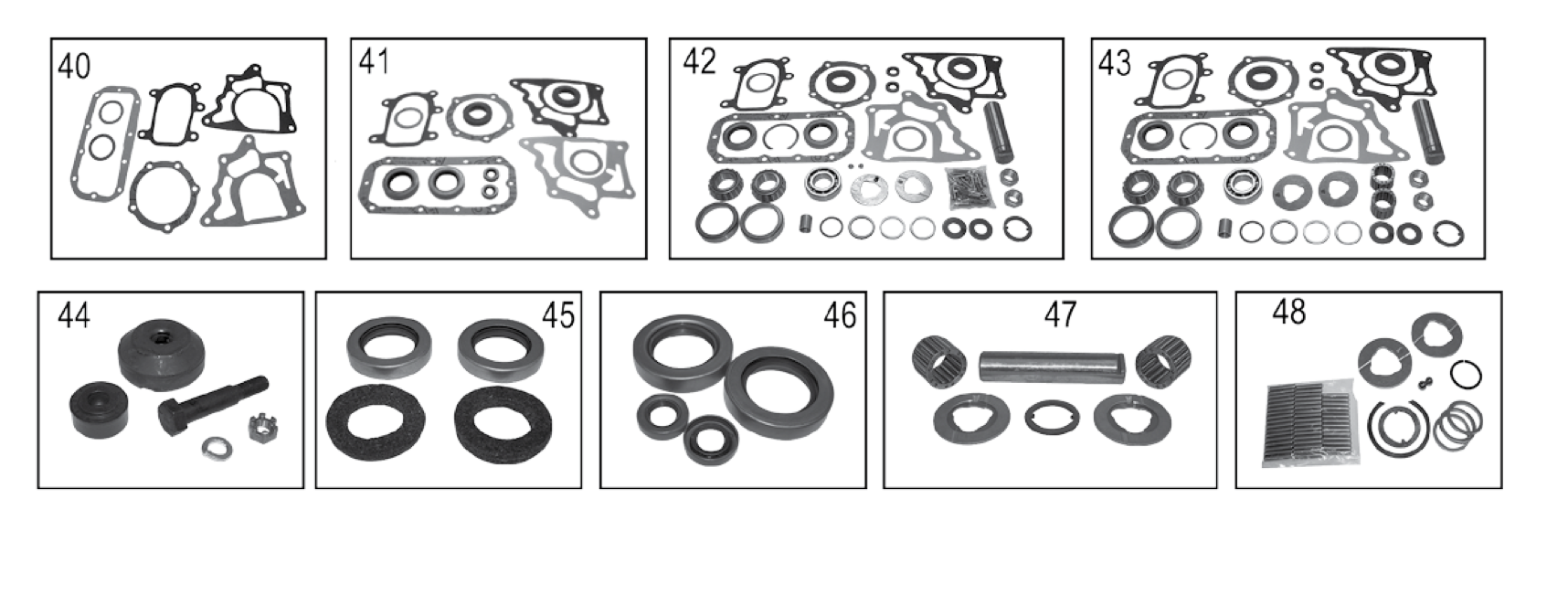

40	Gasket Set	All	Includes #s 36, 37, 38, 39, 40	A7443
41	Gasket and Seal Set	All	Includes #s 7, 11, 36, 37, 38, 39, 40	J0923300
42	Master Installation Kit	All w/ 1-1/4" Intermediate Shaft	Includes #s 6, 9, 10, 15, 22, 23, 25, 32, 34, 42, 46	D18L-MASKIT
43	Master Installation Kit	All w/ 1-1/8" Intermediate Shaft	Includes #s 6, 9, 10, 15, 22, 23, 25, 32, 34, 42, 46	D18E-MASKIT
44	Rear Mount Kit	All	Includes 2 Mounts, 1 Bolt, 1 Washer, and 1Nut	926671K
45	Seal Kit, Output Shaft	All	Front and Rear; Includes 2 Output Seals and 2 Felt Seals	J0120751
46	Oil Seal Kit	All	Includes Front and Rear Output Seals and Shift Rod Seals	A7445
47	Intermediate Shaft Kit	All w/ 3/4" Intermediate Shaft All w/ 1-1/8" Intermediate Shaft All w/ 1-1/4" Intermediate Shaft	Includes Intermediate Shaft, Bearings, and Thrust Washers Includes Intermediate Shaft, Bearings, and Thrust Washers Includes Intermediate Shaft, Roller Bearings, Thrust Washers, and Spacers	A998X 642188K 942115K
48	Small Parts Kit	All w/ 1-1/8" Intermediate Shaft All w/ 1-1/4" Intermediate Shaft	Includes #s 12, 14, 28, 29, 31 Includes #s 5, 12, 13, 14, 28, 29, 31	922717 J0935758

* Not Currently Available
