Dana 20 Transfer Case

1972-1979 CJ-5, 6, 7
1966-1973 C101, C104 Commando
1962-1979 SJ, J-Series

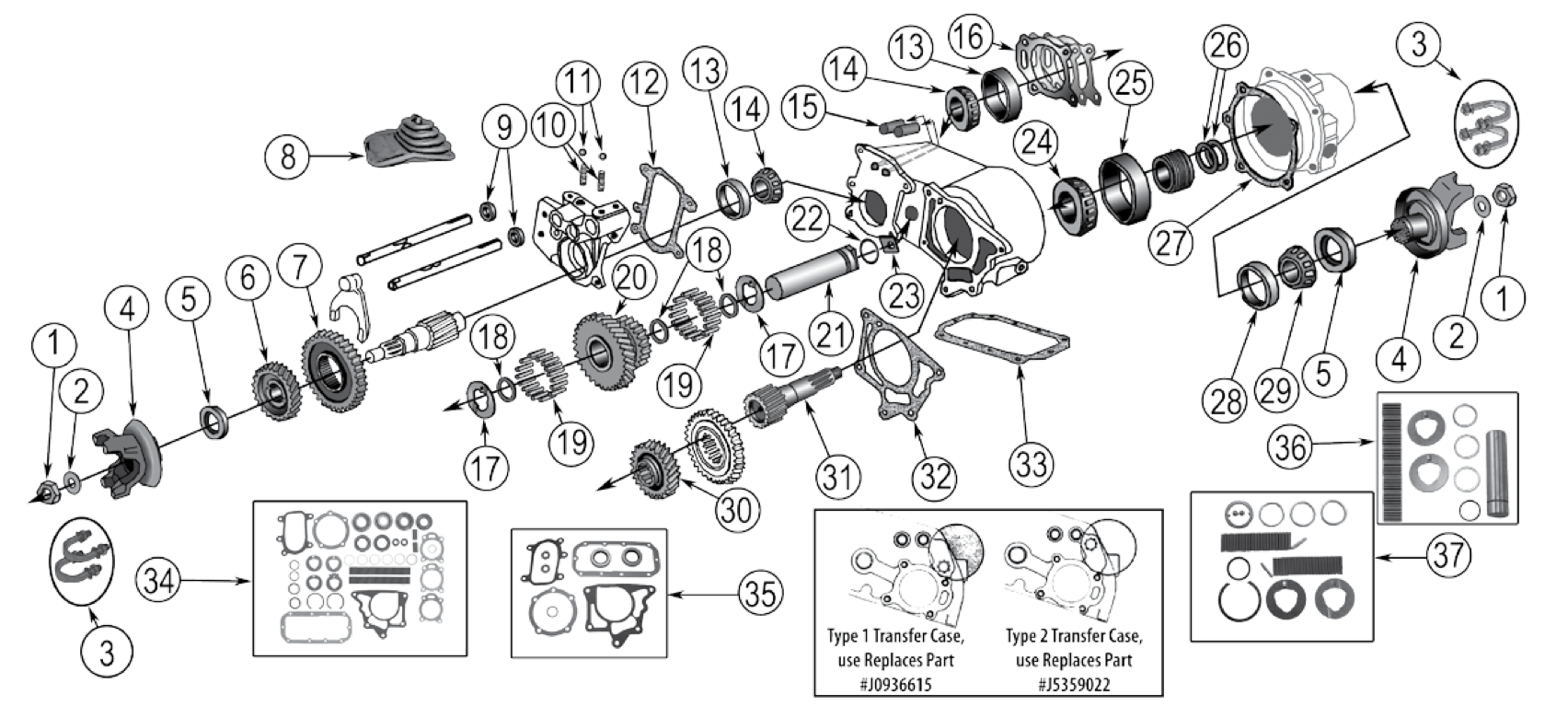

Item numbers match the diagram. Each part number searches Amazon for that Crown part.

Item #	Description	Application	Comments	Part No.
1	Nut, Output	All	Front or Rear	J0801367
2	Washer, Output	All	Front or Rear	J4004913
3	U-Bolt Kit	CJ-5, 6, 7, 8, SJ, J-Series	w/ U-Bolt Yoke	A490K
4	Yoke, Output	All All All	Front; 10 Splines w/ Slinger Front or Rear; 10 Splines w/o Slinger Front or Rear; 26 Splines (U-Bolt Design)	A1106 J5354060 J0935685
5	Seal, Output	All All	Front or Rear; Open Style Front or Rear; Closed Style	J8123077 J0923896
6	Gear, Front Output Shaft	CJ-5, 6, 7, C101, C104 SJ, J-Series w/ Gear Stamped 18-8-44 SJ, J-Series w/ Gear Stamped 18-8-18	Stamped 18-8-44, 26 Teeth Stamped 18-8-44, 26 Teeth Stamped 18-8-18; 26 Teeth	J0946784 J0946784 A15044
7	Gear, Front Output Shaft Sliding	All	Stamped 18-8-28, 31 Teeth	J0933735*
8	Boot, Shifter	72/75 CJ-5, 6 w/ Single Shift Lever 76/79 CJ-5, 7 w/ Single Shift Lever		986495 J5353263
9	Seal, Shift Rod	All	2 Required	JA000974
10	Poppet Spring, Shift Rod	CJ-5, 6, 7, C101, C104 65/79 SJ, J-Series	2 Required 2 Required	J0939001 J0939001
11	Poppet Ball, Shift Rod	All	2 Required	453593
12	Gasket, Front Output Housing	All		JA000957
13	Cup, Front Output Shaft Bearing	All	Inner or Outer; 2 Required	J0051577
14	Bearing, Front Output Shaft	All	Inner or Outer; 2 Required	J0942113
15	Cap, Shift Rod	All	2 Required	J0934281
16	Shim Set, Front Output Shaft	All		JA006753
17	Thrust Washer, Intermediate Shaft	All	2 Required	J8121813
18	Spacer, Intermediate Shaft	All	3 Required	J0809295
19	Roller Bearing, Intermediate Shaft	All	48 Required	J0809294
20	Gear, Intermediate	CJ-5, 6, 7 C101, C104, SJ, J-Series w/ Gear Stamped 18-5-16	Stamped 18-5-16, 34-20 teeth Stamped 18-5-16, 34-20 teeth	J0946786 J0946786
21	Shaft, Intermediate	All	1-1/4" Diameter	J0942115
22	O-Ring, Intermediate Shaft	All		J0942114
23	Plate, Intermediate Shaft Lock	All		JA001001
24	Bearing, Rear Output Shaft	All	Inner	J0052799
25	Cup, Rear Output Shaft Bearing	All	Inner	J0052800
26	Shim Set, Rear Output Shaft	All		J0933743
27	Gasket, Rear Output Housing	All		JA007361
28	Cup, Rear Output Shaft	All	Outer	J3124570
29	Bearing, Rear Output Shaft	All	Outer	J0933737
30	Gear, Mainshaft	72/75 CJ-5, 6 w/ T14 Transmission 72/75 CJ-5, 6 w/ T15, T18 Transmissions 76/79 CJ-5, 7 w/ Gear Stamped 18-8-46 76/79 CJ-5, 7 w/ Gear Stamped 18-8-55 66/73 C101, C104 w/ T14 Transmission 66/73 C101, C104 w/ T15, T18 Transmissions 66/73 C101, C104 w/ Automatic Transmission 62/78 SJ, J-Series w/ Gear Stamped 18-8-49 62/78 SJ, J-Series w/ Gear Stamped 18-8-46 62/78 SJ, J-Series w/ Gear Stamped 18-8-43 79 SJ, J-Series	Stamped 18-8-49; 26 Teeth; 10 Splines Stamped 18-8-46; 26 Teeth; 6 Splines Stamped 18-8-46; 26 Teeth; 6 Splines Stamped 18-8-55; 26 Teeth; 6 Splines Stamped 18-8-49; 26 Teeth; 10 Splines Stamped 18-8-46; 26 Teeth; 6 Splines Stamped 18-8-43; 26 Teeth; 15 Splines Stamped 18-8-49; 26 Teeth; 10 Splines Stamped 18-8-46; 26 Teeth; 6 Splines Stamped 18-8-43; 26 Teeth; 15 Splines Stamped 18-8-46; 26 Teeth; 6 Splines	J0947339 J0946574* J0946574* J5354506 J0947339 J0946574* J0946785 J0947339 J0946574* J0946785 J0946574*
31	Shaft, Rear Output	All	15 Teeth; 26 Splines	J8130293*
32	Gasket, Transmission to Transfer Case	72/75 CJ-5, 6 76/77 CJ-5, 7 1978 CJ-5, 7 1978 CJ-5, 7 1979 CJ-5, 7 74/79 CJ-5, 6, 7 63/75 SJ, J-Series 66/79 SJ, J-Series 74/75 SJ, J-Series 66/71 C101 Commando 72/73 C104 Commando	w/ T15 Transmission w/ T150 Transmission w/ T150 Transmission w/ Type 1 Transfer Case w/ T150 Transmission w/ Type 2 Transfer Case w/ T150 Transmission w/ T18 Transmission w/ T14, T15, T85, T86, T90 Transmissions w/ T18 Transmission w/ TH400 Transmission	J0937974 J0936615 J0936615 J5359022 J5359022 J0936615 J0937974 J0936615 J0937974 J0937974 J0937974
33	Gasket, Access Cover	All		JA000954
34	Master Overhaul Kit	All	Includes #s 11, 12, 13, 14, 19, 22, 23, 24, 25, 26, 33, 35	D20-MASKIT
35	Gasket and Seal Kit			J8130995
36	Intermediate Shaft Kit	All	Includes Intermediate Shaft, Roller Bearings, Thrust Washers, and Spacers	942115K
37	Small Parts Kit	All	Includes #s 10, 15, 16, 17	J0935758

* Not Currently Available
