Dana 27 Rear Axle
1941-1945 MB

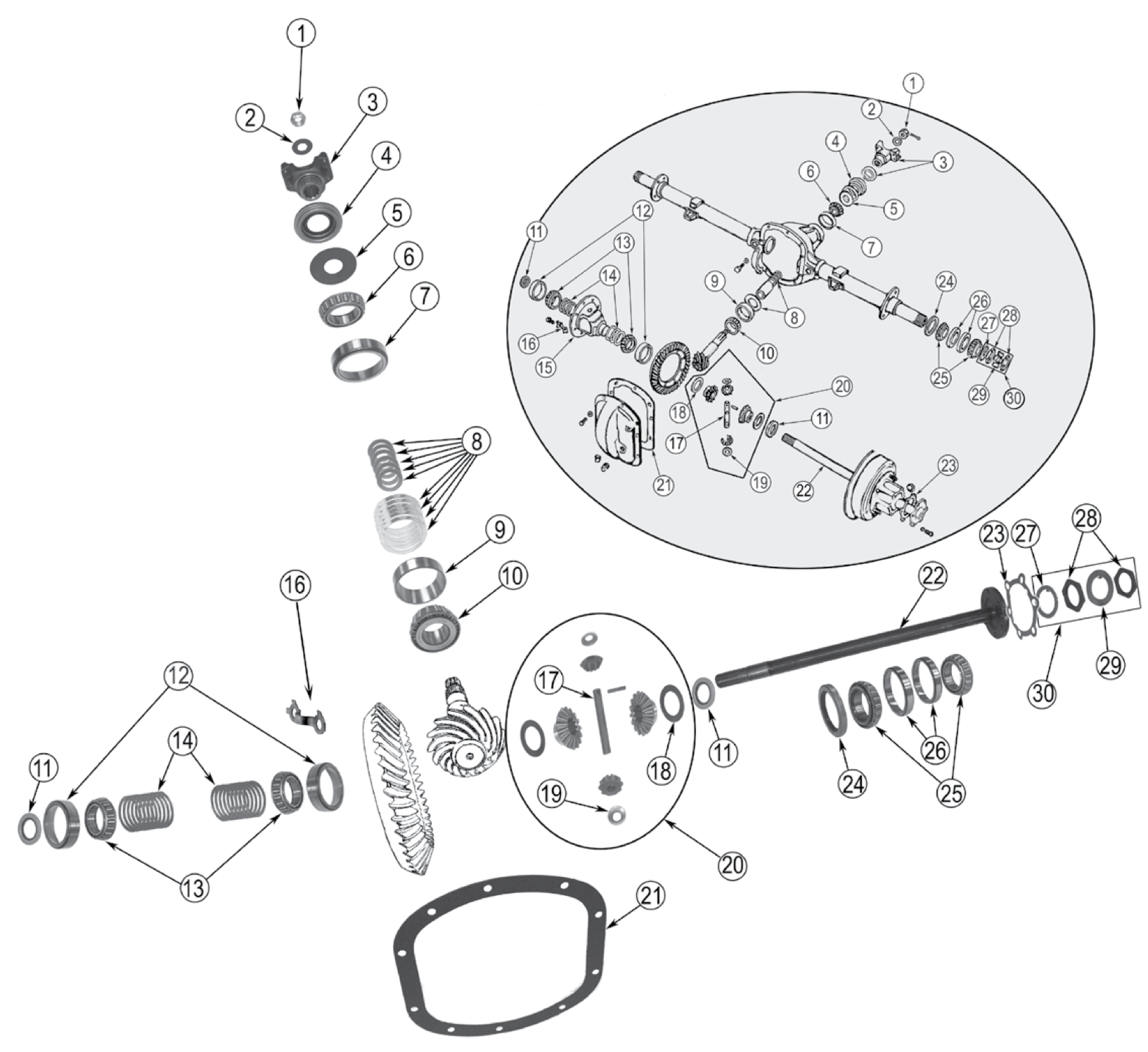

Item numbers match the diagram. Each part number searches Amazon for that Crown part.
| Item # | Description | Comments | Part No. |
|---|---|---|---|
| 1 | Nut, Pinion | 636569* | |
| 2 | Washer, Pinion | J4004913 | |
| 3 | Yoke, Pinion | A1445 | |
| 4 | Seal, Pinion | J0998092 | |
| 5 | Slinger, Pinion | J0636566 | |
| 6 | Bearing, Pinion | Outer | J0052878 |
| 7 | Cup, Pinion Bearing | Outer | J0052879 |
| 6 & 7 | Bearing Kit, Pinion | Outer | J8124052 |
| 8 | Shim Set, Pinion | J0649228 | |
| 9 | Cup, Pinion Bearing | Inner | J0052877 |
| 10 | Bearing, Pinion | Inner | J0807266 |
| 9 & 10 | Bearing Kit, Pinion | Inner | J8124051 |
| 11 | Seal, Axle Shaft | Inner | JA000779 |
| 12 | Cup, Differential Bearing | 52881 | |
| 13 | Bearing, Differential | J3105346 | |
| 14 | Shim Set, Differential | J0648061 | |
| 15 | Case Only, Differential | A-793* | |
| 16 | Strap, Ring and Pinion | Locks Ring Gear Bolts (4 Per Differential) | A792 |
| 17 | Shaft, Differential | JA000798 | |
| 18 | Washer, Differential Side Gear | JA000795 | |
| 19 | Washer, Differential Spider Gear | JA000797 | |
| 20 | Gear Set, Differential | J0926544 | |
| 21 | Gasket, Differential Cover | J8120360 | |
| 22 | Shaft, Axle |
Right; 10 Splines; 22" Long Left; 10 Splines; 30-5/8" Long |
A901 A902 |
| 23 | Gasket, Axle | A904* | |
| 24 | Seal, Hub | J0805150 | |
| 25 | Bearing, Axle Shaft | Inner or Outer | J0052942 |
| 26 | Cup, Axle Shaft Bearing | Inner or Outer | J0052943 |
| 27 | Lock Washer, Wheel Bearing | Inner | JA000865 |
| 28 | Nut, Wheel Bearing | 2 Required Per Wheel | JA000866 |
| 29 | Lock Washer, Wheel Bearing Nut | Outer | JA000867 |
| 30 | Kit, Wheel Bearing Washer and Nut | Includes #s 27, 28, 29 | A867K |
* Not Currently Available
