Dana 30 Rear Axle

1966-1971 C101 Commando

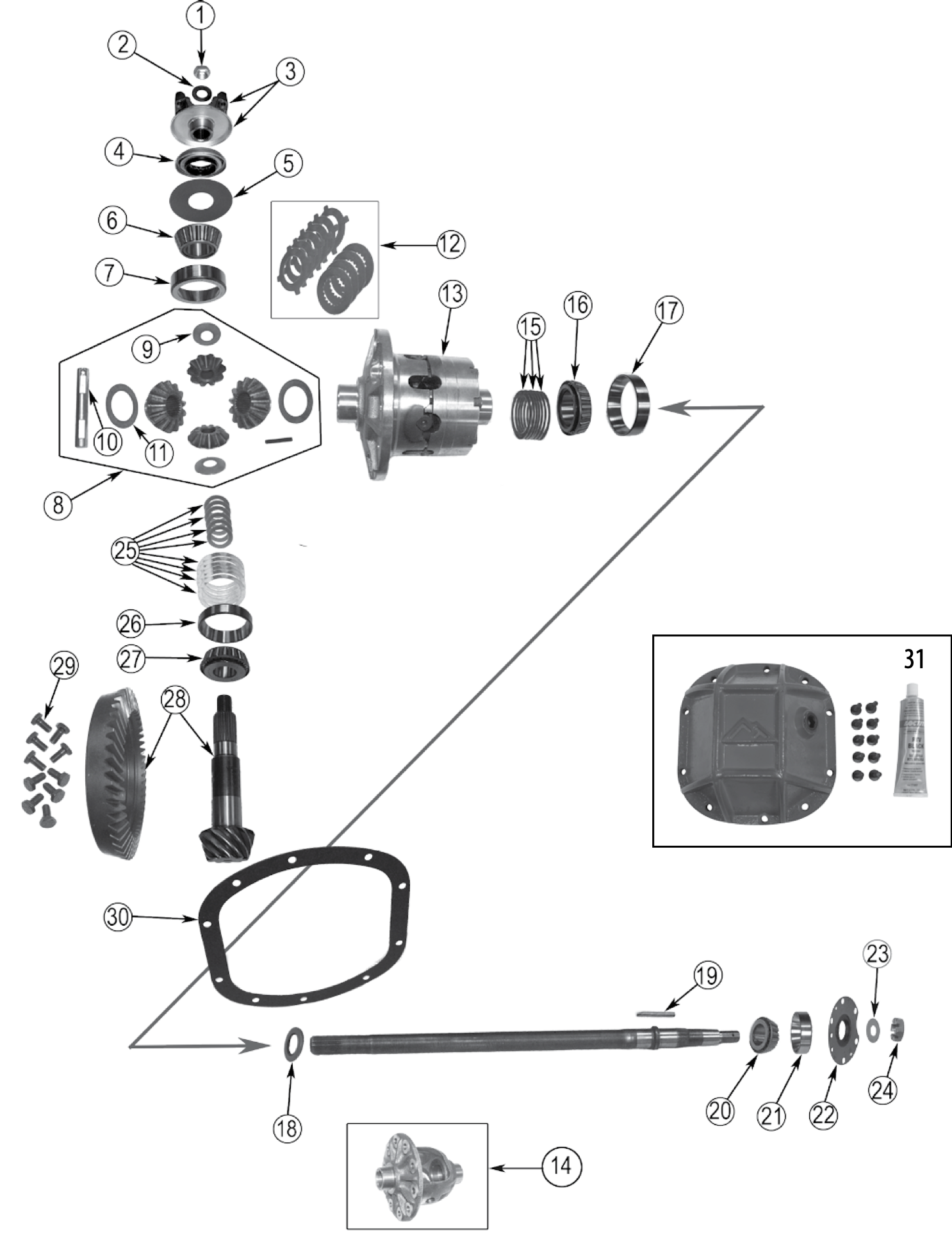

Item numbers match the diagram. Each part number searches Amazon for that Crown part.

Item #	Description	Comments	Part No.
1	Nut, Pinion		J0801367
2	Washer, Pinion		J4004913
3	Yoke, Pinion	26 Splines w/ Slinger	J0935685
4	Seal, Pinion		J0998092
5	Slinger, Pinion		J0636566
6	Bearing, Pinion	Outer	926802
7	Cup, Pinion Bearing	Outer	J3156062
8	Gear Set, Differential	Standard; Also Includes #s 27, 29	J8126497
9	Washer, Differential Spider Gear	Standard	J3222999
10	Shaft, Differential	Standard	5003840AA
11	Washer, Differential Side Gear	Standard	J0645789
12	Clutch Disc Kit, Differential	Power-Lok	J8126153
13	Case Assembly, Differential	Power-Lok: 3.73 and Higher	945333*
14	Case, Differential	Standard (Bare): 3.54 and Lower Standard (Bare): 3.73 and Higher	J0947055 J8126496
15	Shim Set, Differential		J0648061
16	Bearing, Differential		J3156052
17	Cup, Differential Bearing		J3171166
18	Seal, Axle Shaft	Inner	J0640959
19	Key, Axle to Hub		J0644340
20	Bearing, Axle Shaft		J0052799
21	Cup, Axle Shaft Bearing		J0052800
22	Seal, Axle Shaft	Outer	J0942901
23	Washer, Axle Shaft Nut		J4004913
24	Nut, Axle to Hub		J0636344
25	Shim Set, Pinion		J0929409
26	Cup, Pinion Bearing	Inner	J3156065
27	Bearing, Pinion	Inner	J3156066
26 & 27	Kit, Pinion Bearing	Inner	J8126499
28	Ring and Pinion Set	3.73 Ratio: Includes item #s 1, 2, 4, 5, 6, 7, 15, 25, 26, 27, 29, 30 4.27 Ratio: Includes item #s 1, 2, 4, 5, 6, 7, 15, 25, 26, 27, 29, 30 4.88 Ratio: Includes item #s 1, 2, 4, 5, 6, 7, 15, 25, 26, 27, 29, 30	J0945345 J8126946 J0945347
29	Bolt, Ring Gear	10 Required	J0649454
30	Gasket, Differential Cover		J8120360
31	HD Differential Cover	Red; Includes RTV and 10 Ring Gear Bolts Black; Includes RTV and 10 Ring Gear Bolts	RT20024 RT20030

* Not Currently Available
