Dana 300 Transfer Case

1980-1986 CJ-5, 7, 8

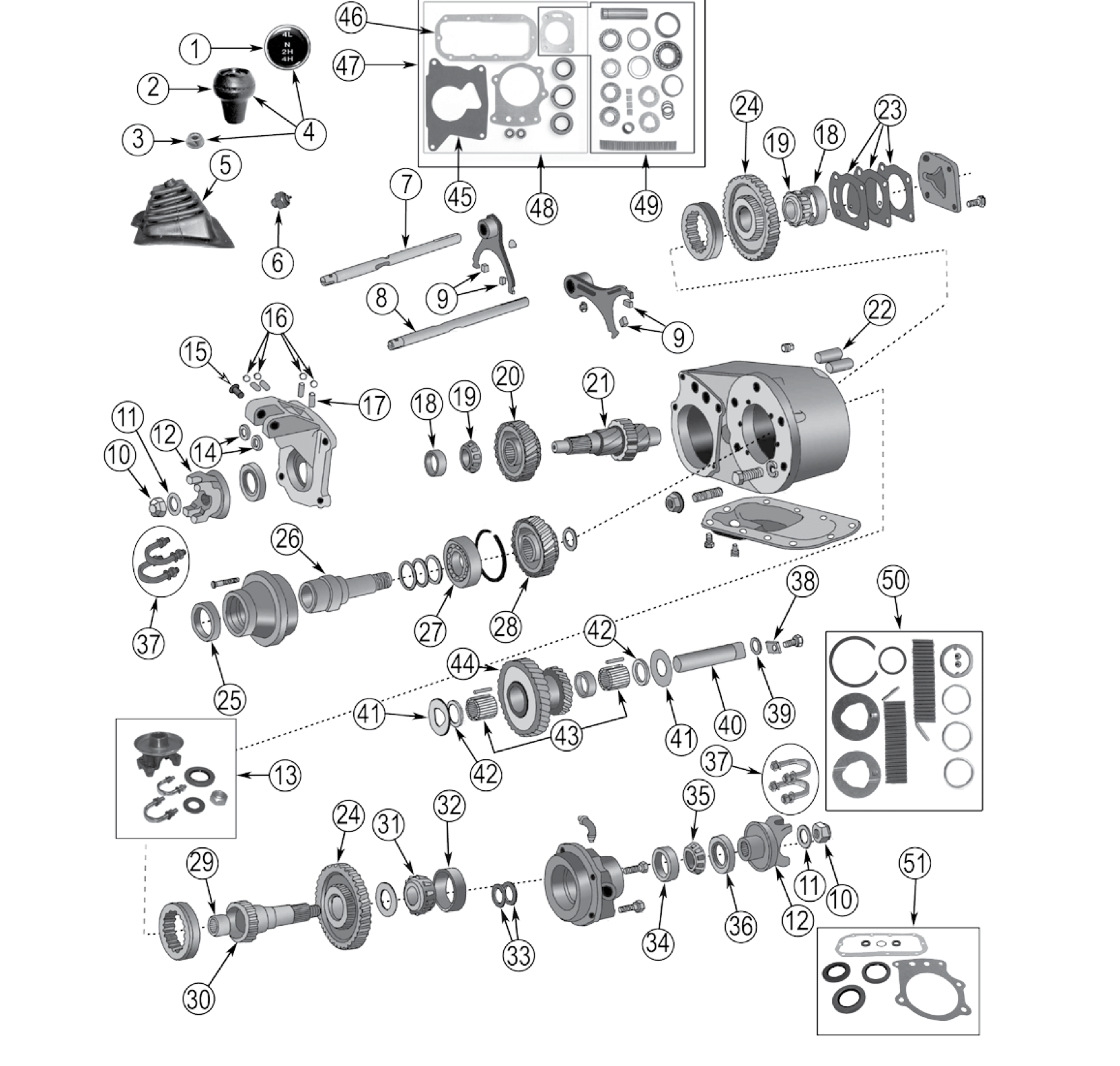

Item numbers match the diagram. Each part number searches Amazon for that Crown part.

Item #	Description	Comments	Part No.
1	Insert, Shift Knob		J3241430
2	Knob, Shift		J3241062
3	Nut, Shift Control		J4006495
4	Shift Knob Kit	Includes #s 1, 2, 3	3241430K
5	Boot, Shifter	w/ SR4, T4, T5 w/ T176, T177 (Double Boot)	J5752009 5752141
6	Switch, 4WD Indicator		J3211322
7	Rod, Shift	Front	J8131673*
8	Rod, Shift	Rear	J8131672
9	Pad, Shift Fork	4 Required	J8131670
10	Nut, Output	Front or Rear	J0801367
11	Washer, Yoke	Front or Rear	J4004913
12	Yoke, Output	Bolt and Strap Type; Front or Rear U-Bolt Yoke Type; Front or Rear	J8131656 J0935685
13	Yoke Kit	Front or Rear; Includes #s 10, 11, 12, 36, 37	D300YOKEUBK
14	Seal, Shift Rod	2 Required	JA000974
15	Bushing, Shifter Shaft		J5360135
16	Ball, Chrome		453593
17	Poppet Spring, Shift Rod		J0939001
18	Bearing Cup, Output	Front or Rear Bearing	J3156062
19	Bearing, Output	Front or Rear Bearing	J3156063
20	Gear, Front Output		J8131680
21	Shaft, Front Output		J8131660
22	Cap, Shift Rod	2 Required	J0934281
23	Shim Set, Front Output Access Cover		J8131668
24	Gear, Sliding Drive	2 Required	J8131679*
25	Seal, Input		J8131684
26	Shaft, Input		J8131687*
27	Bearing, Input		J8131682
28	Gear, Input		J8131685
29	Bearing, Output Shaft	Rear; Inner	J8134553
30	Shaft, Rear Output		J8133793*
31	Bearing, Rear Output	Front Bearing	J8134239
32	Bearing Cup, Rear Output	Front Bearing	J0052800
33	Shim Kit, Rear Output		J0933743
34	Bearing Cup, Rear Output	Rear Bearing	J3124570
35	Bearing, Rear Output	Rear Bearing	J0933737
36	Seal, Output	Front or Rear	J8131669
37	U-Bolt Kit, Drive Shaft	Includes 2 U-Bolts, 4 Washers, and 4 Nuts	A490K
38	Plate, Intermediate Shaft Lock		JA001001
39	Seal, Intermediate Shaft		J0942114
40	Shaft, Intermediate		J0942115
41	Thrust Washer, Intermediate Shaft	2 Required	J8121813
42	Spacer, Intermediate Shaft	2 Required	J0809295
43	Needle Bearing, Intermediate Gear	48 Required	J0809294
44	Gear, Intermediate		J8131678*
45	Gasket, Transfer Case	Transmission to Transfer Case	J5358840
46	Gasket, Access Cover		JA000954
47	Master Overhaul Kit	Includes #s 14, 16, 25, 33, 36, 39, 42, 45, 46, 49	D300-MASKIT
48	Gasket and Seal Kit	Includes #s 14, 25, 36, and all Gaskets	D300-GS
49	Bearing Kit	Includes #s 9, 18, 19, 23, 27, 29, 31, 32, 33, 34, 35, 41, 43	D300-BK
50	Small Parts Kit		J0935758
51	Gasket and Seal Kit	Includes #s 14, 25, 36, 39, and all Gaskets	300GK

* Not Currently Available
