Dana 44 Front Axle

1971-1991 SJ, J-Series
1957-1964 FC-170

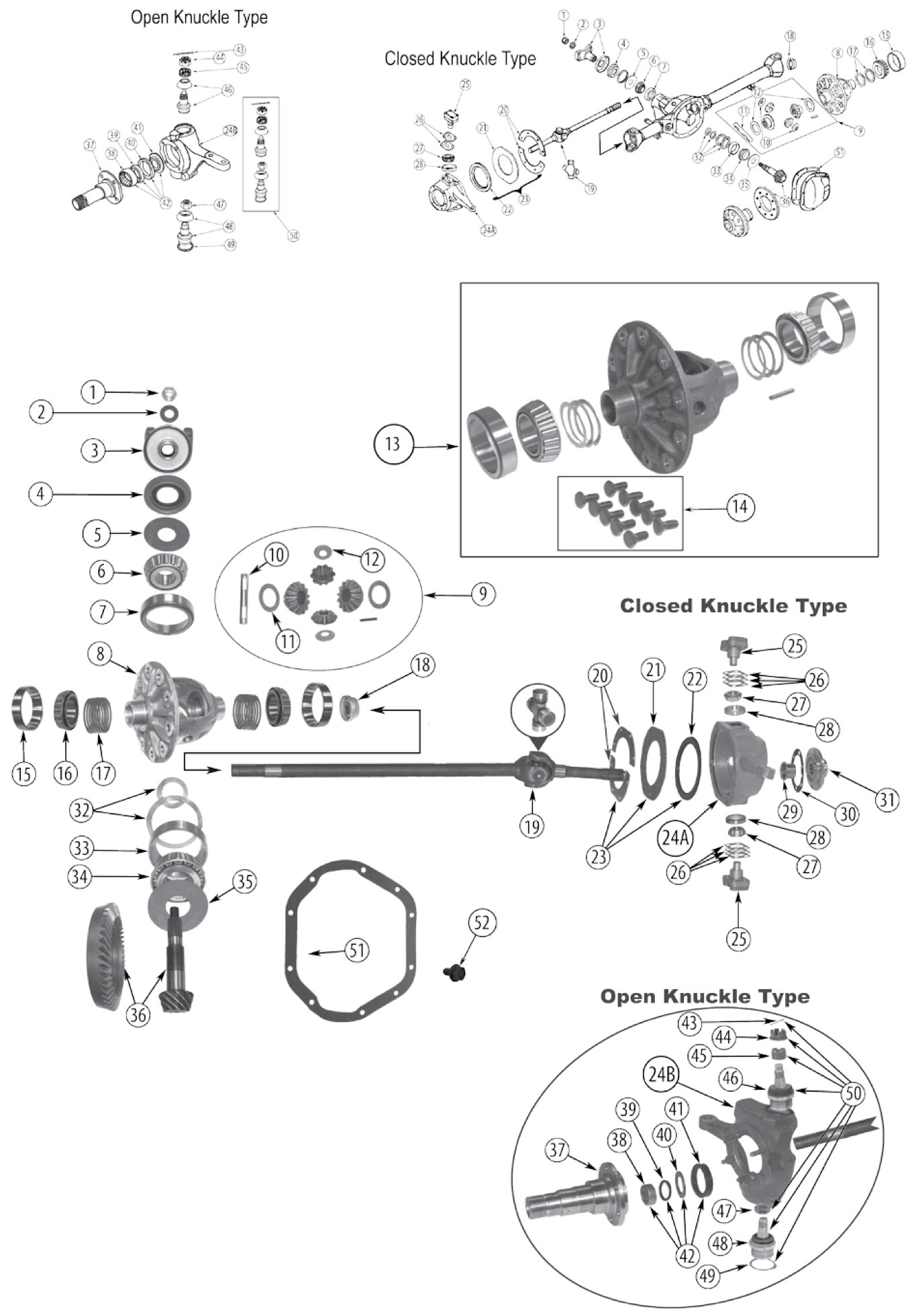

Item numbers match the diagram. Each part number searches Amazon for that Crown part.

Item #	Description	Application	Comments	Includes	Part No.
1	Nut, Pinion	All			J0801367
2	Washer, Pinion	All			J4004913
3	Yoke, Pinion	71/80 SJ, J-Series 81/91 SJ, J-Series FC-170	w/ Spicer Propeller Shaft		J0935685 83503388 A1445
4	Seal, Pinion	FC-170 SJ, J-Series SJ, J-Series	w/o Slinger on Yoke w/ Slinger on Yoke		J0998092 83503390 J0998092
5	Slinger, Pinion	All	Outer		3893982
6	Bearing, Pinion	All	Outer		J0052878
7	Cup, Pinion Bearing	All	Outer		J0052879
6 & 7	Bearing Kit, Pinion	All	Outer	6, 7	J8124052
8	Case Only, Differential	All All	w/ 3.73 and Down; Case Only w/ 3.92 and Up; Case Only		J0991962* J0947057
9	Gear Set, Differential	All 82/84 SJ	w/ Axle Disconnect		J8129228 4762140
10	Shaft, Differential	All			636553
11	Washer, Differential Side Gear	All			J0645789
12	Washer, Differential Spider Gear	All			J3222999
13	Case Kit, Differential	All All	w/ 3.73 and Down w/ 3.92 and Up		J8130017 J8129245
14	Bolt, Ring Gear	All All	Each Set of 10		J0649454 4720891
15	Cup, Differential Bearing	All			J0052980
16	Bearing, Differential	All			J0805311
15 & 16	Bearing Kit, Differential	All	Includes 2 Bearings and 2 Cups	15, 16	J8124071
17	Shim Set, Differential	All All	Shims Only Shims and Differential Cover Gasket		J0806483 J8124791
18	Seal, Axle Shaft	74/79 SJ, J-Series 77/91 SJ, J-Series	2-1/4" Outside Diameter 2-5/8" Outside Diameter		J8124832 83501009
19	U-Joint	57/74 All 74/91 All 74/91 All	1.062" Cap Diameter 1.188" Cap Diameter 1.188" Cap Diameter; Heavy Duty Spicer®		J8136616 J8126638 8126638SP
20	Retainer, Steering Knuckle Seal	57/73 All	2 Required Per Knuckle		J0908006
21	Seal, Steering Knuckle	57/73 All	Felt		J0908005
22	Seal, Steering Knuckle	57/73 All	Rubber		J0909854
23	Seal Kit, Steering Knuckle	57/73 All 57/73 All 57/73 All	w/o Hardware (One Side) w/ Hardware (One Side) w/o Hardware (Two Sides)		J0915664 J0998445 J0908226
24A	Knuckle, Steering, Closed	FC-170 FC-170	Right Left		J0805784 J0805783
24B	Knuckle, Steering	74/77 SJ, J-Series	w/ Disc Brakes; Left; Open Style		J8124371
25	Cap, King Pin	57/73 All	Upper or Lower		J0910901
26	Shim Set, King Pin	57/73 All	Upper or Lower		JA006882
27	Bearing, King Pin	57/73 All	Upper or Lower		J0052940
28	Cup, King Pin Bearing	57/73 All	Upper or Lower		J0052941
29	Bushing, Spindle	57/73 All 74/91 SJ, J-Series	Flanged Bronze Bushing Bearing		J0649783 J8121402
30	Gasket, Drive Flange	57/73 All	6-Bolt Pattern		J0649784
31	Flange, Axle Drive	57/73 All	10 Splines		JA000868
32	Shim Set, Pinion	All			J8129221
33	Cup, Pinion Bearing	All	Inner		J0052877
34	Bearing, Pinion	All	Inner		J0807266
33 & 34	Bearing Kit, Pinion	All	Inner	33, 34	J8124051
35	Slinger, Pinion	All	Inner		J0636566
36	Ring and Pinion	All All All All All All All All All	3.07 Gear Ratio 3.31 Gear Ratio 3.54 Gear Ratio 3.73 Gear Ratio 3.73 Gear Ratio 3.92 Gear Ratio 4.09 Gear Ratio 4.27 Gear Ratio 4.88 Gear Ratio	1, 2, 4, 5, 6, 7, 14, 17, 33, 34, 36, 51 1, 2, 4, 5, 6, 7, 14, 17, 33, 34, 36, 51 6, 7, 33, 34, 36 36 1, 2, 4, 5, 6, 7, 14, 17, 33, 34, 36, 51 1, 2, 4, 5, 6, 7, 14, 17, 33, 34, 36, 51 1, 2, 4, 5, 6, 7, 14, 17, 33, 34, 36, 51 1, 2, 4, 5, 6, 7, 14, 17, 33, 34, 36, 51	J8129224 J8134219 J8129217 J0935650 J8124777 J0943188 J8129225 J0910073* J8124386
37	Spindle, Steering	FC-170 77/91 SJ, J-Series	Left or Right Left or Right		J8120362 J8128767
38	Bearing, Spindle	74/91 SJ, J-Series			J8121402
39	Seal, Spindle Bearing	74/91 SJ, J-Series			8127351
40	Spacer, Spindle Bearing	74/91 SJ, J-Series			83501113
41	Seal, Axle Shaft	74/91 SJ, J-Series	Outer		J8127350
42	Kit, Bearing Spindle	74/91 SJ, J-Series		38, 39, 40, 41	J8127356
43	Pin, Cotter	74/91 SJ, J-Series	Upper		J8121392
44	Nut, Ball Joint	74/91 SJ, J-Series	Upper		J8121364
45	Ring Split, Ball Joint	74/91 SJ, J-Series	Upper		J8121365
46	Ball Joint	74/91 SJ, J-Series	Upper		J8122495
47	Nut, Ball Joint	74/91 SJ, J-Series	Lower		J8121391
48	Ball Joint	74/91 SJ, J-Series	Lower		J8122496
49	Snap Ring, Ball Joint	74/91 SJ, J-Series	Lower		J8124362
50	Ball Joint Kit	74/91 SJ, J-Series	Upper and Lower	43, 44, 45, 46, 47, 48, 49	J8126509
51	Gasket, Differential Cover	All			J8122409
52	Differential Cover Bolt	74/91 SJ, J-Series			J0273573
53	HD Differential Cover	All All	Red Black	Incl. RTV, 10 Ring Gear Bolts Incl. RTV, 10 Ring Gear Bolts	RT20026 RT20032

* Not Currently Available
