Dana 44 Rear Axle w/ Flanged Axles

1969-1975 CJ-5, 6
1986 CJ-7, 8
1966-1973 C101, C104 Commando
1971-1991 SJ, J-Series

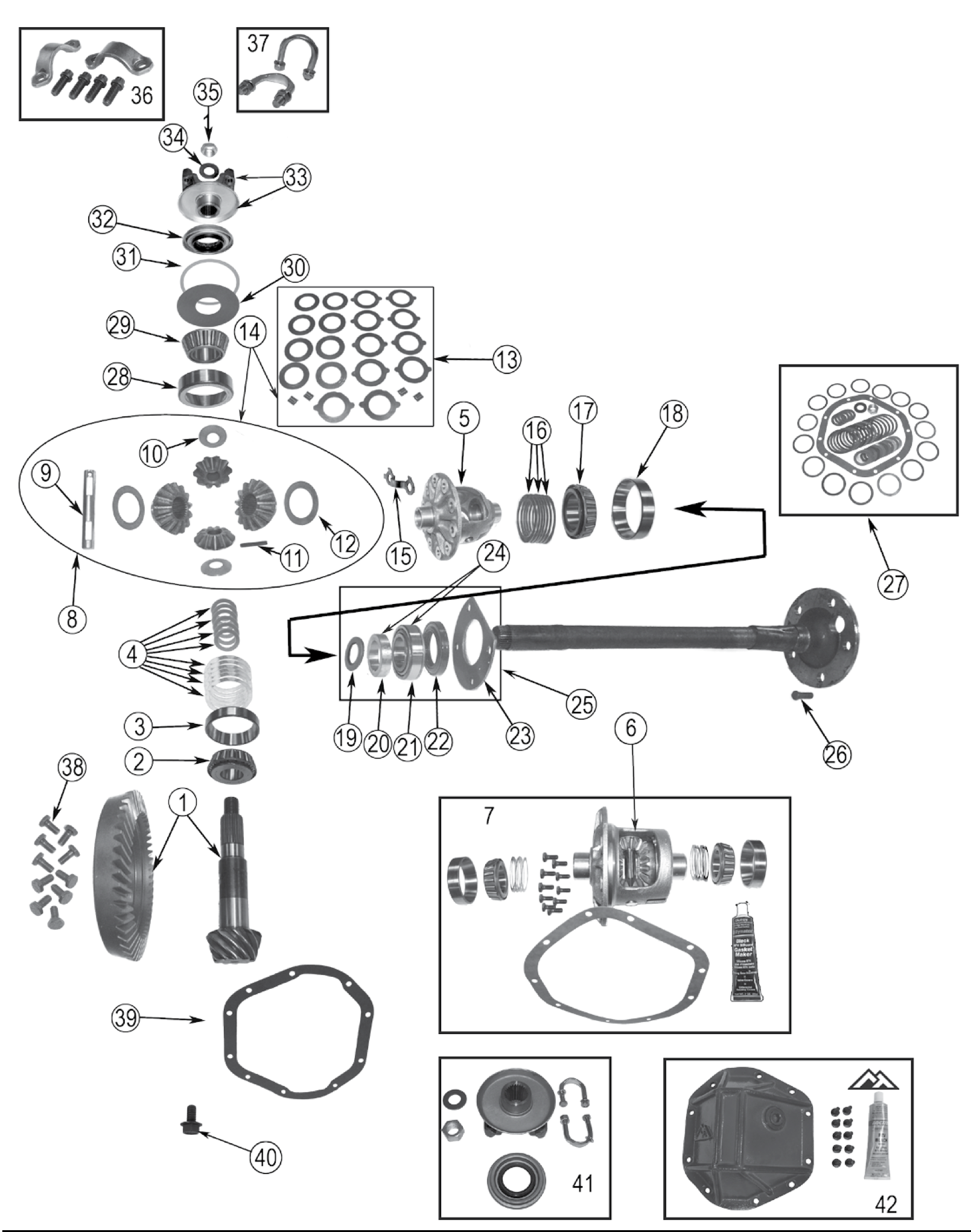

Item numbers match the diagram. Each part number searches Amazon for that Crown part.

Item #	Description	Application	Comments	Part No.
1	Ring and Pinion Set	All All All All All All All All	3.07 Ratio; Includes: #s 1, 2, 3, 4, 28, 29, 30, 32, 34, 35, 38, 39 3.54 Ratio; Includes: #s 1, 2, 3, 28, 29, 32 3.73 Ratio; Ring and Pinion Only 3.73 Ratio; Includes: #s 1, 2, 3, 4, 28, 29, 30, 32, 34, 35, 38, 39 3.92 Ratio; Includes: #s 1, 2, 3, 4, 28, 29, 30, 32, 34, 35, 38, 39 4.09 Ratio Includes: #s 1, 2, 3, 4, 28, 29, 30, 32, 34, 35, 38, 39 4.27 Ratio 4.56 Ratio; Includes: #s 1, 2, 3, 4, 28, 29, 30, 32, 34, 35, 38, 39	J8129224 J8129217 J0935650 J8124777 J0943188 J8129225 J0910073* 83503087
2	Bearing, Pinion	All	Inner	J0807266
3	Cup, Pinion Bearing	All	Inner	J0052877
2 & 3	Kit, Pinion Bearing	All	Inner	J8124051
4	Shim Set, Pinion	All	Includes #s 35, 39	J8129221
5	Case Only, Differential	All All All All	Standard; 3.73 and Down Standard; 3.73 and Down; Includes #s 11, 16, 38, 39 Standard; 3.92 and Up Standard; 3.92 and Up; Includes #s 11, 16, 38, 39	J0991962 J8130017 J0947057 J8129245
6	Case Assembly, Differential		3.73 and Down, w/o Bearings or Hardware	J0994341
7	Case Assembly, Differential	All All	Trac-Lok; 3.73 and Down Trac-Lok; 3.91 and Up	83505431 4741098
8	Gear Set, Differential	All	Standard	83503068
9	Shaft, Differential	All	Standard	636553
10	Washer, Differential Spider Gear	All	Standard	J3222999
11	Pin, Differential Shaft	All	Standard	J0636360
12	Washer, Differential Side Gear	All	Standard	J3220250
13	Disc Kit, Differential	All	Trac-Lok	J0994345
14	Differential Gear Set	All	Trac-Lok, Includes: #s 8 and 13	83505432
15	Strap, Ring and Pinion	CJ-5, 6, C101, C104	Locks Ring Gear Bolts; 5 Required	J0802561
16	Shim Set, Differential	All All All	Includes Differential Cover Gasket Includes Sealant	J0806483 J8124791 J8129222
17	Bearing, Differential	All		J0805311
18	Cup, Differential Bearing	All		J0052980
17&18	Kit, Differential Bearing	All	Includes 2 Bearings and 2 Cups	J8124071
19	Seal, Axle Shaft	All	Inner	J3235929
20	Ring, Axle Bearing Retaining	All		83503077
21	Bearing, Axle Shaft	All		83503064
22	Seal, Axle Shaft	All	Outer	83503063
23	Retainer, Axle Bearing	CJ-5, 6, 7, 8, C101, C104 SJ, J-Series 1986 CJ-7, CJ-8		J0994260 J8133197 83504190
24	Bearing Kit, Axle Shaft		Includes #s 20 and 21	994262K
25	Bearing Kit, Axle Shaft	CJ-5, 6, 7, 8, C101, C104 SJ, J-Series	Includes #s 19, 20, 21, 22, 23 Includes #s 19, 20, 21, 22, 23	J8124779 J8130510
26	Stud, Rear Axle Shaft	CJ-5, 6, 7, 8, C101, C104 SJ, J-Series w/ 5 Studs SJ, J-Series w/ 6 Studs		J5355719 J5355719 J3230413
27	Shim Set, Pinion and Differential	All	Includes #s 4, 16, 34, 35, 39	J8129223
28	Cup, Pinion Bearing	All	Outer	J0052879
29	Bearing, Pinion	All	Outer	J0052878
28 & 29	Kit, Pinion Bearing	All	Outer	J8124052
30	Slinger, Pinion	All		J0636566
31	Gasket, Pinion			J0636565
32	Seal, Pinion	CJ-5, 6, C101, C104 CJ-7, 8 CJ-7, 8 71/86 SJ, J-Series 71/86 SJ, J-Series 87/91 SJ, J-Series	w/ Slinger on Yoke w/o Slinger on Yoke w/o Slinger on Yoke w/ Slinger on Yoke	J0998092 J0998092 83503390 83503390 J0998092 83503390
33	Yoke, Pinion	All All All	U-Bolt Style; Includes Slinger Strap and Bolt Style; Includes Slinger Strap and Bolt Style; No Slinger	J0935685 83503388 J8131656
34	Washer, Pinion	All		J4004913
35	Nut, Pinion	All		J0801367
36	Universal Joint Strap Kit		w/ Hex Head Bolts w/ 12 Point Bolts	4006698K 4006928K
37	U-Bolt Kit			A490K
38	Bolt, Ring Gear Ring Gear Bolt Kit	All All	10 Required Includes 10 Bolts	J0649454 4720891
39	Gasket, Differential Cover	All		J8122409
40	Bolt, Differential Cover		3/8"-18 x 5/8"	J0273573
41	U-Bolt Yoke Kit		Includes #s 32, 33, 34, 35, 37	D3044YOKEUBK
42	HD Differential Cover		Red; Includes RTV and 10 Ring Gear Bolts Black; Includes RTV and 10 Ring Gear Bolts	RT20026 RT20032

* Not Currently Available
