Dana 44 Rear Axle w/ Tapered Axles

1957-1964 FC-150, FC-170
1963-1971 J-Series
1950-1965 Willys Pickup

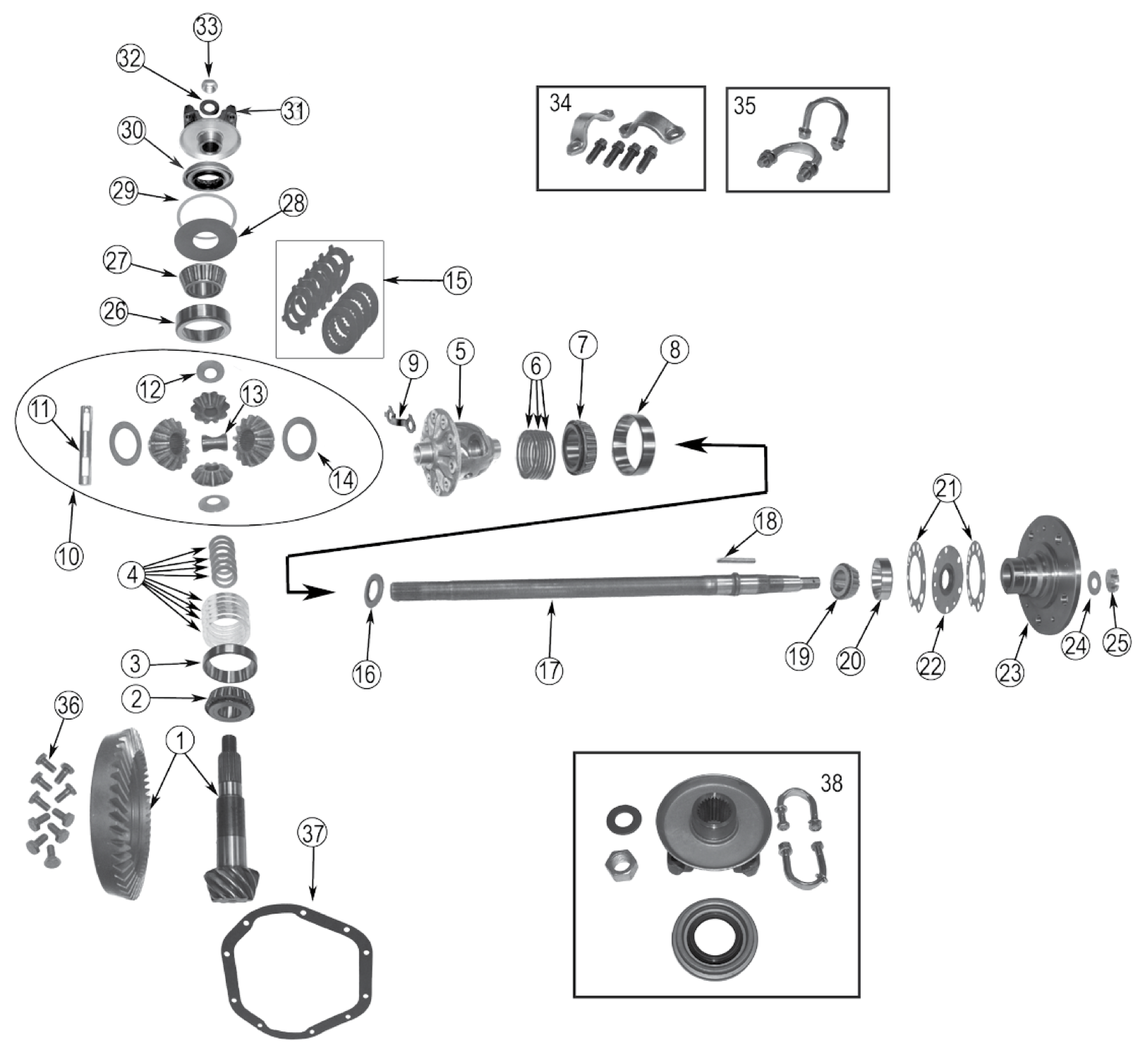

Item numbers match the diagram. Each part number searches Amazon for that Crown part.

Item #	Description	Application	Comments	Part No.
1	Ring and Pinion Set	All All All All All All All All	3.31 Ratio w/ 26 Spline Pinion 3.54 Ratio w/ 26 Spline Pinion 3.73 Ratio w/ 26 Spline Pinion; Ring and Pinion Only 3.73 Ratio w/ 26 Spline Pinion 4.09 Ratio w/ 26 Spline Pinion 4.27 Ratio w/ 26 Spline Pinion 4.88 Ratio w/ 26 Spline Pinion; Ring and Pinion Only 5.38 Ratio w/ 26 Spline Pinion	J8134219 J8129217 J0935650 J8124777 J8129225 J0910073* J8124386 J0801368*
2	Bearing, Pinion	All	Inner	J0807266
3	Cup, Pinion Bearing	All	Inner	J0052877
2 & 3	Bearing Kit, Pinion	All	Inner	J8124051
4	Shim Set, Pinion	All	Includes #4, 6	J8129221
5	Case Only, Differential	All All	Standard; 3.73 and Down Standard; 3.91 and Up	932725* 802562*
6	Shim Set, Differential	All		919698*
7	Bearing, Differential	All		J0052979
8	Cup, Differential Bearing	All		J0052980
9	Strap, Ring and Pinion	All	Locks Ring Gear Bolts (5 Per Differential)	J0802561
10	Gear Set, Differential	All	Standard; 19 Splines	J0916361
11	Shaft, Differential	All	Standard	636553
12	Washer, Differential Spider Gear	All	Standard	J3222999
13	Block, Differential Spacer	All		J0640965
14	Washer, Differential Side Gear	All	Standard	J0645789
15	Disc Kit, Differential	All	Power Lok Differential	J0925339
16	Seal, Axle Shaft	All Except SJ, J-Series SJ, J-Series	Inner Inner	J0640959 J0919317
17	Shaft, Axle	CJ-3A, 3B, 5, 6 CJ-3A, 3B, 5, 6 CJ-3A, 3B, 5, 6, FC-150, FC-170, Truck CJ-3A, 3B, 5, 6, FC-150, FC-170, Truck SW, SD	Right; 10 Splines; 21-7/16" Long Left; 10 Splines; 29-11/16" Long Right; 19 Splines; 29-11/16" Long Left; 19 Splines; 21-7/16" Long Right; 19 Splines; 28-7/8" Long	J0640969 J0640968 J0912625 J0912626 J0909405
18	Key, Axle Shaft to Hub	All		J0644340
19	Bearing, Axle Shaft	All		J0052799
20	Cup, Axle Shaft Bearing	All		J0052800
21	Gasket, Axle Shaft	CJ-3A, 3B, 5, 6	2 Required Per Side	J0942903
22	Seal, Axle	All Except 66-71 CJ w/ 10" Brakes 1961-71 CJ w/ 10" Brakes	Outer (Includes 2 Gaskets) Outer, 2 Required	J0914802 J0935612
23	Hub, Axle			J0811351
24	Washer, Axle Shaft to Hub	All		J4004913
25	Nut, Axle Shaft to Hub	All		J0636344
26	Cup, Pinion Bearing	All	Outer	J0052879
27	Bearing, Pinion	All	Outer	J0052878
26 & 27	Bearing Kit, Pinion	All	Outer	J8124052
28	Slinger, Pinion	All		J0636566
29	Gasket, Pinion	All		J0636565
30	Seal, Pinion	All		J0998092
31	Yoke, Pinion	All All	10 Splines w/ Slinger; Bolt and Strap Type 10 Splines w/o Slinger; U-Bolt Type	J0807693 A1445
32	Washer, Pinion	All		J4004913
33	Nut, Pinion	All		J0801367
34	Universal Joint Strap Kit		w/ Hex Head Bolts w/ 12-Point Head Bolts	4006698K 4006928K
35	U-Bolt Kit			A490K
36	Bolt, Ring Gear	All	10 Required	J0649454
37	Gasket, Differential Cover	All		J8122409
38	U-Bolt Yoke Kit		Includes #s 30, 31, 32, 33, 35	D3044YOKEUBK

* Not Currently Available
