Dana 53 Rear Axle
1957-1964 FC-150, FC-170
1963-1971 J-Series
1950-1965 Willys Pickup

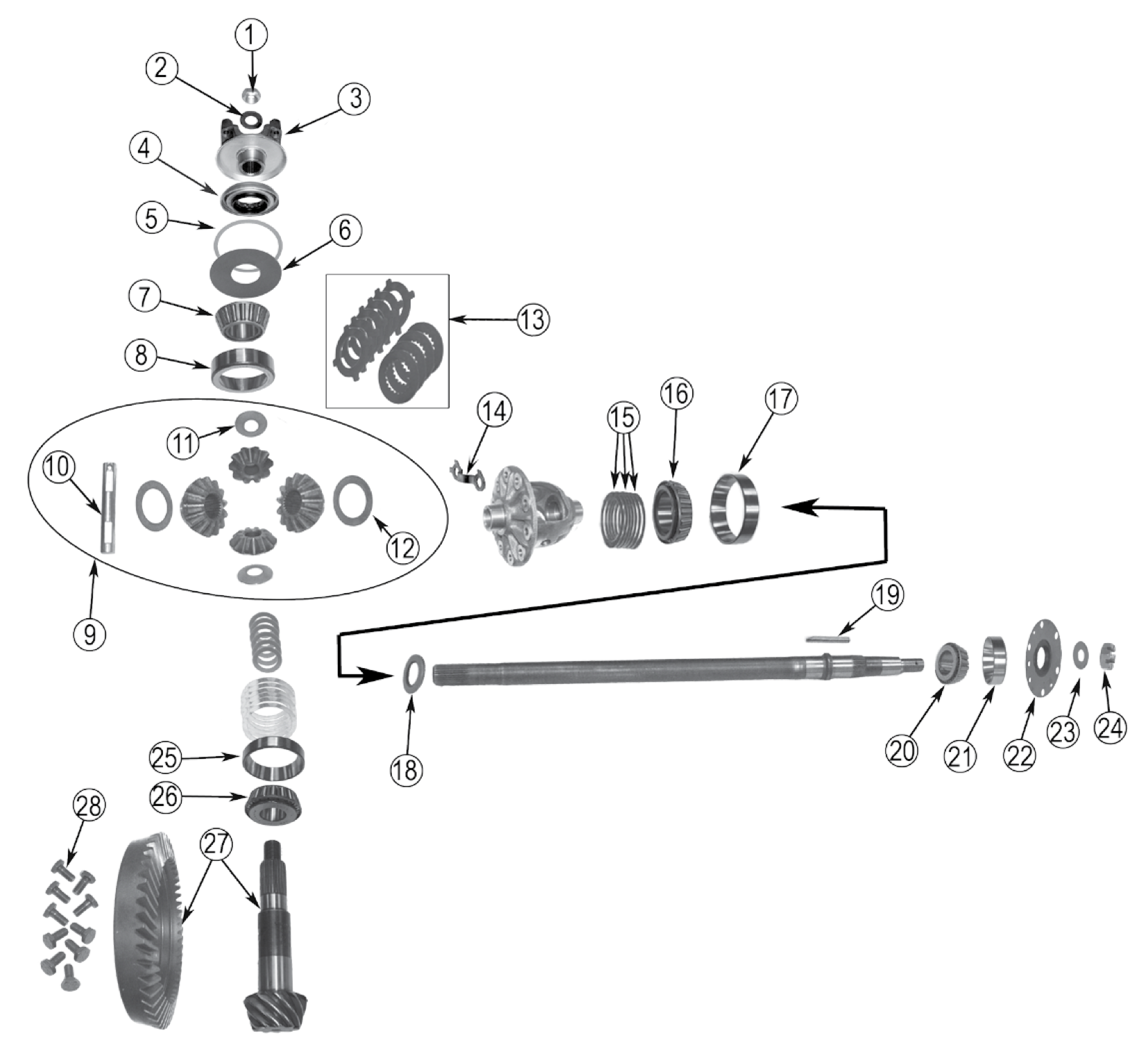

Item numbers match the diagram. Each part number searches Amazon for that Crown part.
| Item # | Description | Comments | Part No. |
|---|---|---|---|
| 1 | Nut, Pinion | J0801367 | |
| 2 | Washer, Pinion | J4004913 | |
| 3 | Yoke, Pinion | Strap and Bolt Type; 10 Splines w/ Slinger | J0807693 |
| 4 | Seal, Pinion | J0998092 | |
| 5 | Gasket, Pinion | J0636565 | |
| 6 | Slinger, Pinion | J0636566 | |
| 7 | Bearing, Pinion | Outer | J0052878 |
| 8 | Cup, Pinion Bearing | Outer | J0052879 |
| 7 & 8 | Bearing Kit, Pinion | Outer | J8124052 |
| 9 | Gear Set, Differential | Standard | J0908333 |
| 10 | Shaft, Differential Pinion | Standard | 636553 |
| 11 | Washer, Differential Spider Gear | Standard | J3222999 |
| 12 | Washer, Differential Side Gear | Standard | J3220250 |
| 13 | Disc Kit, Differential | Power-Lok | J0925339 |
| 14 | Strap, Ring and Pinion | Locks Ring Gear Bolts (5 Per Differential) | J0802561 |
| 15 | Shim Set, Differential | J0806483 | |
| 16 | Bearing, Differential | J0805311 | |
| 17 | Cup, Differential Bearing | J0805312* | |
| 18 | Seal, Axle Shaft | Inner | J0644254 |
| 19 | Key, Axle Shaft to Hub | J0644340 | |
| 20 | Bearing, Axle Shaft | J0054153 | |
| 21 | Cup, Axle Shaft Bearing | J0054154 | |
| 22 | Seal, Axle Shaft | Outer; Includes 2 Gaskets | J0914802 |
| 23 | Washer, Axle Shaft to Hub | J4004913 | |
| 24 | Nut, Axle Shaft to Hub | J0636344 | |
| 25 | Cup, Pinion Bearing | Inner | J0805329 |
| 26 | Bearing, Pinion | Inner | J0805328 |
| 27 | Ring and Pinion Set | 4.88 Ratio; Ring and Pinion Only | J0908331 |
| 28 | Bolt, Ring Gear | 10 Required | J0649454 |
* Not Currently Available
