Dana 60 Rear Axle
1969-1983 J-Series

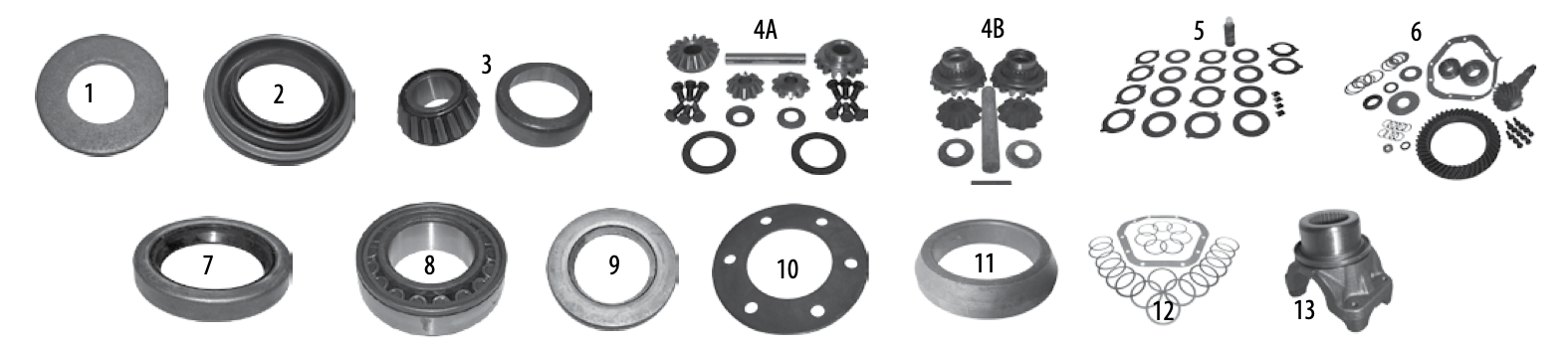

Item numbers match the diagram. Each part number searches Amazon for that Crown part.
| Item # | Description | Application | Comments | Part No. |
|---|---|---|---|---|
| 1 | Washer, Pinion | All | J4004913 | |
| 2 | Seal, Pinion | All | J8134810 | |
| 3 | Pinion Bearing Kit |
All All |
Inner Outer |
J8124026 J8124027 |
| 4A | Gear Set, Differential | Dana 60-2 | Standard | J8129241 |
| 4B | Dana 60-3 | Trac-Lok | J8129240 | |
| 5 | Disc Kit, Differential | All | Trac-Lok | J8122379 |
| 6 | Ring and Pinion Set |
All All |
3.54 Ratio 4.10 Ratio |
8130014 J8129235 |
| 7 | Seal, Axle | Dana 60-2 | Inner | J0994904 |
| 8 | Bearing, Axle Shaft | Dana 60-2 | J0994913 | |
| 9 | Seal, Hub | Dana 60-3 | Inner | J5352786 |
| 10 | Axle Retainer | All | w/ Semi-Float Rear Axle ONLY | J0994911 |
| 11 | Axle Shaft Retaining Ring | All | J0994914 | |
| 12 | Differential Shim Kit | All | J8129242 | |
| 13 | Yoke | All | J8134809 |
