Drivetrain and Related

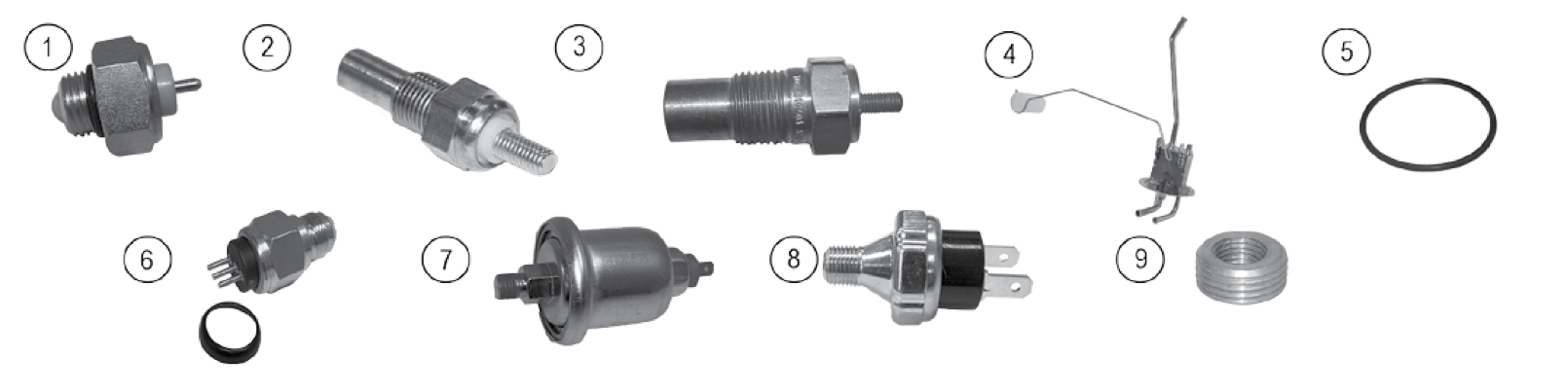

Item numbers match the diagram. Each part number searches Amazon for that Crown part.
| Item # | Description | Years | Models | Engines | Comments | Part No. |
|---|---|---|---|---|---|---|
| 1 | 4WD Indicator Switch |
1973-79 1980-86 |
CJ-7, SJ, J-Series CJ-5, 7, 8 |
|
w/ Quadra-Trac Transfer Case w/ Dana 300 Transfer Case |
J3211322 J3211322 |
| 2 | Coolant Temperature Sensor |
1972-86 1972-85 1986-91 |
CJ-5, 6, 7, 8 SJ, J-Series SJ, J-Series |
AMC 2.5L (4-150), 3.8L (6-232), 4.2L (6-258), 5.0L (V8-304) 4.2L (6-258), 5.9L (V8-360), 6.6L (V8-401) 4.2L (6-258), 5.9L (V8-360) |
|
J3177594 J3177594 53005056 |
| 3 | Early Fuel Evaporation Switch | 1983-86 | CJ-5,7,8 | AMC 2.5L (4-150) , 4.2L (6-258) | 1 Terminal | J3242321 |
| 4 | Fuel Sending Unit |
1945-56 1955-66 1969-86 1962-79 1970-79 1980-85 |
CJ-2A, 3A, 3B CJ-3B, 5, 6 CJ-5, 6, 7, 8 J-Series SJ SJ |
|
w/ 5-Bolt Sending Unit w/ 6-Bolt Sending Unit w/ Rear-Mounted 15-Gallon Tank |
J0640694 J0914850 J5357373 J5357677 J5361468 J5363490 |
| 5 | Fuel Sending Unit Gasket |
1945-56 1955-66 1969-86 1962-79 1980-85 |
CJ-2A, 3A, 3B CJ-3B, 5, 6 CJ-5, 6, 7, 8 J-Series SJ |
|
w/ 5-Bolt Sending Unit w/ 6-Bolt Sending Unit w/ Rear-Mounted 15-Gallon Tank |
648927 635641 J0941521 J0941521 J0941521 |
| 6 | Neutral Safety Switch | 1980-91 | CJ-5, 7, 8, SJ, J-Series | w/ A904, A999, A727 Transmissions | 3747361 | |
| 7 | Oil Pressure Sending Unit |
1957-71 1966-74 1975-79 1976-79 1980-86 1962-65 1974-85 1986-91 1980-86 |
CJ-3B, 5, 6, FC-150, C101 Commando, Sedan Delivery, Station Wagon CJ-5, 6 CJ-5, 6, 7 CJ-5, 7 CJ-5, 7, 8 Pickup SJ, J-Series SJ, J-Series CJ-5, 7, 8 |
2.2L (4-134) F-Head 3.8L (6-232), 4.2L (6-258), 5.0L (V8-304) 3.8L (6-232), 4.2L (6-258), 5.0L (V8-304) 3.8L (6-232), 4.2L (6-258), 5.0L (V8-304) AMC 2.5L (4-150), 4.2L (6-258), 5.0L (V8-304) 3.8L (6-230) 4.2L (6-258), 5.9L (V8-360), 6.6L (V8-401) 4.2L (6-258), 5.9L (V8-360) w/ 2.1L Diesel |
w/ Indicator Light w/ 80 lb. Gauge w/ Gauge w/ 3 threaded studs w/ Gauge w/ 4 threaded studs w/ Gauge w/ Indicator Light w/ Gauge w/ Gauge |
J0938092 J5460643 J3212004 J5460643 J3212004 J0938092 J3212004 53005218 J5751951* |
| 8 | Oil Pressure Switch |
1986-91 1979-81 |
CJ-5, 6, 7, 8, SJ, J-Series CJ5, 7, 8, SJ, J-Series |
|
2 Terminals 3 Terminals |
J5758695 J3231347 |
| 9 | Temperature Sensor Adapter | 1950-71 | CJ-3B, 5 | Adapts 1/2" threads to 1/4" threads | 801179 |
* Not Currently Available
