Lighting and Related
For All CJs, FC-150, FC-170, Commandos and Willys Pickup, Sedan and Delivery

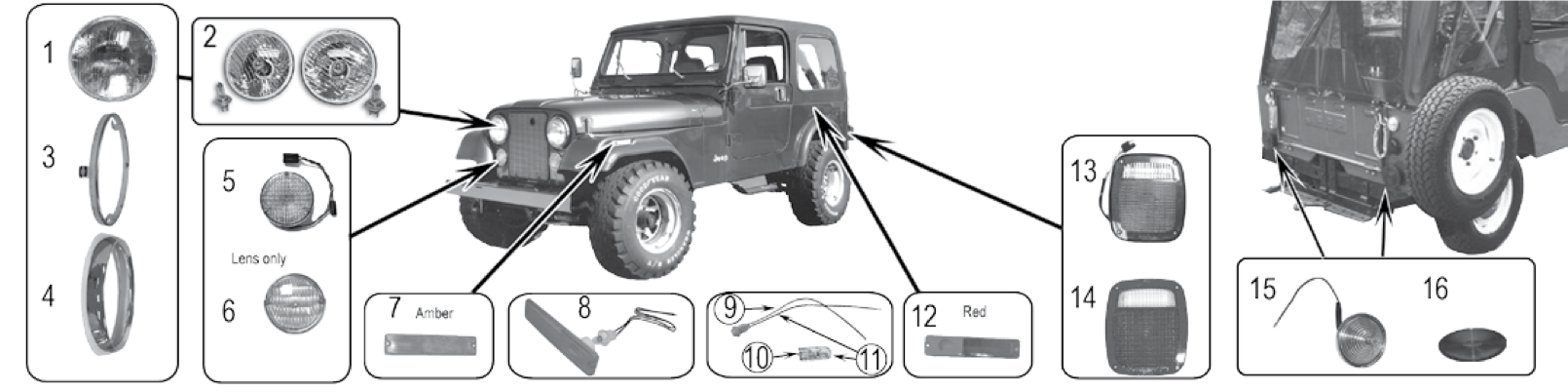

Item numbers match the diagram. Each part number searches Amazon for that Crown part.
| Item # | Description | Years | Models | Comments | Position/Color | Part No. |
|---|---|---|---|---|---|---|
| 1 | Sealed Beam | 1965-86 | CJ-5, 6, 7, 8 | H6024 | L0JH6024 | |
| 2 | Halogen Light Conversion Kit | 1969-86 | CJ-5, 6, 7, 8 | Converts Sealed Beam to Halogen | Left and Right | RT28006 |
| 3 | Headlight Retaining Ring | 1945-86 | All | Chrome | Left or Right | J8128749 |
| 4 | Headlight Bezel Headlight Bezel Set |
1948-71 1972-86 1972-86 |
CJ-3B, 5, 6, FC-150, FC-170, Pickup, Sedan Delivery, Station Wagon CJ-5, 6, 7, 8 CJ-5, 6, 7, 8 |
Chrome Chrome Chrome (Set of 2) |
Left or Right Left or Right Left and Right |
J0649518 J5460087 5460087K |
| 5 | Parking Light |
1969-75 1976-86 |
CJ-5, 6 CJ-5, 7, 8 |
Lens Mounted w/ 3 Screws Lens Mounted w/ 2 Screws |
Left or Right Front Left or Right Front |
J0989852 J5752771 |
| 6 | Parking Light Lens |
1969-75 1976-86 |
CJ-5, 6 CJ-5, 7, 8 |
Lens Mounted w/ 3 Screws Lens Mounted w/ 2 Screws |
Left or Right Front Left or Right Front |
J0991402 J8127449 |
| 7 | Side Marker Light |
1972-86 1966-71 |
CJ-5, 6, 7, 8 C101 Commando |
Amber Amber |
Left or Right Front Left or Right Front |
J0994020 J0994020 |
| 8 | Side Marker Light Kit |
1972-80 1972-86 |
CJ-5, 6, 7 CJ-5, 6, 7, 8 |
Includes #9, 10, 12 Includes #7, 9, 10 |
Left or Right Rear Left or Right Front |
994021K 994020K |
| 9 | Side Marker Light Socket | 1972-86 | CJ-5, 6, 7, 8 | Front or Rear | J5455853 | |
| 10 | Side Marker Bulb | 1972-86 | CJ-5, 6, 7, 8 | 194 Bulb | Front or Rear | L0000194 |
| 11 | Side Marker Socket Kit | 1972-91 | CJ-5, 6, 7, 8 | Includes #9 and 10 | Front or Rear | 5455853K |
| 12 | Side Marker Light | 1972-80 | CJ-5, 6, 7 | Red | Left or Right Rear | J0994021 |
| 13 | Tail Light Assembly |
1976-80 1976-80 1981-86 1981-86 1976-80 1976-80 1981-86 1981-86 1981-86 |
CJ-5, 7 CJ-5, 7 CJ-5, 7, 8 CJ-5, 7, 8 CJ-5, 7 CJ-5, 7 CJ-5, 7, 8 CJ-5, 7, 8 CJ-5, 7, 8 |
w/ License Plate Light Window w/ License Plate Light Window w/ Side Marker and License Plate Light w/ Side Marker and License Plate Light w/o License Plate Light Window w/o License Plate Light Window w/ Side Marker Light w/ Side Marker Light Europe, Australia |
Left; Black Left; Chrome Left; Black Left; Chrome Right; Black Right; Chrome Right; Black Right; Chrome Left or Right |
J5457197 5457197C J5758255 5758255C J5457198 5457198C J5758254 5758254C J5764204 |
| 14 | Tail Light Lens |
1976-86 1981-86 |
CJ-5, 7, 8 CJ-5, 7, 8 |
Europe, Australia |
Left or Right Left or Right |
J8129642 83501003 |
| 15 | Back Up Light | 1965-73 | CJ-5, 6 | w/ Male Bullet Terminal | 945659 | |
| 16 | Tail Light Lens | 1955-68 | CJ-3B, 5, 6 | Attaches with Snap Ring | Left or Right | J0912240 |

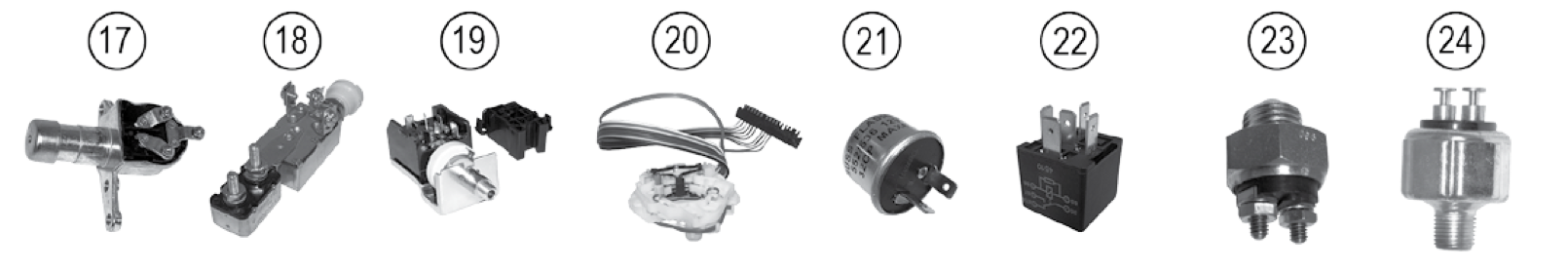

| 17 | Headlight Dimmer Switch |
1945-71 1974-86 |
CJ-2A, 3A, 3B, 5, 6 CJ-5, 6, 7, 8 |
Mounts to Floor Mounts to Floor |
|
J0811681 J5461816 |
| 18 | Headlight Switch |
1945-71 1973-79 1979-86 |
CJ-2A, 3A, 3B, 5, 6 CJ-5, 6, 7 CJ-5, 7, 8 |
Includes Knob and Circuit Breaker Does not Include Knob w/ Switch Stamped "5751098"; Does not Include Knob |
|
J0946613 J5450558 J5751098 |
| 19 | Headlight Switch Kit |
1973-79 1979-86 |
CJ-5, 6, 7 CJ-5, 7, 8 |
Does not Include Knob; Includes Connector w/ Switch Stamped "5751098"; Includes Connector |
|
5450558K 5751098K |
| 20 | Turn Signal Switch |
1976 1977-86 |
CJ-5, 7 CJ-5, 7, 8 |
|
|
J8127756 56002011 |
| 21 | Flasher Relay | 1981-90 | CJ-5, 7, 8 | Hazard and Turn Signal | J5452266 | |
| 22 | Fog Lamp Relay | 1984-86 | CJ-5, 6, 7, 8 | 56002958 | ||
| 23 | Backup Light Switch |
1966-73 1976-86 1980-86 1982-86 |
CJ-5, 6, C101 Commando CJ-5, 7, 8 CJ-5, 7, 8 CJ-5, 7, 8 |
On Transmission w/ T18 Transmission w/ T176, T177 Transmission w/ T4, T5, SR-4 Transmission |
|
J8130829 J5350061 J5751207 J8134068 |
| 24 | Stop Light Switch |
1945-66 1966-72 1972-75 1976-86 |
All All CJ-5, 6, C104 Commando CJ-5, 7, 8 |
w/ Bullet Terminals; Mounts to Master Cylinder w/ Nail Head Terminals; Mounts to Master Cylinder Mounts to brake pedal Mounts to brake pedal |
|
J0647801 J0931216 J3215939 J5352620 |
