Starting, Charging and Related

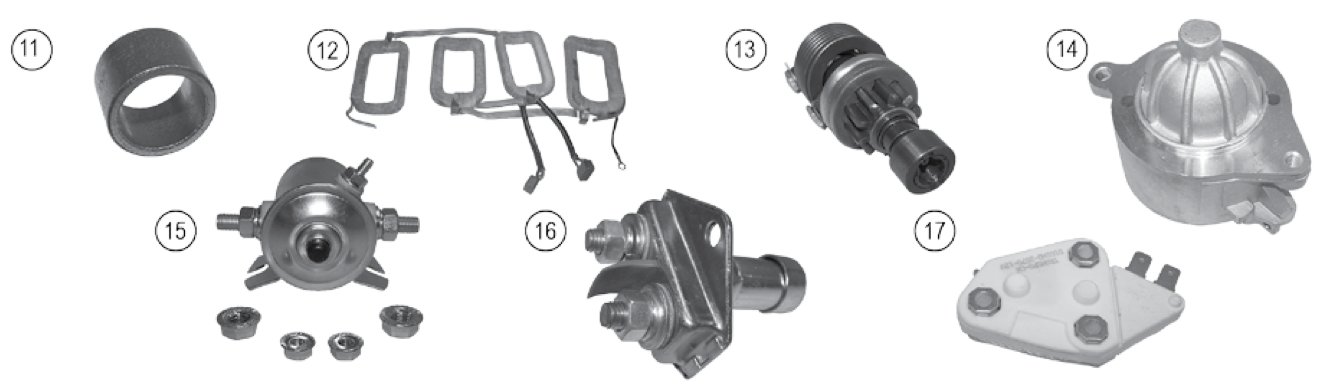

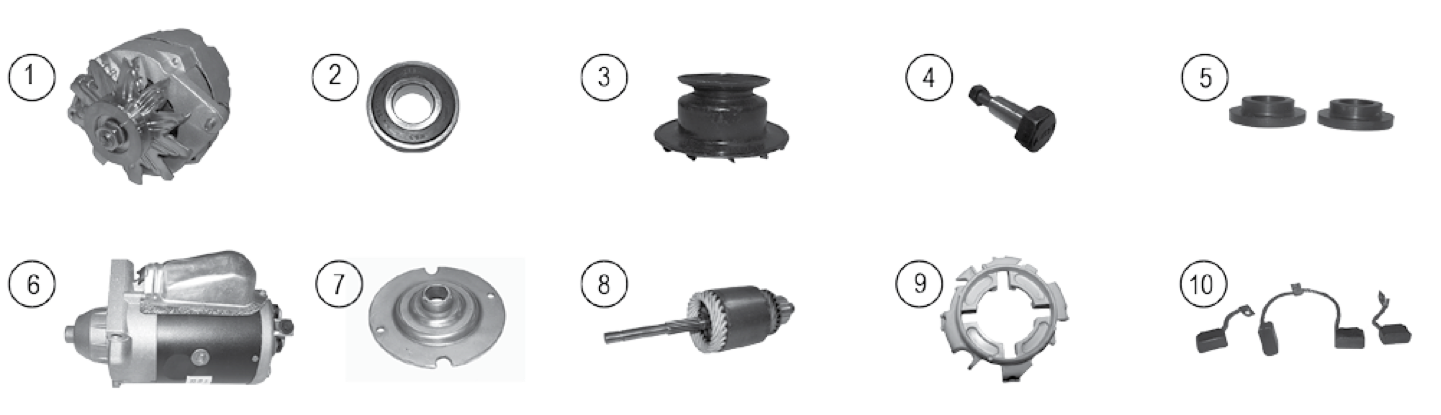

Item numbers match the diagram. Each part number searches Amazon for that Crown part.
| Item # | Description | Years | Models | Engines | Comments | Part No. |
|---|---|---|---|---|---|---|
| 1 | Alternator |
1975-81 1975-86 1975-91 1980-83 1983-86 |
CJ-5, 6, 7, 8 CJ-5, 7, 8, SJ, J-Series SJ, J-Series CJ-5, 7, 8 CJ-5, 7, 8 |
5.0L (V8-304) 4.2L (6-258) 5.9L (V8-360) GM 2.5L (4-151) AMC 2.5L (4-150) |
Delco Type; 106 amp; Replaces 56, 63, 77, 70, 78, 85 amp Alternators |
J8134663 J8134663 J8134663 J8134663 J8134663 |
| 2 | Alternator Bearing |
1981-86 1981-86 |
CJ-5, 6, 7, 8 SJ, J-Series |
All All |
w/ 42, 56, 63, 78 Amp Alternators Tagged 1105081, 082, 083, 084, 079, 080 |
J8134644 J8134644 |
| 3 | Generator Pulley |
1948-71 1946-65 |
CJ-3A, 3B, 5, 6 Pickup, Station Wagon, Sedan Delivery |
All All |
Only Fits the Following Generators: GDZ-6001, GGA-6001, GGW-4801D, GG-W4801S, GJC-7002S, GJE-7001E, GJP-7204S,GJP-7402B, GJP-9402 |
118432 |
| 4 | Generator Support Bolt | 1941-71 | All Except M38 and M38-A1 | 2.2L (4-134) L or F-Head | A1397 | |
| 5 | Generator Support Bushing | 1941-71 | All Except M38 and M38-A1 | 2.2L (4-134) L or F-Head | Set of 2 | JA001395 |
| 6 | Starter |
1972-87 1983-86 |
CJ-5, 7, 8, SJ, J-Series CJ-5, 7, 8 |
4.2L (6-258), 5.0L (V8-304), 5.9L (V8-360) AMC 2.5L (4-150) |
|
J5752791 J3242283 |
| 7 | Starter Armature Bushing | 1953-71 | CJ-3B, 5, 6 | All | Bronze; w/ Autolite 6V Starter | 119833 |
| 8 | Starter Armature | 1972-87 | CJ-5, 6, 7, 8, SJ, J-Series | 4.2L (6-258), 5.0L (V8-304), 5.9L (V8-360) | J8120028 | |
| 9 | Starter Brush Holder | 1972-87 | CJ-5, 6, 7, 8, SJ, J-Series | 4.2L (6-258), 5.0L (V8-304), 5.9L (V8-360) | Starter Brush Holder | J8128433 |
| 10 | Starter Brush Set | 1972-87 | CJ-5, 6, 7, 8, SJ, J-Series | 4.2L (6-258), 5.0L (V8-304), 5.9L (V8-360) | Starter Brush Kit | J8128434 |
| 11 | Starter Bushing | 1972-87 | CJ-5, 6, 7, 8, SJ, J-Series | 4.2L (6-258), 5.0L (V8-304), 5.9L (V8-360) | Starter Bushing; In End of Drive Housing | J8120030 |
| 12 | Starter Coil |
1966-71 1972-86 |
CJ-5, 6, SJ, J-Series CJ-5, 6, 7, 8, SJ, J-Series |
3.8L (6-232), 4.2L (6-258) 4.2L (6-258), 5.0L (V8-304), 5.9L (V8-360) |
|
J8120997 J8128438 |
| 13 | Starter Drive |
1941-49 1953-71 1957-71 1965-70 1972-87 |
MB, CJ-2A CJ-3B, 5, 6, FC-170, C101 Commando, Pickup, Sedan Delivery, Station Wagon CJ-3B, 5, 6, FC-150, Pickup, Sedan Delivery, Station Wagon SJ, J-Series CJ-5, 6, 7, 8, SJ, J-Series |
All All All 3.8L (6-232), 5.4L (V8-327) 4.2L (6-258), 5.0L (V8-304), 5.9L (V8-360) |
w/ Autolite MZ-4113 Starter; 10 Teeth w/ Starters: MDU-7003, MDU-7003A, MDU-7004 w/ Starters: MCH-6203, MCH-6207, MCH-6215, MDM-6005, MDM-6006; 9 Teeth |
A17702 931463 119597 J0938918 J8120193 |
| 14 | Starter Drive Housing | 1972-87 | CJ-5, 6, 7, 8, SJ, J-Series | 4.2L (6-258), 5.0L (V8-304), 5.9L (V8-360) | w/ Tag #5752791 | J8133036 |
| 15 | Starter Solenoid |
1953-71 1980-83 1981-86 1971-86 1971-86 1981-91 |
CJ-3B, 5, 6, FC-150, C101 Commando CJ-5, 7, 8 CJ-5, 7, 8 CJ-5, 7, 8, SJ, J-Series SJ, J-Series SJ, J-Series |
2.2L (4-134) F-Head GM 2.5L (4-151) 4.2L (6-258) 3.8L (6-232), 4.2L (6-258) 5.9L (V8-360), 6.6L (V8-401) All |
12-Volts w/ Automatic Transmission w/ Manual Transmission w/ Manual Transmission w/ Automatic Transmission |
J0919294 J8130938 J5752125 J3235898 J3235898 J5752125 |
| 16 | Starter Switch | 1941-56 | MB, CJ-2A, 3A, 3B, 5, 6 | All | Floor-Mounted | A7225 |
| 17 | Voltage Regulator |
1945-56 1957-66 1980-81 1980-83 1983-86 1980-86 1980-91 |
All Except M38 and M38-A1 All Except M38 and M38-A1 CJ-5, 7, 8 CJ-5, 7, 8 CJ-5, 7, 8 CJ-5, 7, 8, SJ, J-Series SJ, J-Series |
All All 5.0L (V8-304) GM 2.5L (4-151) AMC 2.5L (4-150) 4.2L (6-258) 5.9L (V8-360) |
6-Volt; External 12-Volt; External Internal Internal Internal Internal Internal |
J0923131 J0923130 J8125176 J8125176 J8125176 J8125176 J8125176 |
