4-134 F-Head (Hurricane)

1952-1971 CJ-3B, 5, 6, M38-A1
1956-1964 FC-150
1966-1971 C101 Commando
1950-1955 VJ Jeepster, Willys Pickup, Sedan Delivery, Station Wagon

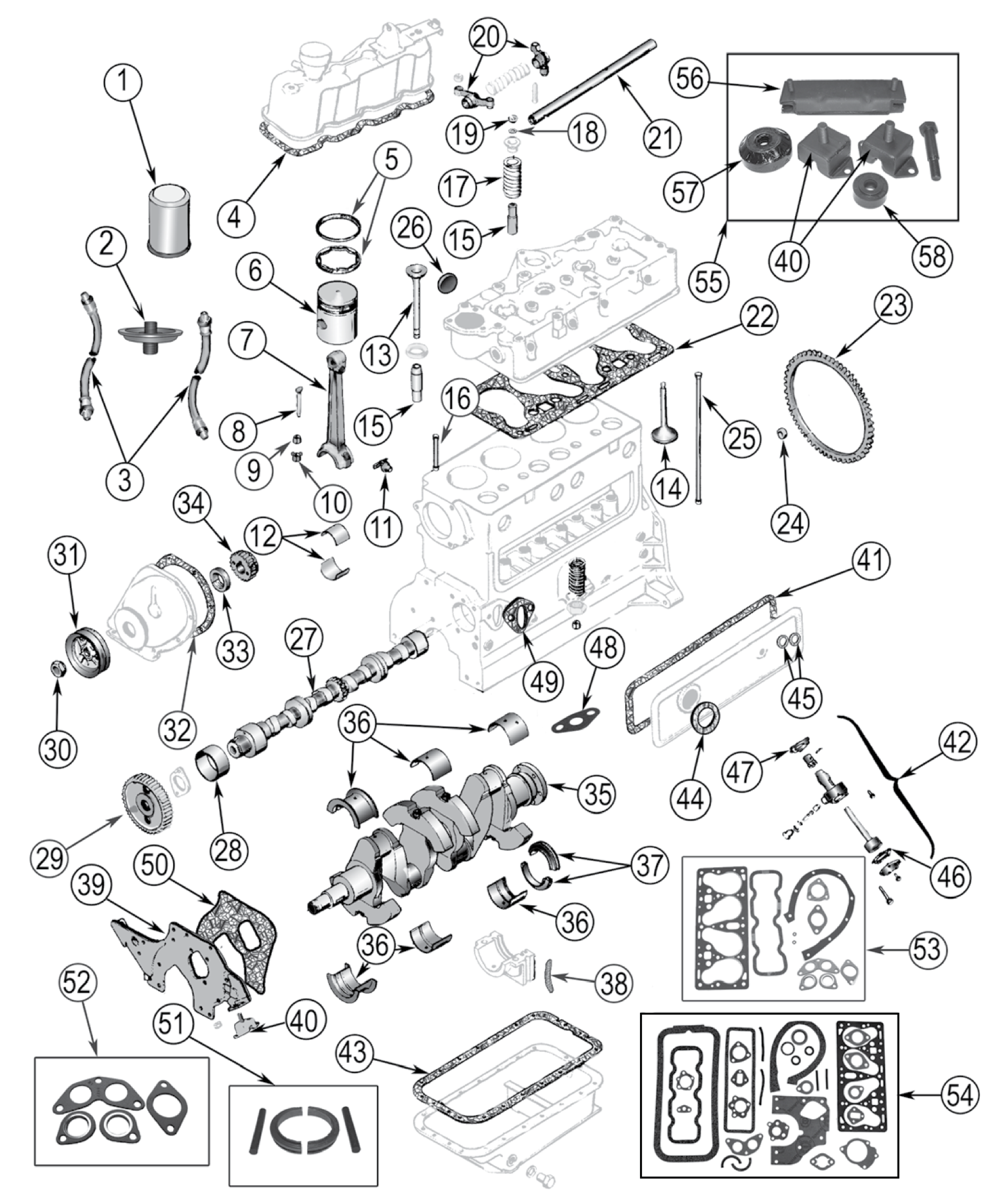

Item numbers match the diagram. Each part number searches Amazon for that Crown part.

Item #	Description	Application	Comments	Part No.
1	Oil Filter	All	Disposable Type	J8993146
2	Cover, Oil Filter	All	w/ Spin On Filter	J0929838
3	Hose, Oil Filter	All Except M38-A1 and C101 All Except M38-A1, C101 and FC-150 FC-150 M38-A1	Inlet - 30.5" Long Outlet - 12" Long Outlet - 30.5" Long Outlet - 9.5" Long	J0647585 J0910290 J0647585 A1198
4	Gasket, Valve Cover	All	Top of Engine	J0648798
5	Ring Set, Piston	All All All All All All	Standard .010"; 1 Required .020"; 1 Required .030"; 1 Required .040"; 1 Required .060"; 1 Required	J0941885 J0941886 941887 941888 941889 941889.060
6	Piston	All All All All	Standard .020" .030" .040"	J8121654 J0801538 J0801539 J8121658
7	Rod, Connecting	All All	#s 1, 3 #s 2, 4	J0641774 J0641775
8	Bolt, Connecting Rod	All	3/8"-24 Threads	J0641768
9	Nut, Connecting Rod Bolt	All	3/8"-24 Threads	J0641769
10	Locknut, Connecting Rod	All	Stamped	G107823
11	Draincock, Engine Block	All		JA001126
12	Bearing, Connecting Rod	All All All All All	Standard .010" .020" .030" .040"	JA007233 A7234 A7235 A7236 A7237
13	Valve, Exhaust	All	Standard	J0928342
14	Valve, Intake	All	Standard	J0994946
15	Guide, Valve	All All	Intake; 2.375" Long Exhaust; 3" Long	119138 119137
16	Bolt, Cylinder Head to Block	All	4-1/4" Long; 14 Required	J0805730
17	Spring, Valve	All All	Intake Exhaust	J0800417 J0638636
18	Seal, Valve	All	Intake or Exhaust	J0800986
19	Lock, Valve Spring Retainer	All All	Exhaust Intake	J3242664 J0375994
20	Rocker Arm	All All	Left Right	J0805375* J0805376
21	Shaft, Rocker Arm	All		J0805368*
22	Gasket, Cylinder Head	All	w/o Emission Pump	J0807036
23	Ring Gear, Flywheel	All	129 Teeth	J0802925
24	Bushing, Crankshaft Pilot	All		J0639578
25	Push Rod, Valve	All	Intake	J0804622
26	Expansion Plug	All		941998
27	Camshaft	All		J0800517
28	Bearing, Camshaft	All		J0645595
29	Gear, Camshaft Timing	All		J0948137
30	Nut, Crankshaft Pulley	All		J0638513
31	Pulley, Crankshaft Damper	All All	Double Groove Single Groove	J0646698 J0645623
32	Gasket, Timing Cover	All		J0630365
33	Seal, Crankshaft	All	Front	J0931634
34	Gear, Crankshaft Timing	All		J0641282
35	Crankshaft	All		J0647078
36	Bearing, Main, Set	All All All All All	Standard; Includes All 3 Bearings .010"; Includes All 3 Bearings .020"; Includes All 3 Bearings .030"; Includes All 3 Bearings .040"; Includes All 3 Bearings	A6798 A6746 A6747 A6748 A6798.40
37	Seal, Crankshaft	All	Rear; 2 Required	J0800093
38	Packing, Crankshaft	All	Rear; 2 Required	J0637790
39	Plate, Engine, Front	CJ-5, 6, FC-150		927719
40	Mount, Engine	All Except M38-A1	Left or Right	J0638629
41	Gasket, Tappet Cover	All	Side of Engine	J0630305
42	Oil Pump	All		J0804484
43	Gasket, Oil Pan	All		J0639980
44	Gasket, Ventilator	All		630299
45	Gasket, Valve Cover Screw	All	2 Required	51875
46	Gasket, Oil Pump Cover	All		641482
47	Gasket, Oil Pump to Block	All		646147
48	Gasket, Oil Strainer Support	All		630398
49	Gasket, Fuel Pump	All		638737
50	Gasket, Front Engine Plate	All		641096
51	Crankshaft Seal Kit	All	Includes 2 Rear Main Seal Halves and 2 Packing	800093K
52	Gasket Set, Exhaust Manifold	All	Includes Center Gasket, Outer Gaskets, and Downpipe Gasket	J0801345
53	Gasket Set, Valve Grind	All	Includes #s 3, 21, 39, 43, 50	801344
54	Gasket Set, Overhaul	All Except M38-A1	Includes #s 3, 17, 21, 39, 41, 43, 44, 45, 46, 48, 49, 50	810585
55	Engine Mount Kit	All		638629K
56	Mount, Transmission	All		JA006156
57	Mount, Transfer Case	All	Upper	J0926671
58	Mount, Transfer Case	All	Lower	J0801042

* Not Currently Available
