AMC 2.5L (4-150)

1983-1986 CJ-5, 7, 8

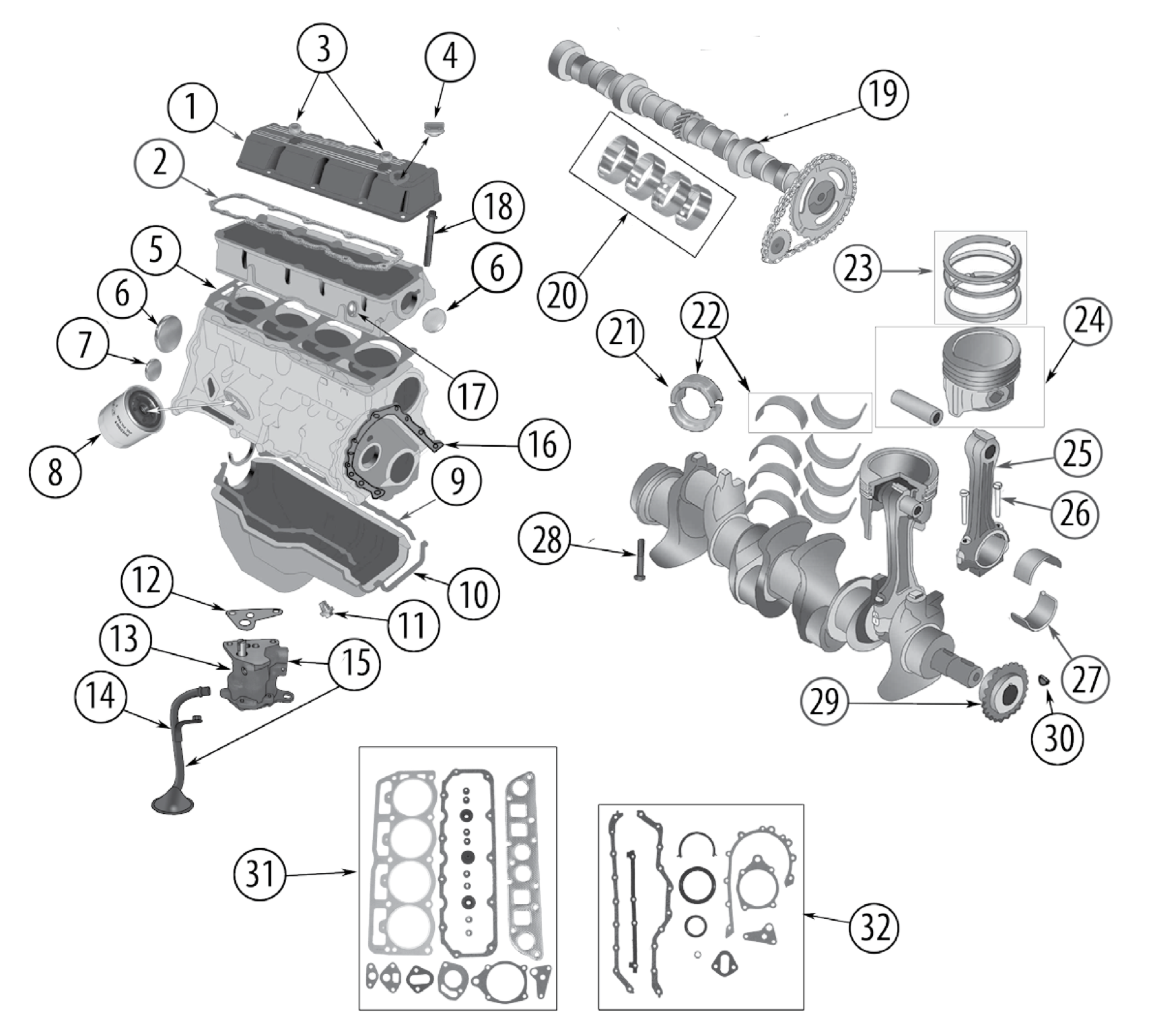

Item numbers match the diagrams. Each part number searches Amazon for that Crown part.

Item #	Description	Comments	Part No.
1	Valve Cover		33003857
2	Gasket, Valve Cover		J3241731
3	Grommet, Valve Cover	.72" ID .45" ID	J8134400 33001237
4	Cap, Oil Filler		33001016
5	Gasket, Cylinder Head		53009549AB
6	Plug, Expansion	2" Diameter	J3105394
7	Plug, Camshaft	2-9/16" Diameter	J3172313
8	Filter, Engine Oil		J8132313
9	Gasket, Oil Pan	4-Piece Cork and Rubber 1-Piece	83504661 4713021
10	Gasket, Engine Oil Pan	Oil Pan to Timing Cover	J3172848
11	Plug, Oil Pan		83501425
12	Gasket, Oil Pump		J3172332
13	Pump, Oil	1983-85; Tube Not Included 1986	J3241399 J3243102
14	Oil Pickup Tube		J3243111
15	Oil Pump Kit	Includes Pickup Tube, Pump, and Gasket	J3241602
16	Gasket, Timing Cover		J3225187
17	Plug, Expansion	7/8" Diameter	J3172319
18	Bolt, Crankshaft Main Bearing Cap	1/2" x 3"	J4006948
19	Camshaft		83500249
20	Bearing Set, Camshaft	Standard; Set of 4 .010"; Set of 4	J3205711 J3208985
21	Thrust Bearing, Crankshaft	Standard; 1 Required .010" Undersized; 1 Required .001" Undersized; 1 Required .002" Undersized; 1 Required	J8133253 J8133255 J8133681 J8133683
22	Bearing Set, Crankshaft Main	Standard; Set of 4	8133252K4
23	Ring Set, Piston	Standard; 4 Required .010"; 4 Required Standard, Set of 4	83500210 83500211 83500210K4
24	Piston and Pin	Standard; 4 Required .010" Oversized; 4 Required	83500251 83500252
25	Rod, Connecting		53020126
26	Bolt, Connecting Rod	Includes Nut	J4486626
27	Bearing, Connecting Rod Set	Standard; Set of 4 .010"; Set of 4	83500300K4 83500301K4
28	Bolt, Cylinder Head	1/2"-13 x 3.7"	6305514
29	Sprocket, Crankshaft		33004020
30	Key, Woodruff	For Timing Sprocket	J3107002
31	Gasket Set, Upper		83504346
32	Gasket Set, Lower		83504647
33	Valve, Intake	Standard	J3242659
34	Valve, Exhaust	Standard .003"	33002429 83502491
35	Seal, Valve	Intake; Standard Exhaust; Standard	53009886 53009887
36	Lock, Valve Retainer	2 Required Per Valve	J3242664
37	Rocker Arm		J3242393
38	Pivot, Rocker Arm		J3235090
39	Bridge, Rocker Arm Pivot		J3236513
40	Pivot Kit	Includes 1 Pivot and 1 Bridge	3236513K
41	Bolt, Rocker Arm Pivot		J8120512
42	Push Rod		J3241709
43	Tappet (Lifter)		J3222276
44	Sprocket, Camshaft		J3242280
45	Tensioner, Timing Chain		33003421
46	Chain, Timing		J3242300
47	Guide, Timing Chain		33003446
48	Damper, Crankshaft	w/ Serpentine Belt Drive	J3242886
49	Timing Cover		53020233
50	Seal, Crankshaft	Front	J3224704
51	Slinger, Front Crankshaft Oil		J3173076
52	Seal, Crankshaft	Rear	33004143
53	Bearing, Crankshaft Pilot	w/ Manual Transmission	J3250005
54	Ring Gear, Flywheel		J3241718
55	Manifold Kit, Exhaust	Includes Manifold w/ Heat Shield, Manifold Gasket, EGR Block-Off Plate and EGR Gasket	53008860K
56	Gasket, Intake and Exhaust Manifold		J3242854
57	Mount, Engine	Left or Right	J5361829
58	Mount, Transmission		J1370910
59	Insulator, Transmission		J0945266
60	Insulator Stud, Transmission		J5358879
61	Timing Cover Kit	Includes Item #s 9, 49	4720221
62	Gasket and Seal Kit, Timing	Includes Item #s 10, 16, 50	J8129097
