AMC V8
5.0L (V8-304): 1971-1981 CJ-5, 6, 7, 8, C104 Commando
5.9L (V8-360): 1970-1991 SJ, J-Series
6.6L (V8-401): 1971-1979 SJ, J-Series

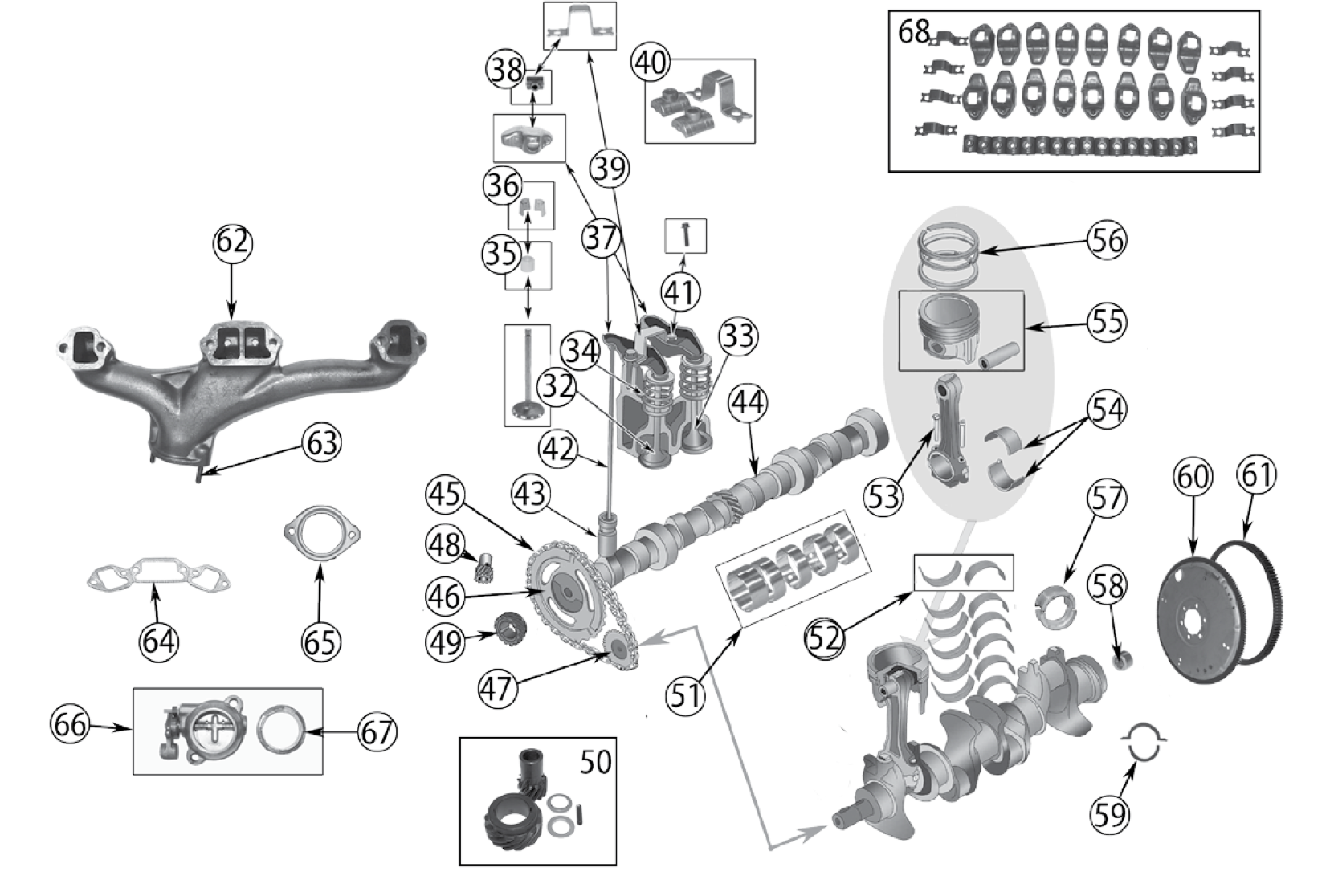

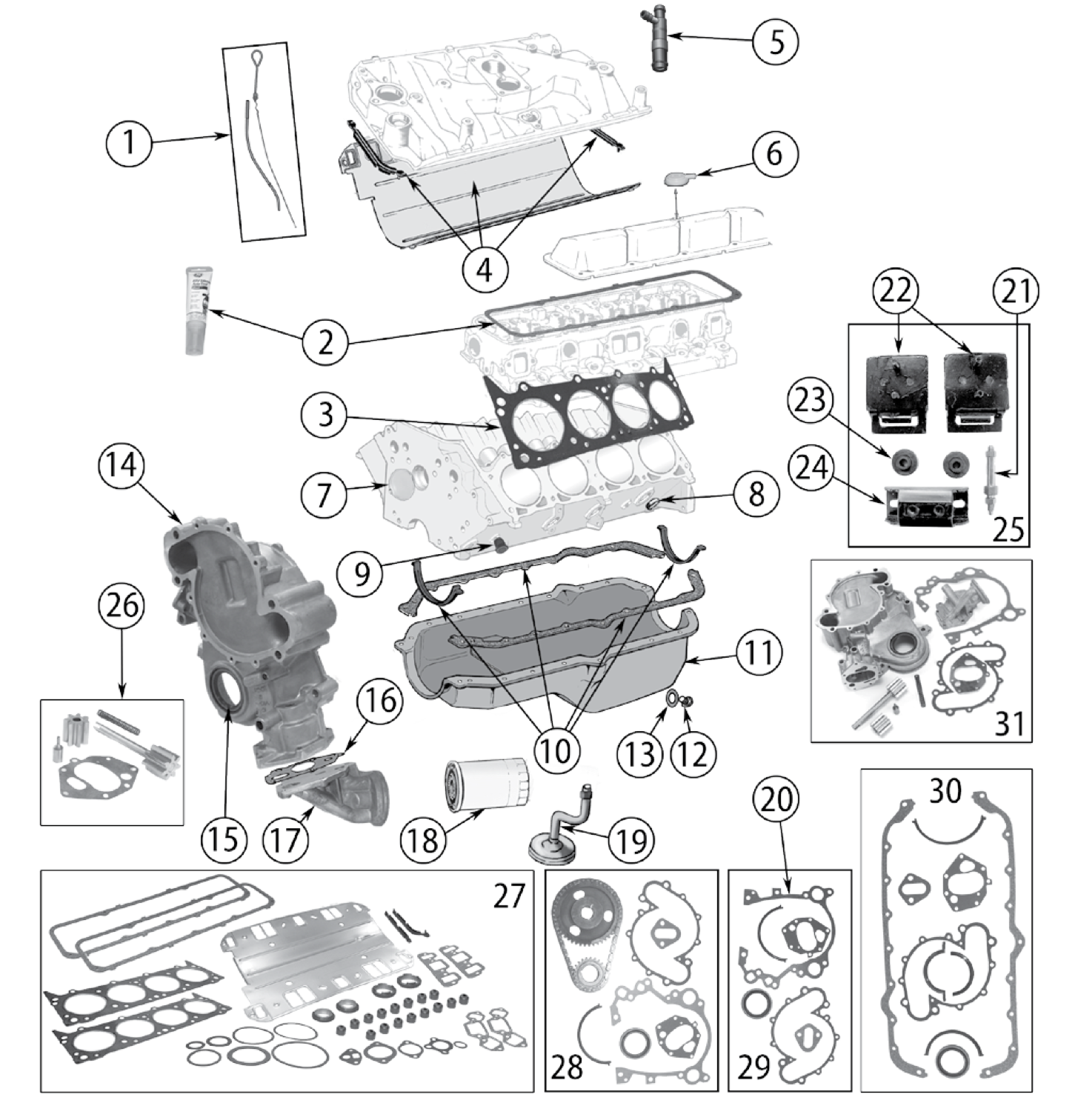

Item numbers match the diagrams. Each part number searches Amazon for that Crown part.
| Item # | Description | Years | Engine | Comments | Part No. |
|---|---|---|---|---|---|
| 1 | Dipstick Kit | 1974-91 | 5.0L, 5.9L, 6.6L | Includes Dipstick and Tube | 3190848K |
| 2 | Gasket, Valve Cover |
1970-80 1981-91 |
5.0L, 5.9L, 6.6L 5.0L, 5.9L |
Cork Use RTV Silicone |
J3181291 J8993317 |
| 3 | Gasket, Cylinder Head |
1971-81 1970-91 |
5.0L 5.9L, 6.6L |
|
J3197636 J3227352 |
| 4 | Gasket and Seal Set, Intake Manifold | 1970-91 | 5.0L, 5.9L, 6.6L | J8125869 | |
| 5 | PCV Valve |
1970-78 1979-91 |
5.0L, 5.9L, 6.6L 5.0L, 5.9L, 6.6L |
|
J3211538 |
| 6 | Cap, Oil Filler | 1970-91 | 5.0L, 5.9L, 6.6L | J3220248 | |
| 7 | Plug, Camshaft | 1970-91 | 5.0L, 5.9L, 6.6L | 2-9/64" Diameter | J3172313 |
| 8 | Plug, Expansion |
1970-91 1970-91 |
5.0L, 5.9L, 6.6L 5.0L, 5.9L |
1-1/2" Diameter 1" Diameter |
J3144641 J3178449 |
| 9 | Plug, Water Jacket | 1971-91 | 5.0L, 5.9L, 6.6L | 2 Required, 1/4" NPT | G444618 |
| 10 | Gasket Set, Oil Pan | 1970-91 | 5.0L, 5.9L, 6.6L | Cork and Rubber Set; 4 Pieces | J3206690 |
| 11 | Oil Pan | 1970-91 | 5.0L, 5.9L, 6.6L | J3236322 | |
| 12 | Plug, Oil Pan | 1970-91 | 5.0L, 5.9L, 6.6L | 1/2"-20 | J3206696 |
| 13 | Gasket, Oil Drain Plug |
1972-91 1972-91 |
5.0L, 5.9L 5.0L, 5.9L |
Copper Aluminum |
J3170271 J3243136 |
| 14 | Timing Cover | 1970-91 | 5.0L, 5.9L, 6.6L | J8129373 | |
| 15 | Seal, Crankshaft | 1970-91 | 5.0L, 5.9L, 6.6L | Front | J3193613 |
| 16 | Gasket, Oil Pump Cover | 1971-91 | 50L, 5.9L | J3226241 | |
| 17 | Cover, Oil Pump |
1970-86 1987-91 |
5.0L, 5.9L, 6.6L 5.9L |
|
J3226242 33003536 |
| 18 | Filter, Engine Oil |
1972-81 1972-82 1983-86 1987-90 1991 |
5.0L 5.9L, 6.6L 5.9L 5.9L 5.9L |
w/ SAE Threads w/ Metric Threads |
J8993146 J8993146 J3242397 33004195 5281090 |
| 19 | Tube and Screen, Oil Pickup | 1970-91 | 5.0L, 5.9L, 6.6L | J3216049 | |
| 20 | Gasket, Timing Cover | 1970-91 | 5.0L, 5.9L, 6.6L | J3180216 | |
| 21 | Stud, Insulator | 1976-91 | 5.0L, 5.9L, 6.6L | J5358879 | |
| 22 | Mount, Engine | 1970-91 | 5.0L, 5.9L, 6.6L | Left or Right | J3186107 |
| 23 | Insulator, Transmission | 1976-91 | 5.0L, 5.9L, 6.6L | J0945266 | |
| 24 | Mount, Transmission | 1970-91 | 5.0L, 5.9L, 6.6L | J1370910 | |
| 25 | Mount Kit, Engine | 1976-91 | 5.0L, 5.9L, 6.6L | 3186107K | |
| 26 | Repair Kit, Oil Pump | 1970-91 | 5.0L, 5.9L, 6.6L | Includes Gear, Shaft, Plunger, Spring, and Gasket | 3184086K |
| 27 | Gasket Set, Upper |
1971-81 1973-91 |
5.0L 5.9L, 6.6L |
|
J8128191 J8128192 |
| 28 | Kit, Timing |
1971-79 1979-91 |
5.0L, 5.9L, 6.6L 5.0L, 5.9L, 6.6L |
w/ 5/8" Wide Sprockets w/ 1/2" Wide Sprockets |
3185270K 3234433K |
| 29 | Gasket and Seal Kit, Timing | 1970-91 | 5.0L, 5.9L, 6.6L | J8129098 | |
| 30 | Gasket Set, Lower | 1970-91 | 5.0L, 5.9L, 6.6L | J8125727 | |
| 31 | Timing Cover Kit | 1970-91 | 5.0L, 5.9L, 6.6L | 8129373K | |
| 32 | Valve, Intake |
1971-72 1973-80 1973-91 1974-79 1981 |
5.9L 5.0L 5.9L 6.6L 5.0L |
Standard Standard Standard Standard Standard |
J3182585 J3218732 J3229657 J3229657 J3240768 |
| 33 | Valve, Exhaust |
1973-80 1973-74 1974 1975-91 1981 |
5.0L 5.9L 6.6L 5.9L, 6.6L 5.0L |
Standard Standard Standard Standard Standard |
J3224597 J3218731 J3218731 J3224598 J3240767 |
| 34 | Spring, Valve |
1970-77 1978-91 |
5.0L, 5.9L, 6.6L 5.0L, 5.9L, 6.6L |
|
J3213609 J3228192 |
| 35 | Seal, Valve |
1973-91 1973-91 |
5.0L, 5.9L, 6.6L 5.0L, 5.9L, 6.6L |
Standard or .003" .015" |
J3218976 J3218977 |
| 36 | Lock, Valve Retainer |
1971-72 1970-74 1970-74 1973-80 1975-91 1981 |
5.0L 5.9L, 6.6L 5.9L, 6.6L 5.0L 5.9L, 6.6L 5.0L |
Intake Exhaust |
J3180458 J3156157 J8123287 J3156157 J3156157 J3180458 |
| 37 | Rocker Arm |
1973-81 1974-91 |
5.0L 5.9L, 6.6L |
|
J3210177 J3210177 |
| 38 | Pivot, Rocker Arm |
1970-79 1980-91 |
5.0L, 5.9L, 6.6L 5.0L, 5.9L |
Aluminum Steel |
J3210178 J3235090 |
| 39 | Bridge, Rocker Arm Pivot | 1980-91 | 5.0L, 5.9L | J3236513 | |
| 40 | Rocker Arm Pivot Kit | 1980-91 | 5.0L, 5.9L | Includes 2 Steel Pivots and 1 Bridge | 3236513K |
| 41 | Bolt, Rocker Arm Pivot | 1970-91 | 5.0L, 5.9L, 6.6L | J8120512 | |
| 42 | Push Rod | 1970-91 | 5.0L, 5.9L, 6.6L | J3214014 | |
| 43 | Lifter | 1970-91 | 5.0L, 5.9L, 6.6L | J3222276 | |
| 44 | Camshaft | 1970-91 | 5.0L, 5.9L, 6.6L | J8121156 | |
| 45 | Chain Timing |
1970-79 1971-91 1979-91 |
5.0L, 5.9L, 6.6L 5.0L, 5.9L, 6.6L 5.0L, 5.9L, 6.6L |
5/8" Wide Double-Roller 1/2" Wide |
J8134343 J8126682 J3234433 |
| 46 | Sprocket, Crankshaft |
1970-79 1979-91 |
5.0L, 5.9L, 6.6L 5.0L, 5.9L, 6.6L |
w/ 5/8" Wide Chain w/ 1/2" Wide Chain |
J3223199 J3234235 |
| 47 | Sprocket, Camshaft |
1970-79 1979-91 |
5.0L, 5.9L, 6.6L 5.0L, 5.9L, 6.6L |
w/ 5/8" Wide Chain w/ 1/2" Wide Chain |
J3197138 J3234234 |
| 48 | Gear, Distributor | 1970-91 | 5.0L, 5.9L, 6.6L | J3208615 | |
| 49 | Gear, Camshaft | 1970-91 | 5.0L, 5.9L, 6.6L | J4486635 | |
| 50 | Distributor Gear Kit | 1970-91 | 5.0L, 5.9L, 6.6L | 4486635K | |
| 51 | Bearing Set, Camshaft | 1970-91 | 5.0L, 5.9L, 6.6L | Standard; Set of 5 | J4486286 |
| 52 | Main Bearing, Crankshaft | 1970-91 | 5.0L, 5.9L, 6.6L | Standard; 4 Required | J8125928* |
| 53 | Bolt, Connecting Rod | 1970-91 | 5.0L, 5.9L, 6.6L | Includes Nut | J4486626 |
| 54 | Bearing, Connecting Rod |
1970-91 1970-91 |
5.0L, 5.9L 5.0L, 5.9L |
Standard; 8 Required .010"; 8 Required |
83500300 83500301 |
| 55 | Piston and Pin | 1971-81 | 5.0L | Standard; 8 Required | J4487564 |
| 56 | Ring Set, Piston |
1971-81 1970-91 1970-91 |
5.0L 5.9L 5.9L |
Standard; For 8 Pistons Standard; For 8 Pistons .010"; For 8 Pistons |
J8121685 J3208066 J3208067 |
| 57 | Thrust Bearing, Crankshaft | 1970-91 | 5.0L, 5.9L, 6.6L | Standard; 1 Required | J8125933* |
| 58 | Bearing, Crankshaft Pilot |
1970-71 1972-75 1976-79 1972-79 1980-86 |
5.0L, 5.9L, 6.6L 5.0L 5.0L 5.9L, 6.6L 5.0L, 5.9L |
|
J3174730 J3213751 J3222723 J3213751 J3236726 |
| 59 | Seal Kit, Crankshaft | 1970-91 | 5.0L, 5.9L, 6.6L | Rear | J3206691 |
| 60 | Plate, Converter Drive |
1975-81 1975-83 1984-87 |
5.0L 5.9L 5.9L |
w/ Automatic Transmission; 164 Teeth w/ 727 Automatic Transmission |
J5351821 J3232139 J3232139 |
| 61 | Ring Gear, Flywheel | 1970-86 | 5.0L, 5.9L, 6.6L | J3179741 | |
| 62 | Manifold, Exhaust |
1972-79 1972-91 1980-81 |
5.0L, 5.9L, 6.6L 5.0L, 5.9L, 6.6L 5.0L |
Left Right Left |
J8122442 J8121274 J8122442 |
| 63 | Stud, Exhaust Manifold |
1972-91 1972-91 |
5.0L, 5.9L, 6.6L 5.0L, 5.9L, 6.6L |
Right; 2 Required Left; 2 Required |
J4004109 J4004110 |
| 64 | Gasket, Exhaust Manifold to Cylinder Head | 1970-91 | 5.0L, 5.9L, 6.6L | Left or Right | J3237270 |
| 65 | Gasket, Exhaust Manifold to Damper | 1975-91 | 5.0L, 5.9L, 6.6L | J5353073 | |
| 66 | Damper Kit, Exhaust | 1975-91 | 5.0L, 5.9L, 6.6L | J3238998 | |
| 67 | Seal, Exhaust | 1971-91 | 5.0L, 5.9L, 6.6L | 83300051 | |
| 68 | Rocker Arm Kit | 1980-81 | 5.0L, 5.9L | Includes 16 Rocker Arms, 16 Pivots, and 8 Bridges | 3223539KL |
* Not Currently Available
