Miscellaneous Engine Components

Item numbers match the diagrams. Each part number searches Amazon for that Crown part.

S6-226 Super Hurricane

1957-1964 FC-170
1954-1962 Willys Pickup
1954-1963 Willys Sedan Delivery
1954-1964 Willys Station Wagon

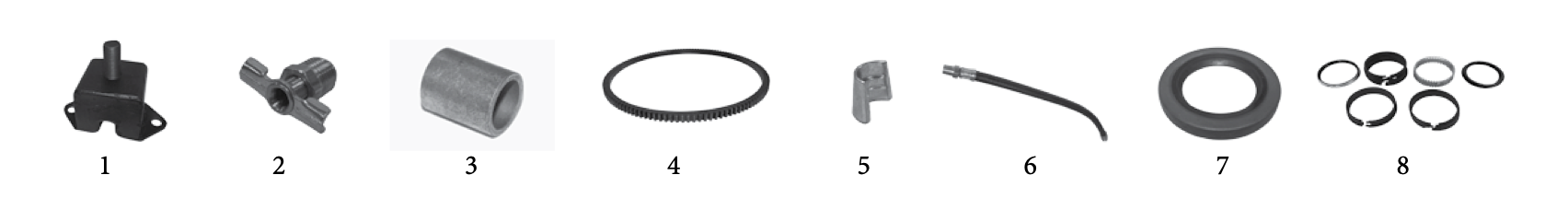

Mount, draincock, pilot bushing, ring gear, valve lock, oil hose, seal, and piston rings for the S6-226. Numbered callouts match the table below.

Item #DescriptionCommentsPart No.
1 Mount, Engine Left or Right J8136614
2 Draincock, Engine   JA001126
3 Bushing, Crankshaft Pilot   J0729521*
4 Ring Gear, Flywheel 130 Teeth J0733395
5 Lock, Valve Spring   J3242664
6 Hose, Oil Filter Inlet or Outlet J0910290
7 Seal, Crankshaft, Front   J0939734
8 Ring Set, Piston Standard J0916688

V6-225 Buick Dauntless

1966-1971 CJ-5, 6
1966-1971 C101 Commando

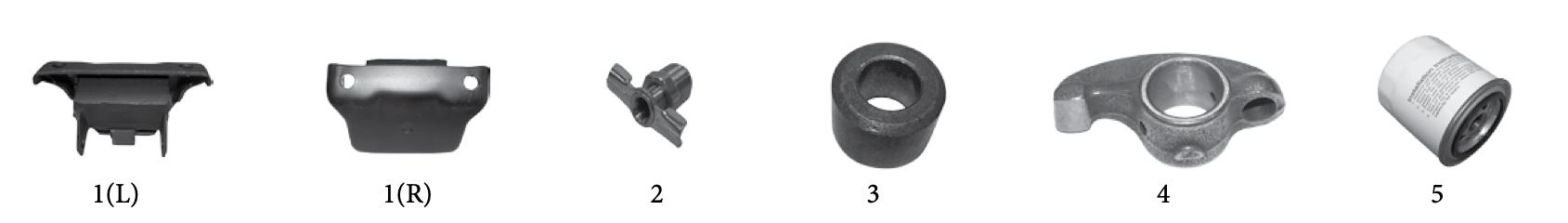

Engine mounts, draincock, pilot bushing, rocker arm, and oil filter for the V6-225. Numbered callouts match the table below.

Item #DescriptionCommentsPart No.
1 Mount, Engine
 		 Left
Right		 J1371313
J1369788
2 Draincock, Engine   JA001126
3 Bushing, Crankshaft Pilot   J3752487
4 Rocker Arm Left or Right J1194143
5 Filter, Engine Oil   J8993146

S6-230 Tornado

1962-1965 Willys Pickup
1963-1964 SJ, J-Series

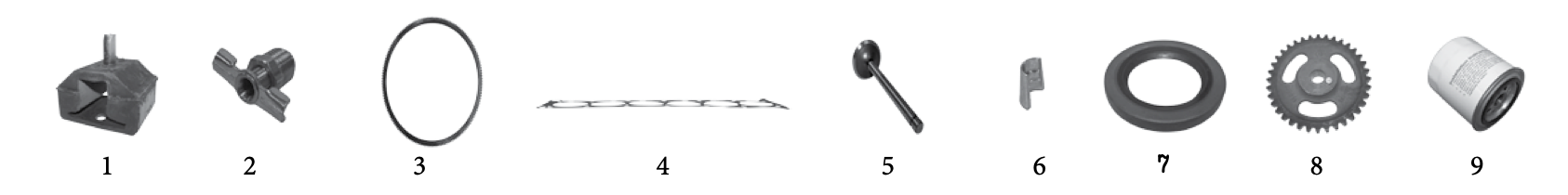

Mount, draincock, ring gear, gasket, valves, lock, seal, cam sprocket, and oil filter for the S6-230. Numbered callouts match the table below.

Item #DescriptionCommentsPart No.
1 Mount, Engine Left or Right J0939993
2 Draincock, Engine   JA001126
3 Ring Gear, Flywheel 158 Teeth J0930684*
4 Gasket, Cylinder Head   J0945519
5 Valve, Exhaust
Valve, Intake		 Standard
Standard		 938192
J0936979
6 Lock, Valve Spring   J3242664
7 Seal, Crankshaft, Front   J0939734
8 Sprocket, Camshaft   926157
9 Filter, Engine Oil   J8993146

AMC V8-327

65/67 SJ, J-Series

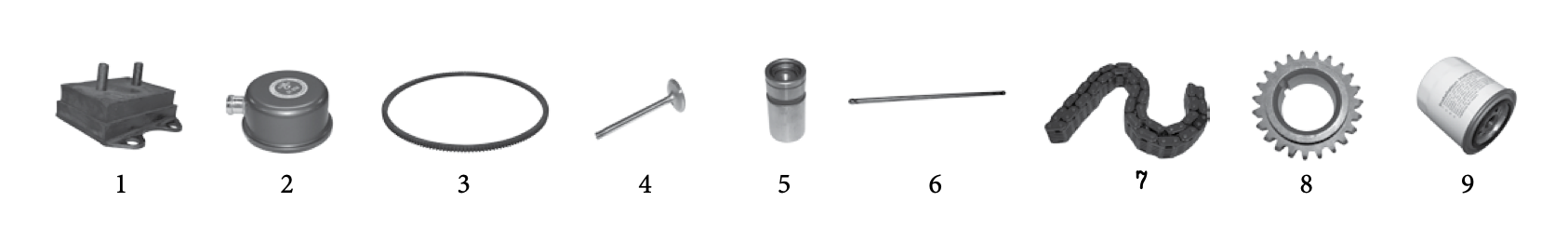

Mount, oil cap, ring gear, valve, lifter, push rod, timing chain, sprocket, and oil filter for the AMC V8-327. Numbered callouts match the table below.

Item #DescriptionCommentsPart No.
1 Mount, Engine Left or Right J3176909
2 Cap, Oil   J3174215
3 Ring Gear, Flywheel 176 Teeth J3144492
4 Valve, Intake Standard J3218732
5 Tappet (Lifter)   J3222276
6 Push Rod   J3161258
7 Chain, Timing   J8134343
8 Sprocket, Crankshaft   J3223199
9 Filter, Engine Oil   J8993146

Buick V8-350

1968-1971 SJ, J-Series

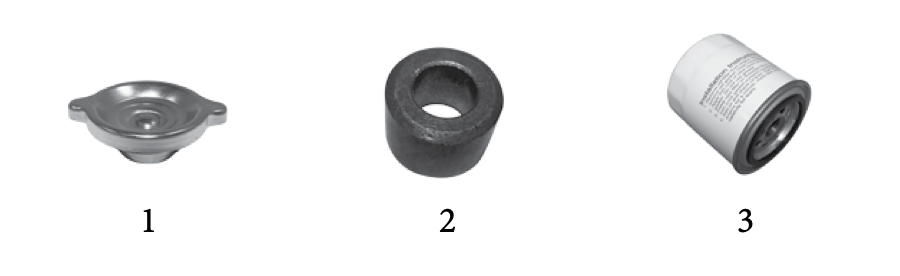

Oil cap, crankshaft pilot bushing, and oil filter for the Buick V8-350. Numbered callouts match the table below.

Item #DescriptionCommentsPart No.
1 Cap, Oil   J8132312
2 Bushing, Crankshaft Pilot   J3752487
3 Filter, Engine Oil   J8993146

* Not Currently Available
