Fuel Tank and Related
Item numbers match the diagram. Each part number searches Amazon for that Crown part.
| Item # | Description | Years | Models | Tank Size | Engine | Comments | Part No. |
|---|---|---|---|---|---|---|---|

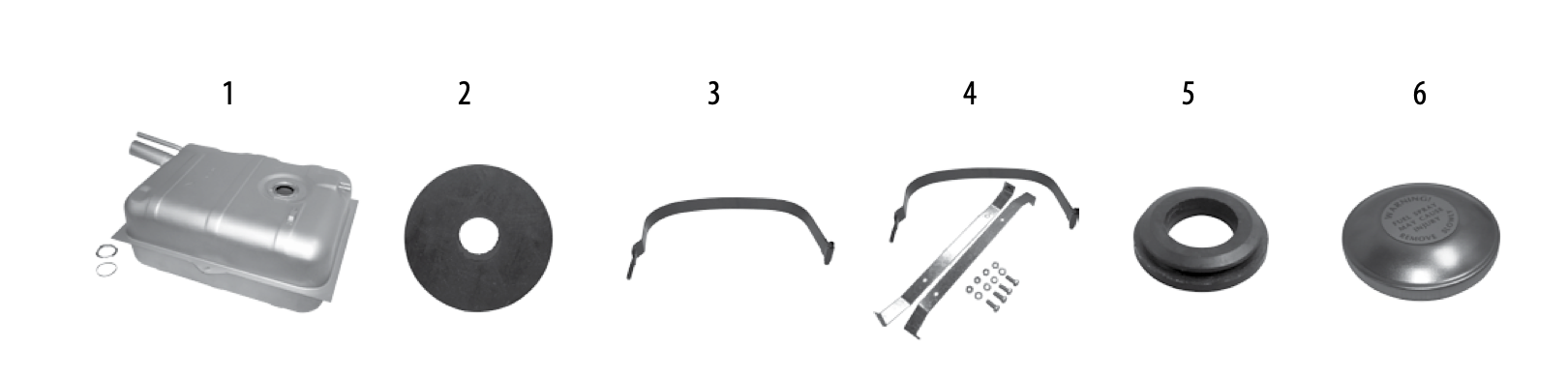

| 1 | Fuel Tank |
1945-56 1945-56 1955-70 1955-72 1970-76 1972-73 1977-77 1978-86 1978-86 1978-86 |
CJ-2A, 3A, 3B CJ-2A, 3A, 3B CJ-5, 6 CJ-5, 6 CJ-5, 6, 7 C104 Commando CJ-5, 7 CJ-5, 7 CJ-5, 7, 8 CJ-5, 7, 8 |
All All All All 15 Gal. 15 Gal. 15 Gal. 22 Gal. 15 Gal. 15 Gal. |
All All All All All All All All All All |
Includes Sending Unit Gasket and Pickup Tube; Plastic Under Seat Fuel Tank w/ 5-Screw Sending Unit Under Seat Tank, Short Straight Neck; Metric Plug: M12 x 1.50 Under Seat Fuel Tank; Long Angled Neck; Metric Plug: M12 x 1.50; w/ 6-Screw Sending Unit; Length: 24-½"; Width: 18-¾"; Height: 6-¼" Under Seat Tank w/ 6 Screw Sending Unit; Not for Models w/ Lock Ring Style Sending Units; Pick Up Tube Comes w/ Tank, Includes New Gasket; Plastic Tank Rear-Mounted Fuel Tank; Filler Tube: 2-¼" O.D. - 7" Long; Vent Tube: 7-½" Long; 25-¼" Wide; 18-¾" Long; 10-7/8" High Rear-Mounted Fuel Tank; Filler Tube: 2-¼" O.D. - 7" Long; Vent Tube - 7-½" Long; 25-¼" Wide; 18-¾" Long; 10-7/8" High 2" Filler Neck, 1-½" Long; Vent Tube 4-½" Long Plastic; Hangs 4" Lower Than Original Tank; Includes Sending Unit, Top Strap, Lock Ring, O-Ring and Skid Plate Extensions ¾" Filler Neck, 1-¼" Long; Vent Tube 1-½" Long Plastic; Includes Lock Ring and O-Ring |
640685PL 640685 J0912008 912008PL J5355314 J5355314 J8127698 8128585PLXL J8128585 8128585PL |
| 2 | Fuel Tank Mount Isolator | 1972-75 | CJ-5, 6 | All | All | Isolates the Fuel Tank from the Mounting Bolts; 1-¼" OD; 5/16" ID; 7/16" Thick | J0992825 |
| 3 | Fuel Tank Strap |
1970-83 1976-86 |
CJ-5 , 6 CJ-7, 8 |
15 Gal. 15 Gal. |
All All |
w/ Rear Mounted Fuel Tank; Center Strap; Nut Not Included (5/16"-18) Nut Not Included (5/16"-18); Center Strap |
J5356651 J5356651 |
| 4 | Fuel Tank Strap Kit |
1947-72 1972-86 1976-86 |
CJ-2A, 3B, 5, 6 CJ-5, 6, 7, 8 CJ-5, 7, 8 |
All 15 Gal. 15 Gal. |
All All All |
w/ Under Seat Fuel Tank Metal or Plastic; Includes 2 Gas Tank End Straps; Middle Strap (P/N J5356651) Not Included Contains 3 Straps - Left, Right and Center |
CJGTS3 CJGTSE1 5356651K |
| 5 | Vapor Valve Seal |
1980-86 1980-91 |
CJ-5, 7, 8 SJ, J-Series |
All All |
All All |
|
52018823 52018823 |
| 6 | Fuel Cap |
1945-71 1972-86 1980-86 1981-82 1950-63 1965-74 1980-91 1981-91 |
CJ-2A, 3A, 3B, 5, 6 CJ-5, 6, 7, 8 CJ-5, 7, 8 CJ-5, 7, 8 M38, M38-A1 SJ, J-Series SJ, J-Series SJ, J-Series |
All All All All All All All All |
All All All All All All All All |
Non-Locking Non-Locking; Non-Vented Locking, Non-Vented Export Models Only; Locking, Vented Non-Locking Primed Locking, Non-Vented Non-Locking; Non-Vented |
J0908593 52003768 J5350828 J0934197 J0908593 J8123141 J5350828 52003768 |

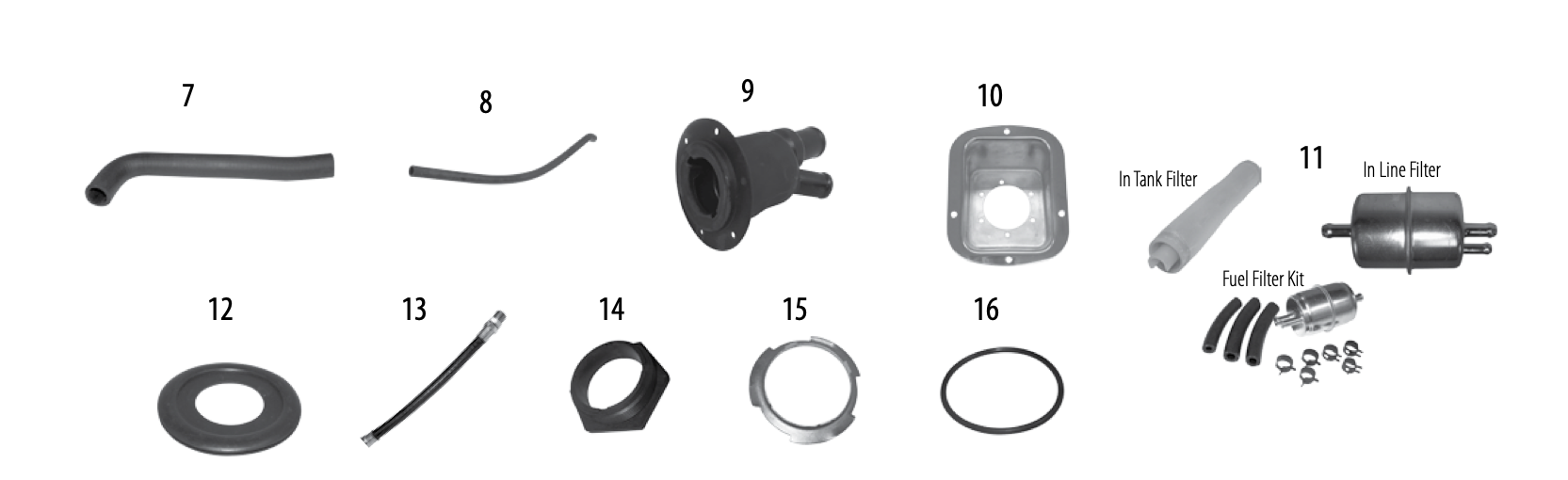

| 7 | Fuel Filler Hose |
1970-75 1977-77 1978-86 1981-86 1980-91 |
CJ-5 CJ-5 CJ-5, 7 CJ-7 SJ |
All All 15 Gal. 20 Gal. All |
All All All All All |
Hole on Side for Vent; 2-5/8" OD; 2-3/16" ID 1" ID 1" at Smaller End, 1-3/16" at Flare End |
J0992965 J5354760 J5357970 J5362158 J5361183 |
| 8 | Fuel Vent Hose |
1977-77 1978-86 1981-86 1980-91 |
CJ-5 CJ-5, 7 CJ-7 SJ |
15 Gal. 20 Gal. All |
All All All |
11/16" ID 3/4" At Smaller End, 1" at Flare End |
J5357065 J5357971 J5362159 J5361184 |
| 9 | Fuel Filler Neck | 1978-86 | CJ-5, 7 | All | All | J5364760 | |
| 10 | Fuel Neck Protector | 1978-86 | CJ-5, 7, 8 | All | All | Stainless Steel; Includes Hardware | RT34089 |
| 11 | Fuel Filter Fuel Filter Kit |
1981-86 1972-86 1974-86 1980-91 1967-75 1975-86 1965-67 1973-91 1972-75 1967-71 |
CJ-5, 7, 8 CJ-5, 6, 7, 8 CJ-5, 6, 7, 8 SJ, J-Series CJ-5, 6 CJ-5, 6, 7, 8 SJ, J-Series SJ, J-Series J-Series C101, C104 Commando |
20 Gal. 15 Gal. All All All All All All All All |
All All 4.2L (6-258) All All GM 2.5L (4-151), AMC 2.5L (4-150), 4.2L (6-258), 5.0L (V8-304) 5.4L (V8-327) 4.2L (6-258), 5.9L (V8-360) 4.2L (6-258), 5.9L (V8-360) 3.7L (V6-225) |
In-Tank In-Tank Single Inlet, Dual Outlet In-Tank Includes Fuel Filter, Hose and Clamps Single Inlet, Dual Outlet; Includes Filter, Clamps, and 2 Sections of Hose Includes Fuel Filter, Hose and Clamps Single Inlet, Dual Outlet; Includes Filter, Clamps, and 2 Sections of Hose Includes Fuel Filter, Hose and Clamps Includes Fuel Filter, Hose and Clamps |
J5361389 J3230376 J3229443 J5361389 J8992638 J8129383 J8992638 J8129383 J8992638 J8992638 |
| 12 | Fuel Filler Neck Grommet |
1945-72 1970-75 1947-63 1948-50 |
CJ-2A, 3A, 3B, 5, 6 CJ-5, 6 Pickup VJ Jeepster |
All All All All |
All All All All |
w/ Under Seat Fuel Tank w/ Rear Mounted Fuel Tank; 1-¾" ID 1-¾" ID 1-¾" ID |
J0663502 J0654758 J0654758 J0654758 |
| 13 | Fuel Line |
1945-71 1947-55 |
CJ-2A, 3A, 3B, 5, 6 Pickup, Station Wagon |
All All |
4-134 L or F-Head 4-134 L or F-Head |
Flexible; Connects Line From Fuel Tank to Fuel Pump; 7" Long Flexible; Connects Line From Fuel Tank to Fuel Pump; 7" Long |
J0802040 J0802040 |
| 14 | Fuel Sending Unit Lock Nut |
1981-86 1980-91 |
CJ-5, 7, 8 SJ, J-Series |
20 Gal. All |
All All |
w/ Plastic Fuel Tank w/ Plastic Fuel Tank |
J5370014 J5370014 |
| 15 | Fuel Sending Unit Lock Ring | 1970-86 | CJ-5, 6, 7, 8 | 15 Gal. | All | w/ Steel Tank | J0929669 |
| 16 | Fuel Sending Unit O-Ring |
1969-86 1981-91 |
CJ-5, 6, 7, 8 SJ, J-Series |
All All |
All All |
For J5357373, J5362090 For J5357373, J5362090 |
J0941521 J0941521 |

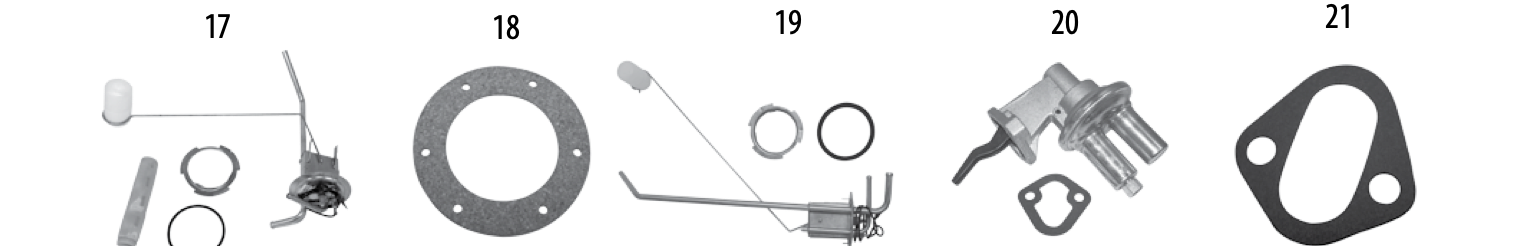

| 17 | Fuel Sending Unit |
1945-56 1955-66 1969-86 1978-86 1981-86 1970-79 1980-85 1962-79 |
CJ-2A, 3A, 3B CJ-3B, 5, 6 CJ-5, 6, 7, 8 CJ-5, 7 CJ-5, 7, 8 SJ SJ J-Series |
All All 15 Gal. 21 Gal. 20 Gal. All All All |
All All All All All All All All |
w/ 5-Bolt Sending Unit w/ 6-Bolt Sending Unit w/ Rear-Mounted Fuel Tank Plastic Fuel Tank |
J0640694 J0914850 J5357373 CJSUXL1 J5362090 J5361468 J5363490 J5357677 |
| 18 | Fuel Sending Unit Gasket |
1945-56 1945-56 |
CJ-2A, 3A, 3B CJ-2A, 3A, 3B |
All All |
All All |
w/ 6-Bolt Sending Unit w/ 5-Bolt Sending Unit |
635641 648927 |
| 19 | Fuel Sending Unit Kit |
1969-86 1981-86 |
CJ-5, 6, 7, 8 CJ-5, 7, 8 |
15 Gal. 20 Gal. |
All All |
w/ Rear-Mounted Fuel Tank; Includes Sending Unit, Filter, Lock Ring and Seal Includes Sending Unit, Filter, Lock Ring and Seal |
5357373K 5362090K |
| 20 | Fuel Pump |
1941-71 1953-71 1967-71 1971-75 1971-78 1976-81 1976-81 1980-83 1983-86 1977-86 1971-75 1976-91 1977-86 1981-86 1947-54 1954-64 1966-71 1956-64 1957-64 1948-55 |
MB, CJ-2A, 3A, 3B, 5, 6 CJ-3B, 5, 6 CJ-5, 6 CJ-5, 6 CJ-5, 6, 7 CJ-5, 7, 8 CJ-5, 7, 8 CJ-5, 7, 8 CJ-5, 7, 8 CJ-5, 7, 8 SJ, J-Series SJ, J-Series SJ, J-Series J-Series Pickup Pickup, Station Wagon C101 Commando FC-150 FC-170 VJ Jeepster, Sedan Delivery, Station Wagon |
All All All All All All All All All All All All All All All All All All All All |
4-134 L or F-Head 4-134 F-Head 3.7L (V6-225) 5.0L (V8-304) 3.8L (6-232), 4.2L (6-258) 5.0L (V8-304) 5.0L (V8-304) GM 2.5L (4-151) AMC 2.5L (4-150) 3.8L (6-232), 4.2L (6-258) 5.9L (V8-360) 5.9L (V8-360) 4.2L (6-258) 4.2L (6-258) 4-134 L or F-Head 6-226 4-134 F-Head 4-134 F-Head 4-134 F-Head 4-134 L or F-Head |
w/o Vacuum Pump; Includes Gasket w/ Vacuum Pump; Includes Gasket Includes Gasket w/ 1-Barrel Carburetor; Includes Gasket Includes Gasket w/ 2-Barrel Carburetor w/ 2-Barrel Carburetor Includes Gasket w/o Vacuum Pump; Includes Gasket Includes Gasket w/o Vacuum Pump; Includes Gasket w/o Vacuum Pump; Includes Gasket Includes Gasket w/o Vacuum Pump; Includes Gasket |
J0912017 J0120206 J6416783 J8124460 J3225283 J3228195 J3240172 J8132364 J3228191 J3228191 J8124460 J3228195 J3228191 J3240172 J0912017 J0735994 J0912017 J0912017 J0735994 J0912017 |
| 21 | Fuel Pump Gasket |
1941-71 1977-86 1977-86 |
MB, CJ-2A, 3A, 3B, 5, 6, M38, M38-A1, FC-150, C101 Commando, Pickup, VJ Jeepster, Station Wagon, Sedan Delivery CJ-5, 7, 8 SJ, J-Series |
All All All |
4-134 L or F-Head 3.8L (6-232), 4.2L (6-258), GM 2.5L (4-151), AMC 2.5L (4-150) 4.2L (6-258) |
|
638737 J3174685 J3174685 |
