NP208 Transfer Case

1980-1986 SJ, J-Series

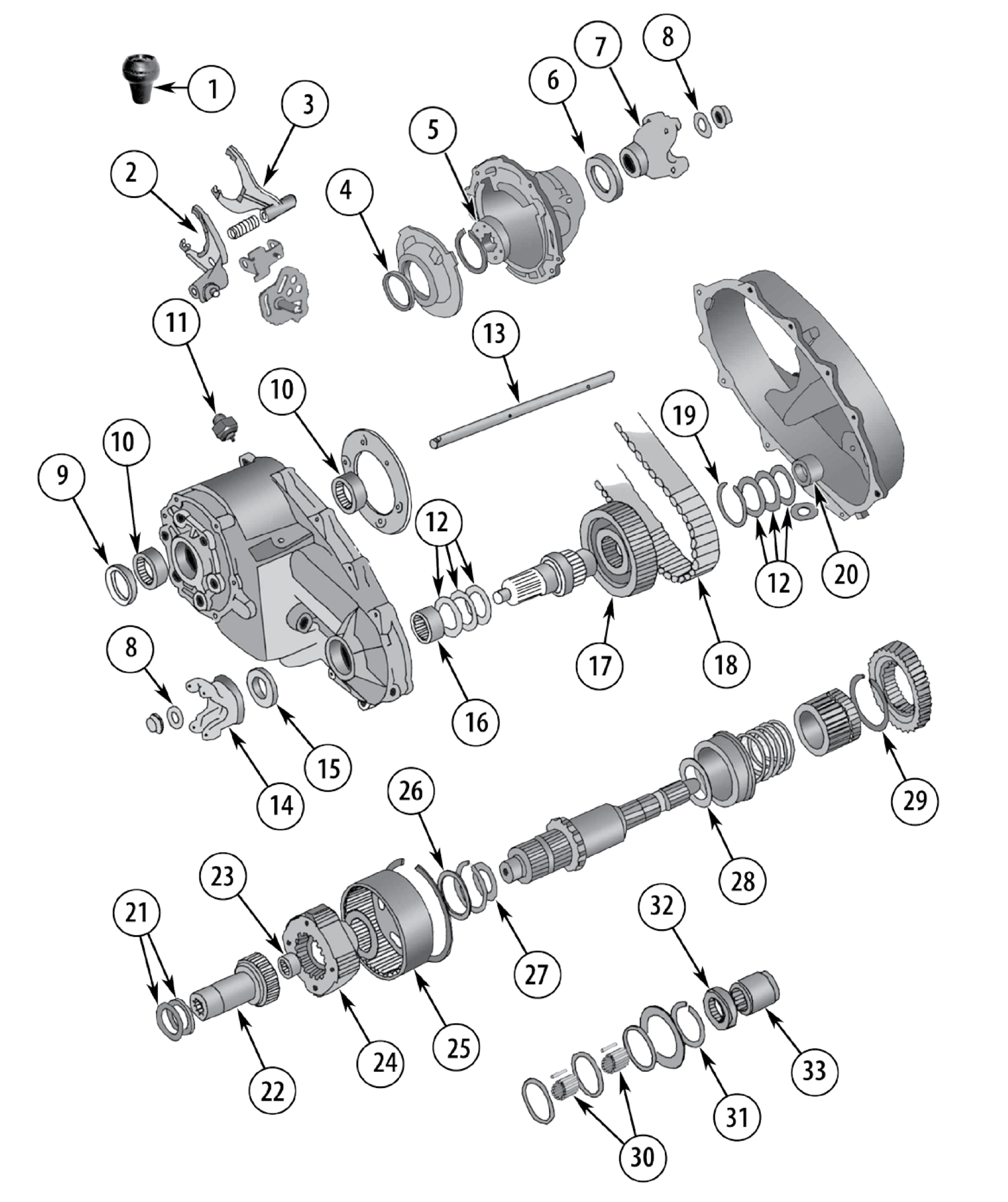

Item numbers match the diagram. Each part number searches Amazon for that Crown part.

Item #	Description	Comments	Part No.
1	Shift Knob		J3241062
2	Fork, Range Shift		J8130858*
3	Fork, Mode Shift		J8130851*
4	Seal, Oil Pump Housing		J8130982
5	Bearing, Rear Output		J8136626
6	Seal, Rear Output Shaft		4762899
7	Yoke, Rear Output	1980-86 1987-88	J8130817* 83503578*
8	Seal Washer, Output Shaft	Front or Rear	J8130815
9	Seal, Input		J5359457
10	Bearing, Input Shaft		J8130868
11	Switch, 4WD Indicator		J8130829
12	Bearing Assembly, Front Output Shaft	2 Sets Required	J8130819
13	Shift Rail		J8130822*
14	Yoke, Front Output		4856142
15	Seal, Front Output		4762899
16	Bearing, Front Output Shaft	Front	J8130869
17	Sprocket, Driven		J8130975*
18	Chain, Transfer Case		J8130977
19	Retaining Ring		4167991*
20	Bearing, Output Shaft	Rear	4269189
21	Thrust Bearing Kit, Input		J8130875
22	Gear, Input		J8130877*
23	Bearing, Input Shaft		J8130878
24	Planetary Gear		J8130862*
25	Annulus Gear		J8130864*
26	Thrust Washer		J8130865*
27	Thrust Bearing, Main Shaft		J8130879
28	Thrust Washer		J8130967*
29	Ring, Sprocket Stop		4167984*
30	Roller Bearing Kit	Includes 120 Rollers	J8130972
31	Ring, Retaining		J8130974
32	Oil Pump		J8130826*
33	Gear, Speedometer Drive		J8130827*

* Not Currently Available
