NP219 Transfer Case

1980-1986 SJ, J-Series

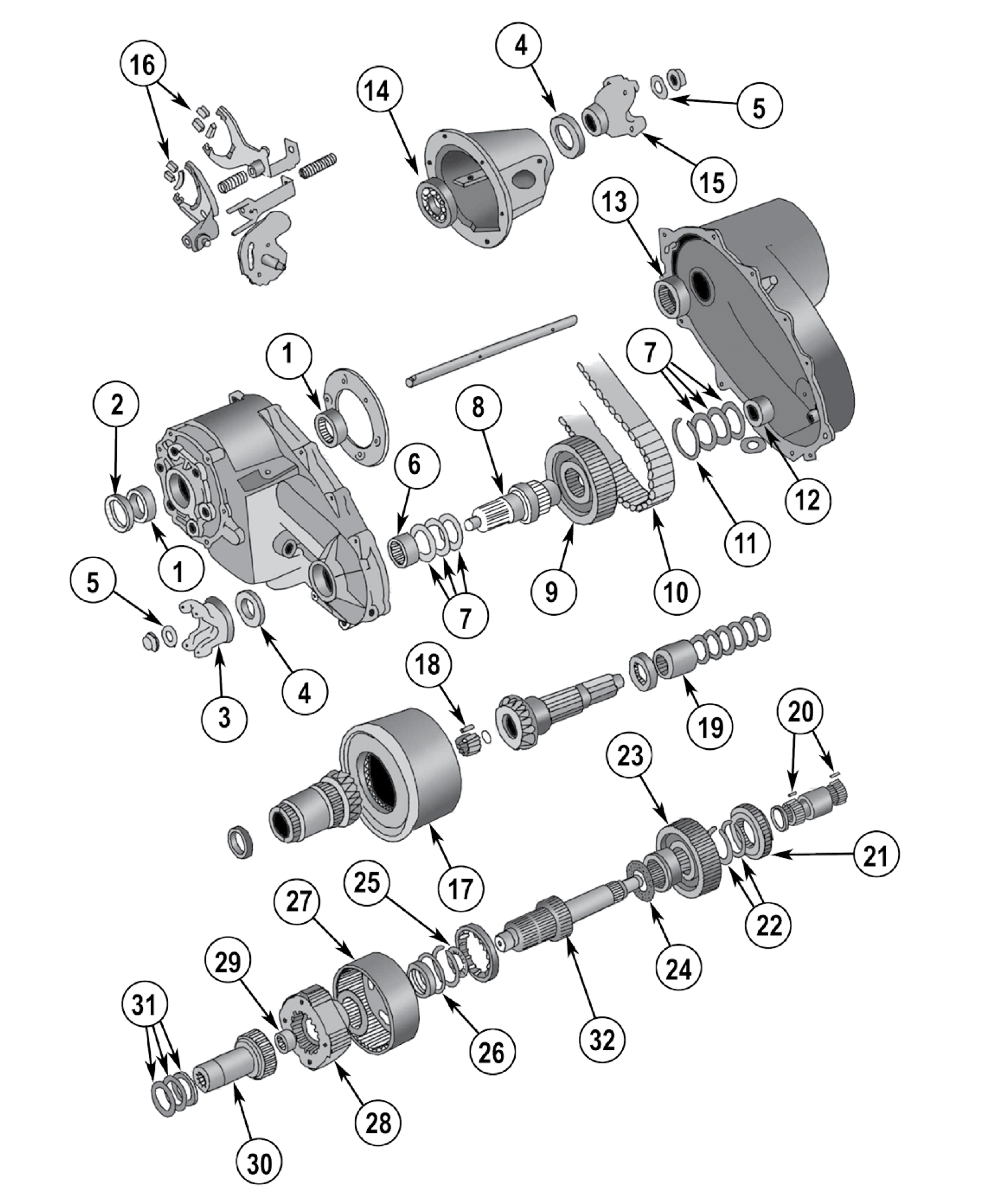

Item numbers match the diagram. Each part number searches Amazon for that Crown part.

Item #	Description	Comments	Part No.
1	Bearing, Input Shaft		J8130868
2	Seal, Input		J5359457
3	Yoke, Front Output		4856142
4	Seal, Output Shaft	Front or Rear	4762899
5	Seal Washer, Output Shaft	Front or Rear	J8130815
6	Bearing, Front Output Shaft	Front	J8130869
7	Bearing Assembly, Front Output Shaft	2 Sets Required	J8130819
8	Shaft, Front Output		J8130850*
9	Sprocket, Front Output Shaft		J8130849*
10	Chain, Transfer Case		J8130831
11	Retaining Ring		J8130802*
12	Bearing, Front Output Shaft	Rear	4269189
13	Bearing, Rear Output Shaft	Front	J8130835*
14	Bearing, Rear Output Shaft	Rear	J8136626
15	Yoke, Rear Output		J8130817*
16	Pad Kit, Shift Fork		J8130859
17	Viscous Coupling		J8130800*
18	Pilot Roller Bearing		J8130804*
19	Gear, Speedometer Drive		J8130827*
20	Roller Kit, Side Gear	Includes 85 Roller Bearings	J8130846
21	Gear, Viscous Clutch		J8130801*
22	Retaining Ring		J8130802*
23	Sprocket, Main Shaft		J8130849*
24	Thrust Washer, Main Shaft		J8130844*
25	Thrust Bearing, Main Shaft		J8130879
26	Thrust Washer		J8130865*
27	Annulus Gear		4167954*
28	Planetary Gear		4329198*
29	Bearing, Input		J8130878
30	Gear, Input		J8130877*
31	Thrust Bearing Kit, Input		J8130875
32	Main Shaft		J8130842*

* Not Currently Available
