NP228/229 Transfer Cases

NP228: 1983-1985 SJ, J-Series
NP229: 1982-1991 SJ

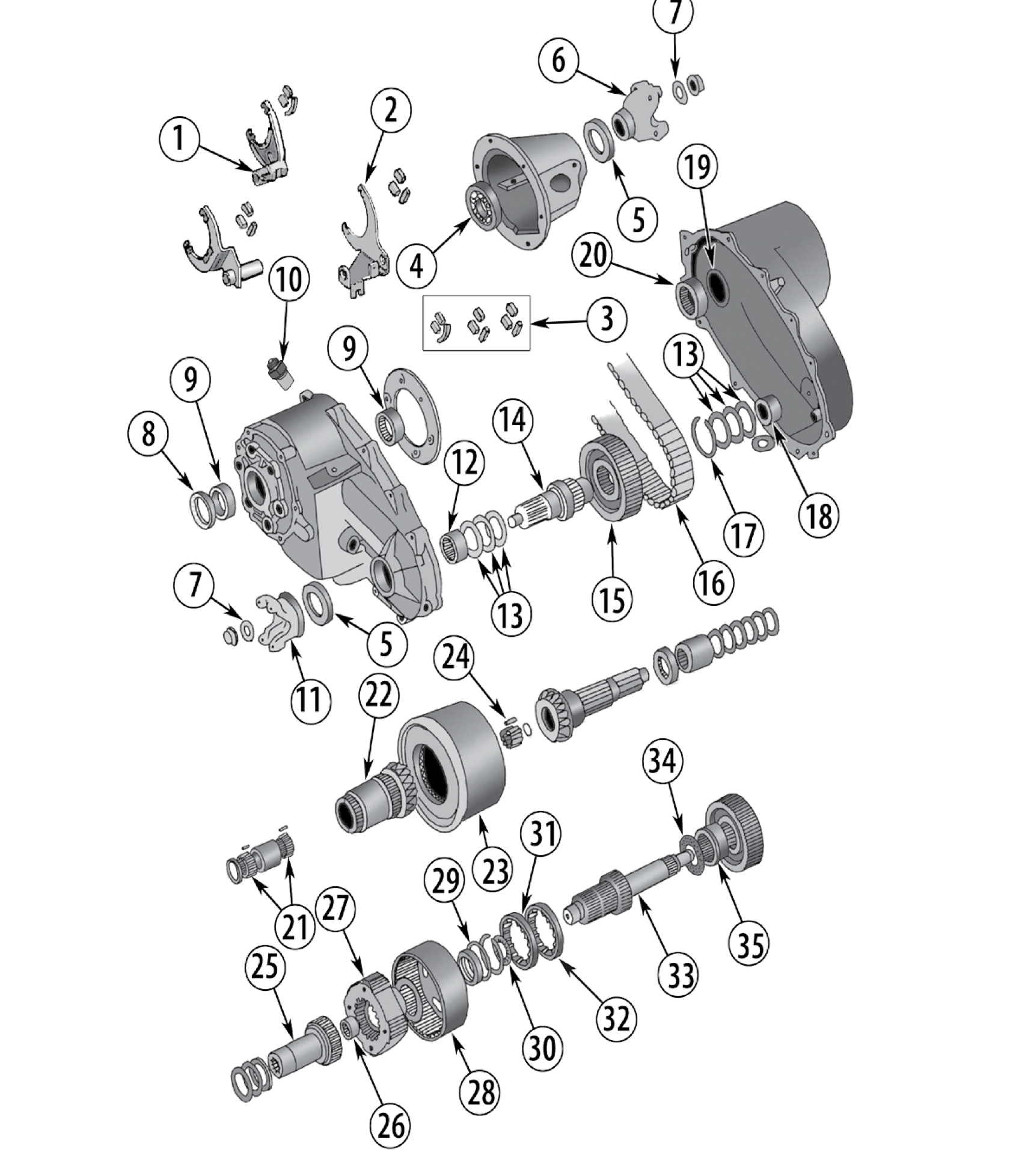

Item numbers match the diagram. Each part number searches Amazon for that Crown part.

Item #	Description	Comments	Part No.
1	Fork, Range Shift		15618
2	Fork, Mode Shift		J8134275*
3	Pad Kit, Shift Fork		15866
4	Bearing, Rear Output Shaft	Rear	J8136626
5	Seal, Output Shaft	Front or Rear	4762899
6	Yoke, Rear Output	82/89 90/91	83503578* 13775*
7	Seal Washer, Output Shaft	Front or Rear	J8130815
8	Seal, Input		J5359457
9	Bearing, Input Shaft		J8130868
10	Switch, 4WD Indicator		83502652
11	Yoke, Front Output		4856142
12	Bearing, Front Output Shaft	Front	J8130869
13	Bearing Assembly, Front Output Shaft	2 Sets Required	J8130819
14	Shaft, Front Output		J8130850*
15	Sprocket, Drive		83500491*
16	Chain, Transfer Case		J8130831
17	Retaining Ring		J8130802*
18	Bearing, Front Output Shaft	Rear	4269189
19	Seal, Rear Output		J8130982
20	Bearing, Rear Output Shaft	Front	J8133644*
21	Roller Kit, Side Gear	Includes 85 Roller Bearings	J8130846
22	Side Gear		13836*
23	Viscous Coupling	NP228 NP229	83502517* J8130800*
24	Roller Bearing		J8130804*
25	Shaft, Input		83500492
26	Bearing, Input Shaft	Rear	J8130878
27	Planetary Gear		4329198*
28	Annulus Gear		4167954*
29	Thrust Washer		4167959*
30	Thrust Bearing, Main Shaft		J8130879
31	Collar, Shift		16112
32	Collar, Shift		16111
33	Main Shaft		15636*
34	Main Shaft Thrust Washer		J8130844*
35	Side Clutch Gear		J8133633*

* Not Currently Available
