Quadra-Trac Transfer Case

1976-1979 CJ-7
1973-1979 SJ, J-Series

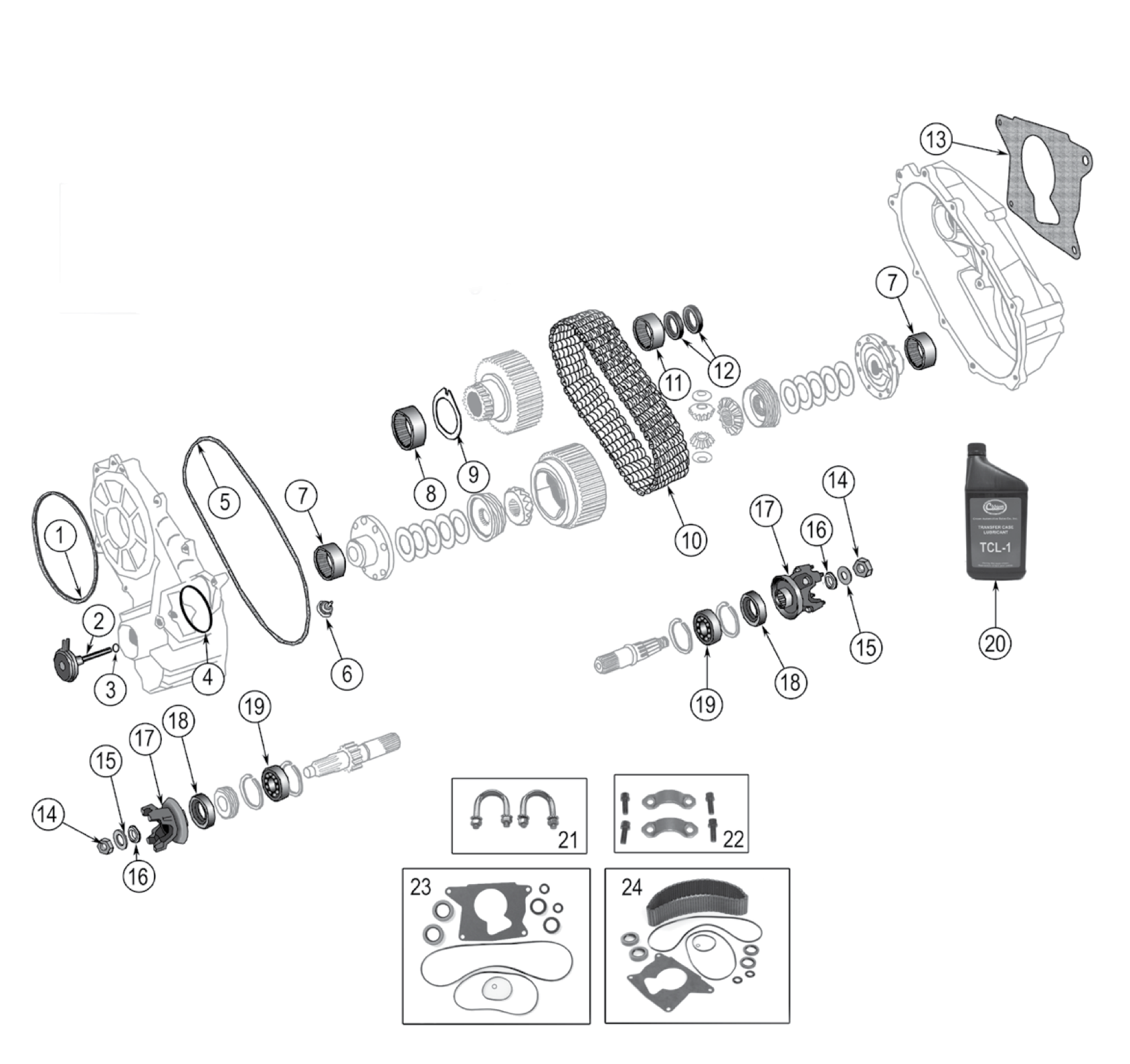

Item numbers match the diagram. Each part number searches Amazon for that Crown part.

Item #	Description	Comments	Part No.
1	Gasket, PTO or Low-Range Cover		J8122406
2	Diaphragm, Vacuum Shift		J8122991*
3	O-Ring, Vacuum Shift Diaphragm		J8123024
4	Seal, Shift Fork Cover		J8123023
5	Seal, Case Half		J8122389
6	Switch, 4 WD Indicator		J3211322
7	Bearing, Differential	Front or Rear	J8122390
8	Bearing, Drive Sprocket	Rear	J8122395*
9	Thrust Washer, Drive Sprocket		J8122710
10	Chain, Transfer Case	96 Pins w/ Overdrive; 92 Pins	J8122392 8122392DN
11	Bearing, Drive Sprocket	Front	J8122390
12	Seal, Input Shaft	2 Required	J8122404
13	Gasket, Transmission to Transfer Case		J5358840
14	Nut, Output	Front or Rear	J0801367
15	Washer, Output	Front or Rear	J4004913
16	Seal, Outer	Front or Rear	J5353347
17	Yoke, Output	Front; 10 Splines w/ Slinger; U-Bolt Style Front; 26 Splines w/o Slinger; U-Bolt Style Rear; 10 Splines w/o Slinger; Strap Style	A1106 J8129363 J5354060
18	Seal, Output	Front or Rear	J8123077
19	Bearing, Output	Front or Rear	J8122391*
20	Transfer Case Fluid	1 Quart	TCL-1
21	U-Bolt Kit	Includes 2 U-Bolts, 4 Washers, and 4 Nuts	A490K
22	U-Joint Strap Kit	Includes 2 Straps and 4 Hex Bolts Includes 2 Straps and 4 - 12-Point Bolts	4006698K 4006928K
23	Gasket and Seal Set	Includes #s 1, 3, 4, 5, 12, 13, 16, 18	J8125030
24	Transfer Case Chain Kit	Includes J8122392 and # 23	8122392K

* Not Currently Available
