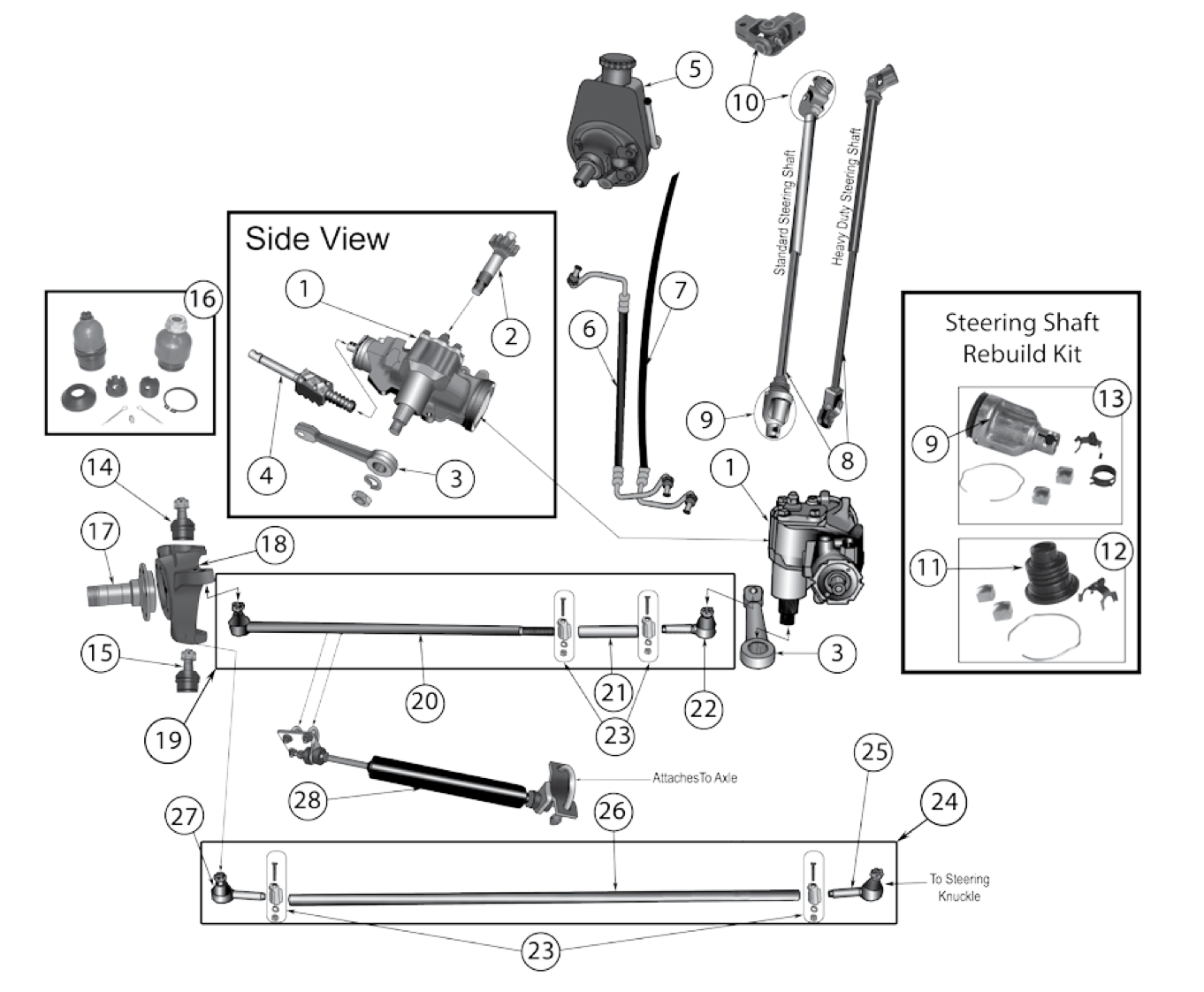

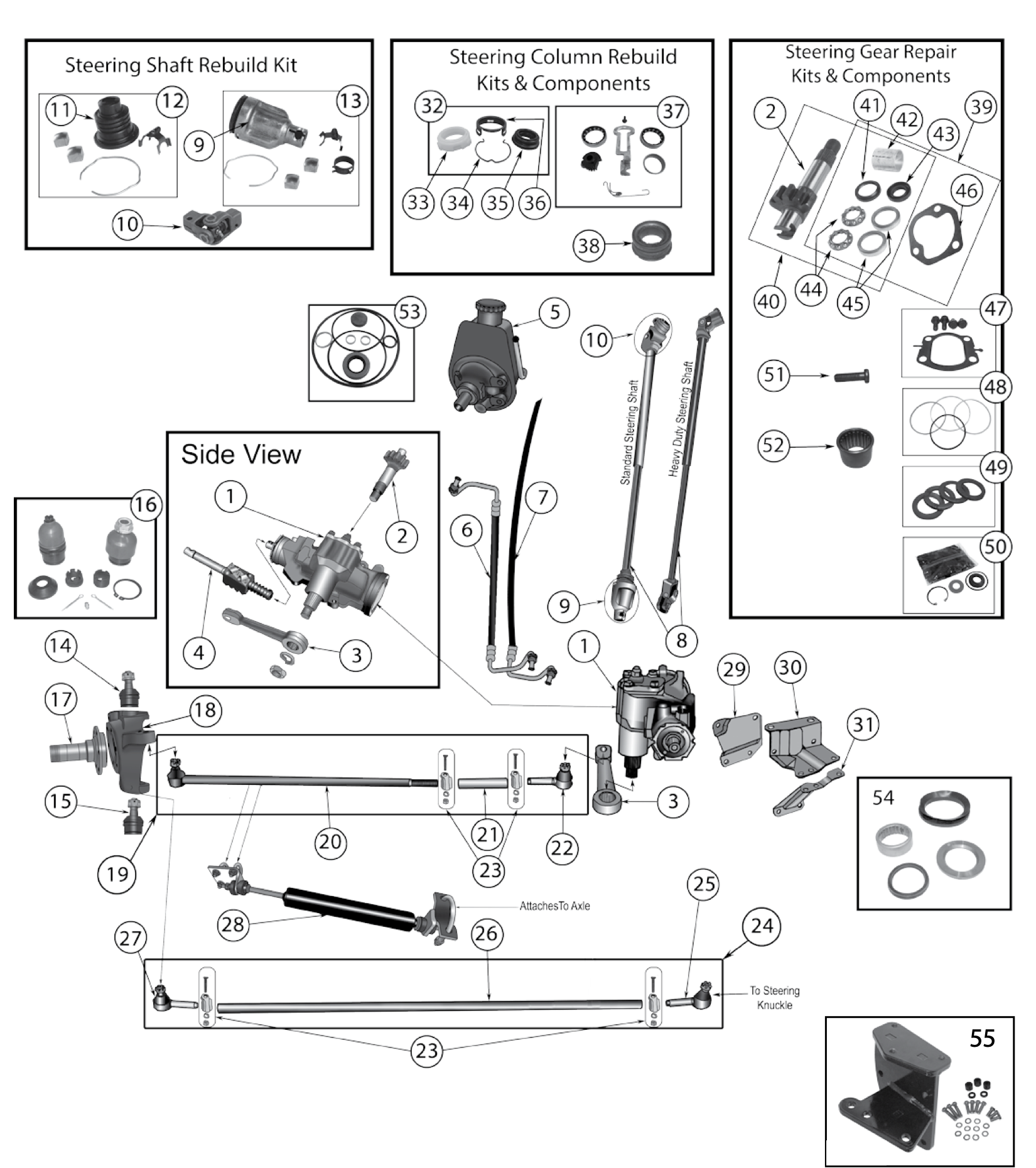

Front Mounted Steering Gear
1972-1986 CJ-5, CJ-6, CJ-7, CJ-8
1972-1973 C104 Commando
Item numbers match the diagrams. Each part number searches Amazon for that Crown part.
| Item # | Description | Years | Application | Comments | Part No. |
|---|---|---|---|---|---|
| 1 | Steering Gear Assembly |
1972-86 1972-79 1980-86 |
CJ-5, 6, 7, 8, C104 CJ-5, 6, 7 CJ-5, 7, 8 |
w/ Manual Steering w/ Power Steering; Remanufactured w/ Power Steering; Remanufactured |
J0994509 994508R 5363231R |
| 2 | Sector Shaft | 1972-86 | CJ-5, 6, 7, 8, C104 | w/ Manual Steering | J8120221 |
| 3 | Pitman Arm |
1972-75 1972-75 1976-86 1976-86 |
CJ-5, 6, C104 CJ-5, 6, C104 CJ-5, 6, 7, 8 CJ-5, 6, 7, 8 |
w/ Manual Steering w/ Power Steering w/ Manual Steering w/ Power Steering |
J0999415 J0999416 J5356106 J5356104 |
| 4 | Worm Shaft Assembly |
1972-86 1973 |
CJ-5, 6, 7, 8 C104 |
w/ Manual Steering w/ Manual Steering |
J0998504 J0998504 |
| 5 | Pump, Power Steering |
1983-86 1977-86 1977-86 |
CJ-5, 7, 8 CJ-5, 7, 8 CJ-5, 7, 8 |
w/ AMC 2.5L Engine w/ Attached Reservoir All Engines, w/o Attached Reservoir w/ 4.2L, 5.0L, GM 2.5L Engines w/ Attached Reservoir |
33001907 J8132473 52037568 |
| 6 | Hose, Power Steering Pressure |
1975 1976-79 1980-81 1982-86 1972-75 1976-79 1980-81 |
CJ-5, 6 CJ-5, 6, 7 CJ-5, 7 CJ-5, 7, 8 CJ-5, 6 CJ-5, 6, 7 CJ-5, 7, 8 |
w/ 3.8L (6-232), 4.2L (6-258) w/ 3.8L (6-232), 4.2L (6-258) w/ 3.8L (6-232), 4.2L (6-258) w/ 4.2L (6-258) w/ 5.0L (V8-304) w/ Left Hand Drive w/ 5.0L (V8-304) w/ 5.0L (V8-304) |
J5354381 J5357191 J5370018 J5363661 J5354381 J5357191 J5370016 |
| 7 | Hose, Power Steering Return |
1980-83 1973-74 1977-79 1980 1981-86 1976-79 1980-81 1973-74 |
CJ-5, 7, 8 CJ-5, 6 CJ-5, 7 CJ-5, 7 CJ-5, 7, 8 CJ-5, 6, 7 CJ-5, 7, 8 C104 Commando |
w/ GM 2.5L (4-151) w/ 3.8L (6-232), 4.2L (6-258) w/ 3.8L (6-232), 4.2L (6-258) w/ 4.2L (6-258) w/ 4.2L (6-258) w/ 5.0L (V8-304) w/ 5.0L (V8-304) w/ 4.2L (6-258) |
J5370019 J5357190 J5357190 J5370019 J5363662 J5357190 J5370019 J5357190 |
| 8 | Steering Shaft Assembly |
1972-86 1972-86 1972-86 1972-86 |
CJ-5, 7, 8 CJ-5, 7, 8 CJ-5, 7, 8 CJ-5, 7, 8 |
w/ Manual Steering w/ Manual Steering; Heavy Duty w/ Power Steering w/ Power Steering; Heavy Duty |
J5353135 RT21010 J5354934 RT21011 |
| 9 | Coupling, Steering Shaft |
1972-86 1972-86 |
CJ-5, 6, 7, 8 CJ-5, 6, 7, 8 |
w/ Manual Steering w/ Power Steering |
J8121299 J0998710 |
| 10 | Joint Assembly, Steering Shaft | 1972-75 | CJ-5, 6 | Lower Steering Shaft Yoke w/ U-Joint | J0990192 |
| 11 | Boot, Steering Shaft | 1972-76 | CJ-5, 7, 8 | J8132676 | |
| 12 | Boot Kit, Steering Shaft | 1972-86 | CJ-5, 7, 8 | Includes 1 Boot, 2 Clips and 2 Bearings | 8132676K |
| 13 | Steering Shaft Coupling Kit |
1972-86 1972-86 |
CJ-5, 6, 7, 8 CJ-5, 6, 7, 8 |
w/ Power Steering w/ Manual Steering |
998710K 8121299K |
| 14 | Ball Joint, Upper | 1972-86 | CJ-5, 6, 7, 8, C104 | w/ Dana 30 Front Axle | J8122495 |
| 15 | Ball Joint, Lower | 1972-86 | CJ-5, 6, 7, 8, C104 | w/ Dana 30 Front Axle | J8122496 |
| 16 | Ball Joint Kit | 1972-86 | CJ-5, 6, 7, 8, C104 | Upper and Lower, w/ Dana 30 Front Axle, Incl. Hardware | J8126509 |
| 17 | Spindle, Steering |
1972-76 1977-86 |
CJ-5, 7, 8, C104 CJ-5, 7, 8 |
Left or Right, w/ Dana 30 Front Axle Left or Right, Includes Bearing and Seals |
J8121403 J8128147 |
| 18 | Steering Knuckle |
1978 1979-86 1979-86 |
CJ-5, 7 CJ-5, 7, 8 CJ-5, 6, 8 |
Left Side, w/ 2-Bolt Caliper Plate (Less Ball Joints) Left Side (Less Ball Joints) Right Side |
J8133604 J8133604 J8129654* |
| 19 | Drag Link Assembly |
1972-83 1976-81 1982-86 |
CJ-5, 6, C104 CJ-7, 8 CJ-7, 8 |
w/ Left Hand Drive; 28-1/8" Collapsed Length w/ Left Hand Drive; 28-1/8" Collapsed Length w/ Left Hand Drive; 30-1/2" Collapsed Length |
J5356105 J5356105 8134350K |
| 20 | Right Tie Rod End, Drag Link |
1972-86 1972-83 1976-81 1982-86 |
CJ-5, 6, 7, 8 CJ-5, 6, C104 CJ-7, 8 CJ-7, 8 |
w/ Right Hand Drive; 20.83" Long w/ Left Hand Drive; At Steering Knuckle; 24" Long w/ Left Hand Drive; At Steering Knuckle; 24" Long w/ Left Hand Drive; At Steering Knuckle; 24-5/8" Long |
J5350570 J0991744 J0991744 J8134350 |
| 21 | Adjuster, Drag Link | 1972-86 | CJ-5, 6, 7, 8, C104 | 4-1/2" Long; 1/2"-20 Threads, Includes Clamps | J3200671 |
| 22 | Left Tie Rod End, Drag Link | 1972-86 | CJ-5, 6, 7, 8, C104 | w/ Left Hand Drive; At Pitman Arm; 3-1/8" Long | J8136600 |
| 23 | Tie Rod Clamp | 1972-86 | CJ-5, 6, 7, 8, C104 | Includes Hardware | JA000837 |
| 24 | Tie Rod Assembly |
1972-83 1976-81 1982-86 |
CJ-5, 6, C104 CJ-7, 8 CJ-7, 8 |
w/ Left Hand Drive w/ Left Hand Drive w/ Left Hand Drive |
J5350586 J5350586 J8134295 |
| 25 | Left Tie Rod End, Tie Rod |
1972-86 1972-86 |
CJ-5, 6, 7, 8, C104 CJ-5, 6, 7, 8 |
w/ Left Hand Drive; 4" Long w/ Right Hand Drive |
J8136600 J0918257 |
| 26 | Adjuster, Tie Rod |
1972-83 1976-81 1982-86 |
CJ-5, 6, 104 CJ-7, 8 CJ-7, 8 |
w/ Left Hand Drive; 40-1/8" Long w/ Left Hand Drive; 40-1/8" Long w/ Left Hand Drive; 43-7/8" Long |
J5350589 J5350589 J8134290 |
| 27 | Right Tie Rod End, Tie Rod |
1972-86 1972-86 |
CJ-5, 6, 7, 8, C104 CJ-5, 6, 7, 8 |
w/ Left Hand Drive; 3-1/8" Long w/ Right Hand Drive; 4" Long |
J8136674 J8136600 |
| 28 | Stabilizer Kit, Steering | 1972-86 | CJ-5, 6, 7, 8 | Includes Hardware | J84500 |
| 29 | Tie Plate, Steering Gear | 1976-86 | CJ-5, 7, 8 | LHD, w/ Manual or Power Steering | J5355962 |
| 30 | Bracket, Steering Gear | 1976-86 | CJ-5, 7, 8 | Upper, LHD, w/ Manual or Power Steering | J5355446 |
| 31 | Bracket, Steering Gear | 1976-86 | CJ-5, 7, 9 | Lower, LHD, w/ Manual or Power Steering | J8127536 |
| 32 | Steering Column Bearing Kit | 1976-86 | CJ-5, 7, 8 | Includes 2 Bearings, 1 Clip, and 1 Retainer | 4487696K |
| 33 | Bushing, Steering Shaft | 1976-86 | CJ-5, 7, 8 | Upper | J4487696 |
| 34 | Coupling Spring, Steering Shaft | 1976-86 | CJ-5, 7, 8 | Lower Bearing Clip | J4487739 |
| 35 | Bearing, Steering Column | 1976-86 | CJ-5, 7, 8 | Lower | J4486713 |
| 36 | Retainer, Steering Column Bearing | 1976-86 | CJ-5, 7, 8 | J4487743 | |
| 37 | Bearing Kit, Steering Column | 1974-76 | CJ-5, 6, 7, 8 | w/ Tilt Column | 83510055 |
| 38 | Bearing, Steering Column | 1977-86 | CJ-5, 7, 8 | Upper; w/o Tilt | J8127850 |
| 39 | Steering Gear Bearing and Seal Kit | 1972-86 | CJ-5, 6, 7, 8, C104 | w/ Manual Steering | 5710618 |
| 40 | Steering Gear Master Repair Kit | 1972-86 | CJ-5, 6, 7, 8, C104 | w/ Manual Steering | 8120221K |
| 41 | Seal, Sector Shaft | 1972-86 | CJ-5, 6, 7, 8, C104 | w/ Manual Steering | J4486140 |
| 42 | Bushing, Sector Shaft | 1972-86 | CJ-5, 6, 7, 8, C104 | w/ Manual Steering | J3200496 |
| 43 | Seal, Worm Shaft | 1972-86 | CJ-5, 6, 7, 8, C104 | w/ Manual Steering | J4486141 |
| 44 | Bearing, Worm Shaft | 1972-86 | CJ-5, 6, 7, 8, C104 | w/ Manual Steering; 2 Required | J3200491 |
| 45 | Bearing Cup, Worm Shaft | 1972-86 | CJ-5, 6, 7, 8, C104 | w/ Manual Steering; 2 Required | J3200492 |
| 46 | Gasket, Steering Box | 1981-86 | CJ-5, 6, 7, 8 | w/ Power Steering | J0940522 |
| 47 | Seal Kit, Steering Box | 1981-86 | CJ-5, 7, 8 | J8125038 | |
| 48 | Seal Kit, Steering Box | 1981-86 | CJ-5, 7, 8 | w/ LHD w/ Power Steering | J5125039 |
| 49 | Shim Kit, Steering Gear Cover | 1972-86 | CJ-5, 6, 7, 8 | w/ LHD w/ Manual Steering | J0940521 |
| 50 | Seal Kit, Steering Box | 1974-86 | CJ-5, 6, 7, 8 | w/ Power Steering | 83500369 |
| 51 | Adjuster Screw, Steering Box | 1981-86 | CJ-5, 6, 7, 8 | w/ Manual Steering | J4486135 |
| 52 | Bearing, Sector Shaft | 1981-86 | CJ-5, 6, 7, 8 | J4487154 | |
| 53 | Seal Kit, Steering Pump | 1977-86 | CJ-5, 7, 8 | 83502149 | |
| 54 | Bearing & Seal Kit, Spindle | 1977-86 | CJ-5, 7, 8 | Left or Right, Includes Bearing and Seals | J8127356 |
| 55 | Heavy Duty Steering Gear Bracket | 1976-86 | CJ-5, 7, 8 | w/ Power Steering; Includes Hardware | RT21009 |
* Not Currently Available
