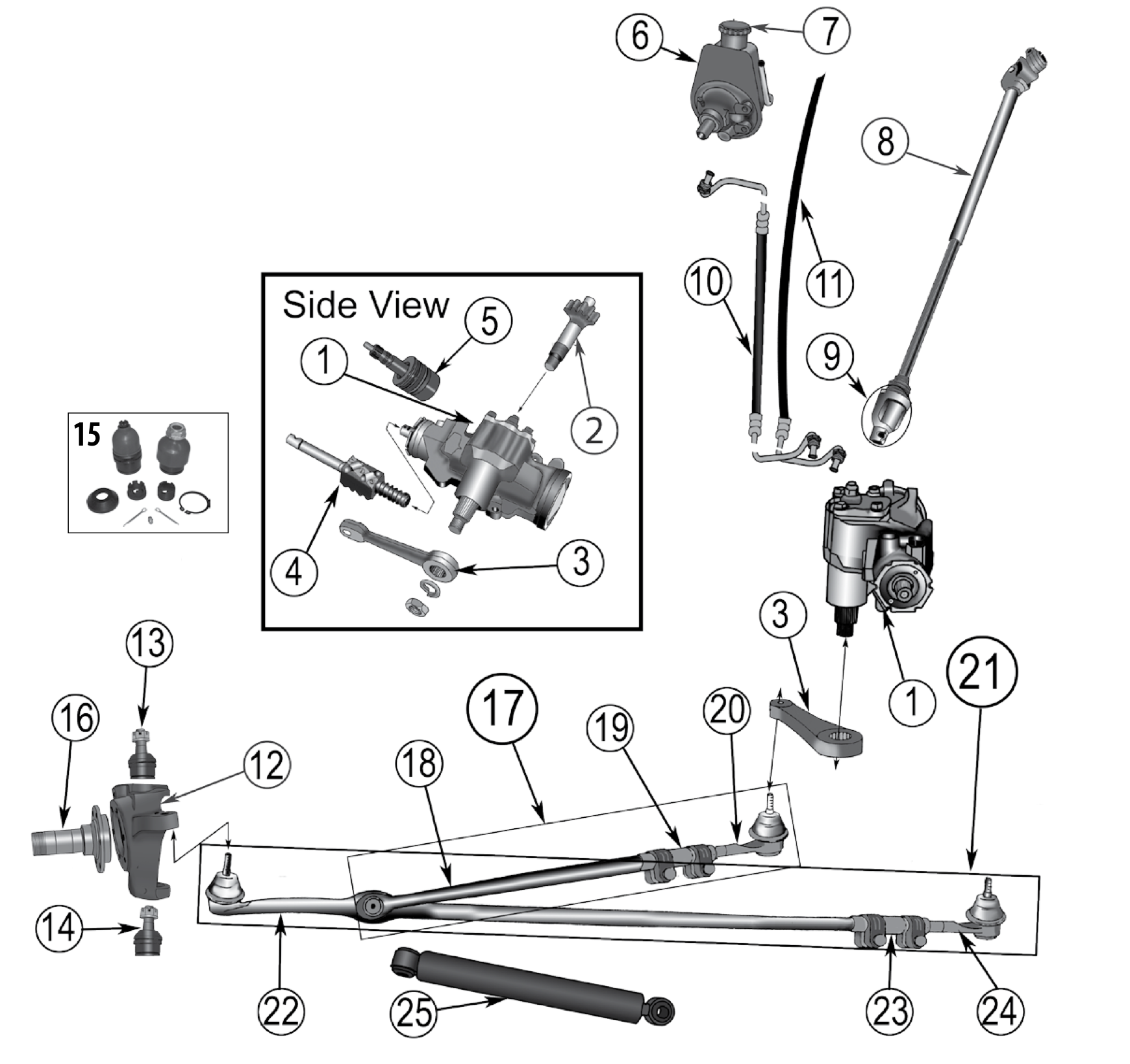

Front Mounted Steering Gear

1965-1991 SJ, J-Series

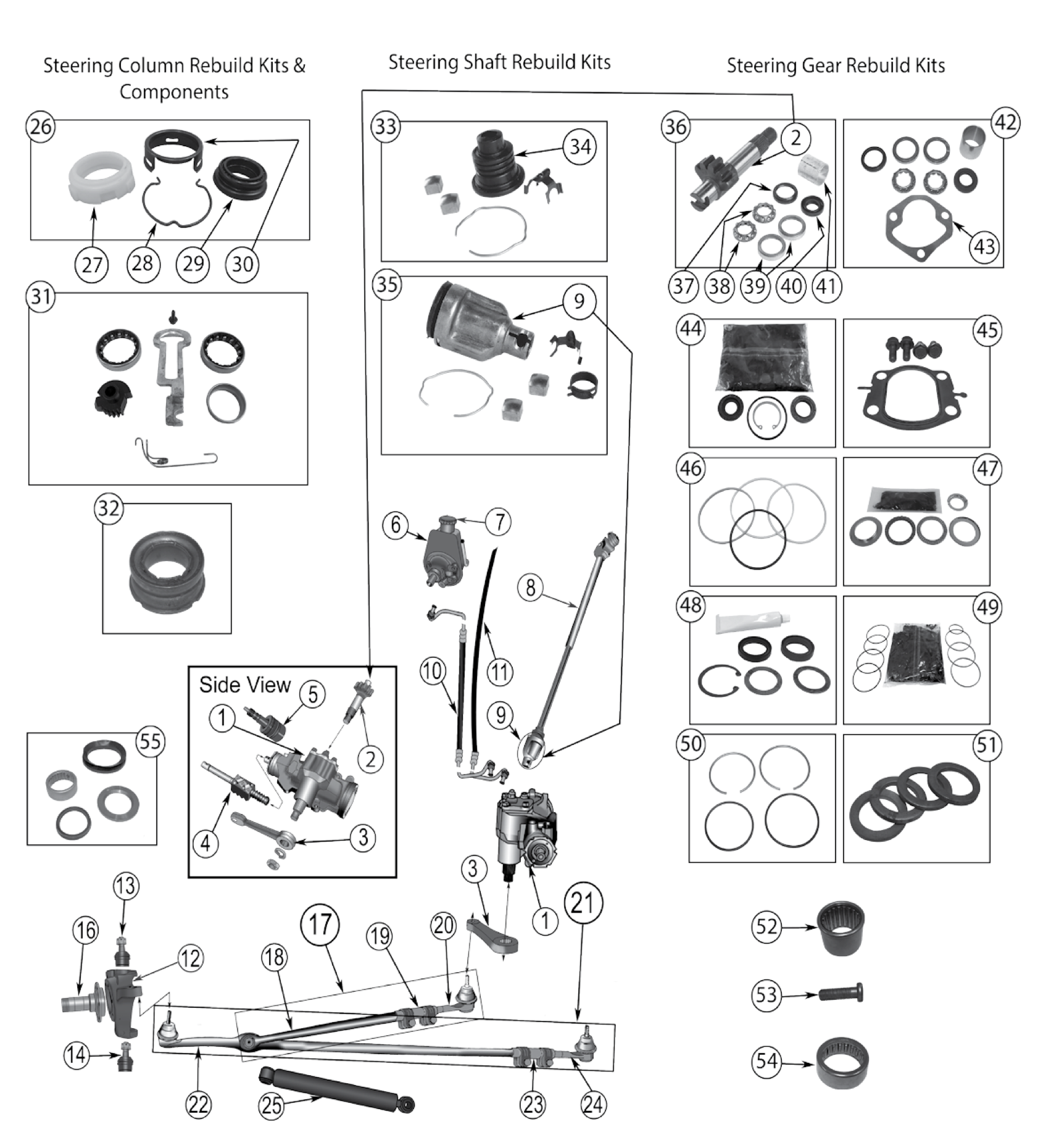

Item numbers match the diagrams. Each part number searches Amazon for that Crown part.

Item #	Description	Years	Application	Comments	Part No.
1	Steering Gear Assembly	1965-86 1980-91	SJ, J-Series SJ, J-Series	w/ Manual Steering w/ Power Steering; Remanufactured	J0994509 52002085R
2	Sector Shaft	1965-86	SJ, J-Series	w/ Manual Steering	J8120221
3	Pitman Arm	1974-91	SJ, J-Series	w/ Power Steering	J5352278
4	Worm Shaft Assembly	1973-86	SJ, J-Series	w/ Manual Steering	J0998504
5	Input Shaft and Spool Valve	1987-91	SJ, J-Series	w/ Power Steering	83502261
6	Pump, Power Steering	1975-91	SJ, J-Series	w/ Attached Reservoir	52037568
7	Cap, Steering Reservoir	1975-91	SJ, J-Series		4694765
8	Steering Shaft Assembly	1976-85 1976-85	SJ, J-Series SJ, J-Series	w/ Manual Steering w/ Power Steering	J5353135 J5354934
9	Coupling, Steering Shaft	1973-85 1974-85	SJ, J-Series SJ, J-Series	w/ Manual Steering w/ Power Steering	J8121299 J0998710
10	Hose, Power Steering Pressure	1975-78 1980-86 1972-79 1980-91	SJ, J-Series SJ, J-Series SJ, J-Series SJ, J-Series	4.2L (6-258) 4.2L (6-258) 5.9L (V8-360), 6.6L (V8-401) 5.9L (V8-360)	J5355891 52003769 J5355891 52003079
11	Hose, Power Steering Return	1976-79	SJ, J-Series	4.2L (6-258), 5.9L (V8-360), 6.6L (V8-401)	J5357190
12	Knuckle, Steering	1974-77	SJ, J-Series	Left	J0805783
13	Ball Joint, Upper	1974-91	SJ, J-Series		J8122495
14	Ball Joint, Lower	1974-91	SJ, J-Series		J8122496
15	Ball Joint Kit	1974-91	SJ, J-Series	Upper and Lower, Includes Hardware	J8126509
16	Spindle, Steering	1971-73 1977-91	SJ, J-Series SJ, J-Series	Left or Right, w/ Dana 30 Front Axle Includes Bearings, Washer and Seals	J8121403 J8128767
17	Drag Link Assembly	1974-89 1974-91	SJ, J-Series SJ, J-Series	28-3/8" Collapsed Length 26-3/8" Collapsed Length	J5352421 J5352163
18	Right Tie Rod End, Drag Link	1972-73 1962-73 1962-73 1974-91 1974-89	SJ, J-Series J-Series SJ SJ, J-Series SJ, J-Series	To Steering Knuckle; 3-1/8" Long; Right Hand Threads; w/ Hollow Adjusting Tube To Steering Knuckle; 32-5/16" Long; Right Hand Threads; w/ Solid Tube To Steering Knuckle; 29-3/8" Long; Right Hand Threads; w/ Solid Tube Drag Link to Tie Rod, 21.88" Long Drag Link to Tie Rod, 23.88" Long	J0932192 J0999200 J0999199* J8123315 J8123316
19	Adjuster, Drag Link	1972-73 1974-91	SJ, J-Series SJ, J-Series	4-1/2" Long; 1/2" - 20 Threads 4-1/2" Long; 9/16" - 18 Threads	J3200671 J8123320
20	Left Tie Rod End, Drag Link	1972-73 1974-91	SJ, J-Series SJ, J-Series	w/ LHD; Left Hand Threads; 3-1/8" Long At Pitman Arm; 3-3/4" Long; Left Hand Threads	J8136674 J8124817
21	Tie Rod Assembly	1974-89 1974-91	SJ, J-Series SJ, J-Series	55-3/4" Collapsed Length 51-3/4" Collapsed Length	J5352680 J5352665
22	Right Tie Rod End	1971-73 1974-89 1974-91	SJ SJ, J-Series SJ, J-Series	3-1/8" Long; Right Hand Threads 50-1/2" Long 46-1/2" Long	J0932192 J8124823 J8124816
23	Adjuster, Tie Rod	1974-91	SJ, J-Series		J8124819*
24	Left Tie Rod End	1971-73 1974-91	SJ SJ, J-Series	3-7/8" Long; Left Hand Threads 3-3/8" Long; Left Hand Threads	J0932191 J8124817
25	Stabilizer, Steering	1974-91	SJ, J-Series		J8129434
26	Steering Column Bearing Kit	1974-91	SJ, J-Series	Includes 2 Bearings, 1 Clip, and 1 Retainer	4487696K
27	Bushing, Steering Shaft	1974-91	SJ, J-Series	Upper	J4487696
28	Spring, Steering Shaft Coupling	1974-91	SJ, J-Series	Lower Bearing Clip	J4487739
29	Bearing, Steering Column	1974-91	SJ, J-Series	Lower	J4486713
30	Retainer, Steering Column Bearing	1974-91	SJ-J-Series		J4487743
31	Bearing Kit, Steering Column	1974-91	SJ, J-Series	w/ Tilt	83510055
32	Bearing, Steering Column	1981-91	SJ, J-Series	Upper, w/o Tilt	J8127850
33	Boot Kit, Steering Shaft	1974-86	SJ, J-Series	Includes 1 Boot, 2 Clips and 2 Bearings	8132676K
34	Boot, Steering Shaft	1974-86	SJ, J-Series		J8132676
35	Steering Shaft Coupling Kit	1974-86 1973-86	SJ, J-Series SJ, J-Series	w/ Power Steering w/ Manual Steering	998710K 8121299K
36	Steering Gear Master Repair Kit	1965-86	SJ, J-Series	w/ Manual Steering	8120221K
37	Seal, Sector Shaft	1965-86	SJ, J-Series	w/ Manual Steering	J4486140
38	Bearing, Worm Shaft	1965-86	SJ, J-Series	w/ Manual Steering; 2 Required	J3200491
39	Bearing Cup, Worm Shaft	1965-86	SJ, J-Series	w/ Manual Steering; 2 Required	J3200492
40	Seal, Worm Shaft	1965-86	SJ, J-Series	w/ Manual Steering	J4486141
41	Bushing, Sector Shaft	1965-86	SJ, J-Series	w/ Manual Steering	J3200496
42	Steering Gear Bearing and Seal Kit	1965-86	SJ, J-Series	w/ Manual Steering	5710618
43	Gasket, Steering Box	1981-86	SJ, J-Series	w/ Manual Steering	J0940522
44	Seal Kit, Steering Box Adjuster Plug	1981-91	SJ, J-Series	w/ Power Steering	J8130157
45	Seal Kit, Steering Box	1975-80 1981-91	J-10 SJ	w/ LHD	J8125038 J8125038
46	Seal Kit, Steering Box	1980-91	SJ, J-Series		J8125039
47	Bearing Kit, Steering Box	1981-91	SJ, J-Series	Located on End of Valve Assembly	J8130152
48	Seal Kit, Gear Assembly	1973-91	SJ, J-Series	Sector Shaft (Pitman), w/ Power Steering	J8134568
49	Seal Kit, Steering Box	1973-91	SJ, J-Series	LHD, w/ Power Steering	J3204833
50	Seal Kit, Steering Box	1987-91	SJ, J-Series	Includes Seals and Retainers	J8125037
51	Shim Kit, Steering Box Cover	1981-86	SJ, J-10, J-20	w/ Manual Steering	J0940521
52	Bearing, Sector Shaft	1981-91	SJ		J4487154
53	Screw, Steering Box Adjuster	1981-86	SJ, J-10, J-20	w/ Manual Steering	J4486135
54	Bearing, Steering Box	1981-91	SJ, J-Series	Located on Valve Assembly	J8130142
55	Bearing and Seal Kit, Spindle	1974-91	SJ, J-Series	Left or Right, Includes Bearing and Seals	J8127356

* Not Currently Available
