Rear Mounted Steering Gear
1941-1971 CJ-2A, CJ-3A, CJ-3B, CJ-5, CJ-6, MB, M38, M38-A1, FC-150, FC-170

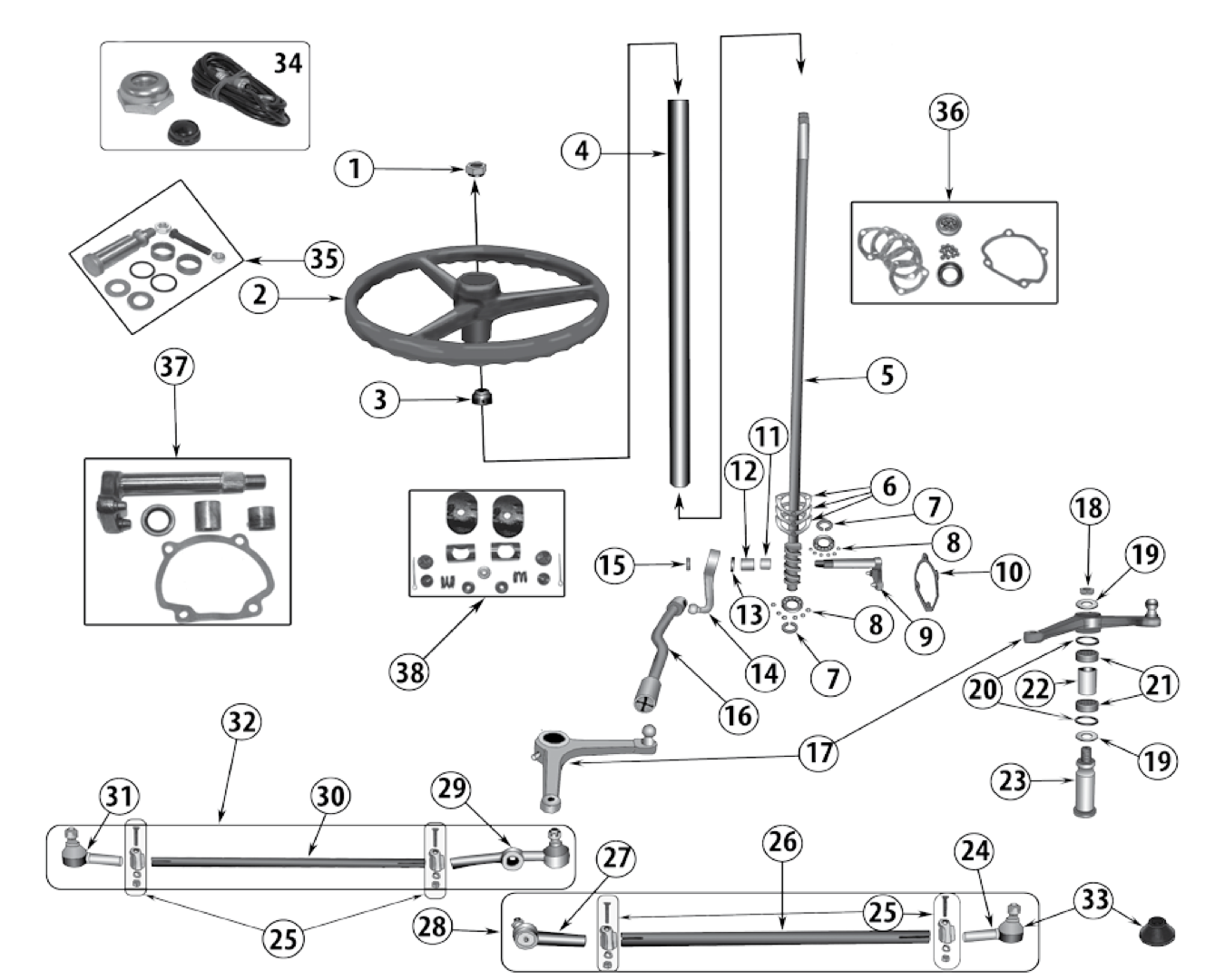

Item numbers match the diagram. Each part number searches Amazon for that Crown part.
| Item # | Description | Application | Comments | Part No. |
|---|---|---|---|---|
| 1 | Nut, Worm Shaft |
MB, CJ-2A CJ-3A, 3B, 5, 6 |
w/ 1-1/4" Horn Button |
A633 801425 |
| 2 | Steering Wheel |
MB CJ-2A, 3A, 3B, 5, 6 CJ-3B, 5, 6, FC-150 |
w/ 1-1/4" Horn Button "Sheller Type" w/ 1-1/4" Horn Button w/ 2-3/8" Horn Button |
7375336 914047 927417 |
| 3 | Bearing, Steering Column | All | J0801422 | |
| 4 | Steering Column | All | J0914054* | |
| 5 | Worm Shaft |
MB CJ-2A Before Serial # 178361 CJ-2A After Serial # 178361 CJ-3A, 3B CJ-5, 6 w/ Gear Stamped #5-13230 CJ-5, 6 w/ Gear Stamped #TL-13231, TL-13234, TL-13019 M38-A1 |
40-1/2" 40-1/2" 41-1/2" 41-1/2" 41-1/2" 42-3/8" 42-3/8" |
A8838* A8838* 647693 647693 647693 807480 807480 |
| 6 | Shim Set, Steering Worm Shaft | All | A6760 | |
| 7 | Retainer, Worm Shaft Bearing |
MB, CJ-2A, 3A, 3B, Pickup, Delivery Sedan, Station Wagon CJ-5, 6 w/o Gear Stamped #TL-13018 |
|
J0808591 J0808591 |
| 8 | Bearing, Worm Shaft | All | 22 Required | J0639104 |
| 9 | Sector Shaft |
CJ-2A, 3A, 3B, MB CJ-5, 6 w/ Gear Stamped #5-13230 M38 |
|
A745 A745 J0804533 |
| 10 | Gasket, Side Cover |
CJ-2A, 3A, 3B, MB, M38 CJ-5, 6 w/ Gear Stamped #5-13230 CJ-5, 6 w/o Gear Stamped #5-13230 |
|
639119 639119 J0807476 |
| 11 | Bushing, Sector Shaft |
CJ-2A, 3A, 3B, MB CJ-5, 6 w/ Gear Stamped #5-13230 |
Inner Inner |
J0639090 J0639090 |
| 12 | Bushing, Sector Shaft |
CJ-2A, 3A, 3B, MB CJ-5, 6 w/ Gear Stamped #5-13230 |
Outer Outer |
J0639091 J0639091 |
| 13 | Oil Seal, Sector Shaft |
CJ-2A, 3A, 3B, MB CJ-5, 6 w/ Gear Stamped #5-13230 Station Wagon, Sedan Delivery, Pickup, FC-150, FC-170 |
|
J0927645 J0927645 907653 |
| 14 | Pitman Arm | All w/ F4 except Tuxedo Park and MB | JA001116 | |
| 15 | Nut, Sector Shaft | All w/ F4 except Tuxedo Park, M38, M38A-1 | 639115 | |
| 16 | Drag Link Assembly |
CJ-2A, 3A After Serial #199079 CJ-5, 6 w/ 4-134 F-Head CJ-3B, M38, M38-A1 |
|
J0646619 J0646619 J0646619 |
| 17 | Bellcrank |
All w/ 1-1/8" Bellcrank Shaft MB w/ 3/4" Bellcrank Shaft |
|
J0946965 A8249 |
| 18 | Nut, Bellcrank |
All w/ 3/4" Bellcrank Shaft All w/ 7/8" Bellcrank Shaft |
|
J8130364 J0649240 |
| 19 | Washer, Bellcrank |
All w/ 3/4" Bellcrank Shaft All w/ 7/8" Bellcrank Shaft |
|
J0946969 J0131018 |
| 20 | Seal, Bellcrank |
All w/ 3/4" Bellcrank Shaft All w/ 1-1/8" Bellcrank Shaft |
|
JA000858 J0645663 |
| 21 | Bearing, Bellcrank |
All w/ 3/4" Bellcrank Shaft All w/ 7/8" or 1-1/8" Bellcrank Shaft |
|
JA000857 J0928099 |
| 22 | Spacer, Bellcrank | All w/ 7/8" Bellcrank Shaft | J0645662 | |
| 23 | Shaft, Bellcrank |
All w/ 3/4" Bellcrank Shaft All w/ 7/8" Bellcrank Shaft All w/ 1-1/8" Bellcrank Shaft |
4" Long |
JA008445 J0914223 J0946968 |
| 24 | Tie Rod End, Left Tie Rod |
All M38, M38-A1 |
Outer; 11/16" Threads Outer; 3/4" Threads |
J8136674 J0809190 |
| 25 | Clamp Kit, Tie Rod | All | JA000837 | |
| 26 | Tube, Tie Rod Adjusting | FC-150, M38-A1 | Right; 18-7/8" Long; 11/16" Threads | J0642059 |
| 27 | Tie Rod End, Left Tie Rod | All | Inner; 11/16" Threads | J8136600 |
| 28 | Tie Rod Assembly |
CJ-2A, 3A After Serial # 22972 CJ-3B, 5, 6, FC-150, M38, M38-A1 |
Left; 19-3/4" Long; 11/16" Threads Left; 19-3/4" Long; 11/16" Threads |
J0642056 J0642056 |
| 29 | Tie Rod End, Right Tie Rod |
All Except MB MB, FC-150 M38, M38-A1 |
Inner; 11/16" Threads Inner; 11/16" Threads Inner; 3/4" Threads |
J0640178 J8136600 J0809189 |
| 30 | Tube, Tie Rod Adjusting |
CJ-2A, 3A After Serial # 22972 CJ-3B, 5, 6, FC-150, M38, M38-A1 |
Left; 17-3/4" Long; 11/16" Threads Left; 17-3/4" Long; 11/16" Threads |
J0642058 J0642058 |
| 31 | Tie Rod End, Right Tie Rod |
All Except MB MB M38, M38-A1 |
Outer; 11/16" Threads Outer; 11/16" Threads Outer; 3/4" Threads |
J8136600 J8136674 J0809191 |
| 32 | Tie Rod Assembly |
CJ-2A, 3A After Serial # 22972 CJ-3B, 5, 6, FC-150, M38, M38-A1 |
Right; 24-1/2" Long; 11/16" Threads Right; 24-1/2" Long; 11/16" Threads |
J0642057 J0642057 |
| 33 | Boot, Tie Rod End | CJ-2A, 3A, 3B, 5, 6, MB | Fits All Tie Rod Ends | J0645137 |
| 34 | Horn Button Kit |
MB, CJ-2A w/ 1-1/4" Horn Button CJ-3A, 3B, 5, 6 w/ 1-1/4" Horn Button CJ-3B, 5, 6, FC-150 w/ 2-3/8" Horn Button |
Includes Button, Wire, and Nut Includes Button, Wire, Nut and Disc Includes Button, Wire, Cup, and Nut |
A6742K 802359K 927416K |
| 35 | Shaft Kit, Bellcrank |
All w/ 7/8" Bellcrank Shaft All w/ 1-1/8" Bellcrank Shaft CJ-2A, 3A Before Serial # 199079 MB |
3/4" 3/4" |
J0920556 J0991381 J0915762 J0915762 |
| 36 | Bearing Kit, Worm Shaft |
CJ-2A, 3A, 3B, MB CJ-5, 6 w/o Gear Stamped #TL-13019 FC-150, FC-170, Pickup, Sedan Delivery, Station Wagon |
|
J0646084 J0646084 J0942062* |
| 37 | Repair Kit, Sector Shaft |
CJ-2A, 3A, 3B, MB CJ-5, 6 w/ 4-134 F-Head CJ-5, 6 w/o Gear Stamped #5-13230 M38, M38-A1 Pickup, Sedan Delivery, Station Wagon |
7/8" 7/8" w/o Gear Stamped #5-13230 |
J0805123 J0805123 J0938194* J0938194* J0907999 |
| 38 | Repair Kit, Drag Link | CJ-2A, 3A, 3B, 5, 6 | J0923418 |
* Not Currently Available
