Rear Mounted Steering Gear
1966-1971 C101 Commando

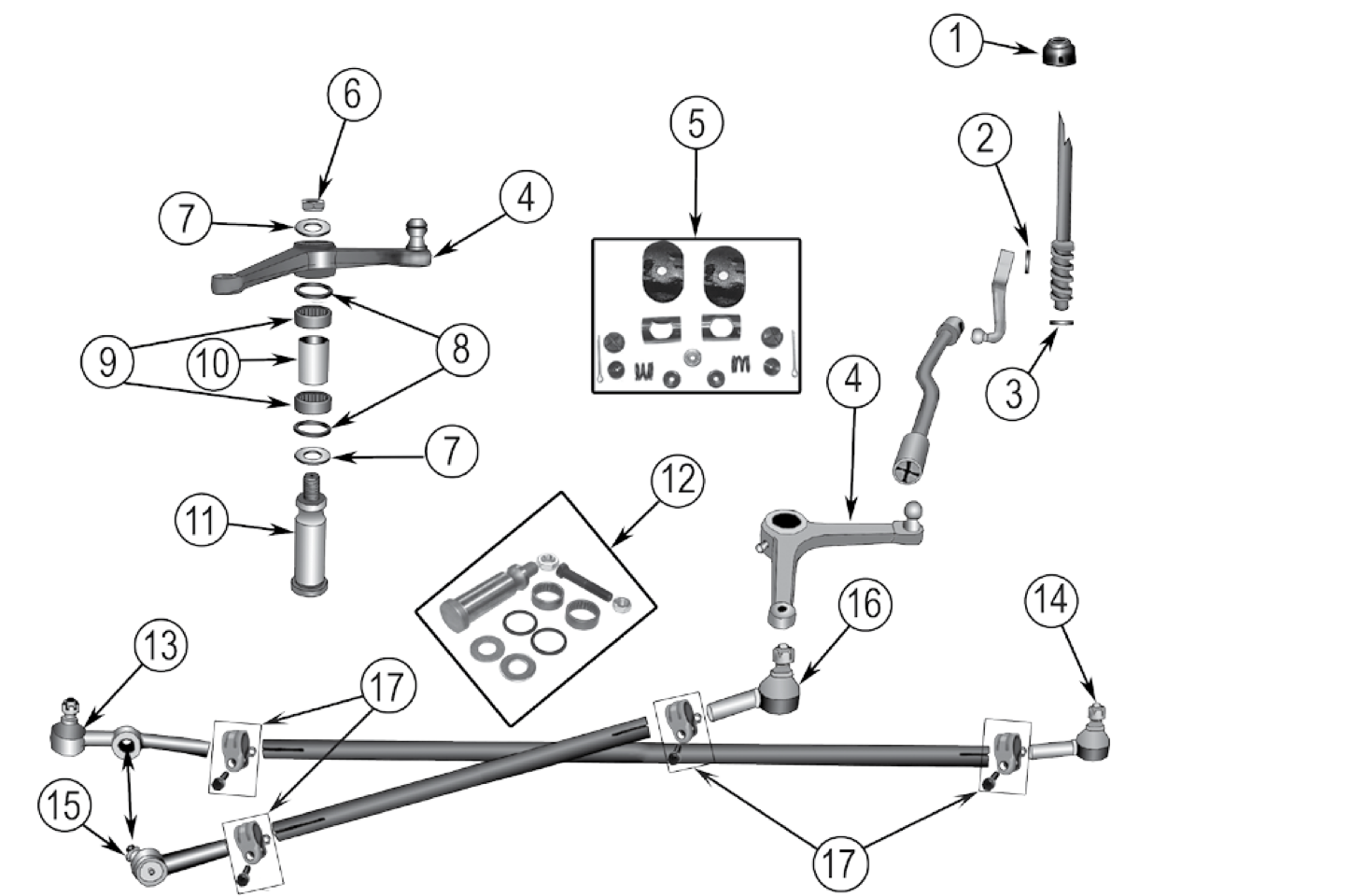

Item numbers match the diagram. Each part number searches Amazon for that Crown part.
| Item # | Description | Comments | Part No. |
|---|---|---|---|
| 1 | Bearing, Steering Column | Upper | J0801422 |
| 2 | Seal, Worm Shaft | J3202618 | |
| 3 | Seal, Sector Shaft | J0940555 | |
| 4 | Bellcrank | 1-1/8" | J0946965 |
| 5 | Repair Kit, Drag Link | Includes Plugs, Seals, Springs, and Cotter Pins | J0923418 |
| 6 | Nut, Bellcrank Shaft | w/ 3/4" and 7/8" Shaft | J0649240 |
| 7 | Washer, Bellcrank Shaft |
5/8" 7/8" |
J0131016 J0131018 |
| 8 | Seal, Bellcrank Shaft | 2 Required | J0645663 |
| 9 | Bearing, Bellcrank Shaft | 2 Required | J0928099 |
| 10 | Spacer, Bellcrank Shaft | w/ 7/8" Diameter Shaft | J0645662 |
| 11 | Shaft, Bellcrank |
7/8" Diameter 1-1/8" Diameter |
J0914223 J0946968 |
| 12 | Repair Kit, Bellcrank |
w/ 7/8" Diameter Shaft w/ 1-1/8" Diameter Shaft |
J0920556 J0991381 |
| 13 | Tie Rod End, On Wheel to Wheel Rod | Right Side with Hole | J0920536 |
| 14 | Tie Rod End, On Wheel to Wheel Rod | Left Side; Right Hand Thread | J8136600 |
| 15 | Tie Rod End, On Bellcrank to Steering Arm Rod | Left Thread | J8136674 |
| 16 | Tie Rod End, On Bellcrank to Steering Arm Rod | Right Thread | J8136600 |
| 17 | Clamp Kit, Tie Rod | Includes Clamp and Hardware | JA000837 |
