Rear Mounted Steering Gear
1946-1965 Willys Station Wagons, Sedan Delivery Wagons
and Pickup Trucks

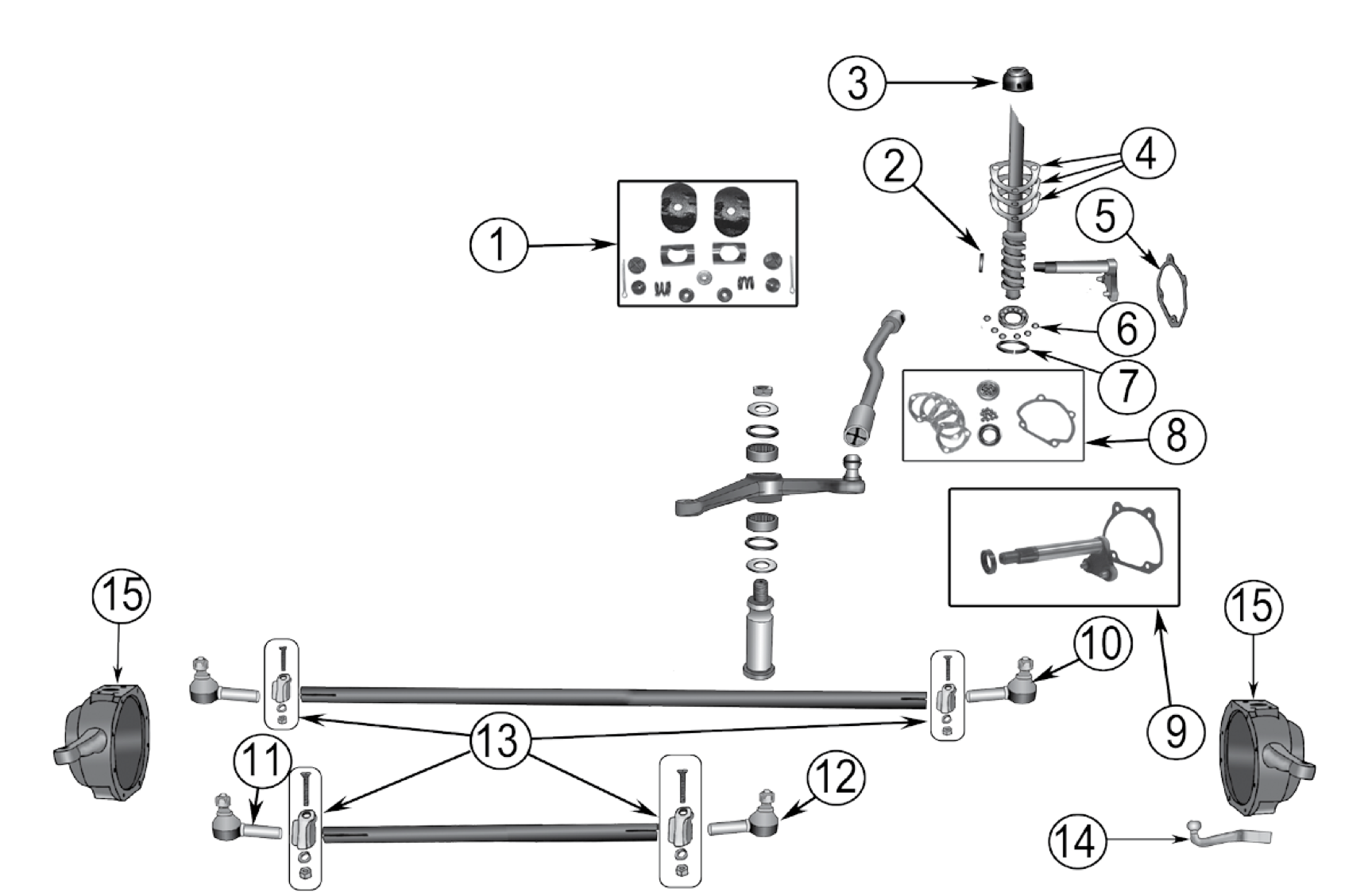

Item numbers match the diagram. Each part number searches Amazon for that Crown part.
| Item # | Description | Comments | Part No. |
|---|---|---|---|
| 1 | Repair Kit, Drag Link | Includes Plugs, Seals, Springs, and Cotter Pins | J0923418 |
| 2 | Seal, Sector Shaft | All | 907653 |
| 3 | Bearing, Steering Column | Upper | J0801422 |
| 4 | Shim Set, Steering Worm Shaft | All | A6760 |
| 5 | Gasket, Steering Box | w/o Gear Stamped #5-13230 | J0807476 |
| 6 | Ball Bearing, Worm Shaft | 22 Required (11 Upper and 11 Lower) | J0639104 |
| 7 | Retainer, Worm Shaft Bearing | 2 Required | J0808591 |
| 8 | Repair Kit, Bearing Steering Gear Worm | Includes Bearings, Races, Shims, and Side Cover Gasket | J0646084 |
| 9 | Kit, Steering Sector Shaft | w/o Gear Stamped #5-13230 | J0907999 |
| 10 | Tie Rod End, Steering Knuckle to Steering Knuckle | Left Side; Left Hand Threads | J8136674 |
| 11 | Tie Rod End, Bellcrank to Right Steering Knuckle | At Knuckle; Left Hand Threads | J8136674 |
| 12 | Tie Rod End, Bellcrank to Right Steering Knuckle | At Bellcrank; Right Hand Threads | J8136600 |
| 13 | Clamp Kit, Tie Rod | Includes Clamp and Hardware | JA000837 |
| 14 | Steering Arm | Attaches to Left Knuckle | J0905693 |
| 15 | Steering Knuckle |
Left Right |
J0805783 J0805784 |
