Early Model CJs
MB, CJ-2A, 3A, 3B

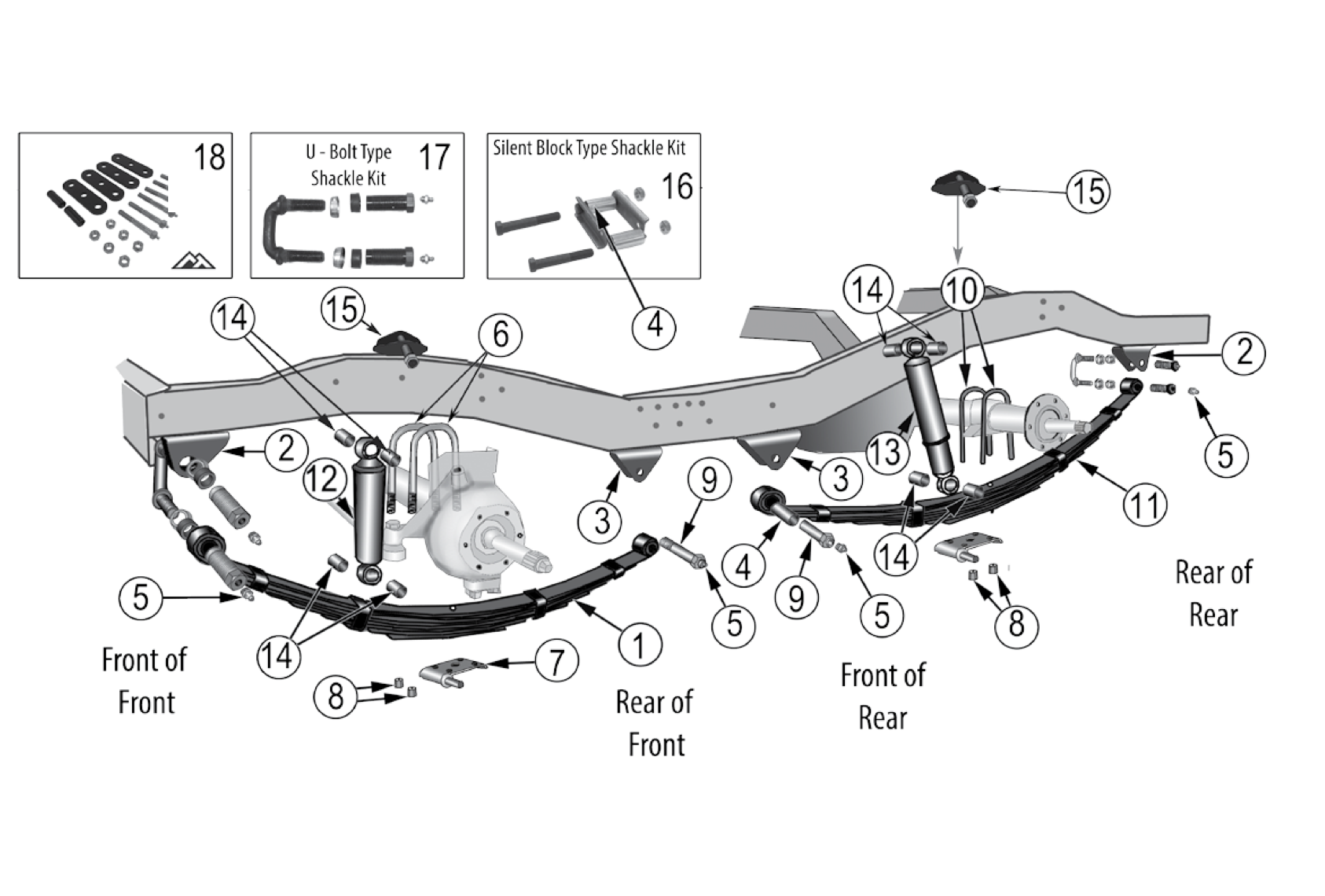

Item numbers match the diagram. Each part number searches Amazon for that Crown part.
| Item # | Description | Application | Position | Comments | Part No. |
|---|---|---|---|---|---|
| 1 | Leaf Spring Assembly |
MB, CJ-2A, 3A All |
Front Front |
2 Bushings Pressed in - 8 Leaves 2 Bushings Pressed in - 10 Leaves |
A612 916056 |
| 2 | Bracket, Leaf Spring Mount |
All CJ-3B |
Shackle End of Front Spring Shackle End of Front Spring |
w/ U-Bolt Shackles w/ Silent Block Shackles |
JA000544 J0645966 |
| 3 | Bracket, Leaf Spring Mount | All | Pivot End of Front or Rear Spring | A500 | |
| 4 | Bushing, Leaf Spring |
All CJ-3B All |
Shackle End of Front or Rear Spring Shackle End of Front Spring Pivot End of Front or Rear Spring |
w/ U-Bolt Shackles; Bronze w/ Silent Block Shackles; Rubber Bronze |
J0359039 J0921055 J0359039 |
| 5 | Fitting, Grease | All | Front or Rear | Threaded | 392909 |
| 6 | U-Bolt, Front |
All All |
|
3 Required; 7/16"-20 Threads** 1 Required; 7/16"-20 Threads** |
J0909222 J0808988 |
| 7 | Spring Plate, Front |
All All |
Front Right Front Right |
Uses a Nut to Hold Shock On Uses a Cotter Pin to Hold Shock On |
J0800823 8132938* |
| 8 | Nut, U-Bolt | All | Front or Rear | 7/16"-20 Threads | J0339372 |
| 9 | Bolt, Leaf Spring Pivot | All | Front or Rear | Includes Grease Fitting, Nut and Cotter Pin | J0384228 |
| 10 | U-Bolt, Rear | All | Rear | 4 Required** | J0999546 |
| 11 | Leaf Spring Assembly | All | Rear | 2 Bushings Pressed In - 9 Leaves | A614 |
| 12 | Shock Absorber |
CJ-2A, 3A, 3B CJ-2A, 3A, 3B |
Front Front |
Standard Duty Heavy Duty |
910144 J8133290 |
| 13 | Shock Absorber |
CJ-2A, 3A, 3B CJ-2A, 3A, 3B |
Rear Rear |
Standard Duty Heavy Duty |
910144 83500177 |
| 14 | Bushing, Shock Absorber | All | Front or Rear | 4 Required Per Shock | J0637936 |
| 15 | Mounting Bracket, Shock Absorber | CJ-3A, 3B | Front or Rear, Upper | Includes Nylock Nut | J0805635 |
| 16 | Shackle Kit | CJ-3B | Front or Rear | Silent Block Type | J0916646 |
| 17 | Shackle Kit |
All All All All |
Left Front Right Front Left Rear Right Rear |
U-Bolt Type; Left Thread U-Bolt Type; Right Thread U-Bolt Type; Right Thread U-Bolt Type; Left Thread |
J0802061 J0802062 J0802062 J0802061 |
| 18 | Heavy Duty Shackle Kit | CJ-3B | Front or Rear | Provides 3/4" Lift | RT21021 |
* Not Currently Available
** Includes U-Bolt, Washers and Nuts
