Late Model CJs

CJ-5, 6, 7, 8

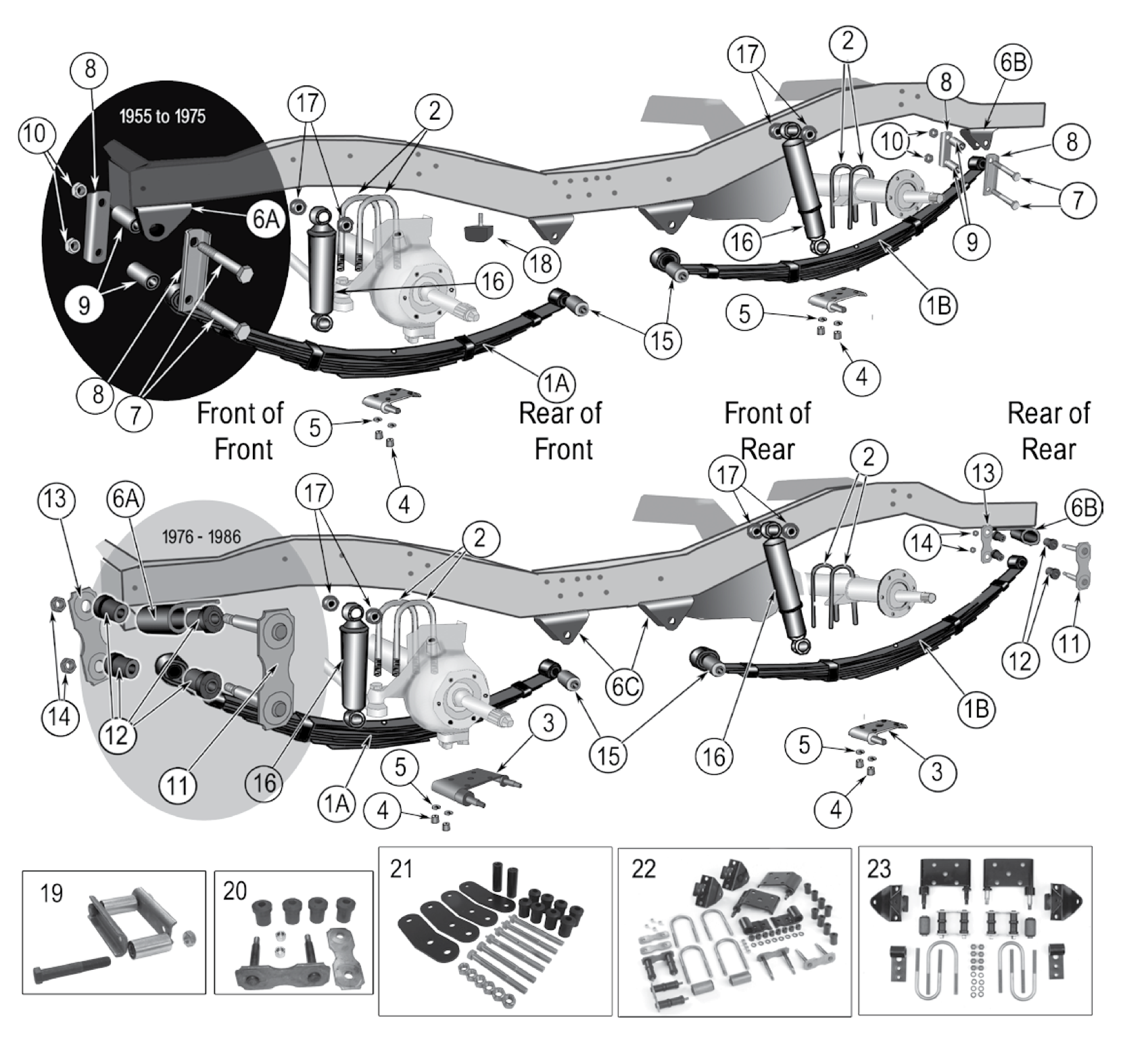

Item numbers match the diagram. Each part number searches Amazon for that Crown part.

Item #	Description	Application	Position	Comments	Part No.
1A	Leaf Spring Assembly	1955-75 CJ-5, 6 1976-86 CJ-5, 7, 8 1976-86 CJ-5, 7, 8	Front Front Front	7 Leaves; 2 Bushings Pressed In 7 Leaves; 1 Bushing Pressed In 4 Leaves; 1 Bushing Pressed In	J0999529 J5354892 J5363229
1B	Leaf Spring Assembly	1955-75 CJ-5, 6 1976-86 CJ-5, 7, 8 1976-86 CJ-5, 7, 8	Rear Rear Rear	9 Leaves; 2 Bushings Pressed In 9 Leaves; 1 Bushing Pressed In 6 Leaves; No Bushings Pressed In	J0916047 J5356423 J5363331
2	U-Bolt	1955-71 CJ-5, 6 1955-71 CJ-5, 6 1972-75 CJ-5, 6 1972-75 CJ-5, 6 1976-86 CJ-5, 7, 8 1976-86 CJ-5, 7, 8 1976-86 CJ-5, 7, 8 1986 CJ-7, 8	Front Front Front Front Front Front Rear Rear	3 Required 1 Required 3 Required 1 Required 3 Required, Heavy Duty 1 Required, Heavy Duty w/ AMC 20, Heavy Duty; 4 Required w/ Dana 44**; 4 Required	J0909222 J0808988 J0999546 J0999545 8130369HD 8130370HD 8130370HD 999210
3	Plate, Spring	1976-86 CJ-5, 7, 8 1976-86 CJ-5, 7, 8 1976-86 CJ-5, 7, 8 1976-86 CJ-5, 7, 8	Left Front Right Front Left Rear Right Rear		J5359011 J5359012 J5363439 J5363440
4	Nut, U-Bolt	1955-75 CJ-5, 6 1976-86 CJ-5, 7, 8	Front or Rear Front or Rear	7/16"-20 Threads 1/2"-20 Threads	J0339372 JA014709
5	Lock Washer, U-Bolt	1976-86 CJ-5, 7, 8	Front or Rear	1/2"	J5350644
6A	Bracket, Spring	1955-75 CJ-5, 6 1976-86 CJ-5, 7, 8	Front Front	Shackle End Shackle End	J0645966 J5355689
6B	Bracket, Spring	1955-75 CJ-5, 6 1976-86 CJ-5, 7, 8	Rear Rear	Shackle End Shackle End	J0645966 J5355281
6C	Bracket, Spring	1976-86 CJ-5, 7, 8	Front or Rear	Pivot End	J8127712
7	Bolt, Shackle	1955-75 CJ-5, 6	Front or Rear	7/16"-20	809236
8	Plate, Shackle	1955-75 CJ-5, 6	Front or Rear	2 Required Per Shackle	J0645964
9	Bushing, Shackle	1955-75 CJ-5, 6	Front or Rear	2 Required Per Shackle	J0921055
10	Nut, Shackle	1955-75 CJ-5, 6	Front or Rear	7/16" Lock Nut	272712
11	Shackle	1976-86 CJ-5, 7, 8 1976-86 CJ-5, 7, 8	Front Rear		J5357620 J5357499
12	Bushing, Shackle	1976-86 CJ-5, 7, 8 1976-86 CJ-5, 7, 8	Front Rear	2 Required Per Eye 2 Required Per Eye	J5355966 J5355841
13	Plate, Shackle	1976-86 CJ-5, 7, 8	Front or Rear	1 Required Per Shackle	J5357497
14	Nut, Locking, Shackle	1976-86 CJ-5, 7, 8	Front or Rear	2 Required Per Shackle	G9416532
15	Bushing, Spring Eye	1955-75 CJ-5, 6 1974-75 CJ-5, 6 1976-86 CJ-5, 7, 8 1976-86 CJ-5, 7, 8	Front or Rear Rear Front; Pivot End Rear; Pivot End	1-13/16" Wide 2-3/64" Wide	J0921055 J5352659 J5353851 J5355369
16	Shock Absorber	1955-86 CJ-5, 6, 7, 8 1955-86 CJ-5, 6, 7, 8 1955-86 CJ-5, 6, 7, 8	Front Rear Front	Severe Duty Heavy Duty Heavy Duty	83500176 83500177 J8133290
17	Bushing, Shock Absorber	1955-86 CJ-5, 6, 7, 8	Front or Rear	2 Required Per Eye	J0637936
18	Bump Stop	1955-71 CJ5, 6	Front	Bolts to Bracket on Frame and Contacts Leaf Spring	J0931263
19	Shackle Kit	1955-75 CJ-5, 6	Front or Rear	Includes 7, 8, 9, 10	J0916646
20	Shackle Kit	1976-86 CJ-5, 7, 8 1976-86 CJ-5, 7, 8	Front Rear	Includes 11, 12, 13, 14 Includes 11, 12, 13, 14	5357620K 5357499K
21	Heavy Duty Shackle Kit	1955-75 CJ-5, 6 1976-86 CJ-5, 7, 8	Front or Rear Rear	Provides 3/4" Lift; Greasable Provides 3/4" Lift; Greasable	RT21021 RT21022
22	Complete Mounting Kit	1976-86 CJ-5, 7, 8	Rear	Includes 2, 3, 4, 5, 6A, 6B, 6C, 19	5359007K
23	Complete Mounting Kit	1976-86 CJ-5, 7, 8	Front	Includes 2, 3, 4, 5, 6A, 6B, 6C, 19	5359011K

** Includes U-Bolt, Washers and Nuts
