Willys Station Wagon, Delivery Sedan and Pickup

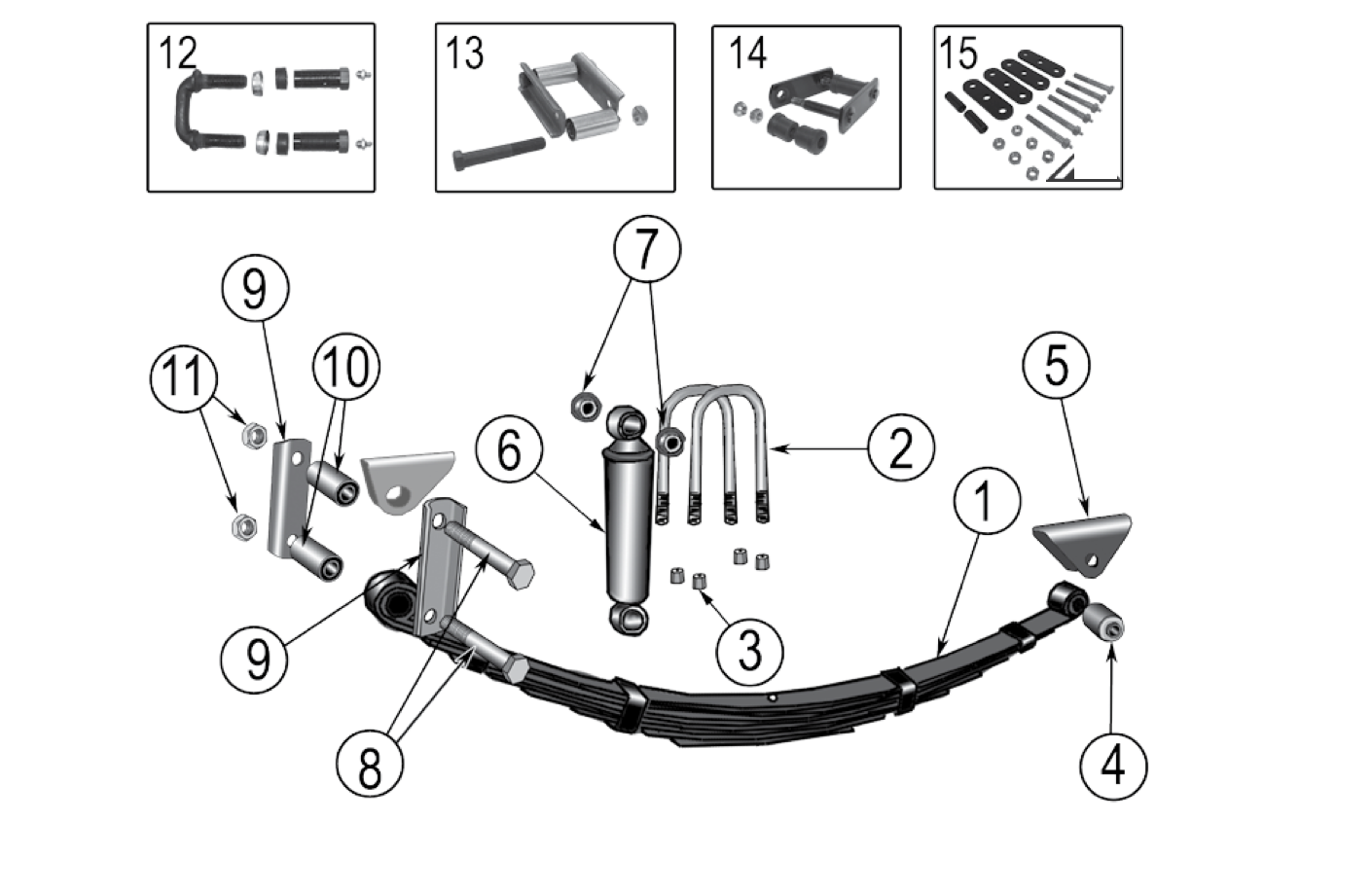

Item numbers match the diagram. Each part number searches Amazon for that Crown part.
| Item # | Description | Position | Comments | Part No. |
|---|---|---|---|---|
| 1 | Leaf Spring Assembly | Front | w/ 4 Wheel Drive; 10 Leaves | 916056 |
| 2 | U-Bolt |
Front Front Rear |
w/ 4 Wheel Drive; 1 Per Vehicle w/ 4 Wheel Drive; 3 Per Vehicle |
J0644418 J0644419 J0999546 |
| 3 | Nut, U-Bolt | All | 7/16"-20 Threads | J0339372 |
| 4 | Bushing, Leaf Spring |
Front Spring; Pivot End Front Spring; Shackle End Rear Spring, Pivot or Shackle End |
Rubber Bronze w/ 4 Wheel Drive |
J0921055 J0359039 J0648594 |
| 5 | Bracket, Spring Shackle |
Front or Rear Front or Rear |
w/ U-Bolt Shackles w/ Silent Block Shackles |
JA000544 J0645966 |
| 6 | Shock Absorber |
Front Rear |
Heavy Duty Heavy Duty |
J8133290 909680 |
| 7 | Bushing, Shock Absorber | Front or Rear | 2 Required Per Eye | J0637936 |
| 8 | Bolt, Shackle | Front or Rear | w/ Silent Block Shackles | 809236 |
| 9 | Plate, Shackle | Front or Rear | w/ Silent Block Shackles | J0645964 |
| 10 | Bushing, Shackle | Front or Rear | w/ Silent Block Shackles | J0921055 |
| 11 | Nut, Shackle | Front or Rear | Locking; w/ Silent Block Shackles | 272712 |
| 12 | Shackle Kit |
Left Front Right Front Left Rear Right Rear |
Left Thread (U-Bolt Style) Right Thread (U-Bolt Style) Right Thread (U-Bolt Style) Left Thread (U-Bolt Style) |
J0802061 J0802062 J0802062 J0802061 |
| 13 | Shackle Kit | Front | w/ Silent Block Shackles | J0916646 |
| 14 | Shackle Kit | Rear | w/ Silent Block Shackles | J0928763 |
| 15 | Heavy Duty Shackle Kit | Front | Provides 3/4" Lift; Greasable | RT21021 |
