Model T14

Borg-Warner 3-Speed Transmission

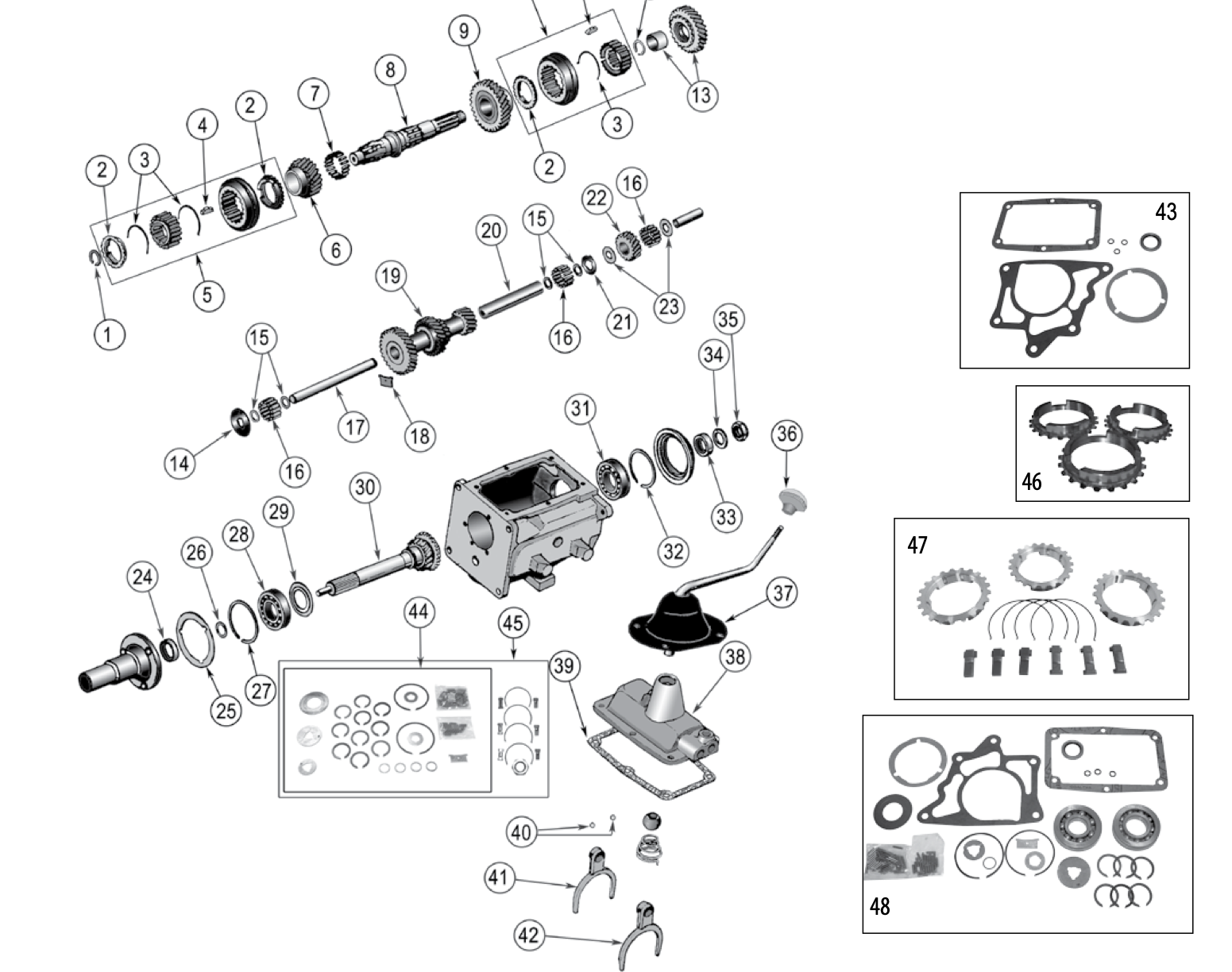

Borg-Warner T14 3-speed transmission. Numbered callouts match the table below.

Item numbers match the diagram. Each part number searches Amazon for that Crown part.

Item #DescriptionCommentsPart No.
1 Snap Ring, Synchronizer



 		 .118" Thick
.121" Thick
.124" Thick
.127" Thick
.130" Thick		 J0991022
J0991023
J3186262
J3186263
J0991066
2 Blocking Ring, Synchronizer 1st, 2nd, and 3rd Gear J0991020
3 Spring, Synchronizer 1st, 2nd, and 3rd Gear J3193236
4 Plate, Synchronizer 1st, 2nd, and 3rd Gear J3192412
5 Synchronizer Assembly - 2nd and 3rd
 		 All Except Tag # AS9-T14A, 13-02-047
Tag # AS9-T14A, 13-02-047		 J0948991
J0991014
6 Gear, 2nd Speed
 		 V6-225 Engine; S21-L26 Teeth
3.8L (6-232) and 4.2L (6-258) Engines; S21-L27 Teeth		 J0991018*
J8124644
7 Roller Bearing, Mainshaft Pilot 21 Required J3208152
8 Mainshaft 10-7/8" Long; S10-10-10 Splines J0991012
9 Gear, 1st S21-L30 Teeth J0991026
10 Synchronizer Assembly - 1st and Reverse   J0948992
11 Plate, Synchronizer 1st Gear J3192428
12 Snap Ring, 1st and Reverse Synchronizer




 		 .098" Thick
.118" Thick
.121" Thick
.124" Thick
.127" Thick
.130" Thick		 932111
J0991022
J0991023
J3186262
J3186263
J0991066
13 Gear, Reverse S21-R28 Teeth J0991037*
14 Thrust Washer, Countershaft Front J3113840
15 Washer, Countershaft Roller Bearing 4 Required J3219632
16 Roller Bearing, Countershaft 60 Required J8132403
17 Countershaft   J3192435
18 Plate, Reverse Idler Shaft and Countershaft Lock   J3192369
19 Gear, Cluster R31-25-15-14 Teeth; Use w/ 2nd Speed Gear w/ S21-L26 Teeth; V6-225 Engine J0991043
20 Spacer, Countershaft Roller Bearing   J0991045
21 Thrust Washer, Countershaft Rear J3192365
22 Gear, Reverse Idler L16 Teeth J3192429
23 Washer, Reverse Idler Gear Roller Bearing 2 Required J3192427
24 Seal, Input   83300041
25 Gasket, Front Bearing Retainer   J0991062
26 Snap Ring, Front Bearing Retainer



 		 .118" Thick
.121" Thick
.124" Thick
.127" Thick
.130" Thick		 J0991022
J0991023
J3186262
J3186263
J0991066
27 Snap Ring, Input Shaft Bearing   640782
28 Bearing, Input Shaft   J3184013
29 Washer, Front Bearing Retainer   J3193968
30 Shaft, Input
 		 11-1/2" Long; S21-L20 Teeth; V6-225 Engine
10-1/2" Long; S20-L20 Teeth; 3.8L (6-232) and 4.2L (6-258) Engines		 J0991058
J0991059
31 Bearing, Mainshaft Rear J0992289
32 Snap Ring, Rear Mainshaft Bearing   J0991077
33 Spacer, Rear Mainshaft Bearing   J0991079
34 Washer, Mainshaft Nut   JA001410
35 Nut, Mainshaft   J8126806
36 Shift Knob Threaded J0929393
37 Shift Boot CJ-5, 7 J0948185
38 Cover, Transmission Case w/ Tag #: AS7-T14-A, AS11-T14A, 13-02-006, 13-02-007, 13-02-008, 13-02-046, 13-02-047 J0991081*
39 Cover Gasket   J0991089
40 Ball, Poppet 5/16" Diameter 453593
41 Fork, Shift, 2nd and 3rd
 		 w/o Tag #s: AS1-T14A, 13-02-008, 13-02-014
w/ Tag #s: AS1-T14A, 13-02-008, 13-02-014		 J3192407
J0948990
42 Fork, Shift, 1st and Reverse
 		 w/o Tag #s: AS1-T14A, 13-02-008, 13-02-014
w/ Tag #s: AS1-T14A, 13-02-008, 13-02-014		 J3192407
J0948990
43 Gasket and Seal Set Includes All Seals and Gaskets J0991198
44 Small Parts Kit Includes Snap Rings, Retainers, Washers, and Roller Bearings T14A
45 Small Parts Master Kit Includes T14A Plus Mainshaft Nut, Synchronizer Plates and Springs T14AMK
46 Blocking Ring Set, Synchronizer Includes 3 Blocking Rings J3209971
47 Synchronizer Repair Kit Includes 3 Blocking Rings, 6 Keys and 4 Springs 991020X
48 Installation Kit, Transmission Includes T14A Plus Input and Mainshaft Bearings T14BSG

* Not Currently Available
