Model T15

Borg-Warner 3-Speed Transmission

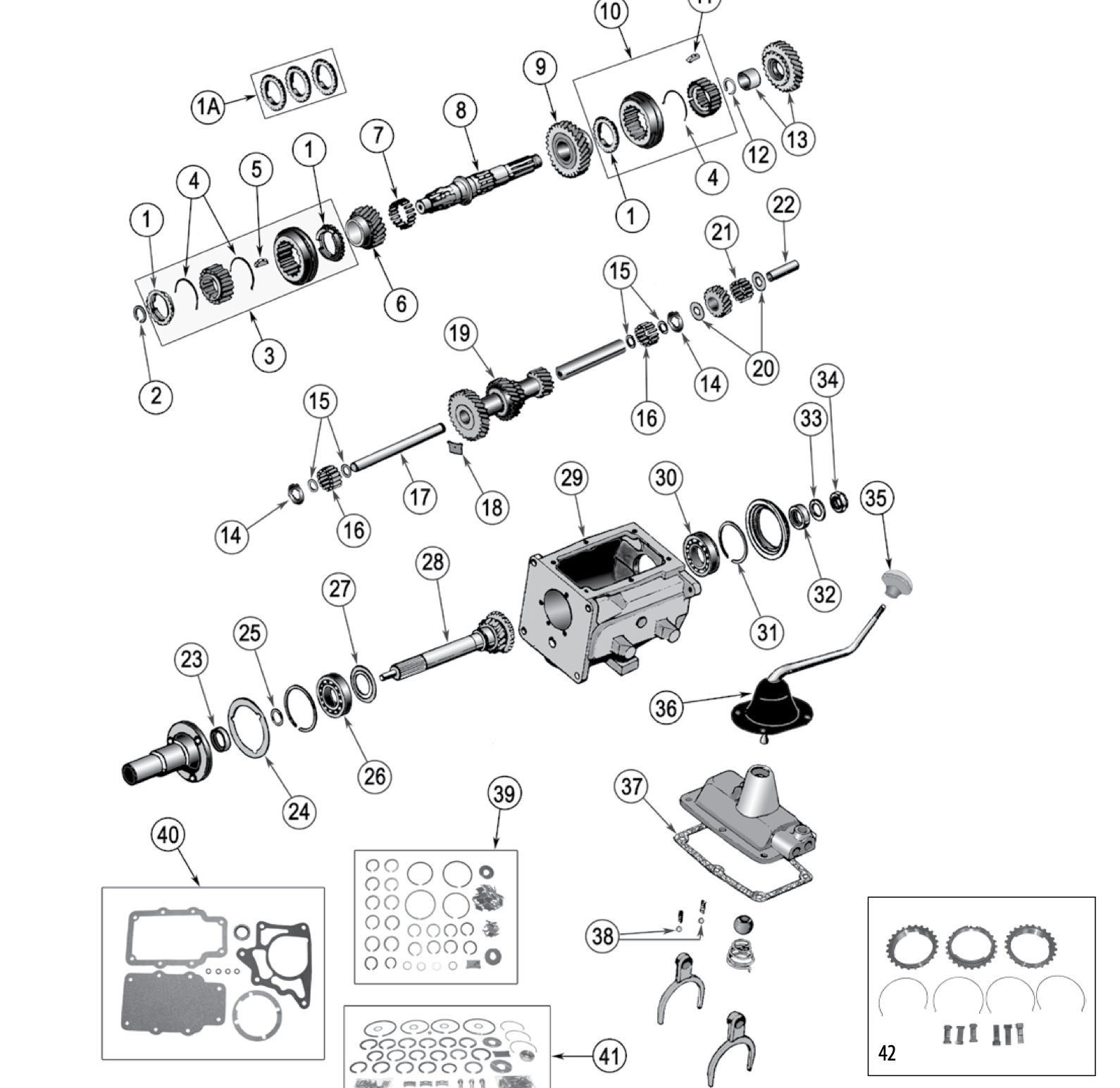

Item numbers match the diagram. Each part number searches Amazon for that Crown part.

Item #	Description	Comments	Part No.
1	Blocking Ring, Synchronizer	1st, 2nd, and 3rd Gear	J0991021
1A	Blocking Ring, Set, Synchronizer	Set of 3	J3209972
2	Snap Ring, 2nd and 3rd Gear Synchronizer	.118" Thick .121" Thick .124" Thick .127" Thick .130" Thick	J0991022 J0991023 J3186262 J3186263 J0991066
3	Synchronizer Assembly, 2nd and 3rd Gear		J0991014
4	Spring, Synchronizer	1st, 2nd and 3rd Gear; 3 Required	J0991017
5	Plate, Synchronizer	2nd and 3rd Gear; 3 Required	J3192412
6	Gear, 2nd	S24-L26 Teeth	J0991019*
7	Roller Bearing, Mainshaft	21 Required	J3208152
8	Mainshaft		J0991013
9	Gear, 1st	S24-L29 Teeth	J0991027
10	Synchronizer Assembly, 1st and Reverse		83300035*
11	Plate, Synchronizer	1st and Reverse; 3 Required	J3192434
12	Snap Ring, Synchronizer	.125" Thick	J0991030
13	Gear, Reverse	S24-R29 Teeth	J0991038*
14	Thrust Washer, Countershaft	Front or Rear	J0941662
15	Washer, Countershaft Roller Bearing	4 Required	J3112993
16	Roller Bearing, Countershaft	44 Required	J4485673
17	Countershaft		J3192422*
18	Plate, Reverse Idler Shaft and Countershaft Lock		J3192372
19	Gear, Countershaft Cluster	R31-22-15-15 Teeth	J0991044*
20	Washer, Reverse Idler Gear Roller Bearing		J0944334
21	Roller Bearing, Reverse Idler Gear	22 Required	J4485673
22	Shaft, Reverse Idler Gear		J0991051
23	Seal, Input		83300041
24	Gasket, Front Bearing Retainer		J3192431
25	Snap Ring, Front Bearing Retainer	.118" Thick .127" Thick	J3192351 J0991070
26	Bearing, Input Shaft		J4488141
27	Washer, Front Bearing Retainer		J0640893
28	Shaft, Input	w/ Tag #s AS5-T15A, 13-07-005, 13-07-011, 13-07, 012, 13-07-045, 13-07-046; S20 - L20 Teeth; 10-15/16" Long	J0991061*
29	Case, Transmission	w/ Tag # AS1-T15A	J0991009*
30	Bearing, Mainshaft	Rear	J0991076
31	Snap Ring, Rear Mainshaft Bearing		J8132430
32	Spacer, Mainshaft Bearing		J0991080
33	Washer, Mainshaft Nut		JA001410
34	Nut, Mainshaft		J8126806
35	Knob, Shifter		J0929393
36	Boot, Shifter	CJ-5, 7	J0948185
37	Gasket, Transmission Cover	w/ Floor Mounted Shifter w/ Column Mounted Shifter	J0991090 J0991200
38	Ball, Poppet		453593
39	Small Parts Kit	Includes Snap Rings, Retainers, Washers, and Roller Bearings	T15A
40	Gasket and Oil Seal Set	Includes All Seals and Gaskets	J0991199
41	Small Parts Master Kit	Includes T14A Plus Mainshaft Nut, Synchronizer Plates, and Springs	T15AMK
42	Synchronizer Repair Kit	Includes 3 Blocking Rings, 4 Springs and 6 Keys	991021X

* Not Currently Available
