Model T150

Tremec 3-Speed Transmission

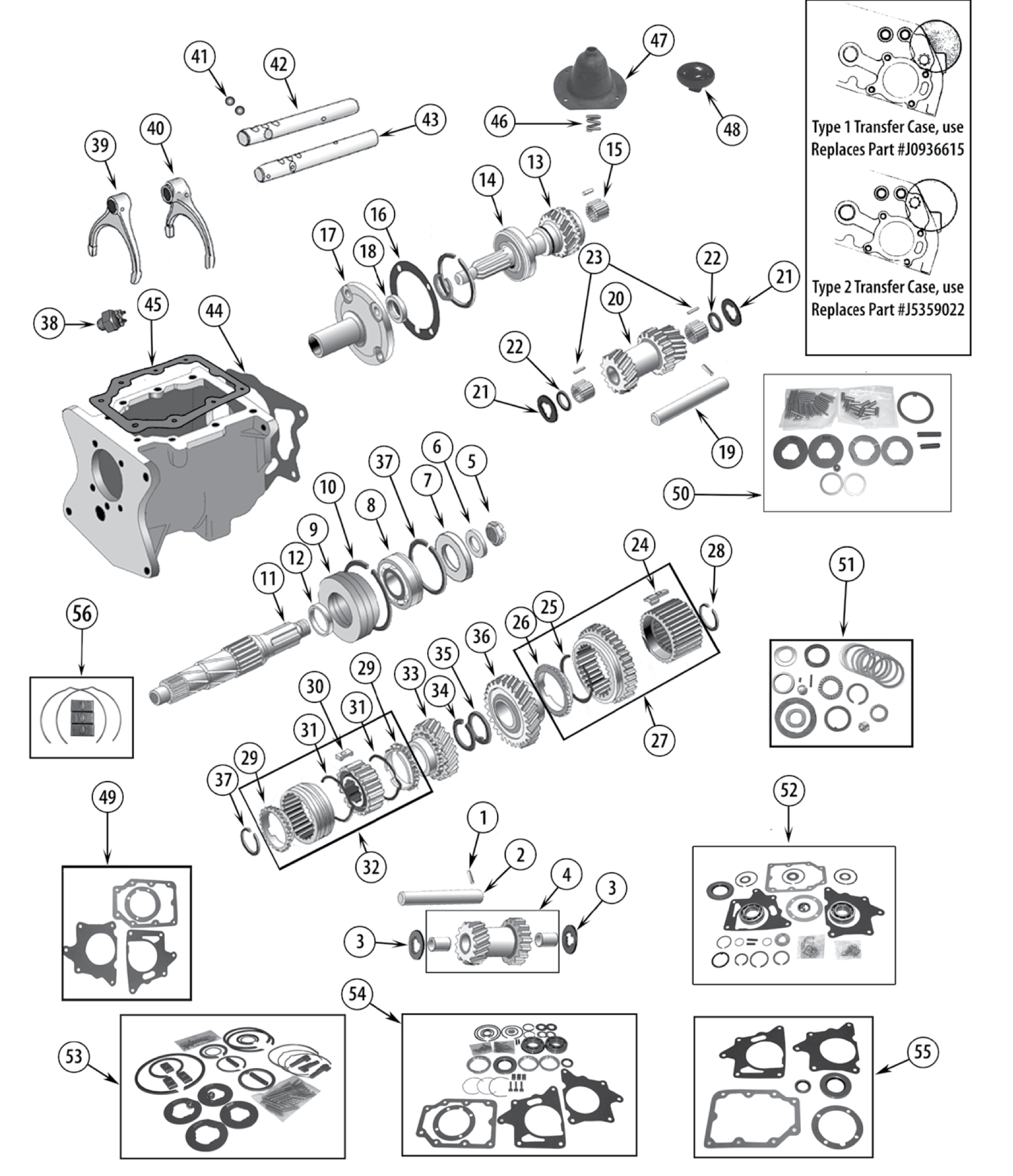

Item numbers match the diagram. Each part number searches Amazon for that Crown part.

Item #	Description	Comments	Part No.
1	Pin, Reverse Idler Gear		J8124932
2	Shaft, Reverse Idler Gear		J8124912
3	Washer, Reverse Idler Gear	Front or Rear	J8124915
4	Gear, Reverse Idler	Includes Bushings	J8124913
5	Nut, Main Shaft		J8126806
6	Washer, Main Shaft		JA001410
7	Seal, Output		J5358980
8	Bearing, Main Shaft	Rear	J8136619
9	Adapter, Rear Bearing		J8129735
10	Snap Ring, Rear Bearing Adapter		J8126811
11	Main Shaft		J8126804
12	Spacer, Main Shaft		J8128880
13	Shaft, Input		J8126106
14	Bearing, Input Shaft		J8136643
15	Roller Bearing, Input Shaft	15 Required	J8127397
16	Gasket, Front Bearing Retainer		J8124853
17	Retainer, Front Bearing		J8124880
18	Seal, Input		83300041
19	Countershaft		J8136675
20	Cluster Gear		J8124907
21	Thrust Washer, Cluster Gear	Front or Rear	J8127432
22	Washer, Countershaft	Front or Rear	J8127429
23	Roller Bearing, Cluster Gear	50 Required	J8127430
24	Plate, Synchronizer	1st and Reverse; 3 Required	J8124904
25	Spring, Synchronizer	1st and Reverse; 1 Required	J8124905
26	Blocking Ring	1st and Reverse; 1 Required	83300046
27	Synchronizer Assembly	1st and Reverse	J8126234
28	Snap Ring, Main Shaft	Rear	J8124934
29	Blocking Ring Set	2nd and 3rd; Includes 2 Rings	J8124898
30	Plate, Synchronizer	2nd and 3rd; 3 Required	J8124895
31	Spring, Synchronizer	2nd and 3rd; 3 Required	J8124896
32	Synchronizer Assembly	2nd and 3rd	J8136631
33	Gear, 2nd	25 Teeth	J8124899
34	Snap Ring, Main Shaft	Between 1st and 2nd Gear	J8124935
35	Thrust Washer, Main Shaft	Between 1st and 2nd Gear	J8124936
36	Gear, 1st	32 Teeth	J8124902
37	Snap Ring, Main Shaft	Front	J8126813
38	Switch, Backup Light	Threaded Terminals	J5350061
39	Fork, Gear Shift	2nd and 3rd	J8126826
40	Fork, Gear Shift	1st and Reverse	J8126825
41	Ball, Shift		453593
42	Shift Rail	1st and Reverse	J8126823*
43	Shift Rail	2nd and 3rd	J8126824*
44	Gasket, Transmission to Transfer Case	w/ Type 1 Transfer Case w/ Type 2 Transfer Case	J0936615 J5359022
45	Gasket, Shift Cover		J8126814
46	Spring, Shift Lever		J8127059
47	Boot, Shifter		J0948185
48	Knob, Shifter		J0929393
49	Gasket Set	Includes #s 16, 44, 45	J8127215
50	Small Parts Kit	Includes #s 1, 3, 15, 21, 22, 23, 35, 41	J8124939
51	Small Parts Kit	Includes #s 1, 3, 10, 15, 21, 22, 23, 28, 34, 35, 37, 41	T150
52	Installation Kit	Includes #s 7, 8, 14, 18, 49, 50	T150-BSG
53	Small Parts Master Kit	Includes #s 24, 27, 31, 32, 51	T150-MK
54	Master Overhaul Kit	Includes #s 7, 8, 14, 18, 26, 29, 49, 53	T150-MASKIT
55	Gasket and Seal Kit	Includes #s 7, 8, 16, 18, 44, 45	T150-GS
56	Synchronizer Key and Spring Kit	Includes #s 30, 31	WT150K

* Not Currently Available
